YAMAHA PX-2

Uses a linear lever for its part of tonearm with excellent tracking... Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

IMG 4719

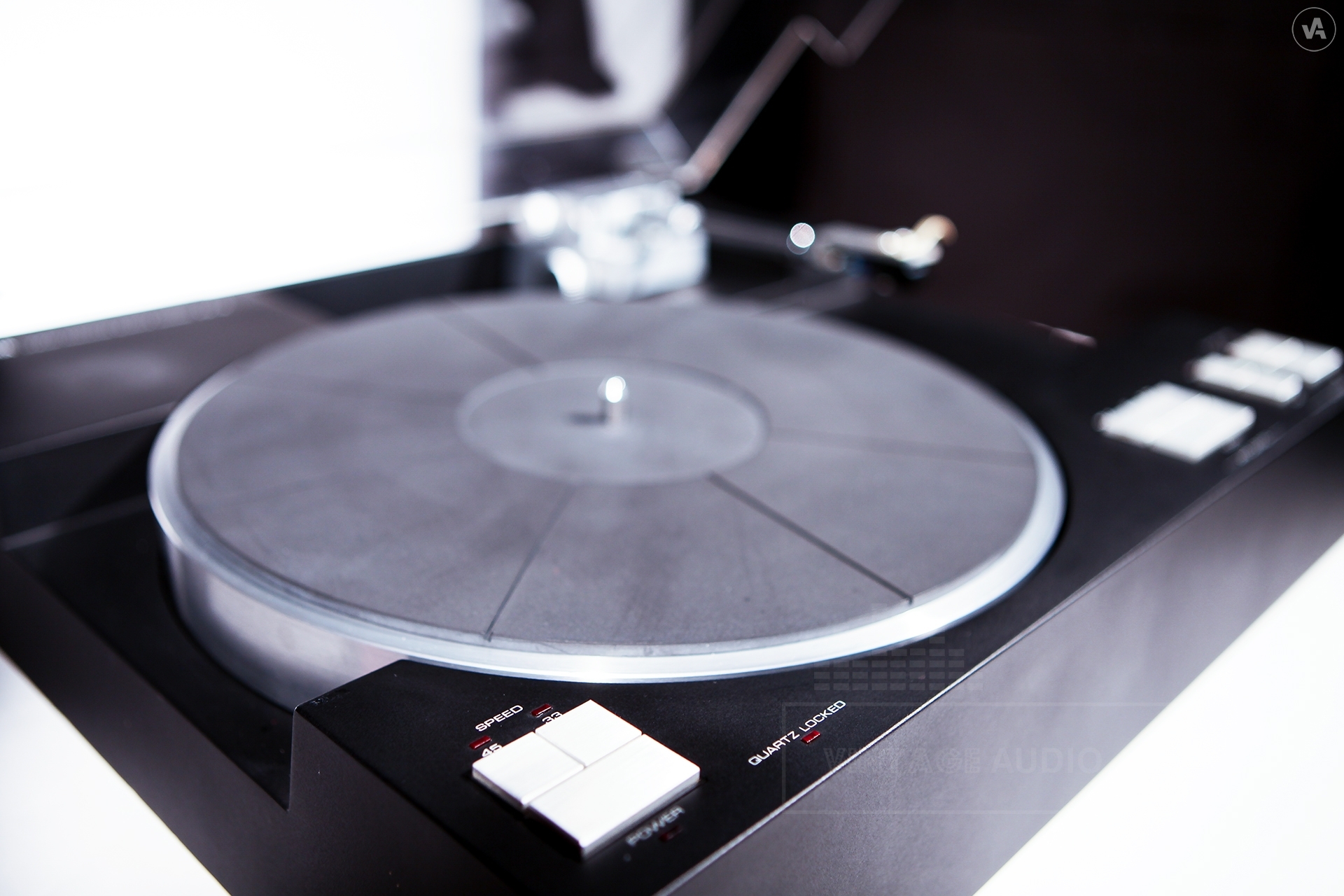

IMG 4656

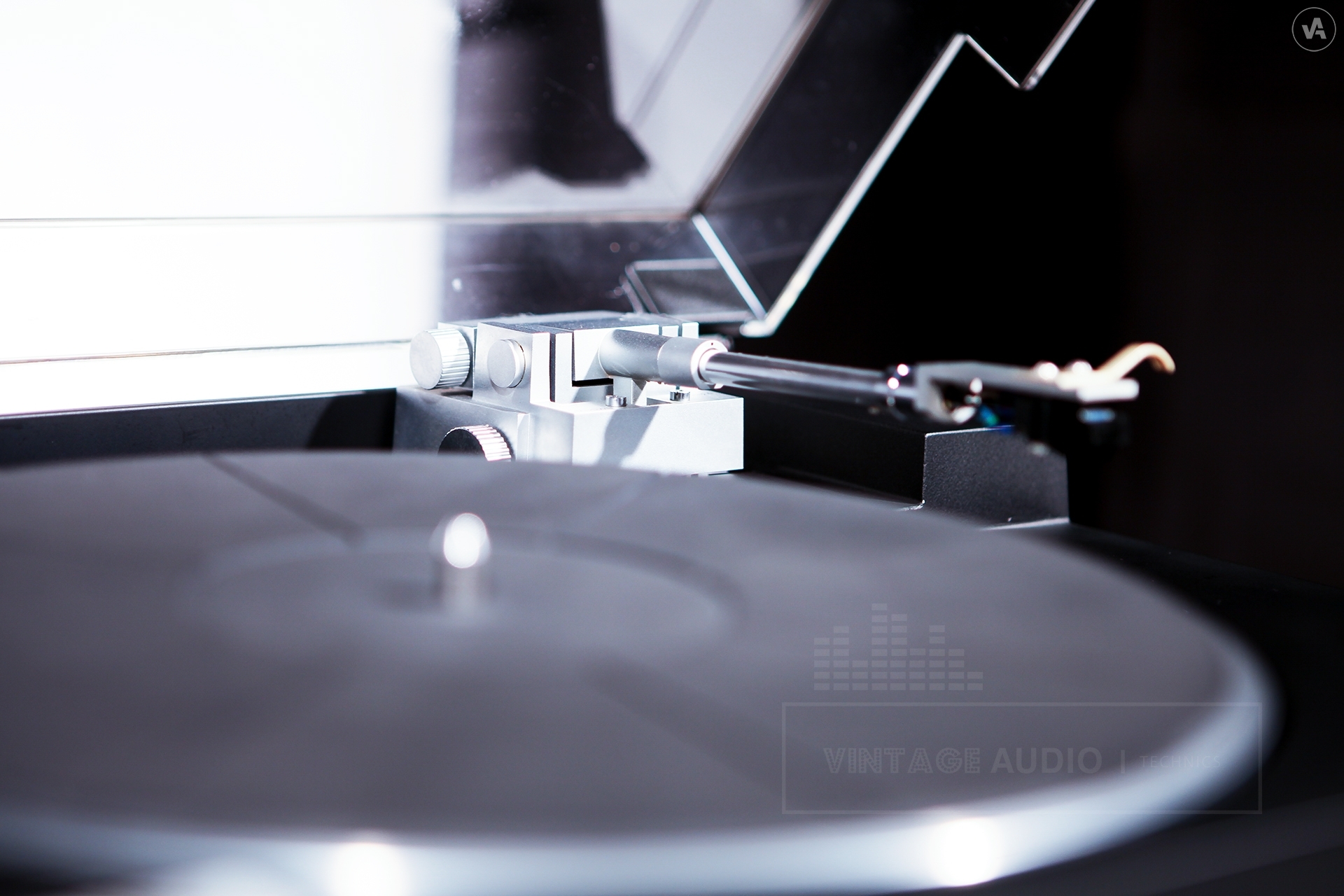

IMG 4667

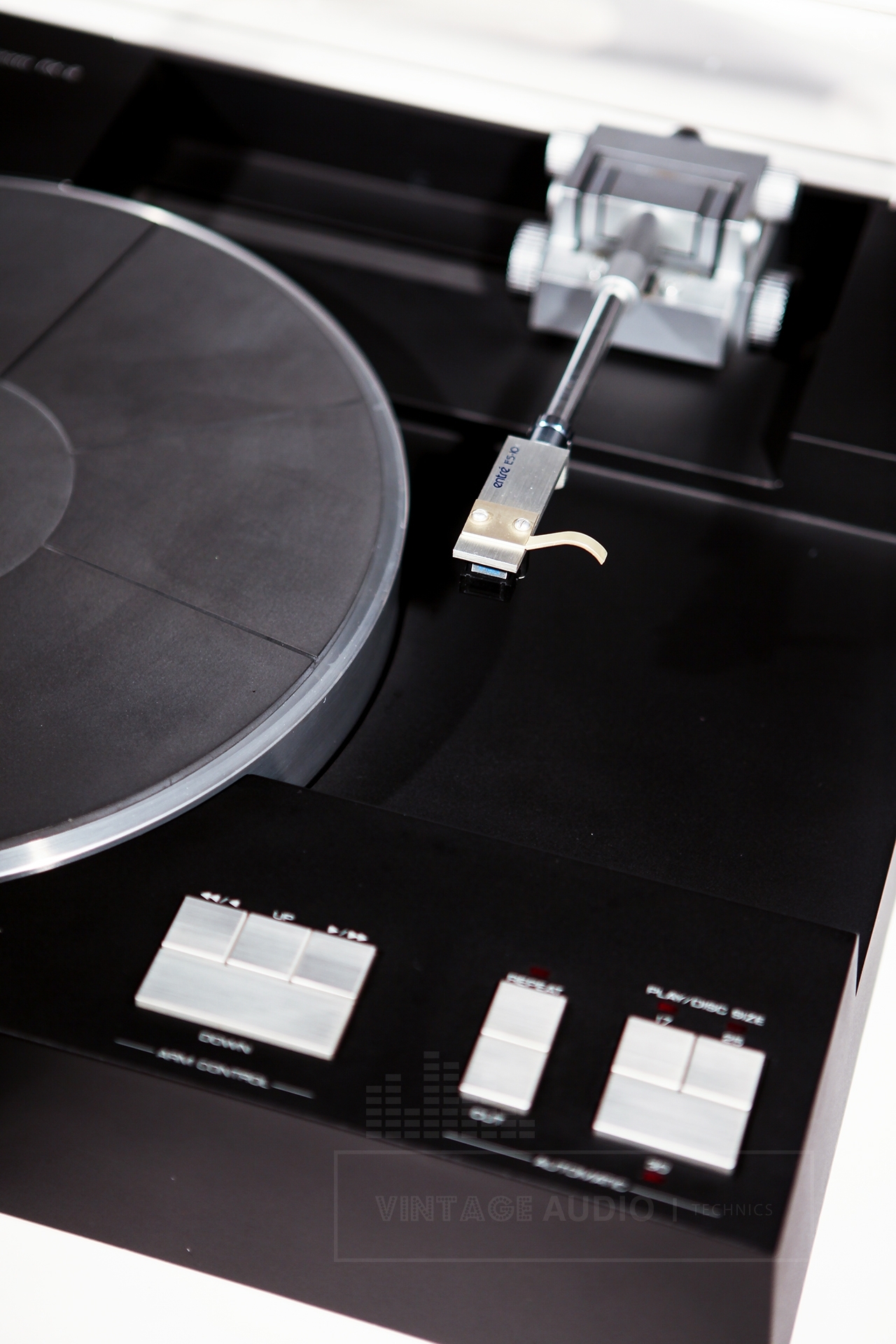

IMG 4691

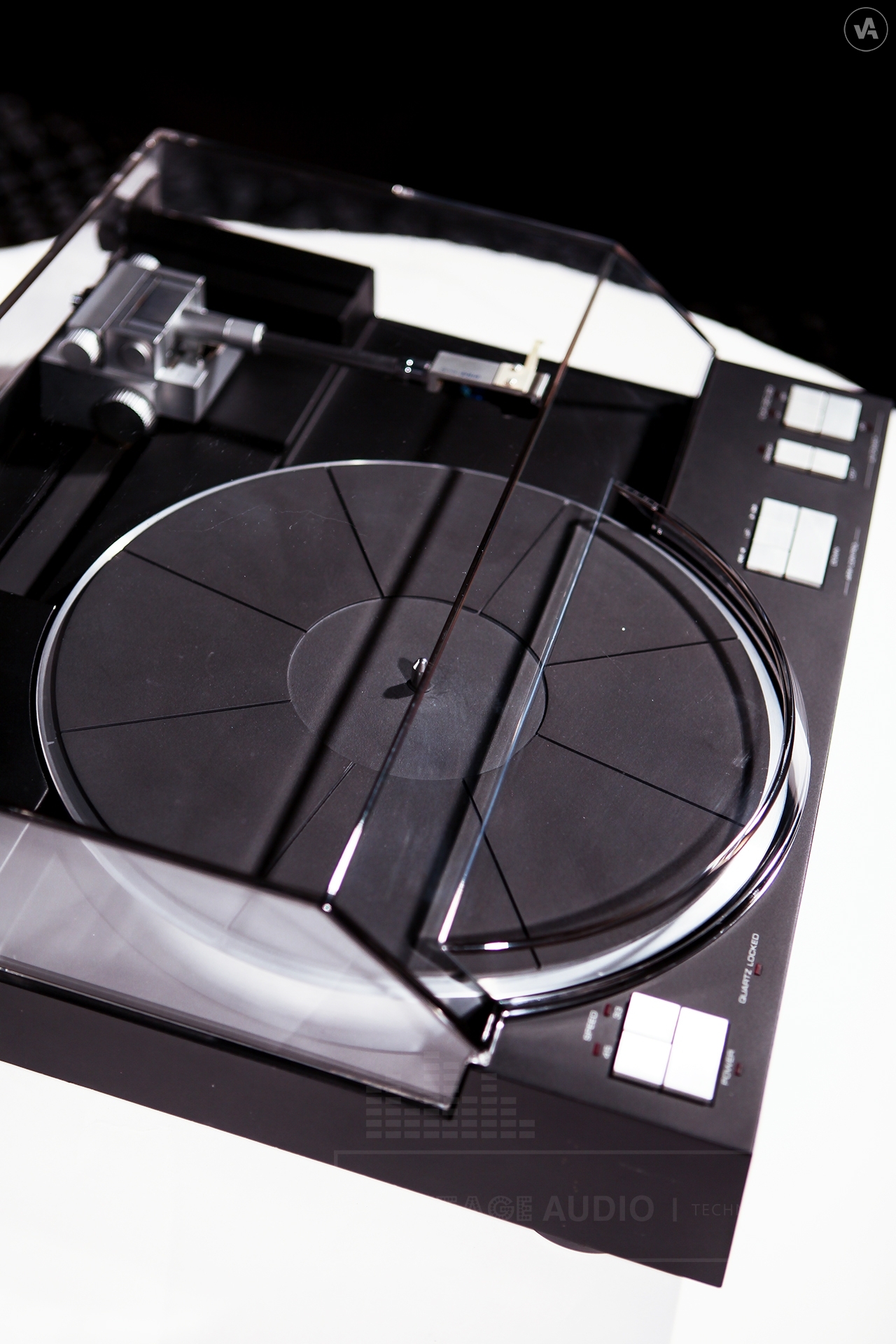

IMG 4717

Large tangential rotary table with a good sound. Produced in fairly significant quantities, In 1979, sold for 180,000 ¥. Yamaha PX-2 uses a linear tracking lever for its part of tonearm with excellent tracking ability. In addition, the dish is controlled by a 4-phase 8-pole painless choloid motor with an initial torque of at least 1 kg-cm. The PX-2 has easy-to-use, fully automatic control functions and is the best in playback systems.

Technic details

Specifications

Type:
2-Speed Turntable
Drive system:
Direct drive
Motor:
DC 4 phase 8 pole coreless hole motor
Servo control:
Quartz PLL, positive two-direction servo
Platter:
310mm die-cast aluminium, 2.1kg (including mat)
Moment of inertia:
270 kg/cm2 (including rubber sheet)
Starting torque:
1kg/cm or more
Speeds:
33 1/3 and 45rpm
Signal to noise ratio:
80dB
Tonearm:
Linear tracking
Total length / effective length:
236mm / 190mm
Needle pressure applying method:
Static balance type sliding weight type 0 to 2.5g (0.1g step)
Needle pressure ratio example type:
Needle pressure gauge 1.0g → 16.5g / 1.5g → 17.0g / 2.0g → 17.5g
(It does not include cartridge weight)
Applicable Cartridge weight range:
5g - 11g
Maximum tracking error:
± 0.15° (converted to tip deviation ± 0.5mm)
Arm lifter:
Oil dump queuing
Arm height adjustment:
± 4mm
Head shell:
Pure aluminum forging, 8.0g
Wow and flutter:
0.01% (WRMS)
Automatic:
Auto lead-in, auto return, repeat, auto-up (power off)
Disc size selector:
17, 25, 30cm
Manual:
Arm up / down, cut, 2 speed arm feed (right and left)
Power supply voltage:
AC 100V, 50 / 60Hz
Rated power consumption:
22W
Dimensions (W x H x D):
493 x 156 x 428mm
Weight:
17kg
