Type: | Direct drive turntable with quartz synthesizer pitch control |
Turntable platter: | Copper alloy and die-cast aluminum |
Diameter platter: | 32cm |
Weight platter: | 10kg |
Motor: | Quartz-phase-locked, ultra-low speed, brushless DC motor |
Rotational speed: | 33 1/3, 45, 78.26rpm |
Turntable speed fine adjustment: | Quartz locked, pitch adjustable in 0.1% steps up to ± 9.9% |
Starting torque: | 16kg • cm |
Start-up time: | 0.25 sec (33-1/3rpm) |
Braking time: | 0.3 sec (33-1/3rpm) |
Brake mechanism: | Electronic brake, mechanical brake |
Speed fluctuation due to load torque: | 0% within 10kg • cm |
Speed drift: | Within ± 0.001% |
Wow and flutter: | 0.015% WRMS (JIS C5521) |
Rumble: | 92 dB to DIN-B (IEC 98A weighted) 60 dB to DIN-A (IEC 98A not weighted) |
Tonearm: | EPA-100MK2 |
Type: | Universal Tonearm with Variable Dynamic Damping system |
Tubular tonearm: | Boron titanium |
Effective length: | 250mm |
Overall range: | 322 ~ 350mm |
Arm rear range: | 66.5 ~ 94.5mm |
Overhang: | 15mm |
Power: | AC 110 / 120 / 220 / 240V, 50 / 60Hz |
Power consumption: | 32.5W |
External dimensions (W x H x D): | 561 x 175 x 466mm |

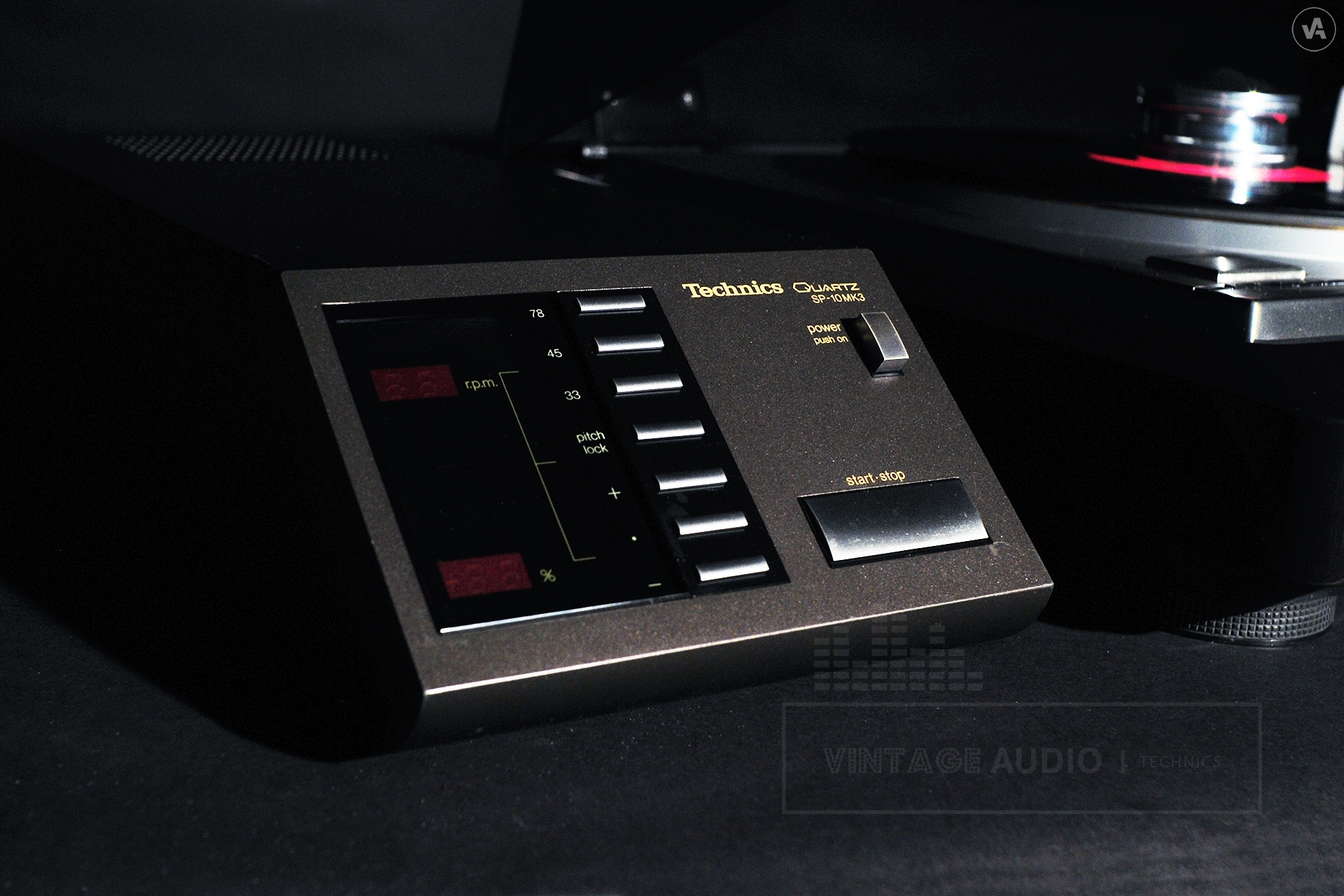

Control unit (W x H x D): | 166 x 96 x 410mm |
Total weight: | 44kg |
Year: | 1972 |
