Quartz PLL DC, brushless, slotless, coreless, super linear torque
Speeds:
33-1/3 and 45rpm
Pitch control:
PLL synthesizer,+-9.9% in 0.1% steps, digital display

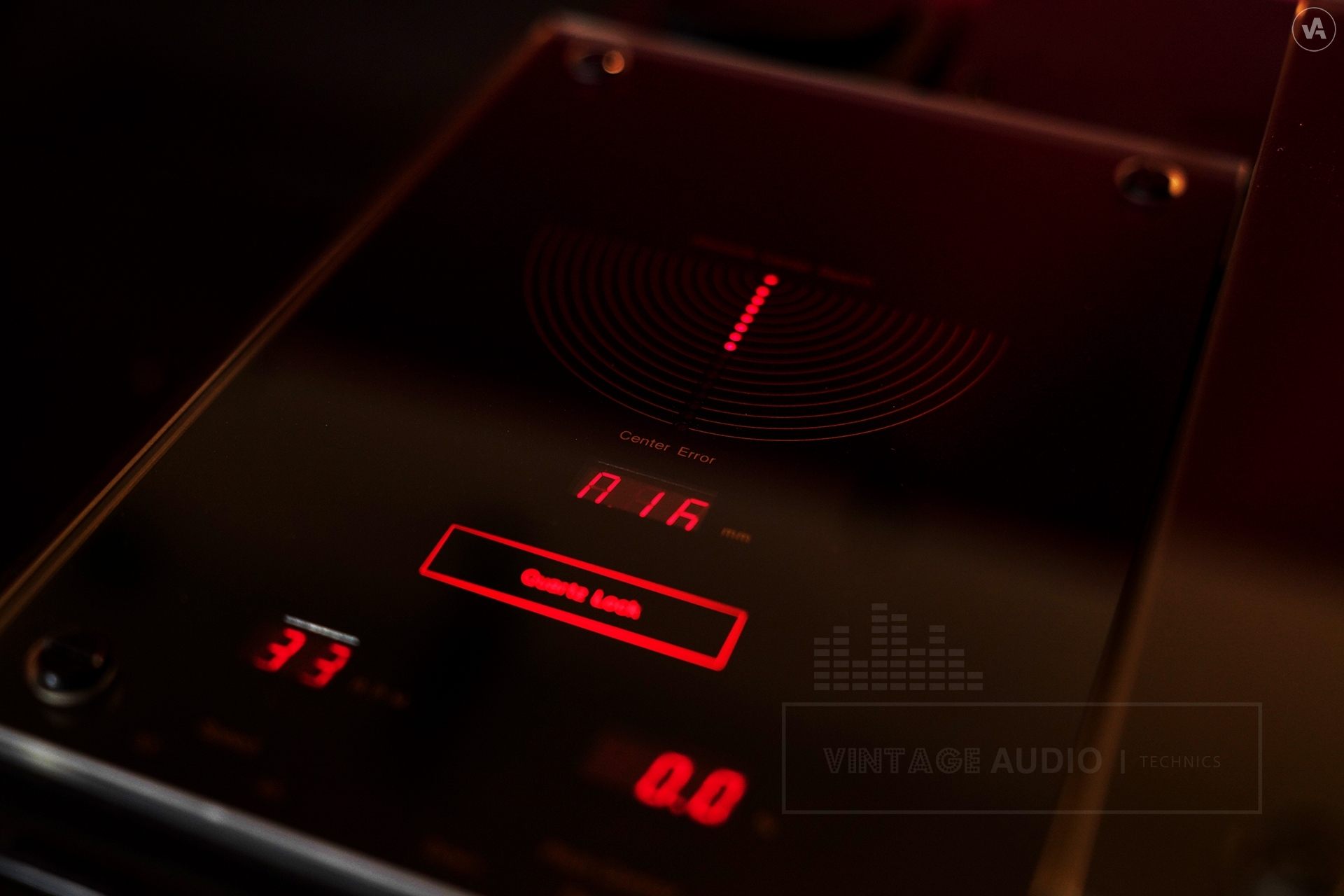

[Centre platter search]
Thick:
6mm
Diameter:
290mm
Material:
Metallized glass
Weight:
1kg
[Main platter]
Thick:
31.5mm
Diameter:
300mm
Material:
Aluminium
Weight:
3.8kg
Start-Up Time:
Within ¾ revolution
Speed Deviation:
Unmeasurable
Speed Drift:
Unmeasurable
Wow and flutter:
0.003%
Signal to noise ratio:
Better than 78dB
Inertia Moment:
600kg*cm2
Power Supply:

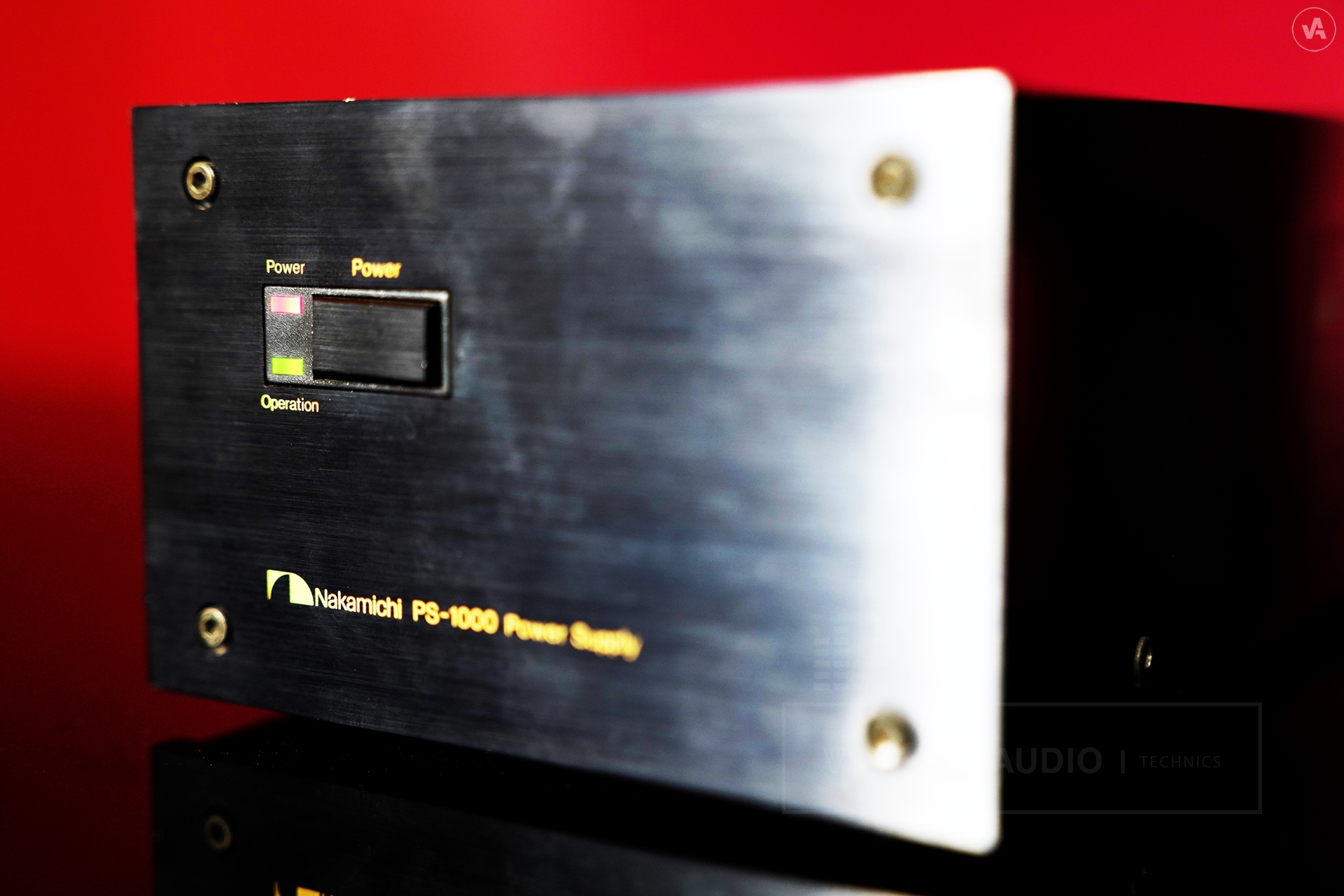

PS-1000 (Independent Power Supply)
Power Requirements:
AC 100, 120, 120/220-240, 220 or 240V, 50/60Hz (According to country of sale)
Power Consumption:
100W
Dimensions (W x H x D):
125 x 85 x 325mm
Approximate Weight:
5kg
Dimensions (W x H x D):
680 x 208 x 515mm
Weight:
40kg
Year:
1985
