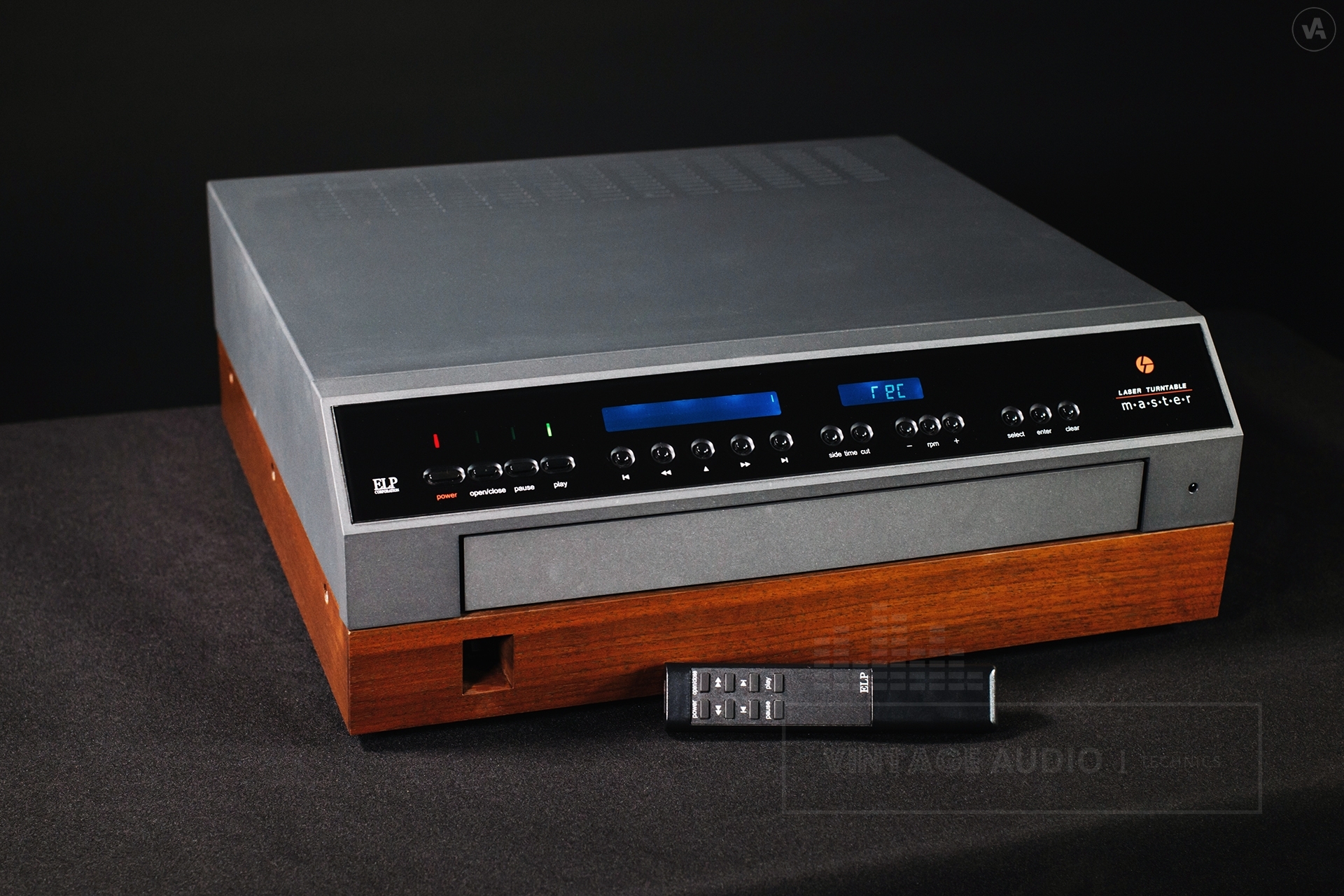

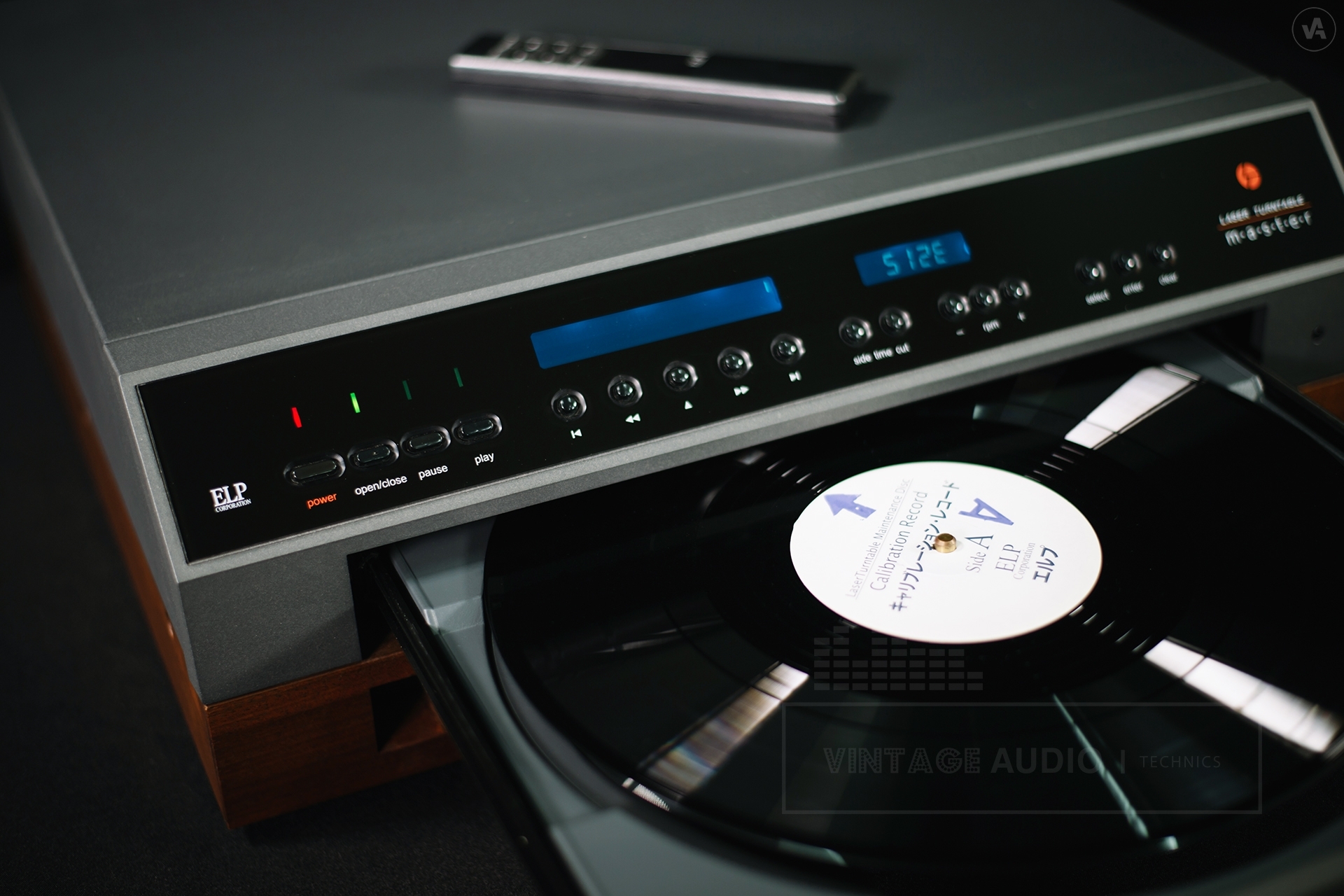

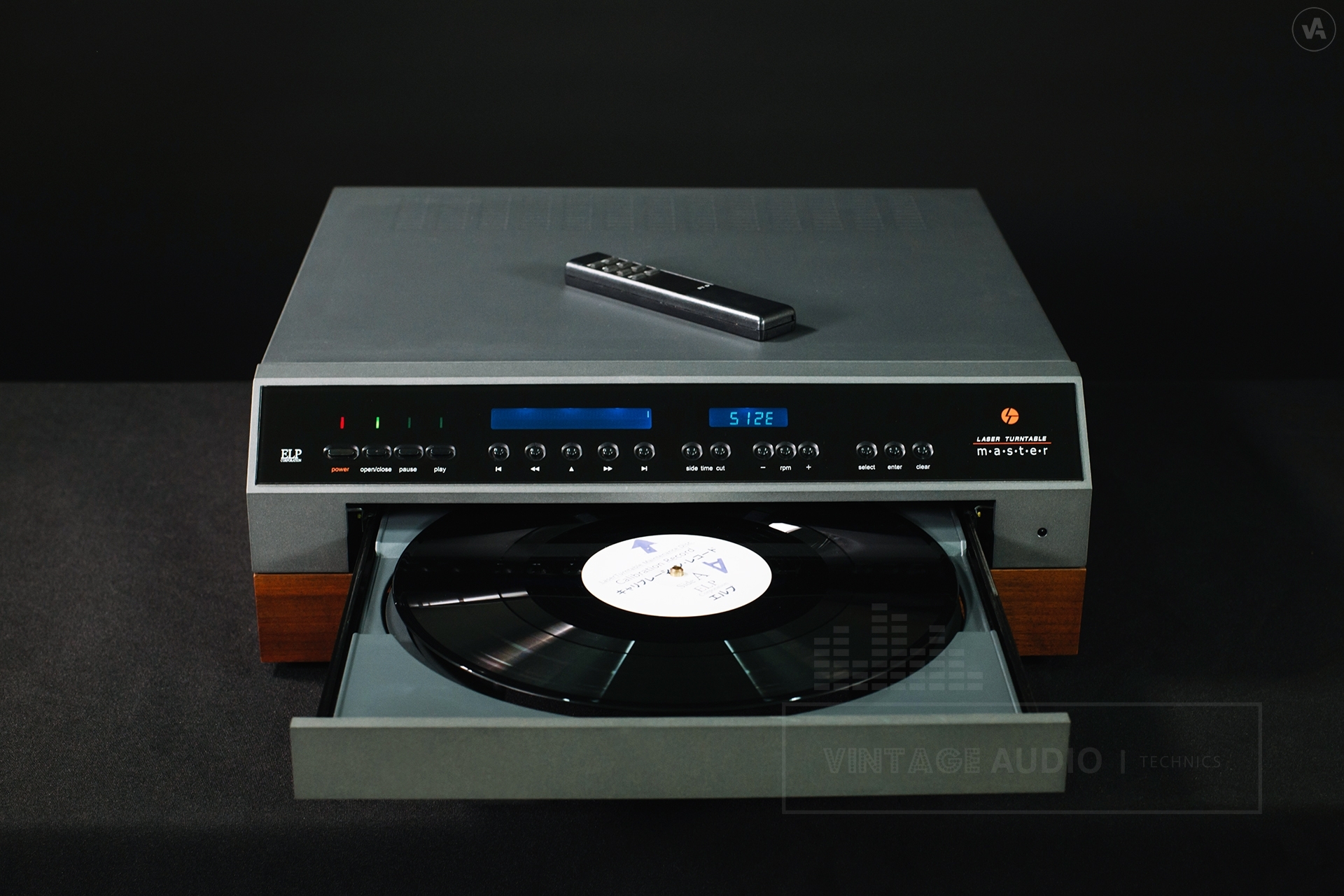

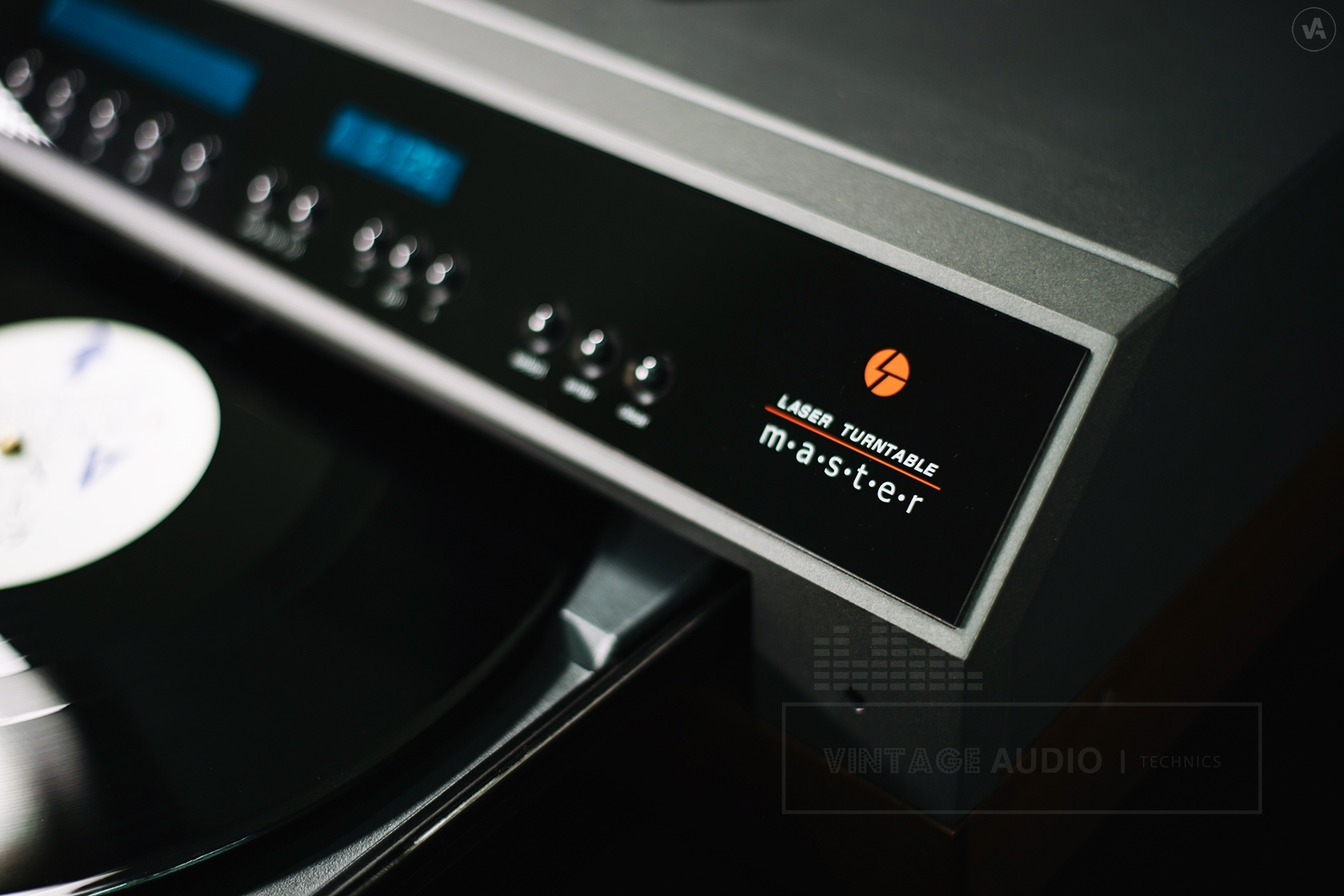

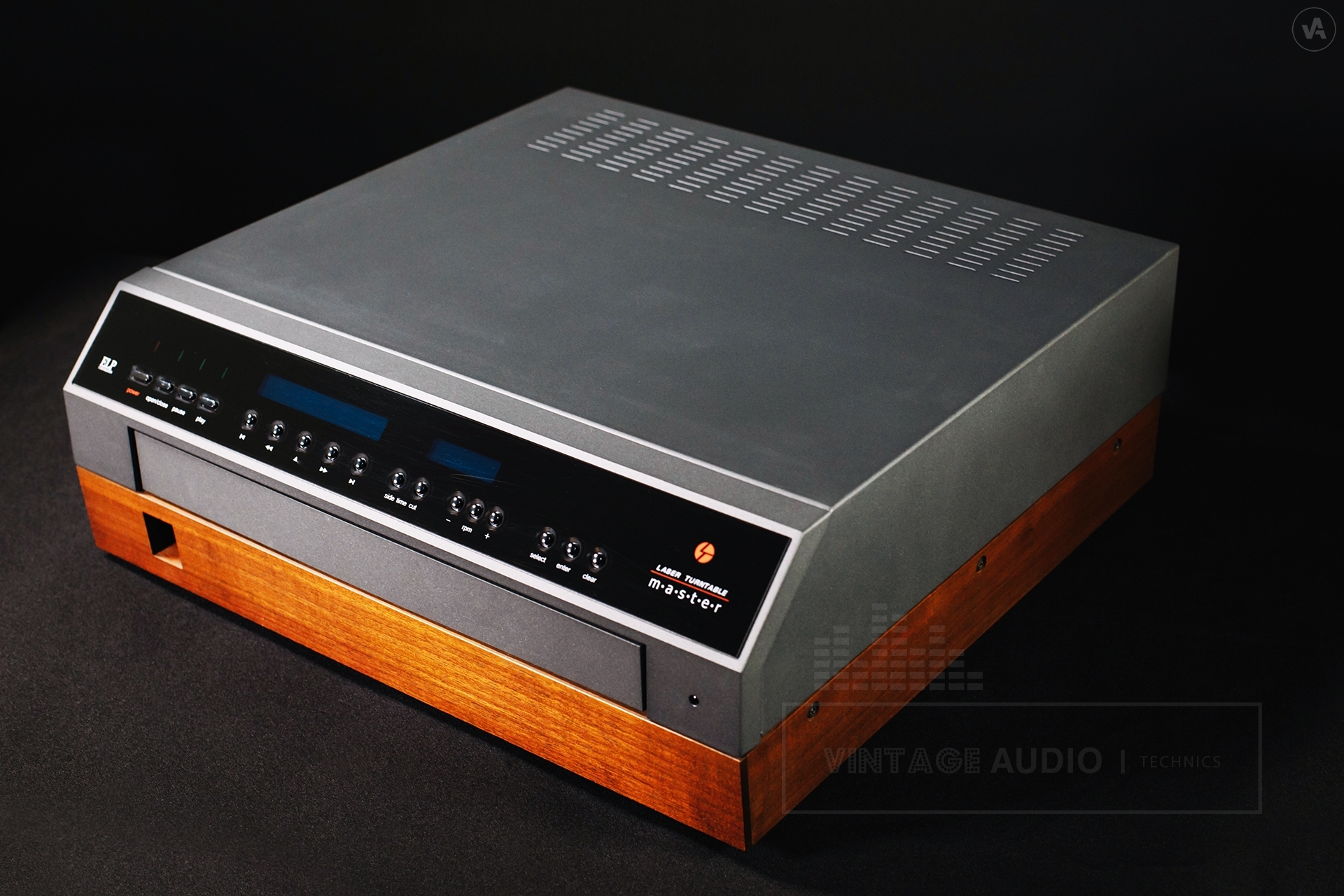

ELP Model LT-M II
Type: | Laser Turntable |
System: | Contact Free, 5 Beams Optical Record Player |
Drive System: | Computer Controlled Belt-Drive system |
Revolution: | 30 to 50rpm |
Speed Control: | 0.1rpm steps 60 to 90rpm 0.2rpm steps |
Record Size: | 7”, 8”, 9”, 10”, 11”, 12” LP, 45, 78 |
[Function] | Drawer system (Open/Close) Play: Automatic Read-In, Read-Out, Programming (Max. 15 Music), Forward and back scan (2 speed), Forward and back search Pause: Cueing (Muting) Display: Total, Elapsed, Remaining time, Record size, Revolution Record Type: Black Records Remote Controller Functions: Power On/Off, Open/Close a Tray, Play, Pause, Quick Forward, Quick Backward Skip (back and forward) |
Frequency response: | 10Hz to 25kHz 20Hz to 20kHz, +-3dB (LP Record) |
Channel Separation: | >25 dB (20Hz to 20kHz, DIN 45 543 Test Record) |
Output: | STANDARD: LINE output, 600mV, 5 cm / sec., 1kHz Lateral OPTIONAL: PHONO output, 4.8mV rms, 5 cm / sec., 1kHz Lateral OPTIONAL: XLR output, 680mV, 5 cm/sec., 1kHz Lateral |
Distortion: | <0.5% DIN45 543, 1kHz Ref. Level |
S / N Ratio: | >55dB (Weighted), Ref. Level |
Wow & Flutter: | <0.07% WRMS |
Output Terminal: | RCA pin jack (Standard) |
Included: | Calibration record Platter Adaptor for EP RCA cable (1.5m long) Owner's Guide Power cord |
Available Options: | 78RPM Wood Body Wood Stand Full-Size XLR with other output |
Power Supply: | AC 100V, 50 / 60Hz AC 120 / 220V or 240V, 50 / 60Hz (Available) |
Power Consumption: | 60W (Max.) |
Dimensions (W x H x D): | 470 x 170 x 480mm |
Weight: | 19kg |
