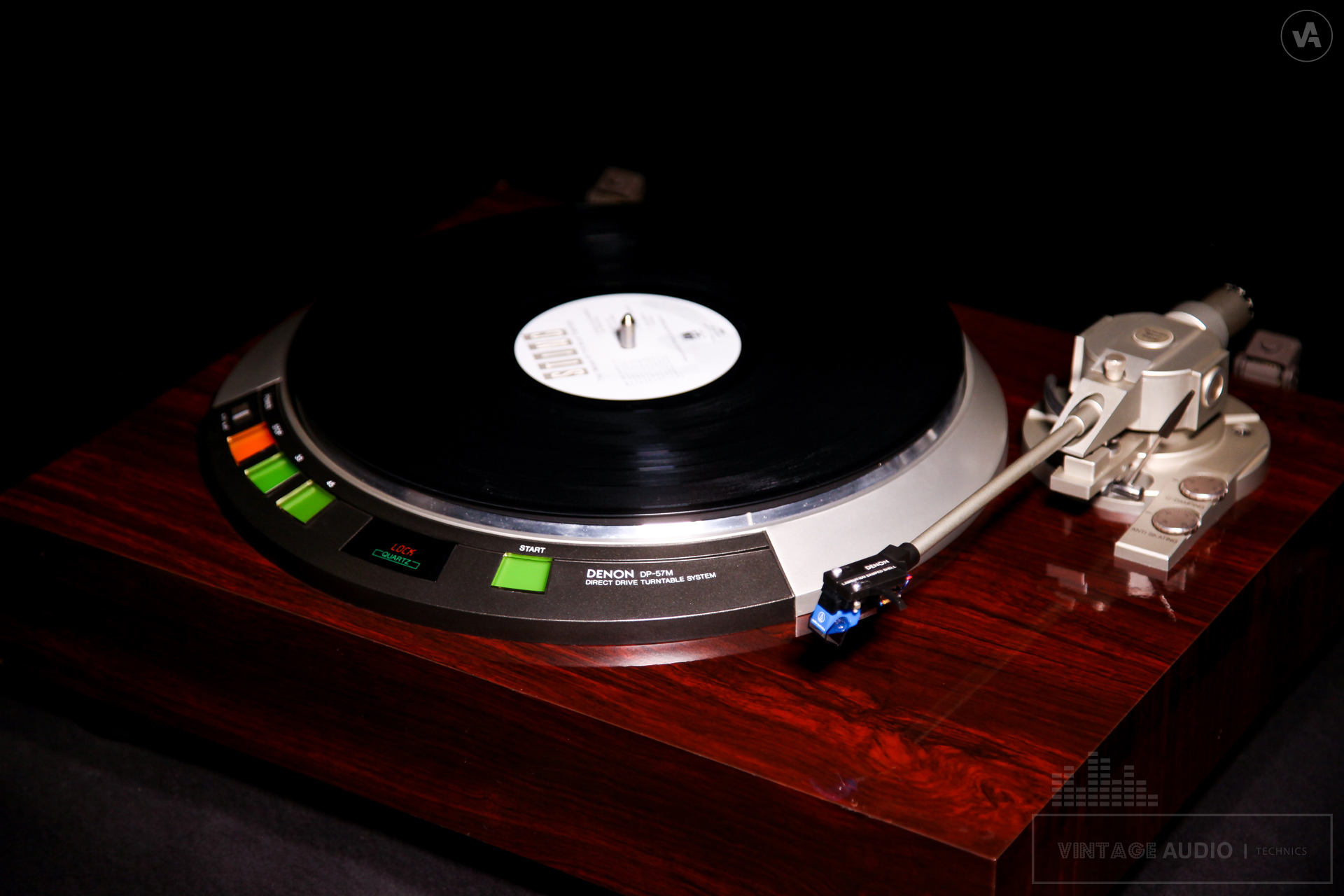

Type: | 2-Speed Turntable Player |
Drive system: | Bidirectional servo • direct drive motor |
Out rotor type: | AC servomotor |
Speed control method: | Speed servo and phase servo by frequency detection |
Rotation speed: | 33 1⁄3, 45rpm |
Rotational speed deviation: | Within 0.002% |

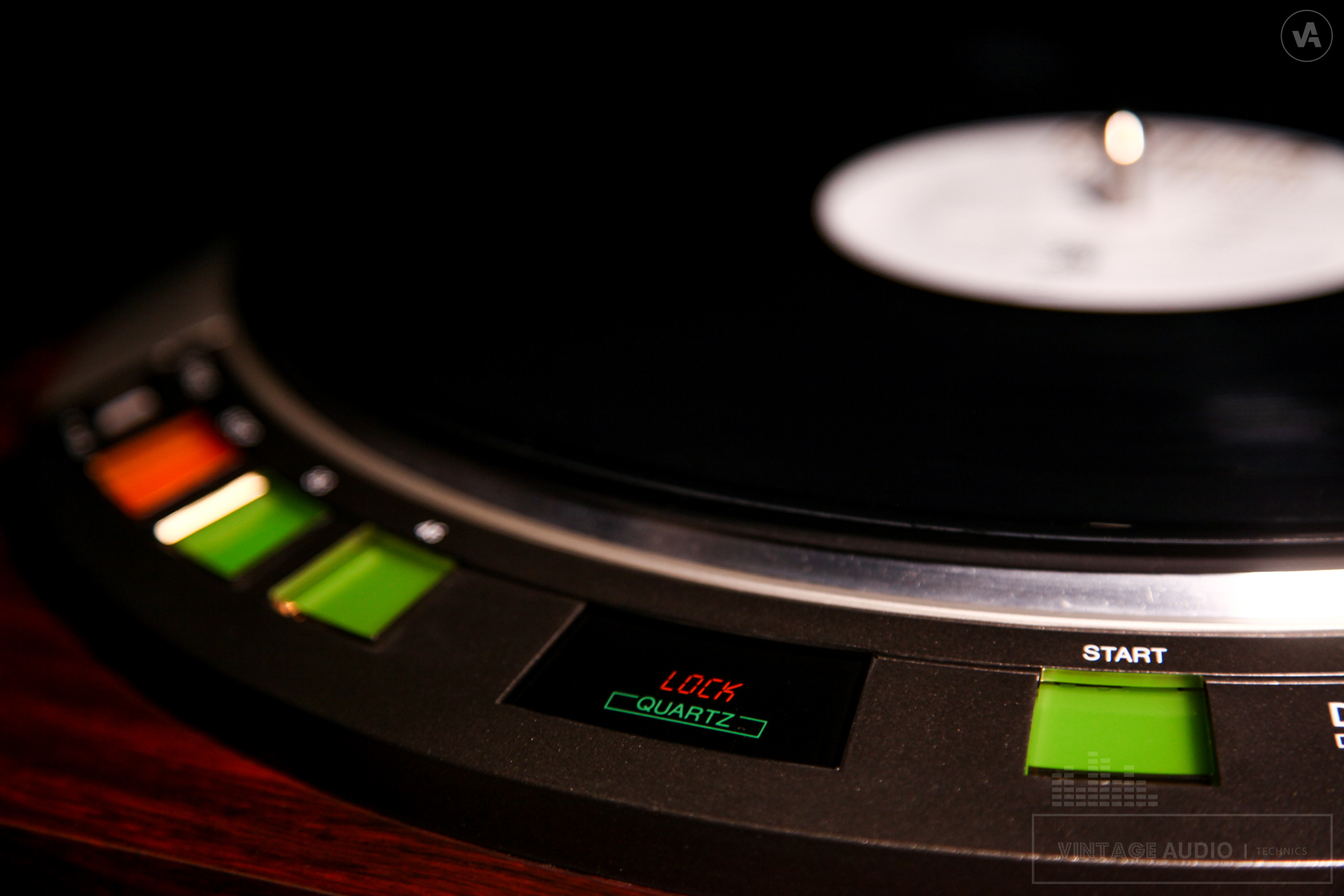

Speed switching mechanism: | Soft touch • push button |
Wow flutter: | 0.009% W.rms (rotating system) 0.02% W. rms (JIS) |
S / N ratio: | 82dB or more (DIN - B) |
Start-up time: | Specified rotation within 1.8 seconds (33 1⁄3 r.p.m. hour) |
Load characteristic: | 0% (stylus pressure 150g outermost circumference) |
Brake: | Electronic brake |
Power supply voltage characteristics: | 0% for a variation of 90 to 110V |
Turntable: | Aluminum die-casting 30cm |

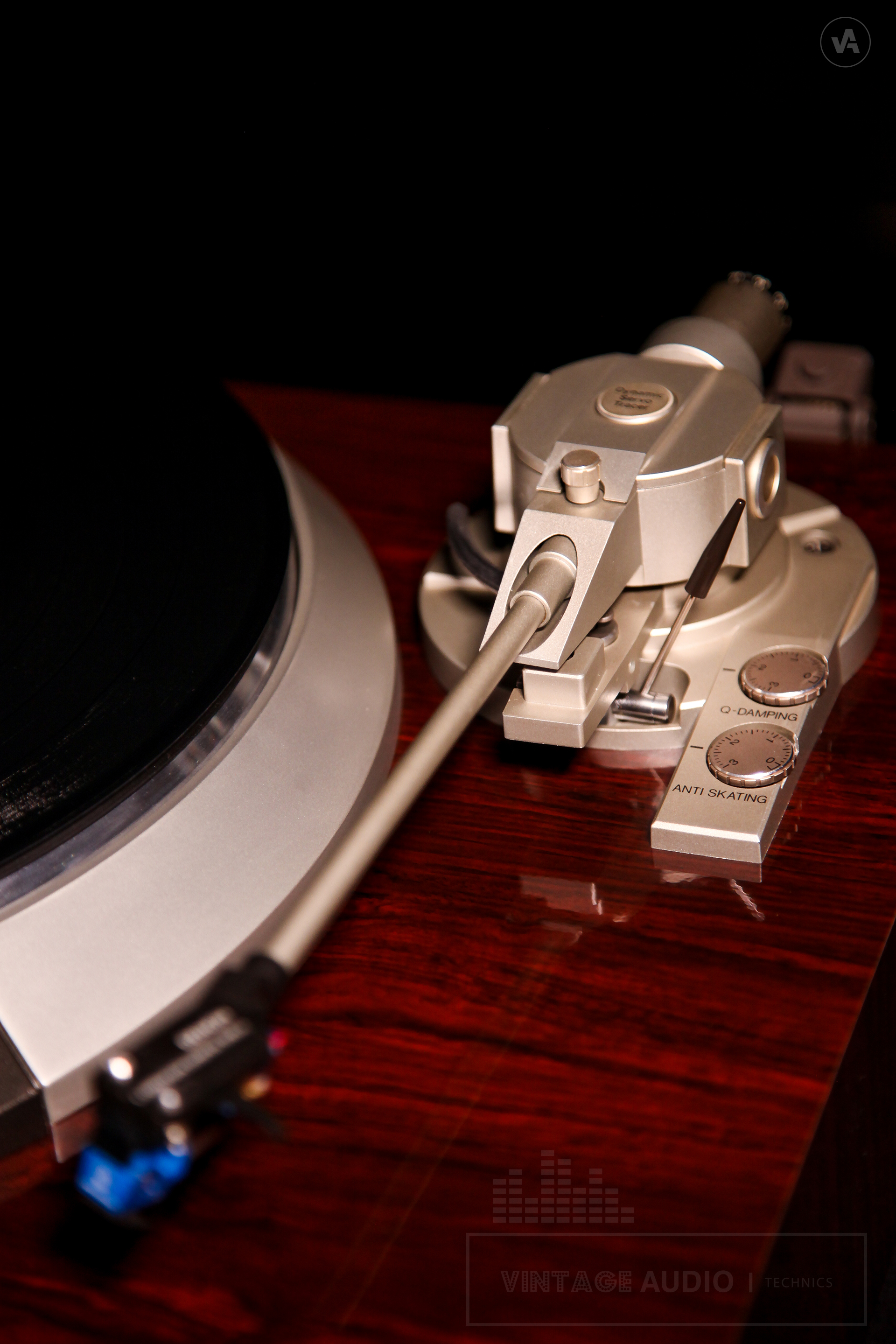

Tonearm: | Static balance • Electronically controlled straight type, pipe section exchangeable |
Effective length: | 244mm |
Overhang: | 14mm |
Tracking error: | Within 2.5° |
Stylus variable range: | 0 to 3g / 1 revolution (1 graduation 0.1g) |
Compatible cartridge self-weight: | For straight pipe - 4 to 15g (including shell etc) S shape pipe - 11 to 20g |
Arm height adjustment range: | About 5mm |
Power supply: | AC 100V 50/60Hz |
Power consumption: | 16W |
External dimensions (W x H x D): | 485 × 185 × 410mm (with the dust cover closed) |
Weight: Approximately: | 11.5 kg |
Year: | 1982 |
