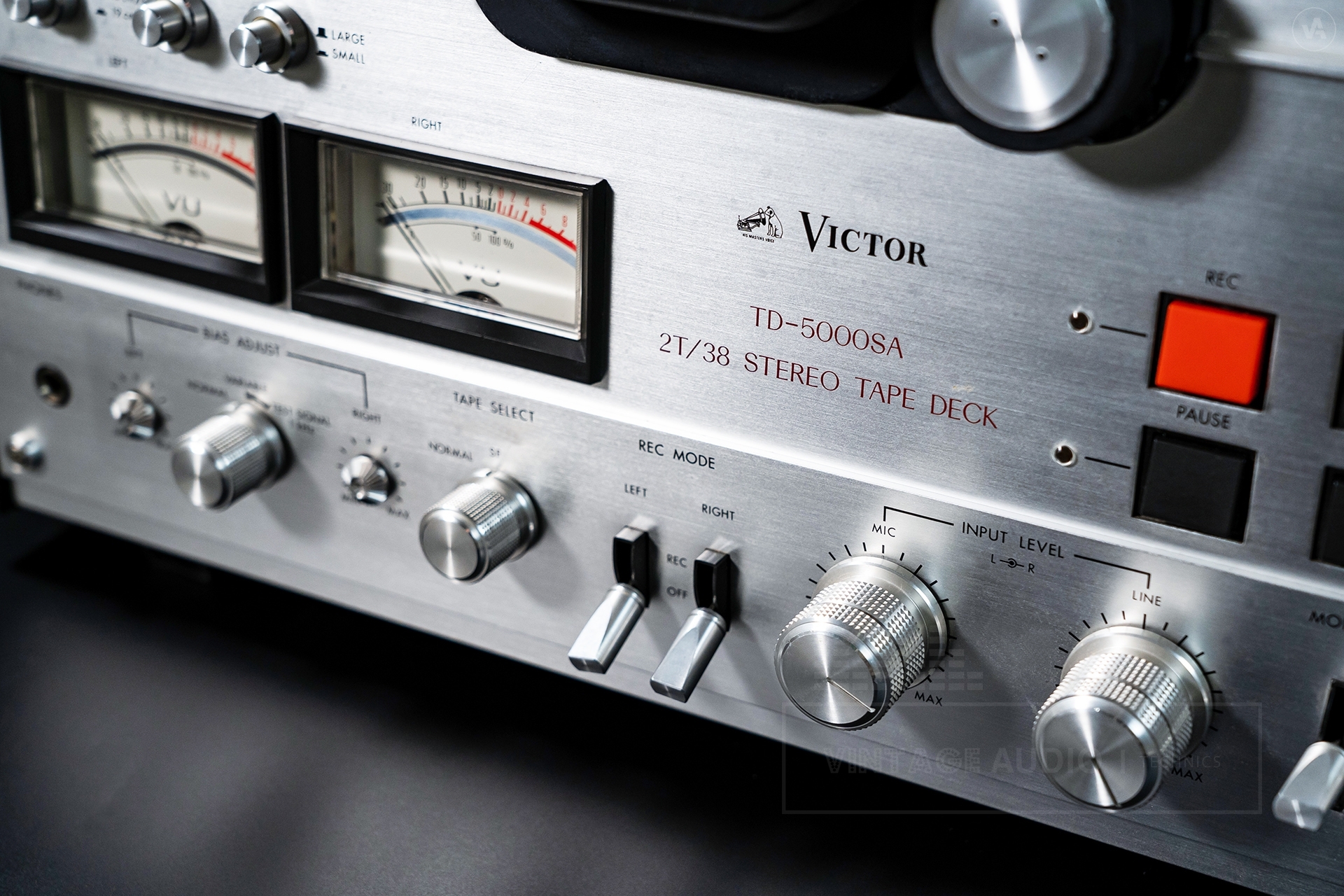

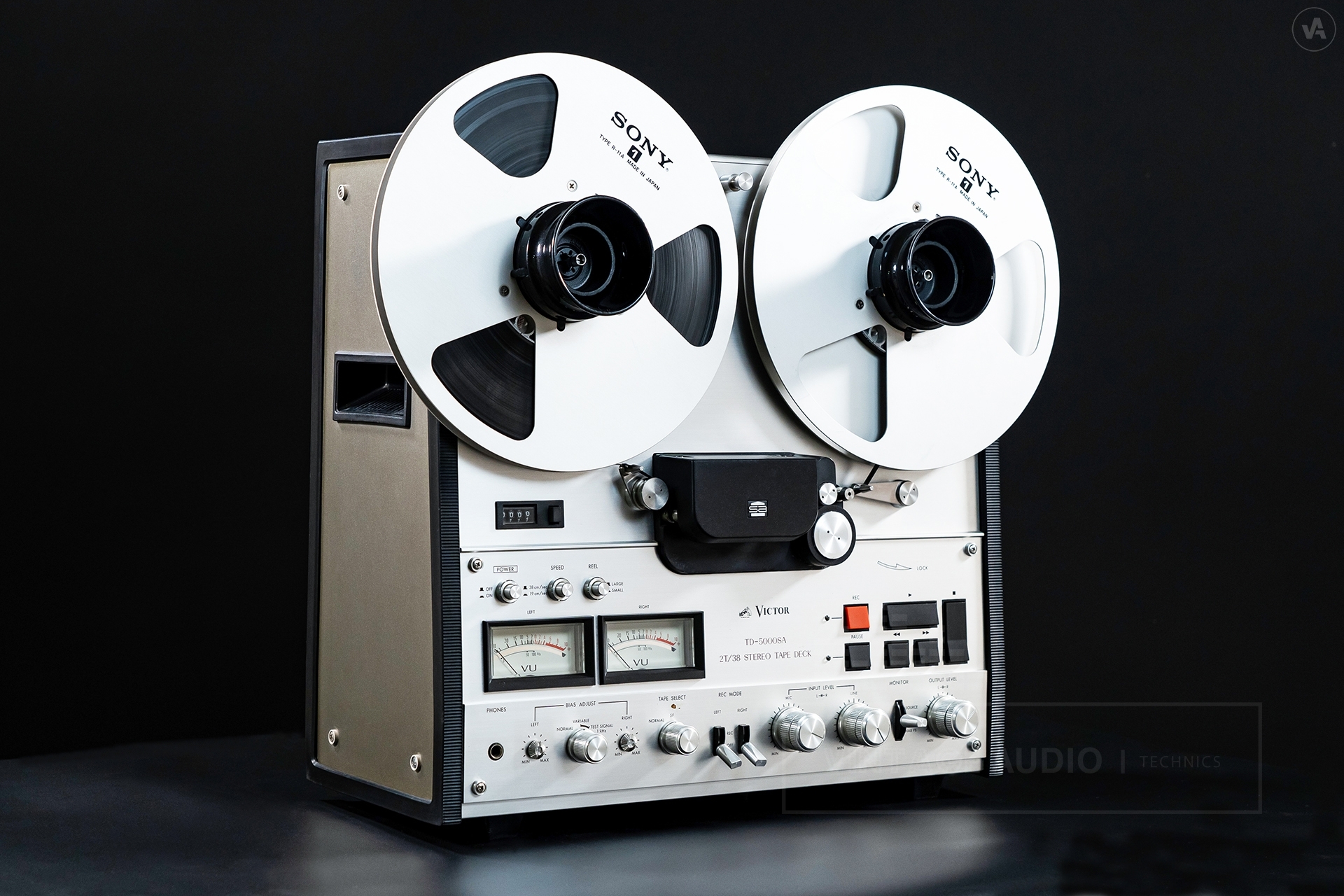

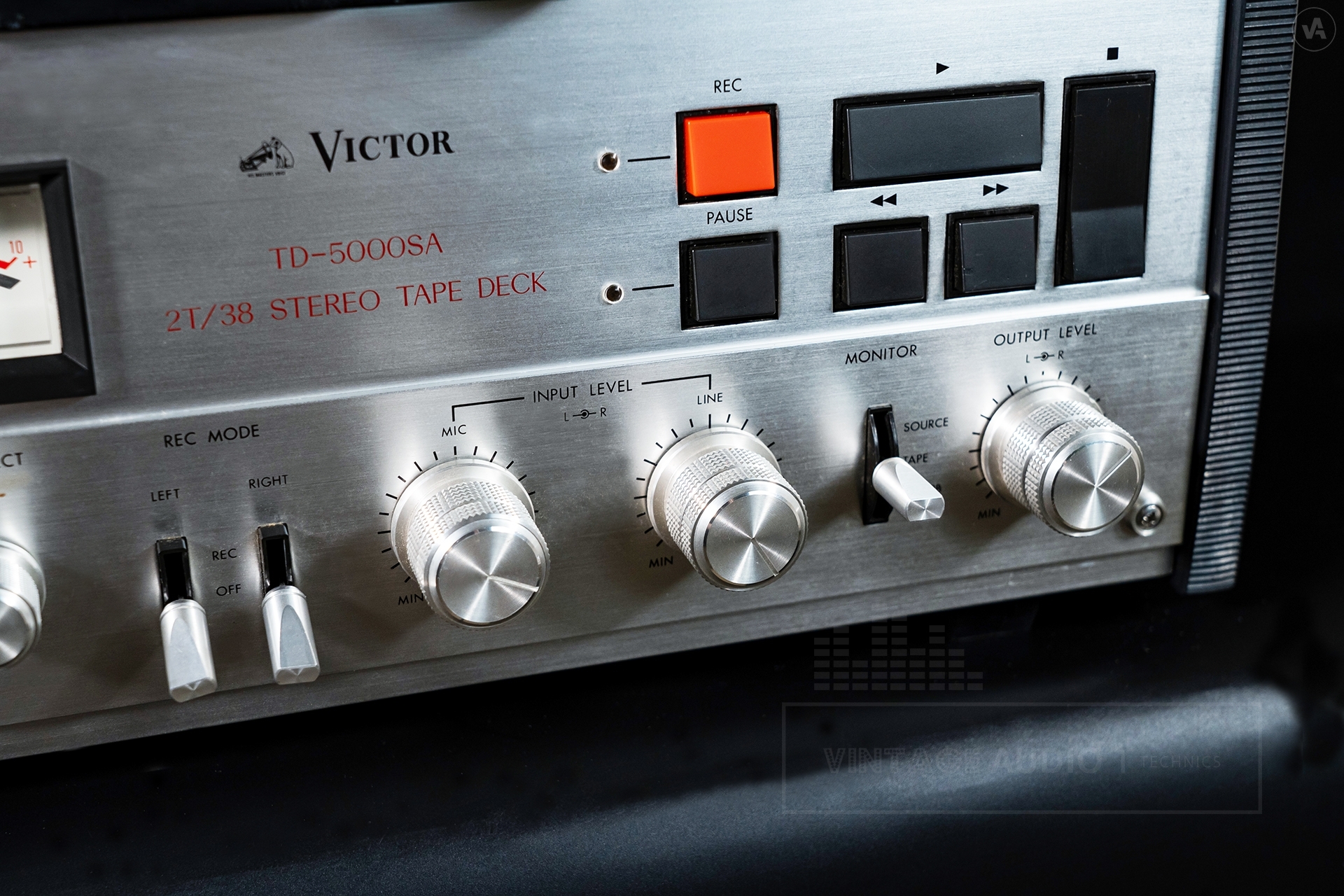

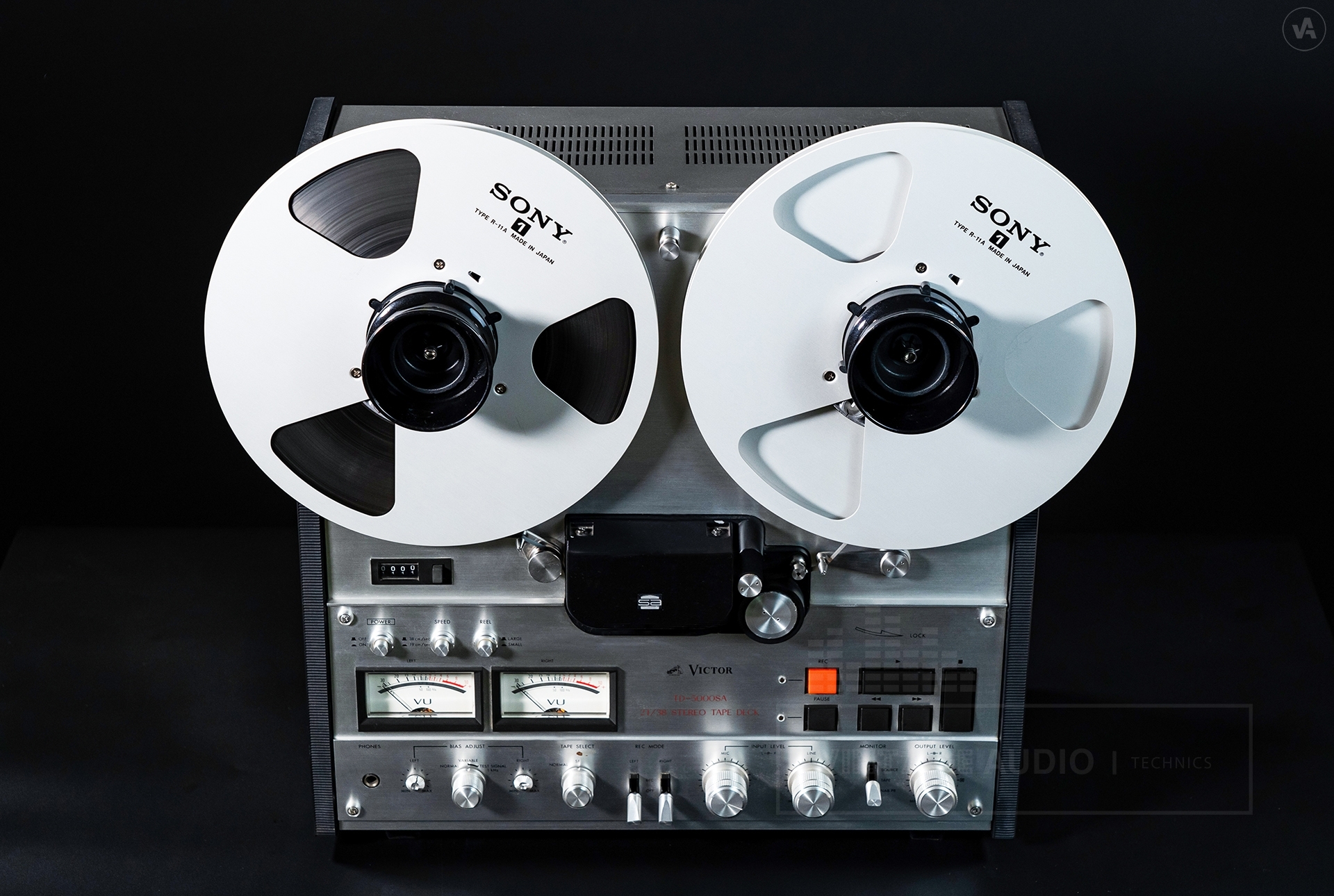

Victor TD-5000SA
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo reel-to-reel tape recorder |
Track system: | 2-tracks, 2-channels |
Tape select: | Normal SF |

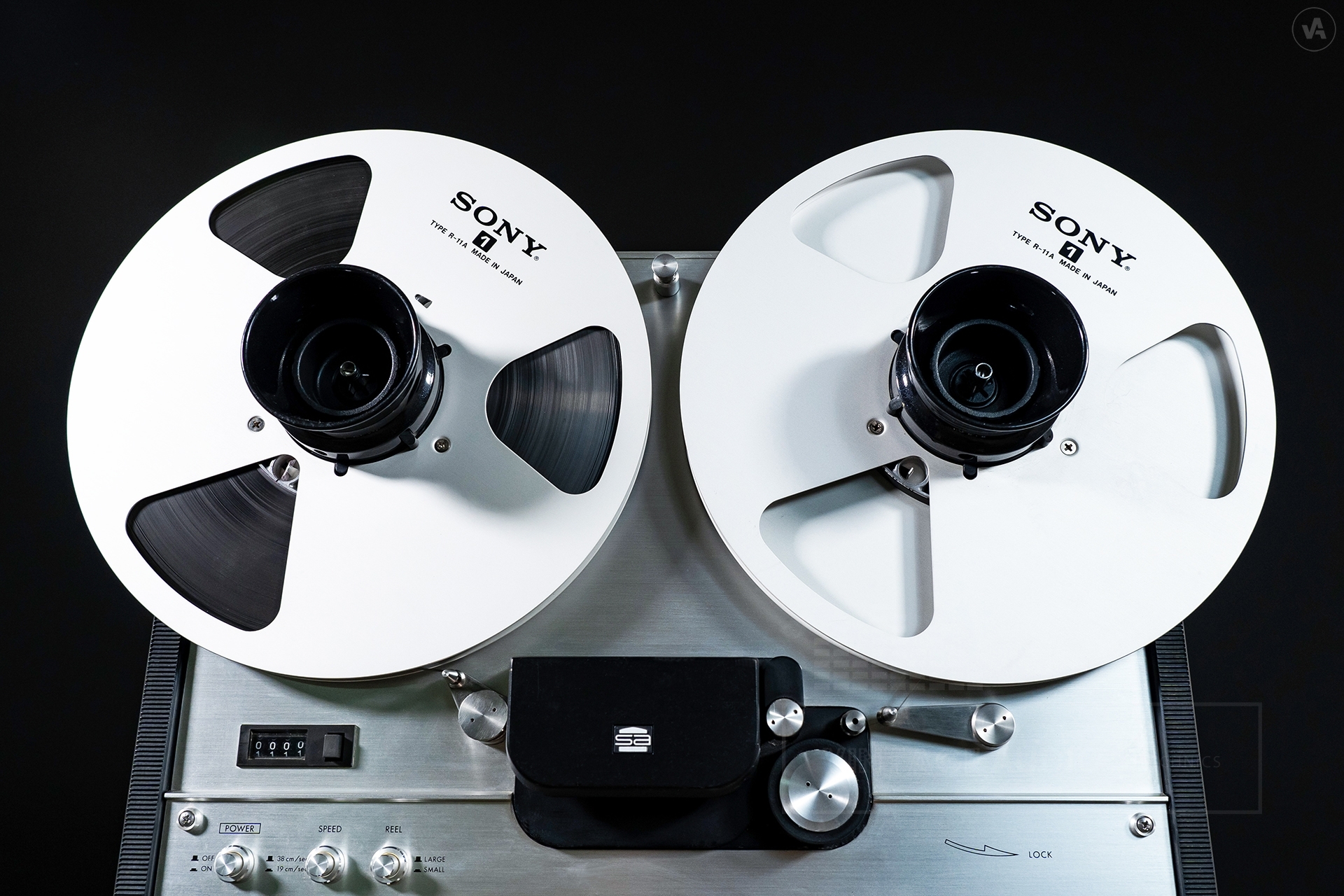

Reel: | Large Small |
[Motors] | For capstan: 4-8 pole 2-speed hysteresis hysteresis synchronous motor x 1 For reel: 6 pole induction motor x 2 |
Tape speed: | 38 cm / s 19 cm / s |
Frequency characteristics: | 20Hz to 38kHz (SF tape, 38 cm / s, 0 VU recording) |
S / N ratio: | 65dB (JIS) 58dB (Peak level) |
[Wow and flutter] | 38 cm / s: 0.03% (WRMS) 19 cm / s: 0.05% (WRMS) |
[Inputs] | MIC: L / R Line in: L / R |
[Outputs] | Line out: L / R |
Monitor select: | Source Tape NAB PB |
Power supply: | AC 100V, 50 / 60Hz |
Power consumptions: | 110W |
External dimensions (W x H x D): | 454 x 450 x 237mm |
Weight: | 23.5kg |
Year: | Around 1977 |
