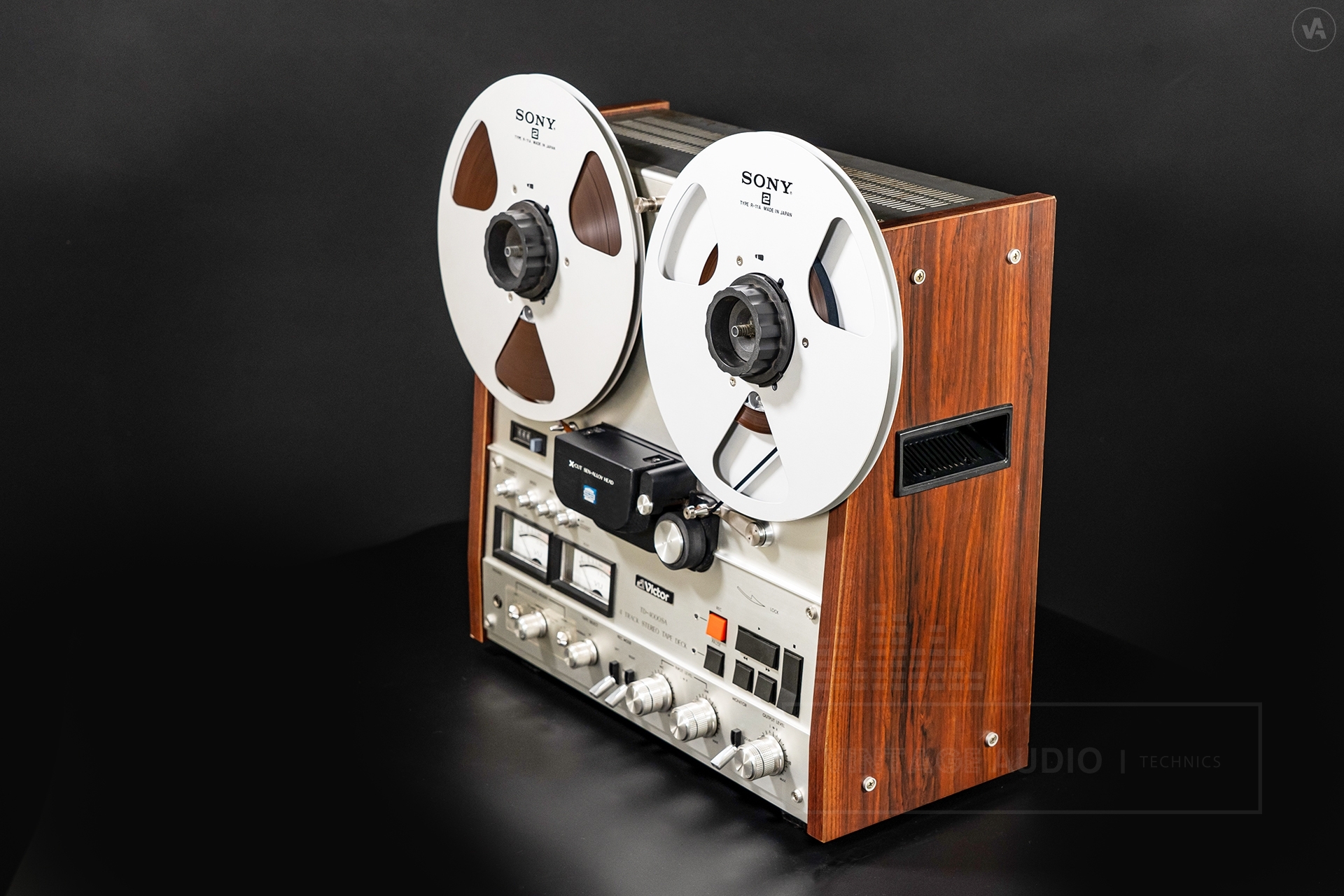

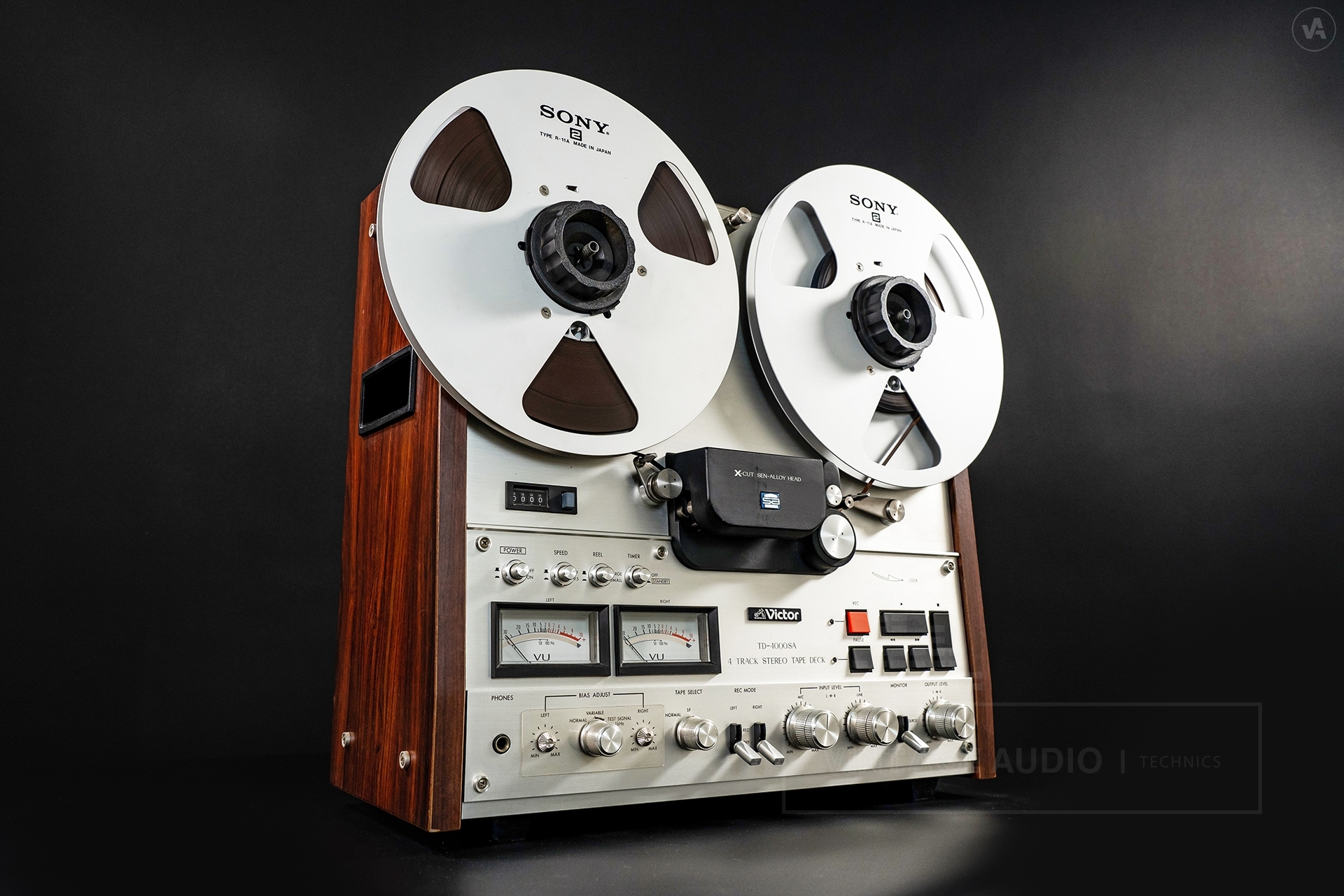

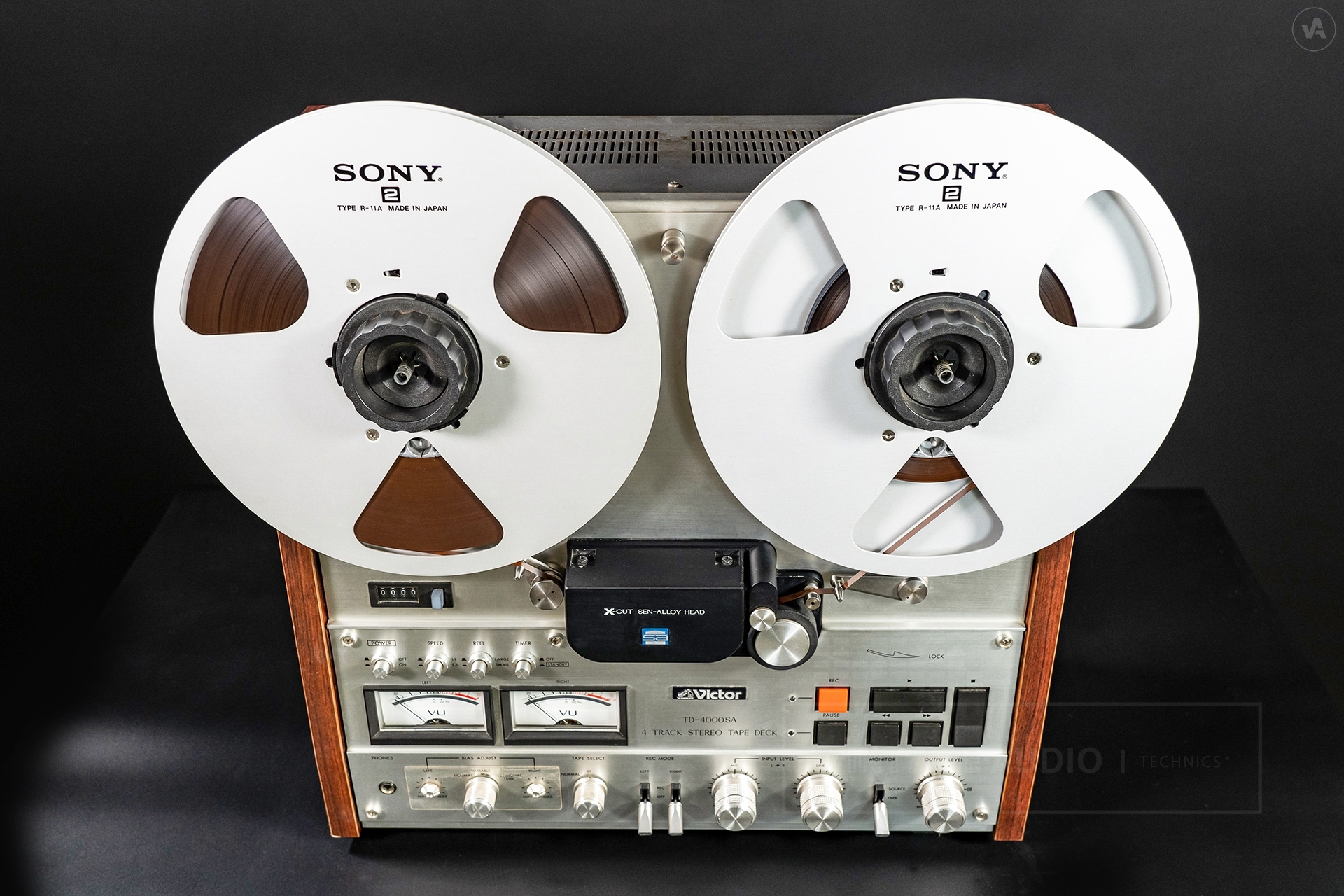

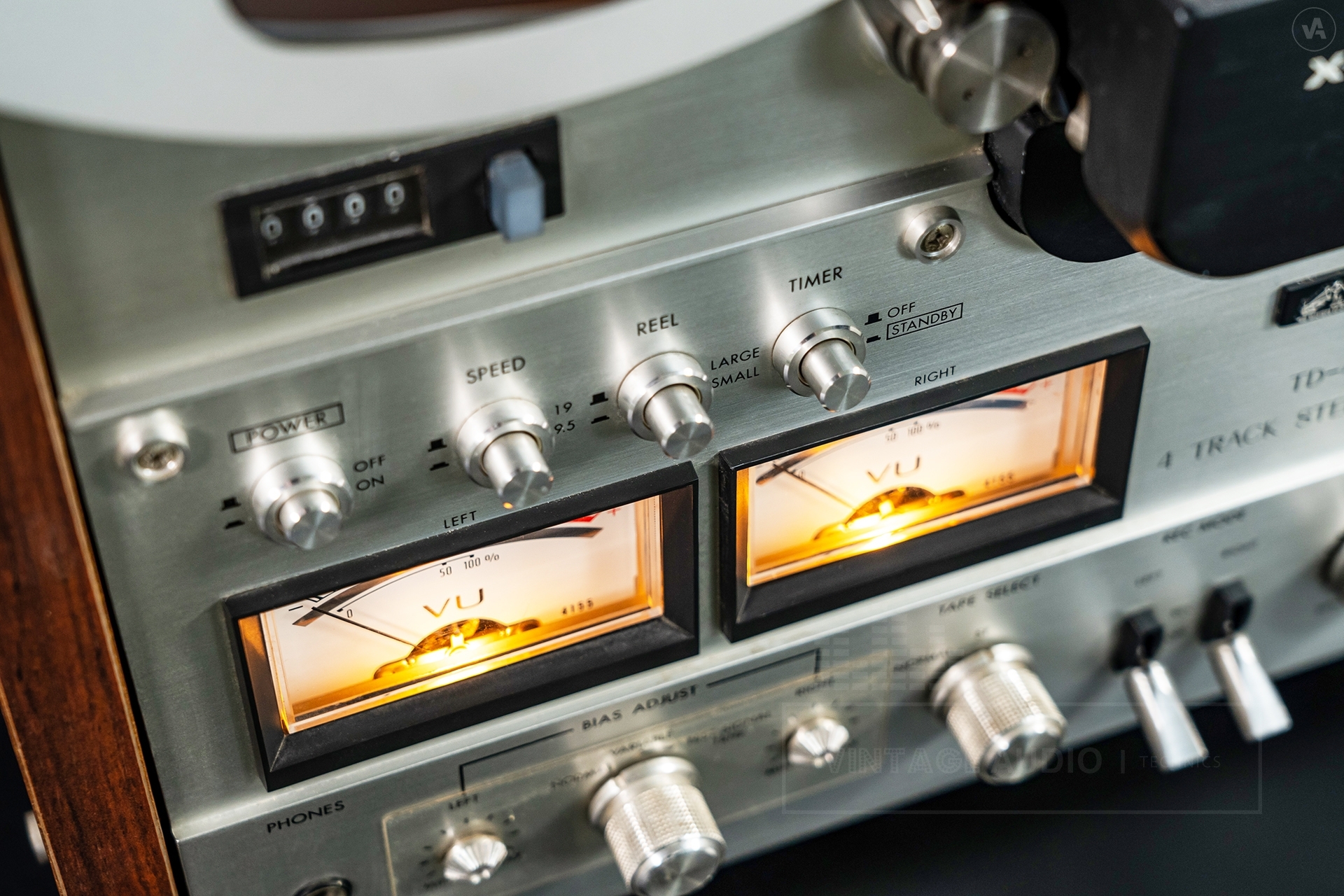

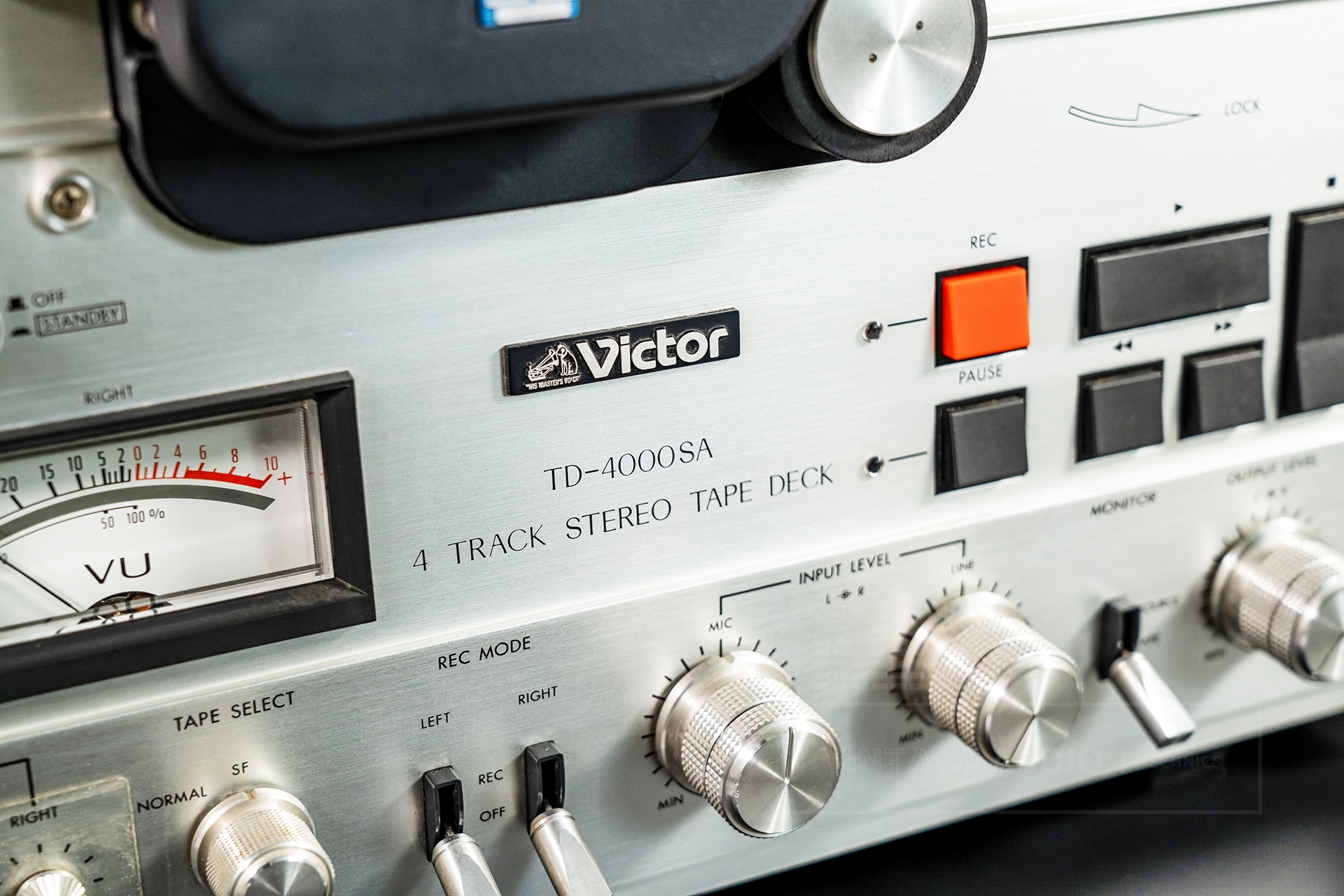

Victor TD-4000SA
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo reel-to-reel tape recorder |
Track system: | 4-tracks, 2-channels |
[Heads] | For recording: X-cut SA head x 1 For playback: X-cut SA head x 1 For erasing: Double gap ferrite head x 1 |
[Motors] | For reel drive: 2 motors For capstan drive: 1 motor |
[Frequency characteristics] | 19 cm / s: 20Hz to 30kHz 25Hz to 25kHz, ±3dB 9.5 cm / s: 20Hz to 20kHz 30Hz to 17kHz, ±3dB |
S / N ratio: | 63dB (WTD, THD3%) |
Wow and flutter: | 0.04% (WRMS) |
Inputs: | MIC L / R Line In L / R |
MIC ATT: | -30dB -15dB 0dB |
Outputs: | Line Out L / R |
AC outlet: | Unswitched (300W max.) |
Power supply: | AC 100V, 50 / 60Hz |
Power consumption: | 110W |
External dimensions (W x H x D): | 468 x 450 x 237mm |
Weight: | 25kg |
Year: | Around 1978 |
