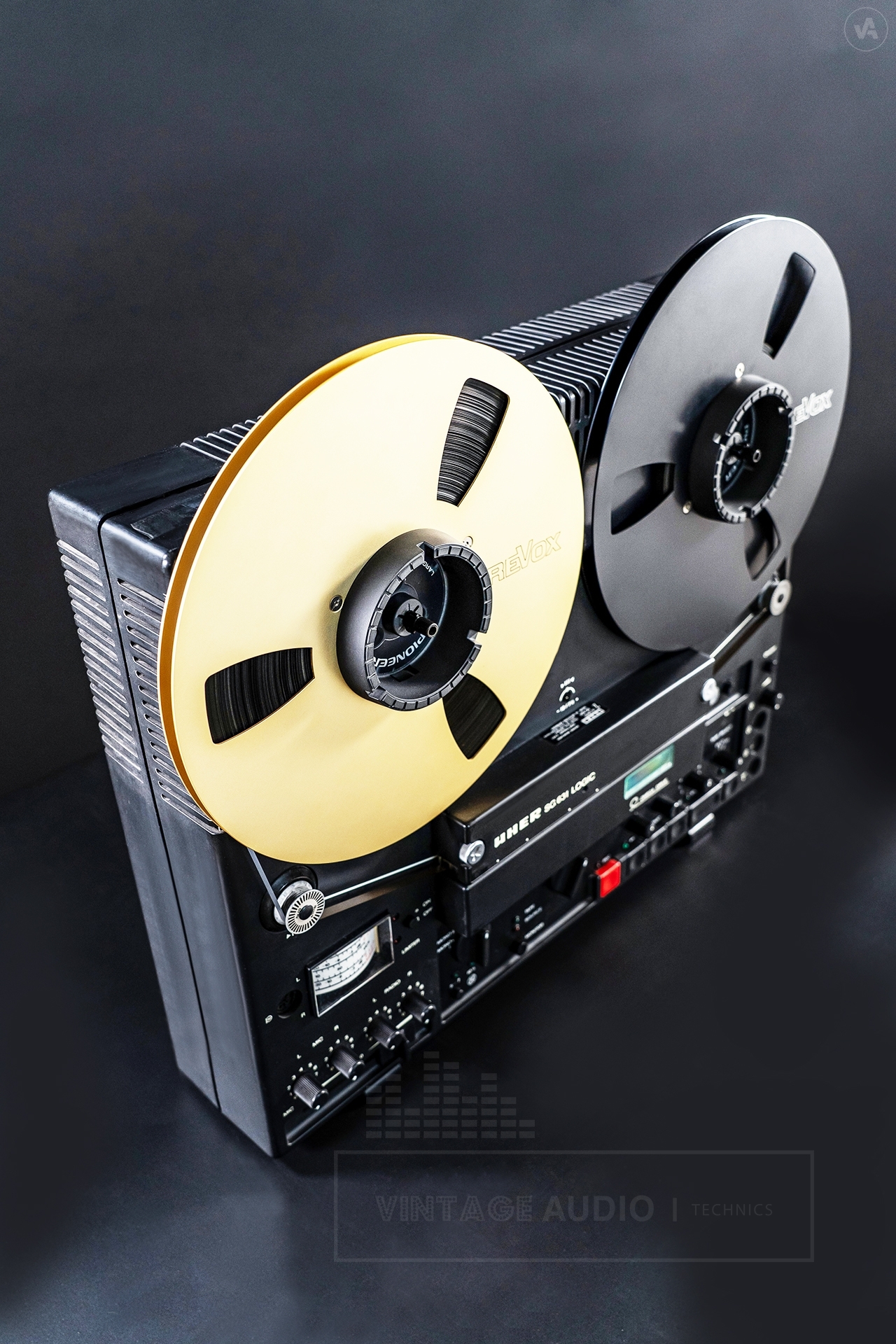

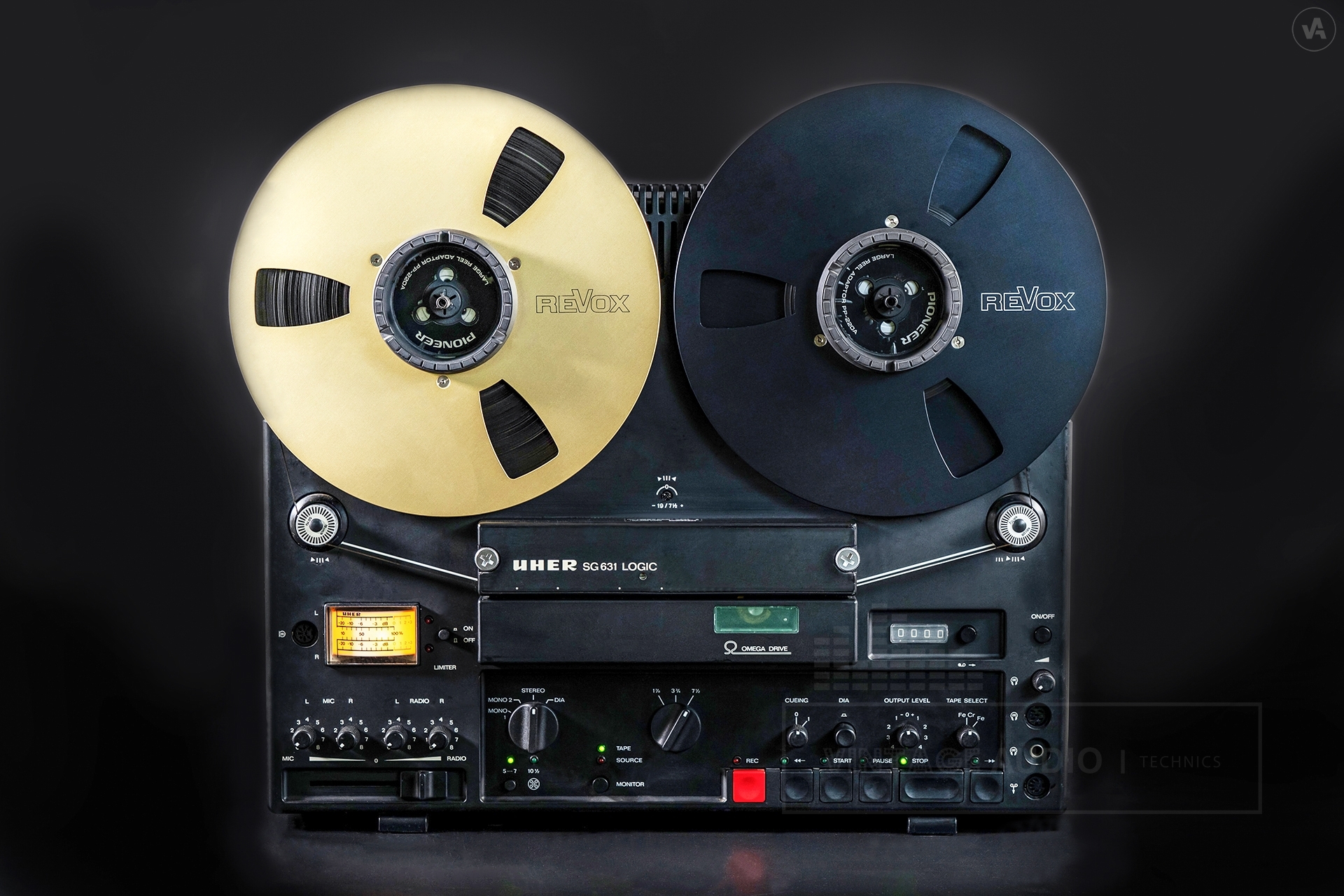

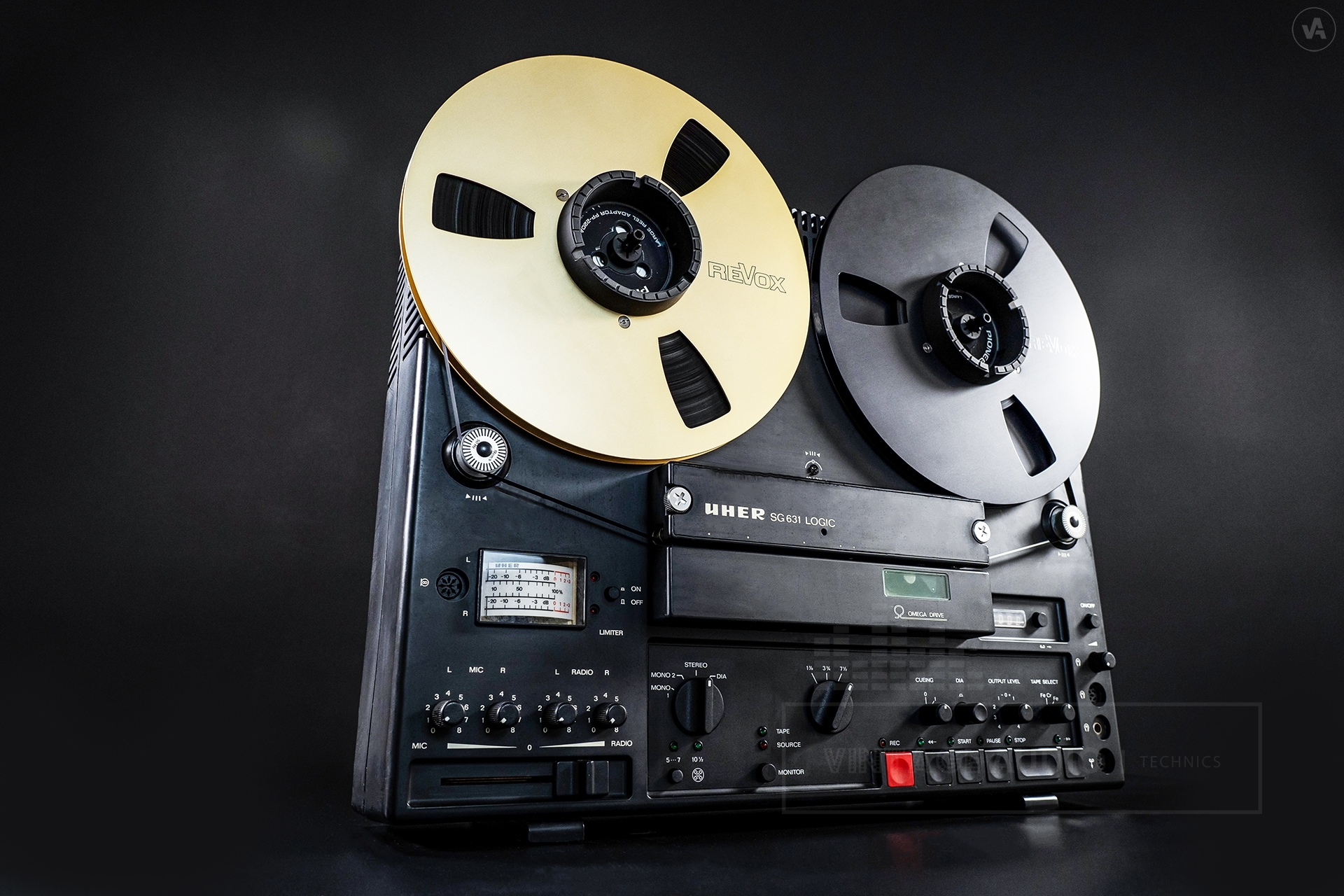

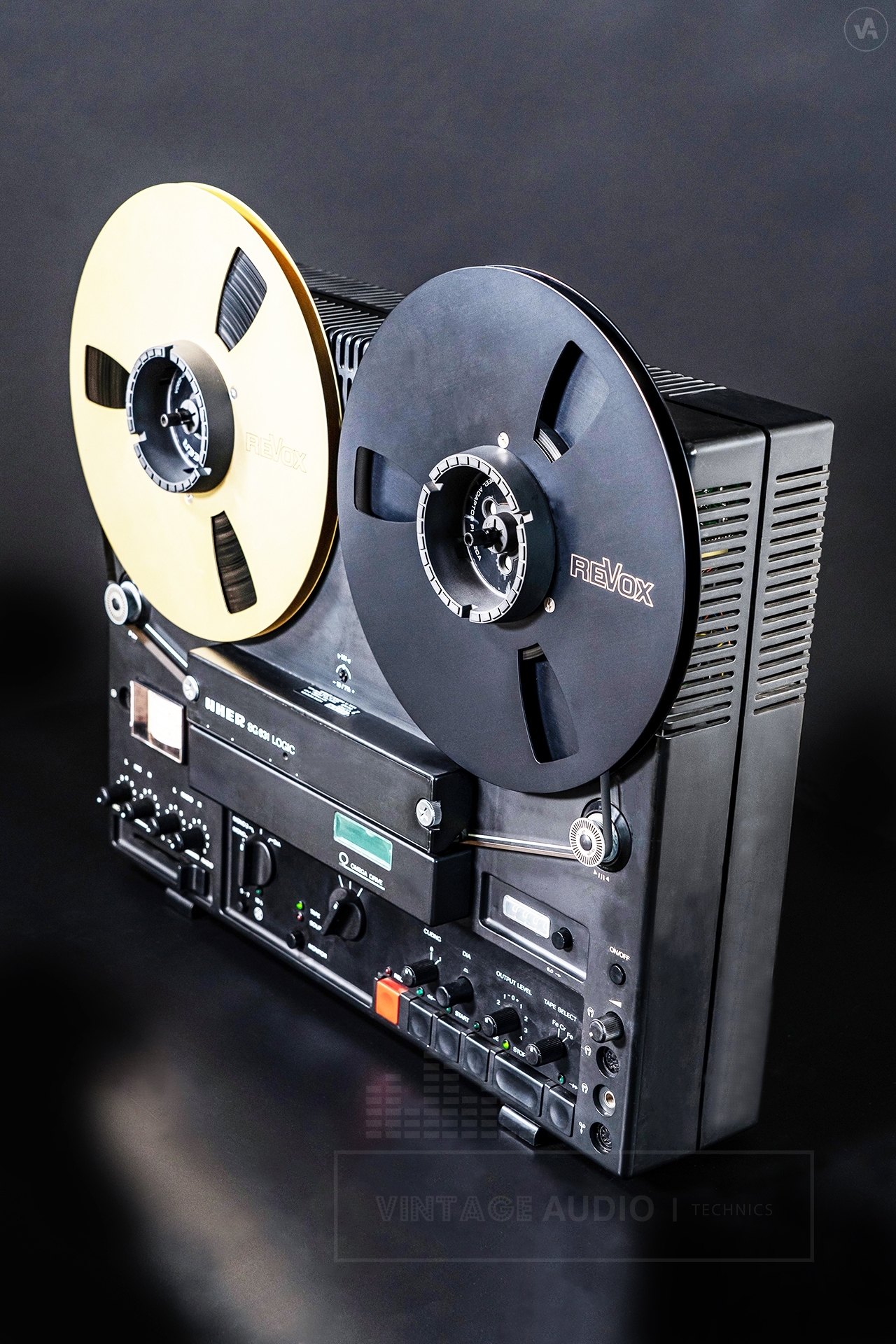

UHER SG 631 LOGIC
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Tape Recorder |
Track System: | 4-track / 2-track stereo |
Tape Speeds: | 19.05 cm / s, 9.5 cm / s, 4.75 cm / s |
Counter: | 4-digit, with zero reset button and automatic foil shut-off device |
Reel Size: | 27cm (10.5”) |
Motors: | For Capstan drive - Collector less, electronically controlled motor x 1 For Reel drive - D.C. hub motor x 2 For Forming - Servo motor x 1 |
Input Sensitivity / Impedance: | 0.1 - 80mV / 2kΩ (Microphone) 1 - 200mV / 20kΩ (Radio) 80mV - 8V / 68kΩ (Line) |
Output Level / Impedance: | Approx. 750mV / 15kΩ (Radio) Approx. 750mV / 15kΩ (Monitor) 1.7V / 120Ω (Headphones) |
Power Amplifiers: | Stereo headphones power stage with volume control |
Record Level Indication: | Moving-coil peak-reading meter |
Overall Frequency Response: | 20Hz to 10kHz (4.75 cm / s) 20Hz to 16kHz (9.5 cm / s) 20Hz to 25kHz (19.05 cm / s) |
Harmonic Distortion (At 333Hz and 19 cm / s): | Better than 60dB |
Crosstalk (At 1kHz in Stereo Operation): | Better than 45dB |
Crosstalk (At 1kHz in Two-Direction Stereo Operation): | Better than 60dB |
S / N Ratio (4-track / 2-track, Ref 0dB, Unweighted): | 19.05 cm / s - 56dB / 58dB 9.5 cm / s - 55dB / 57dB 4.75 cm / s - 53dB / 54dB |
S / N Ratio (4-track / 2-track, Ref 0dB, “A” Weighted): | 19.05 cm / s - 65dB / 68dB (DIN) 9.5 cm / s - 64dB / 67dB (DIN) 4.75 cm / s - 63dB / 67dB (DIN) |
Wow and Flutter: | Max. 0.05% (19.05 cm / s) Max. 0.1% (9.5 cm / s) Max. 0.2% (4.75 cm / s) |
Max. Speed Deviation (Mid-Spool at 19 cm / s): | ±1.5% Adjustable to 0% with fine regulator; Stroboscope discs 50Hz and 60Hz for optical control |
Erasure: | Better than 72dB |
Bias and Erasure Frequency: | 100kHz |
Attenuating Effect on One Track upon Erasure of Other: | Less than 1dB (At 15kHz, 19 cm / s) |
Semiconductors used: | Transistors x 111 (Including 13 FET’s) IC’s x 19 Diodes and Rectifiers x 143 |
Power Supply: | AC 110 / 130V, 220 / 240V, 50 / 60Hz |
Dimensions (W x H x D): | 510 x 400 x 146mm |
Weight: | 13kg |
