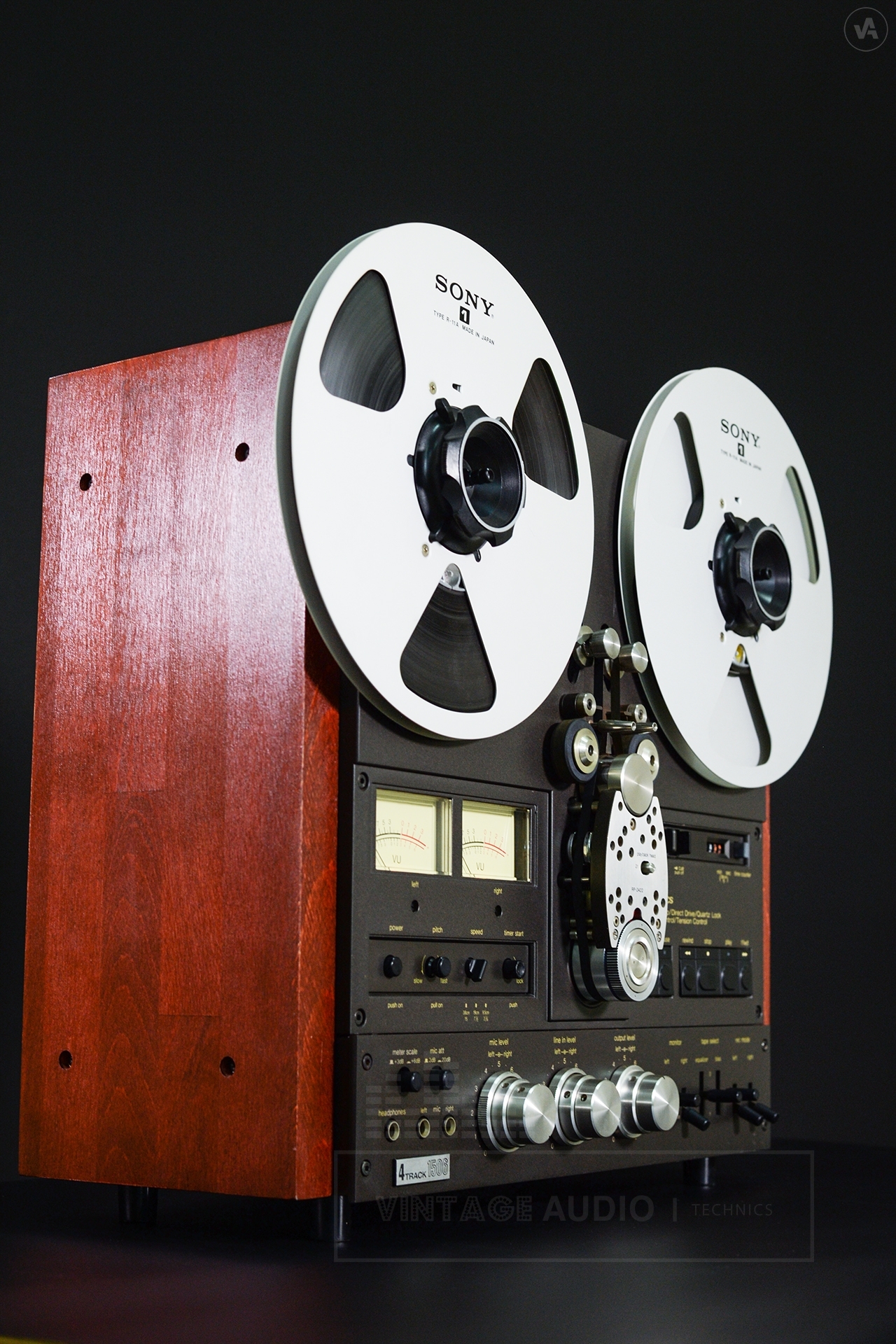

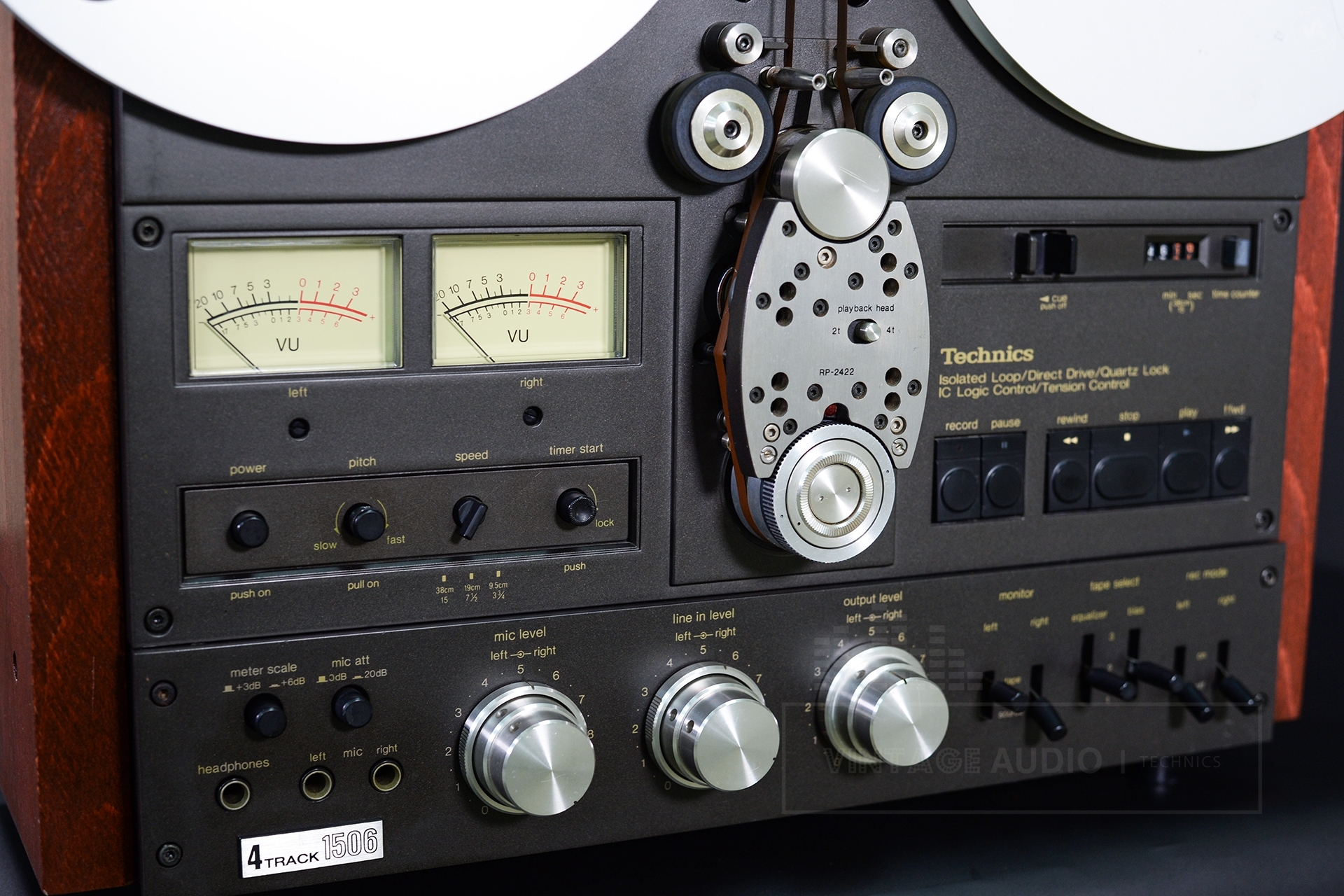

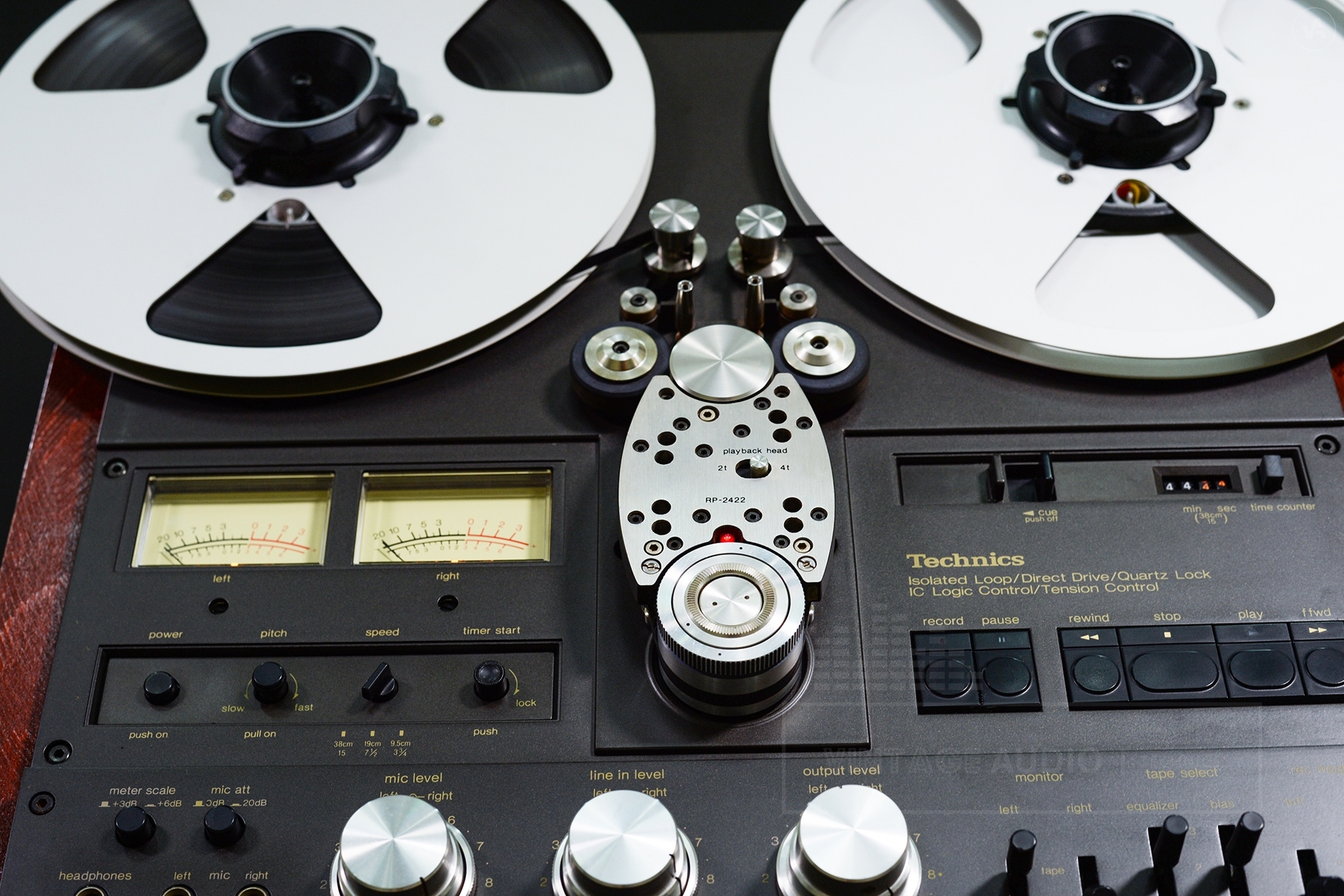

TECHNICS RS-1506US
NEF 6909
Type: | Stereo tape deck |
Track format: | 4-track 2-channel recording / playback 2-track 2-channel playback |
Head configuration: | For recording x 1 (High hardness permalloy) For reproduction x 2 (High hardness permalloy) For erasing x 1 (Double gap ferrite) |
Motors used: | For Capstan drive - Quartz control phase-locked DC brushless servo direct-drive motor x 1 For Reel tables - Tape tension controlled DC brushless direct-drive motor x 2 |
Tape tension control: | Automatic control for above size of reel |
Reel size: | 13cm to 26.5cm (5” to 10.5”) outside diameter |
Tape speed: | 38 cm / s, 19 cm / s, 9.5 cm / s |
Speed deviation: | ±0.1% at 38 cm / s |
Speed fluctuation: | 0.05% at 38 cm / s |
Pitch control: | ±6% (Recording and playback) |
Frequency characteristics: | 38 cm / s - 30Hz to 30kHz, ±3dB (Recording level = -10dB from 0 VU) 19 cm / s - 20Hz to 25kHz, ±3dB (Recording level = -20dB from 0 VU) 9.5 cm / s - 20Hz to 15kHz, ±3dB (Recording level = -20dB from 0 VU) |
S / N ratio (NAB weighted): | 38 cm / s - 57dB 19 cm / s - 57dB 9.5 cm / s - 55dB |
Distortion (THD): | Less than 2% peak level (185 nWb / m +6dB) Less than 0.8% operating level (0VU) |
Channel separation: | Better than 50dB |
Erasing ratio: | Better than 65dB (Recording level = +10dB at 1kHz) |
Recording bias: | 120kHz |
Equalization: | NAB standard |
[Wow and flutter] | |
38 cm / s: | 0.018% (WRMS) ±0.035 (DIN Peak) |
19 cm / s: | 0.03% (WRMS) ±0.06 (DIN Peak) |
9.5 cm / s: | 0.06% (WRMS) ±0.12 (DIN Peak) |

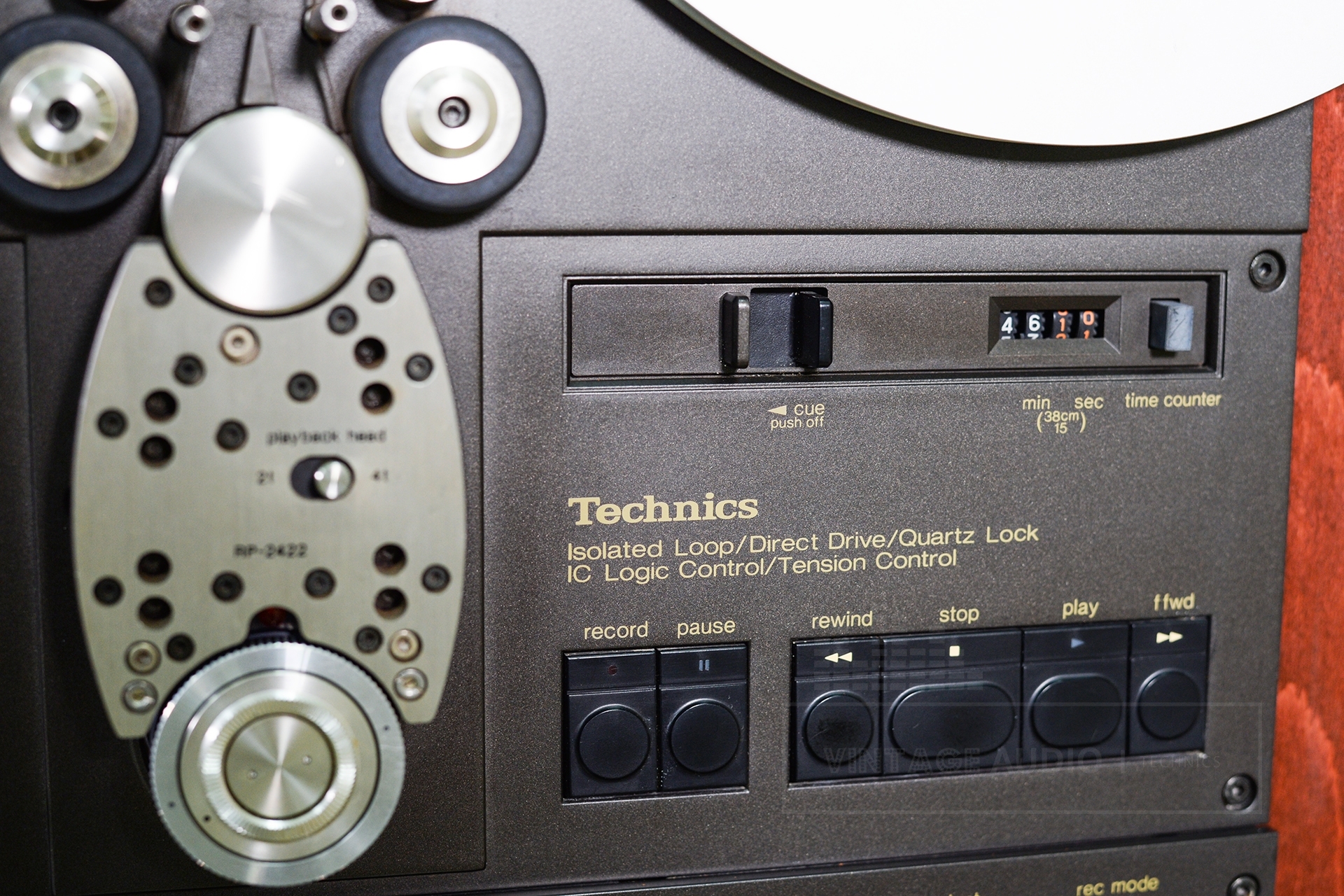

Time counter accuracy: | ±1% at 38 cm / s |
Fast winding time: | 150 sec. for 762m (2500 feet) tape |
During running: | Within 3 sec. after accidental stop of tape |
Input sensitivity / Impedance: | Mic. - 0.25mV (-72dB) / 4.7kΩ, applicable impedance 400Ω to 20kΩ Line - 60mV (-24dB) / 150kΩ |
Output level / Impedance: | Line - 420mV (-7.5dB) / 22kΩ or more Headphone - 60mV / 8Ω (Stereo phone type jack) |
Semiconductor used: | Transistors x 248 pieces, IC's x 10 pieces, Diodes x 75 pieces, Other semiconductors x 7 pieces |
Optional: | Head block RP-2224 (¥ 38,000), Head block RP-2422 (¥ 38,000), Head block RP-2224SX (¥ 58,000), Head block RP-2422SX (¥ 58,000), Portable case RP-9100 (¥ 35,000), Dust cover RP-9110 (5,000yen), Wood Case RP-9120 (2 sheets, 1 set, ¥ 5,000), Rack joint RP-9130 (2 sheets, 1 set, ¥ 2,000), Battery case RP-099 (¥ 30,000), Battery adapter RP-086 (¥ 30,000), Remote control box RP-9690 (¥ 13,000), Remote control box RP-9170 (18,000yen), Wireless remote control unit RP-070 (¥ 30,000) |
Power requirements: | AC 120V, 50 / 60Hz or DC24V, 4.5A (With optional battery adaptor) |
Power consumption: | 120W |
External dimensions (W x H x D): | 456 x 446 x 258mm |
Weight: | 25kg |
Year: | 1976 |
