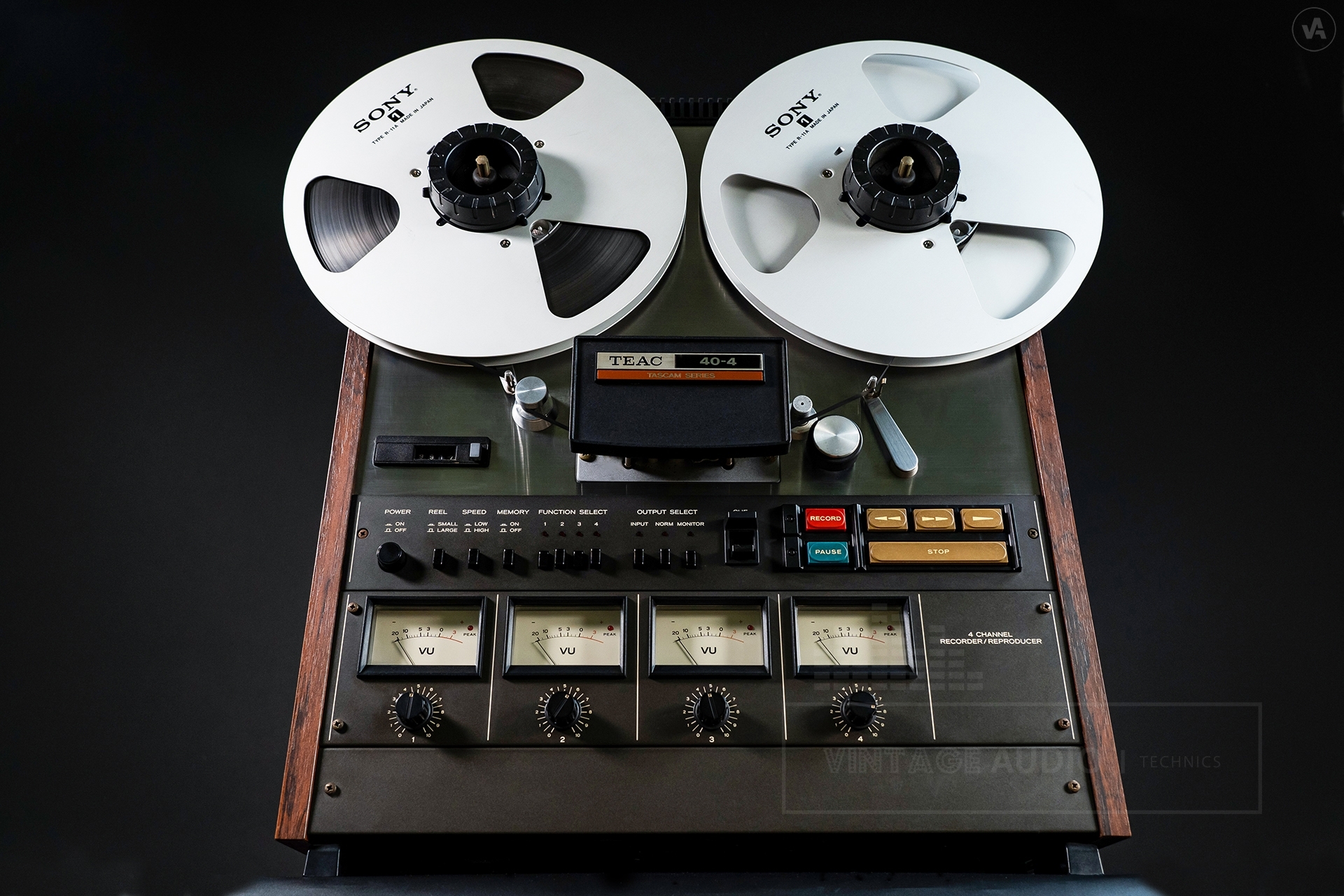

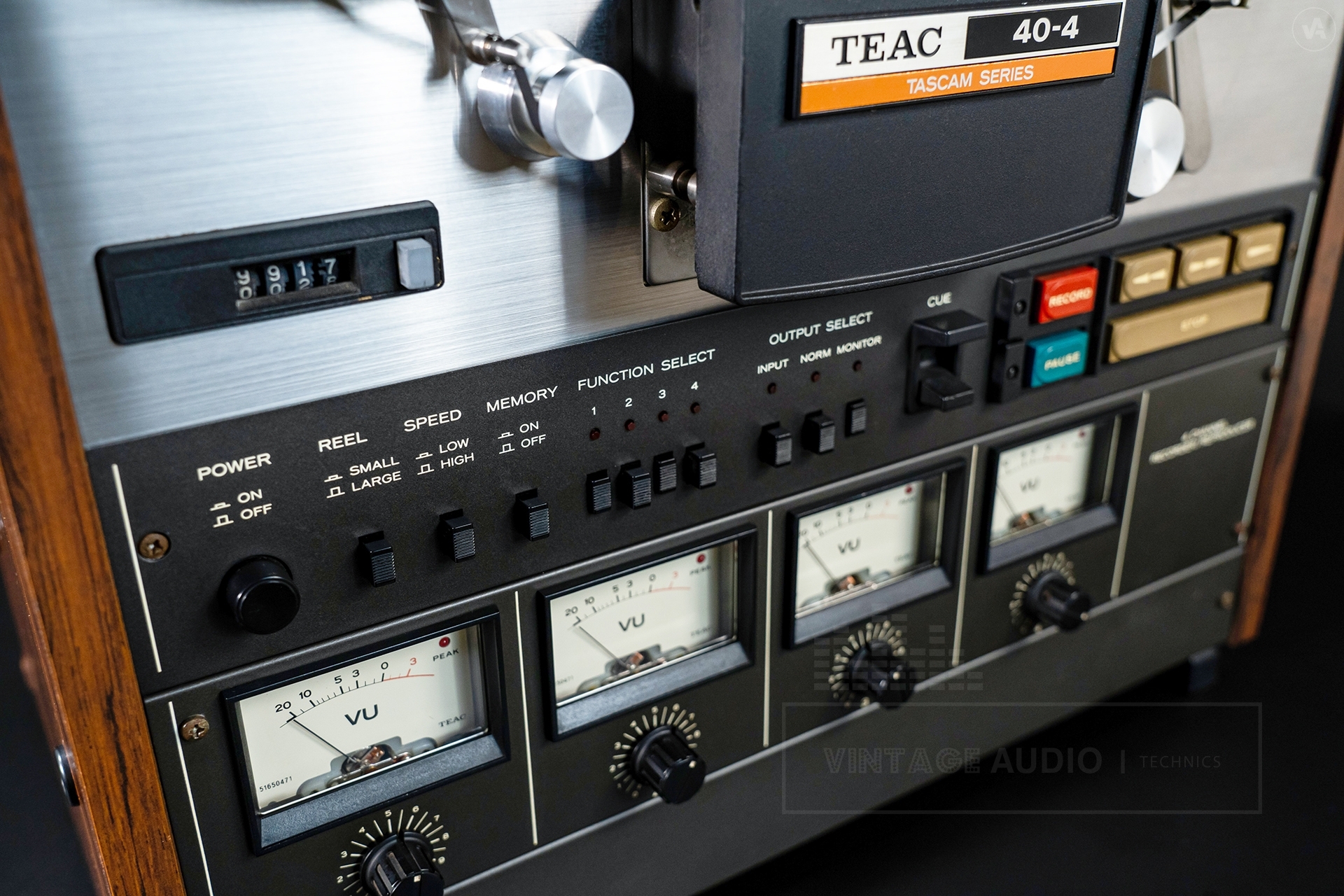

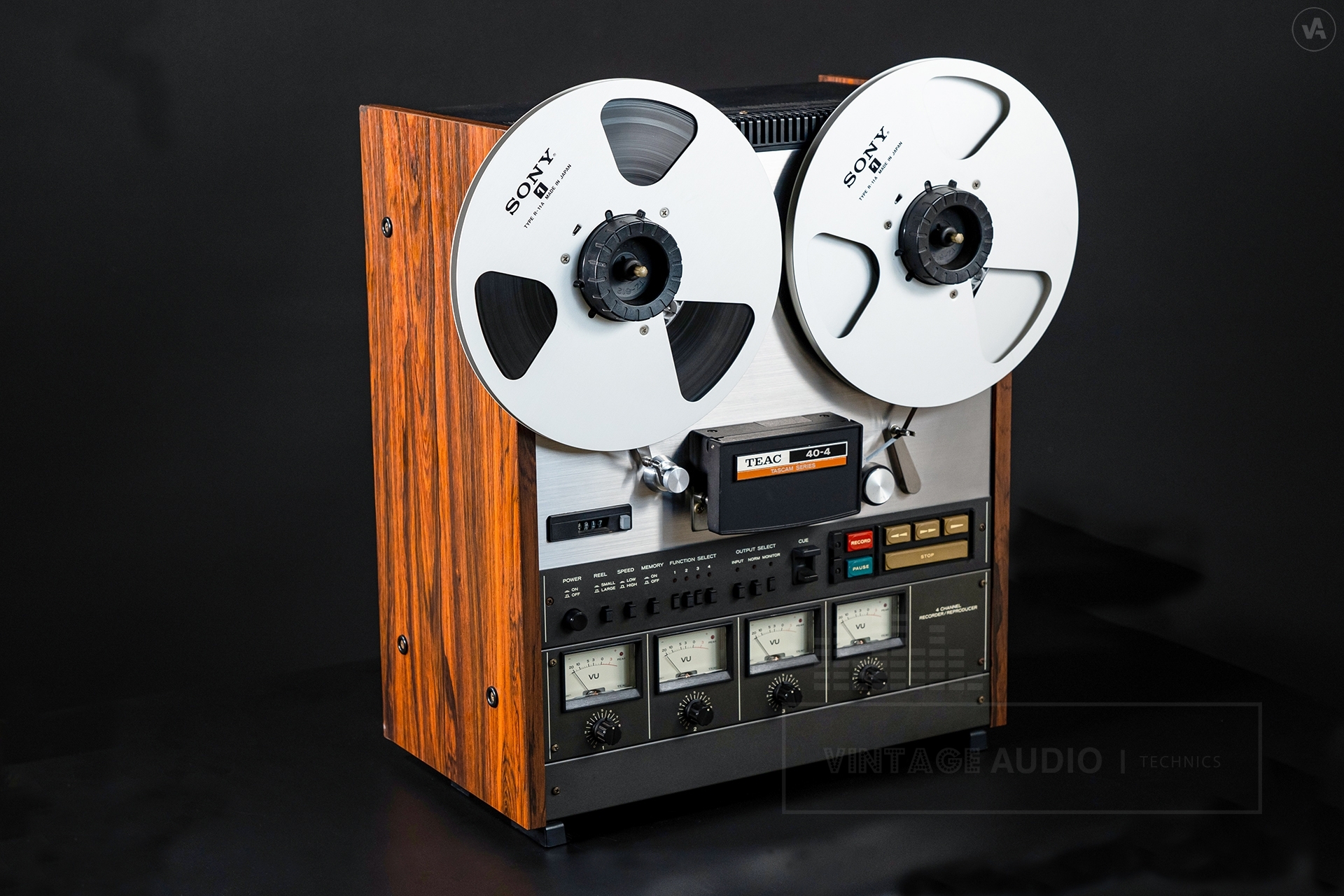

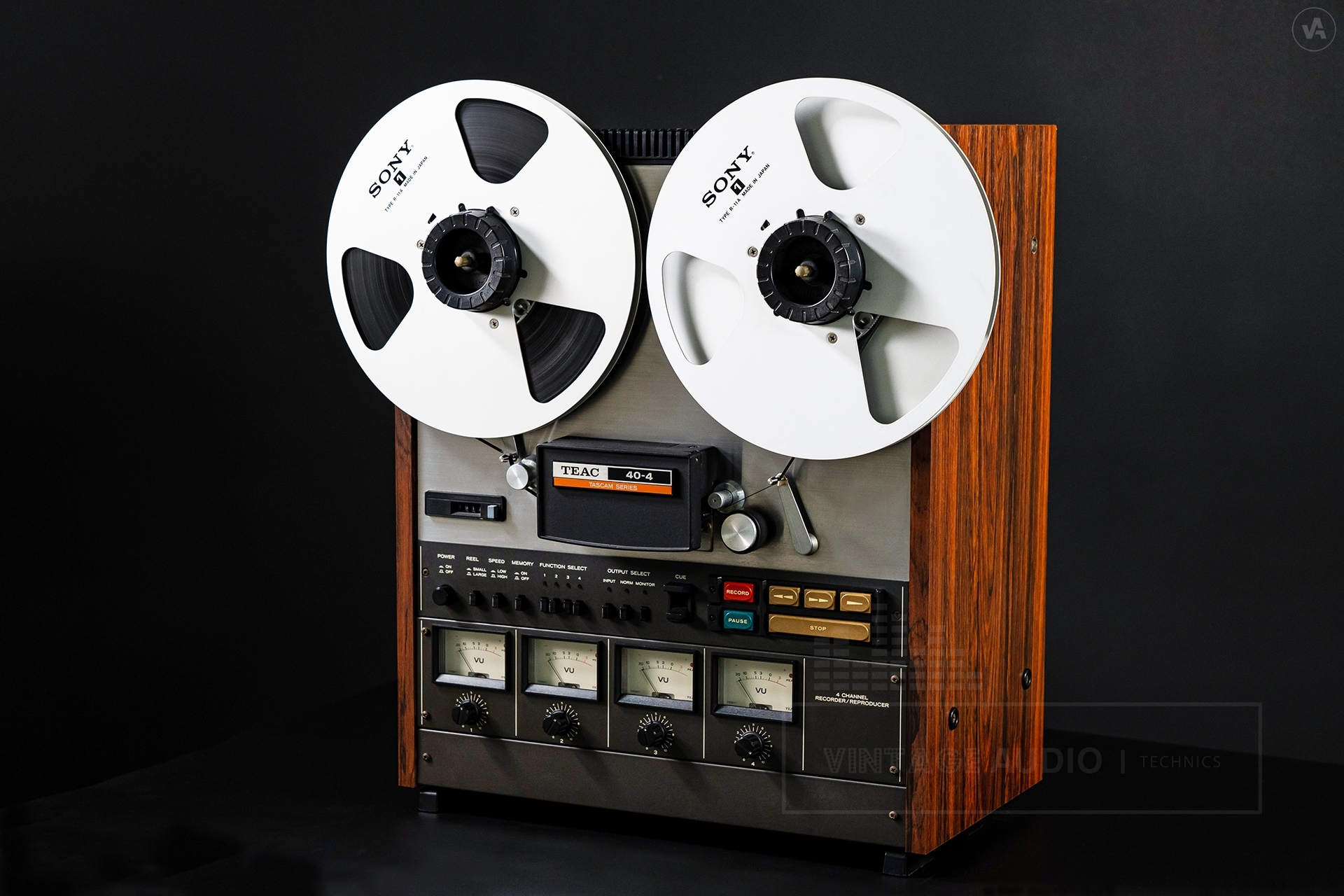

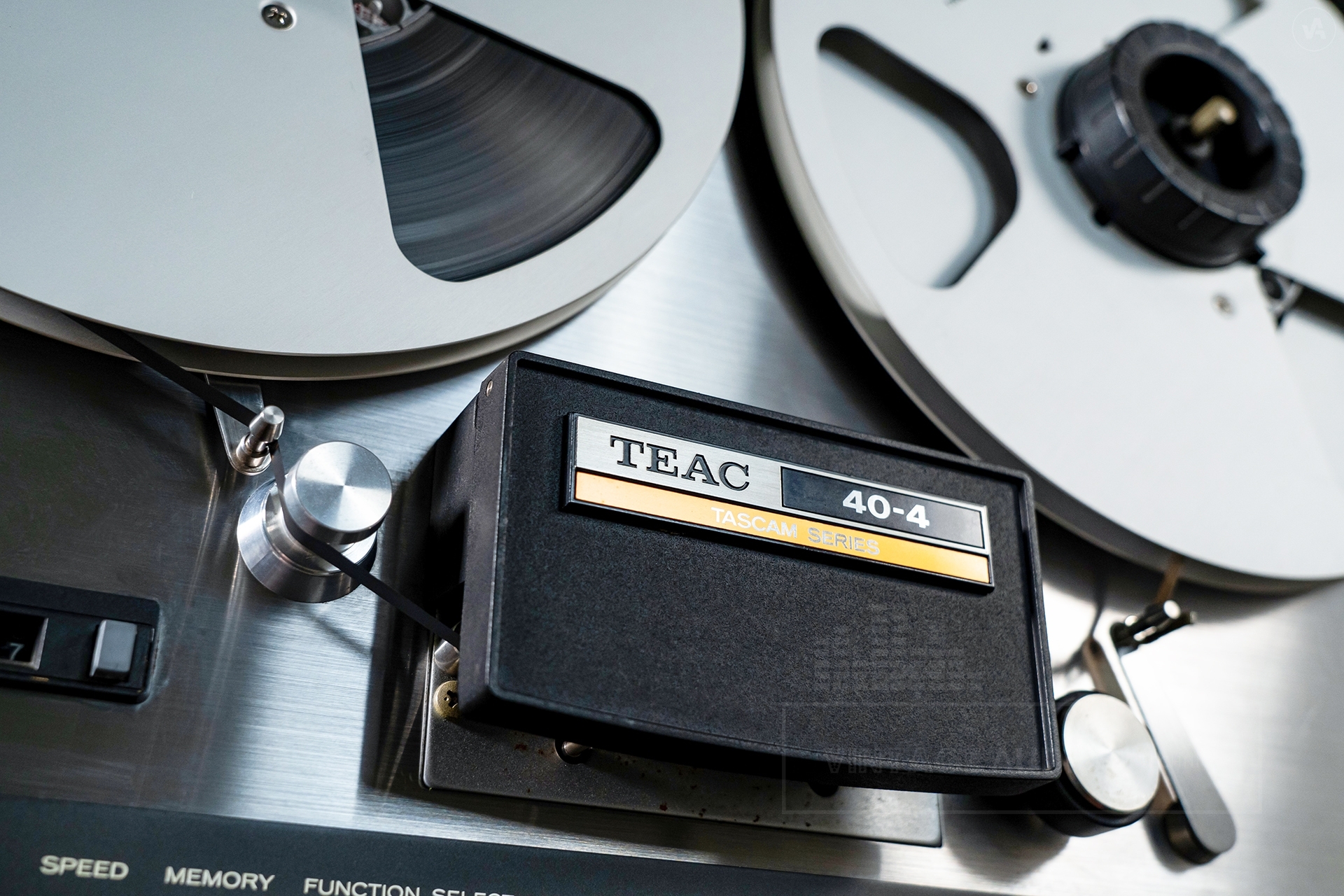

TEAC 40-4
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Portable Tape Recorder |
Tape Width: | ¼” (6.3mm) |
Track System: | 4-track, 4-channel |
Reel Size: | 10.5” (Max.) |
Tape Speeds: | 38 cm / s and 19 cm / s |
Line Input / Impedance: | 0.3V (-10dB) / 20kΩ (Unbalanced) |
Load Output / Impedance: | 0.3V (-10dB) / Greater than 10kΩ (Unbalanced) |
Record Level: | 0 VU referenced to 3dB above 185 nWb / m of tape flux, adjustable |
Speed Accuracy: | ±0.5% |
Wow and Flutter (Measured with flutter test tape 0.04% rms Weighted (NAB)): | ±0.06% peak weighted at 38 cm / s (ANSI) ±0.06% rms weighted (NAB) ±0.09% peak weighted at 19 cm / s (ANSI) |
Starting Time: | Less than 0.5 sec. |
Fast Wind Time: | 120 sec. for 2400 ft. of tape |
Overall Frequency Response: | 40Hz to 20kHz, ±3dB (At 38 cm / s) 40Hz to 15kHz, ±3dB (At 19 cm / s) |
S / N Ratio: | 65dB Weighted 60dB Unweighted referenced to 3% T.H.D. (9dB above 0 VU) at 400Hz |
Distortion (Overall): | 1% at 1kHz, 0 VU 3% at 9dB above 0 VU |
Crosstalk (Overall): | Greater than 50dB at 400Hz |
Erasure: | Greater than 65dB at 1kHz, +10 VU reference |
Power Requirements: | AC 117V, 60Hz |
Power Consumption: | 160W |
Dimensions (W x H x D): | 438 x 533 x 305mm |
Weight: Approx. | 34kg |
