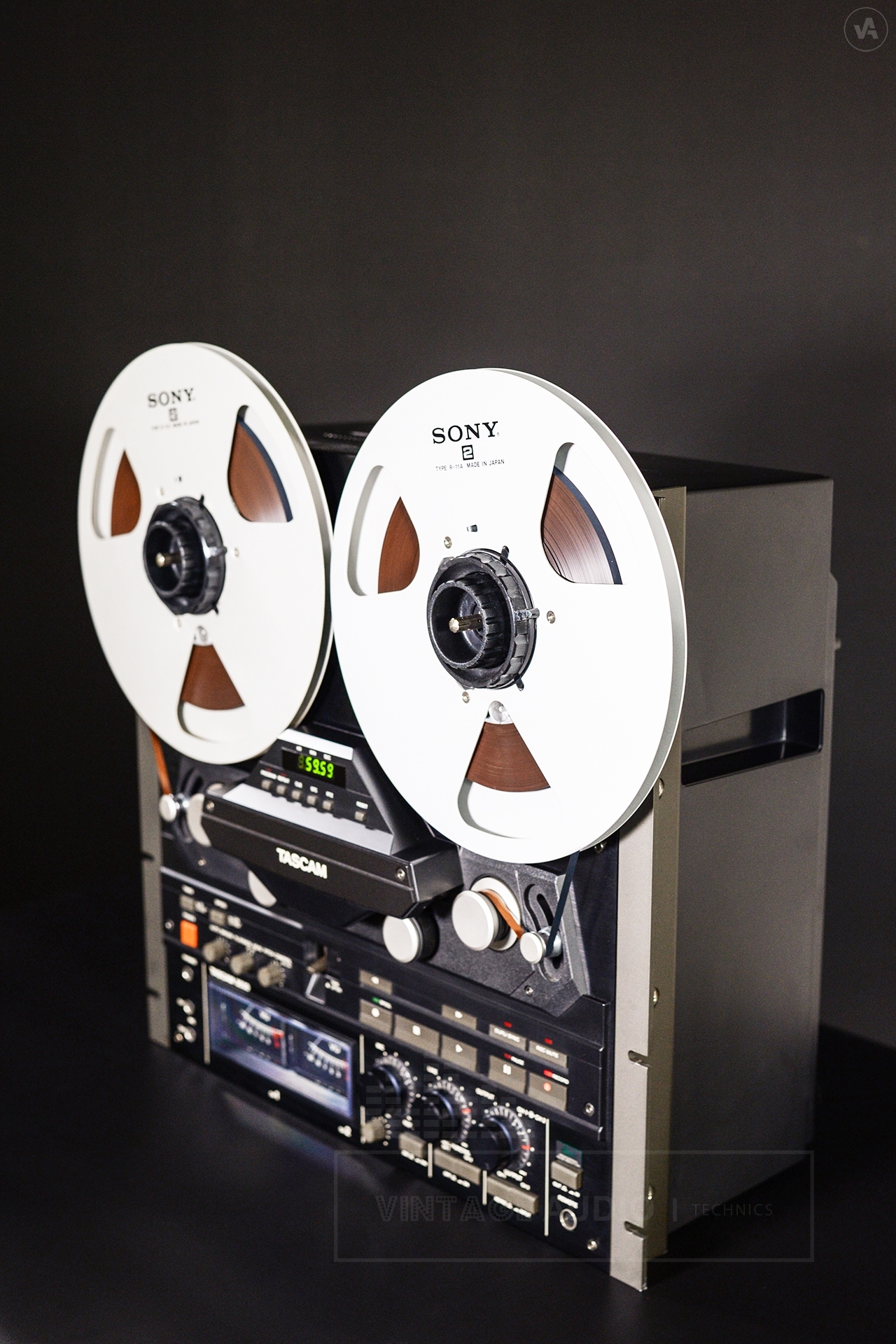

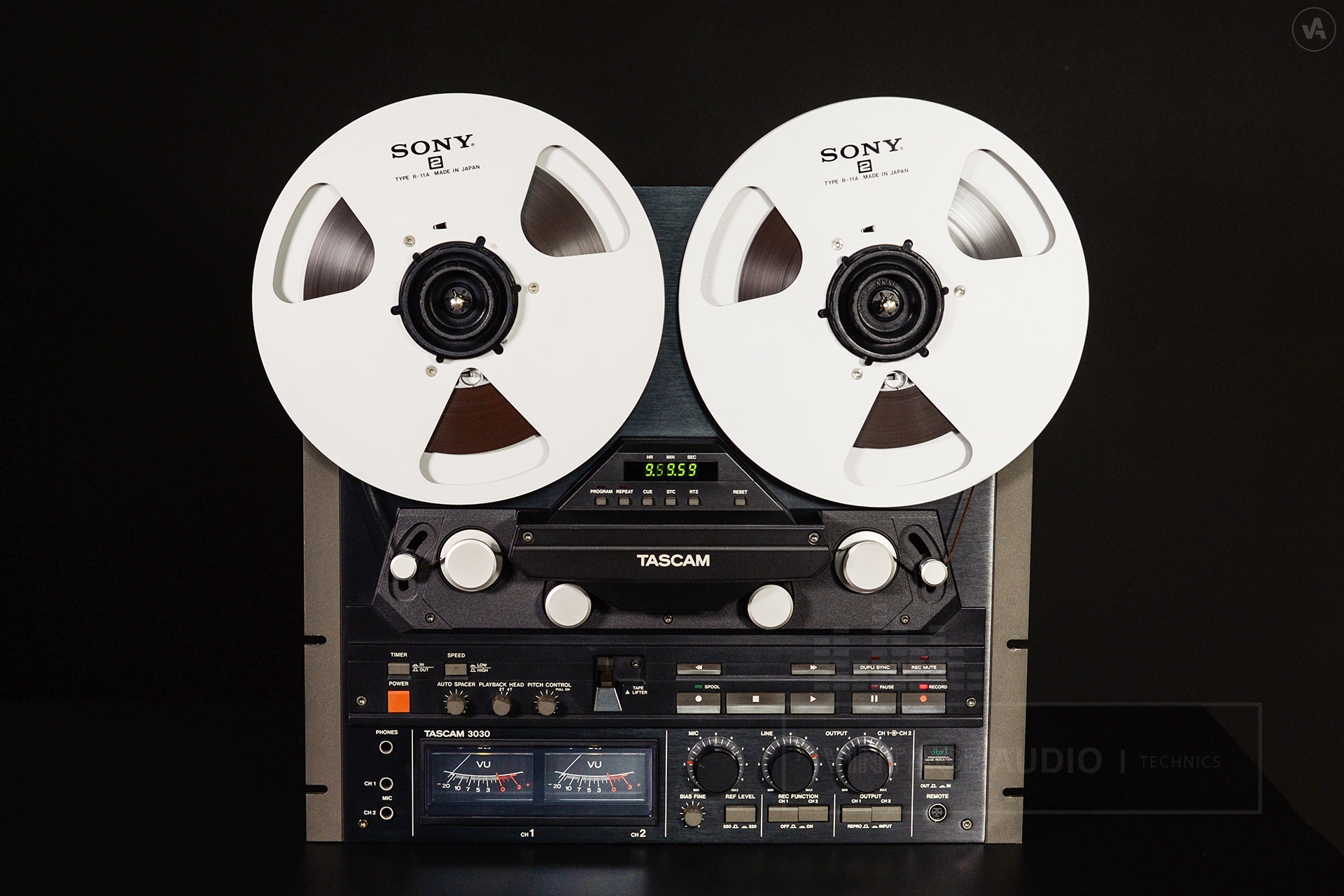

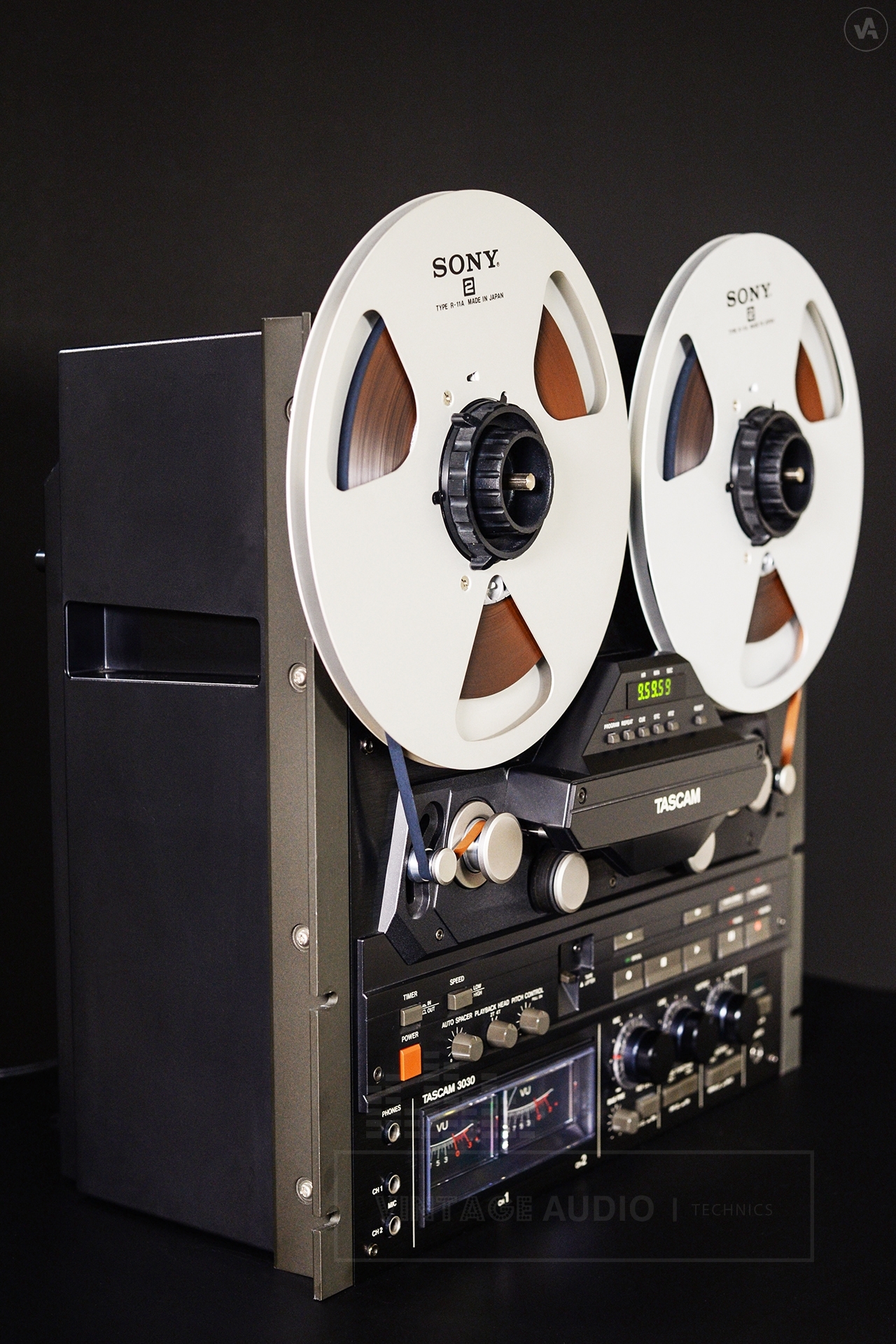

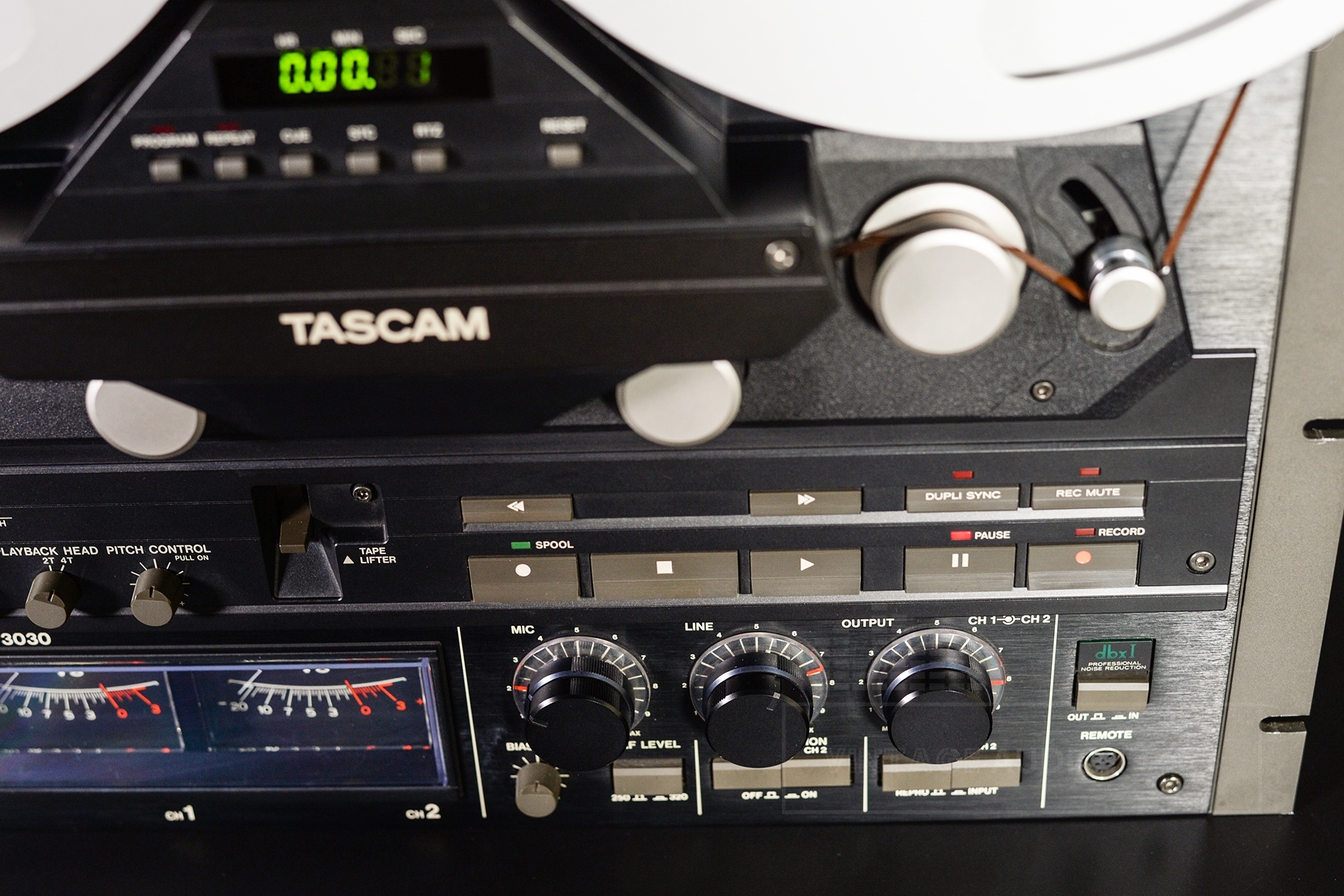

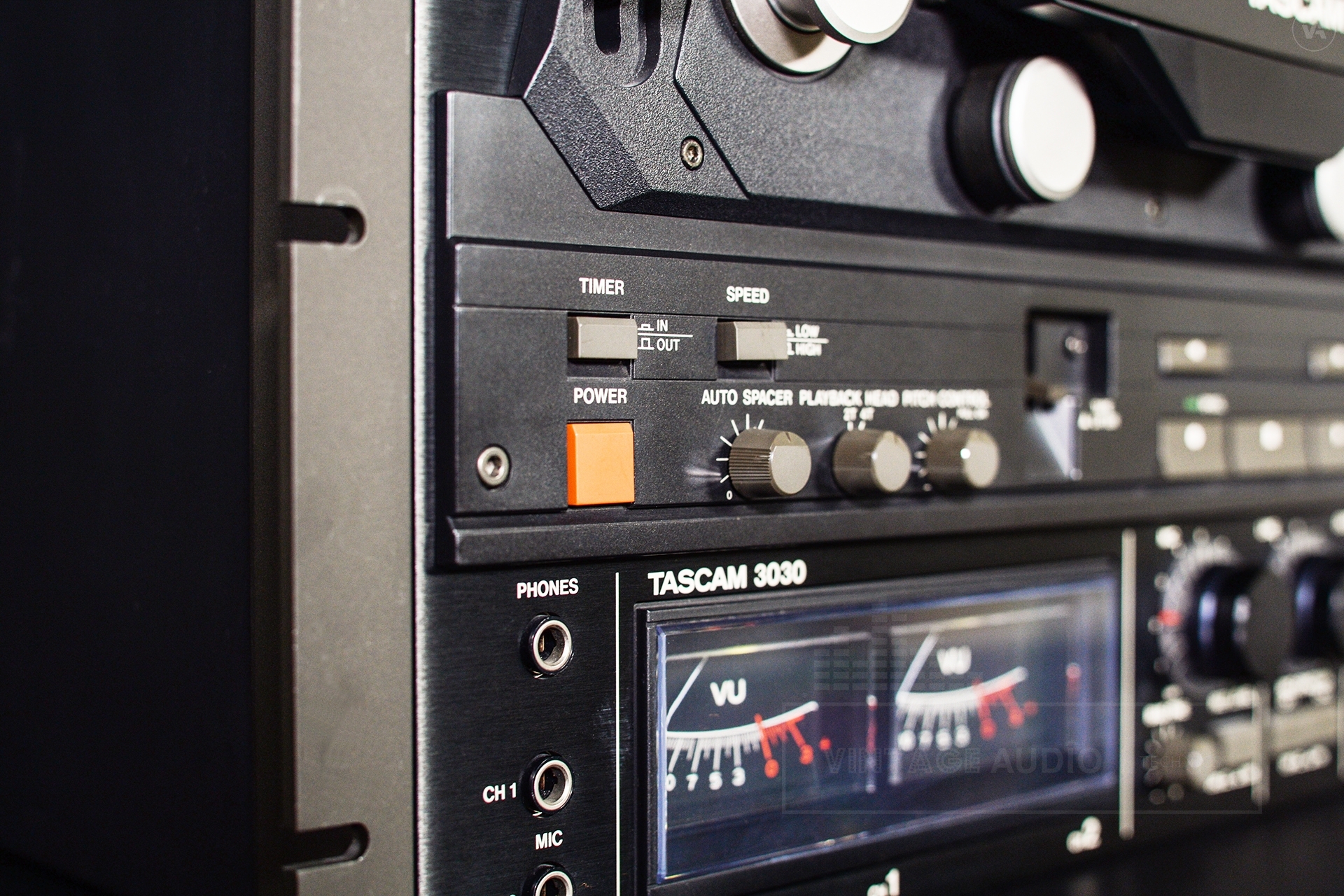

TASCAM 3030
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Studio Tape Recorder |
Track Format: | 2-track, 2-channel recording / reproduce 4-track, 2-channel reproduce |
Reel Size: | 10.5”, NAB hub |
Tape Speed: | 38.1 cm / s and 19.05 cm / s |
Speed Accuracy: | ±0.5% deviation |
Pitch Control: | ±6% |
Wow and Flutter: | ±0.07% peak weighted (DIN 45507) at 38.1 cm / s ±0.08% peak weighted (DIN 45507) at 19.05 cm / s |
Fast Wind Time: | Approx. 100 sec. for 1800 ft. |
Motors: | For Capstan - FG servo DC motors x 1 For Reel - DC slot less motor x 2 |
Heads: | 2-track 2-channel Recording head x 1 2-track 2-channel Reproduce head x 1 2-track 2-channel Erase head x 1 4-track 2-channel Reproduce head x 1 |
Frequency Response: | 40Hz to 22kHz, ±2dB (0 VU, 38.1 cm / s) 30Hz to 20kHz, ±2dB (-10 VU, 19.05 cm / s) |
Total Harmonic Distortion (THD): | 0.6% at 0 VU, 1kHz |
S / N Ratio (Overall, Referenced 3% THD at 1kHz): | 98dB dbx On, NAB Weighted) at 38.1 cm / s and 19.05 cm / s 68dB dbx Off, NAB Weighted) at 38.1 cm / s and 19.05 cm / s |
Adjacent Channel Crosstalk: | Better than 55dB (1kHz) |
Erasure: | Better than 70dB (1kHz, +10 VU) |
MIC Input Level / Impedance: | Minimum 0.25V (-72 dBV) / 10kΩ Applicable Impedance - 200Ω or more |
Line Input (Balanced / Unbalanced): | Input Impedance - 10kΩ / 50kΩ Maximum Source Impedance - 2kΩ / 10kΩ Nominal Input Level - 1.23V (+4 dBm) / 0.3V (-10 dBV) Maximum Level - 19.5V (+28 dBm) / 8V (+18 dBV) |
Line Output (Balanced / Unbalanced): | Output Impedance - 100Ω / 500Ω Minimum Load Impedance - 600Ω / 3kΩ Nominal Load Impedance - 10kΩ / 10kΩ Nominal Output Level - 1.23V (+4 dBm) / 0.3V (-10 dBV) Maximum Output Level - 19.5V (+28 dBm) / 8V (+18 dBV) |
Headphone Output level (Where applicable): | 50mW max. into 8Ω |
Bias Frequency: | 150kHz |
Equalization: | 3180µs + 50µs at 38.1 cm / s |
Operating Level: | 320 nWb / m or 250 nWb / M switchable |
Power Requirements: | AC 120V, 60Hz (U.S.A. / Canada) AC 240V, 50Hz (U.K. / Australia AC 220V, 50Hz (Europe) AC 100 / 120 / 220 / 240V, 50 / 60Hz (General Export) |
Power Consumption: | 120W |
Dimensions (W x H x D): | 432 x 456 x 268mm |
Weight: | 21kg |
