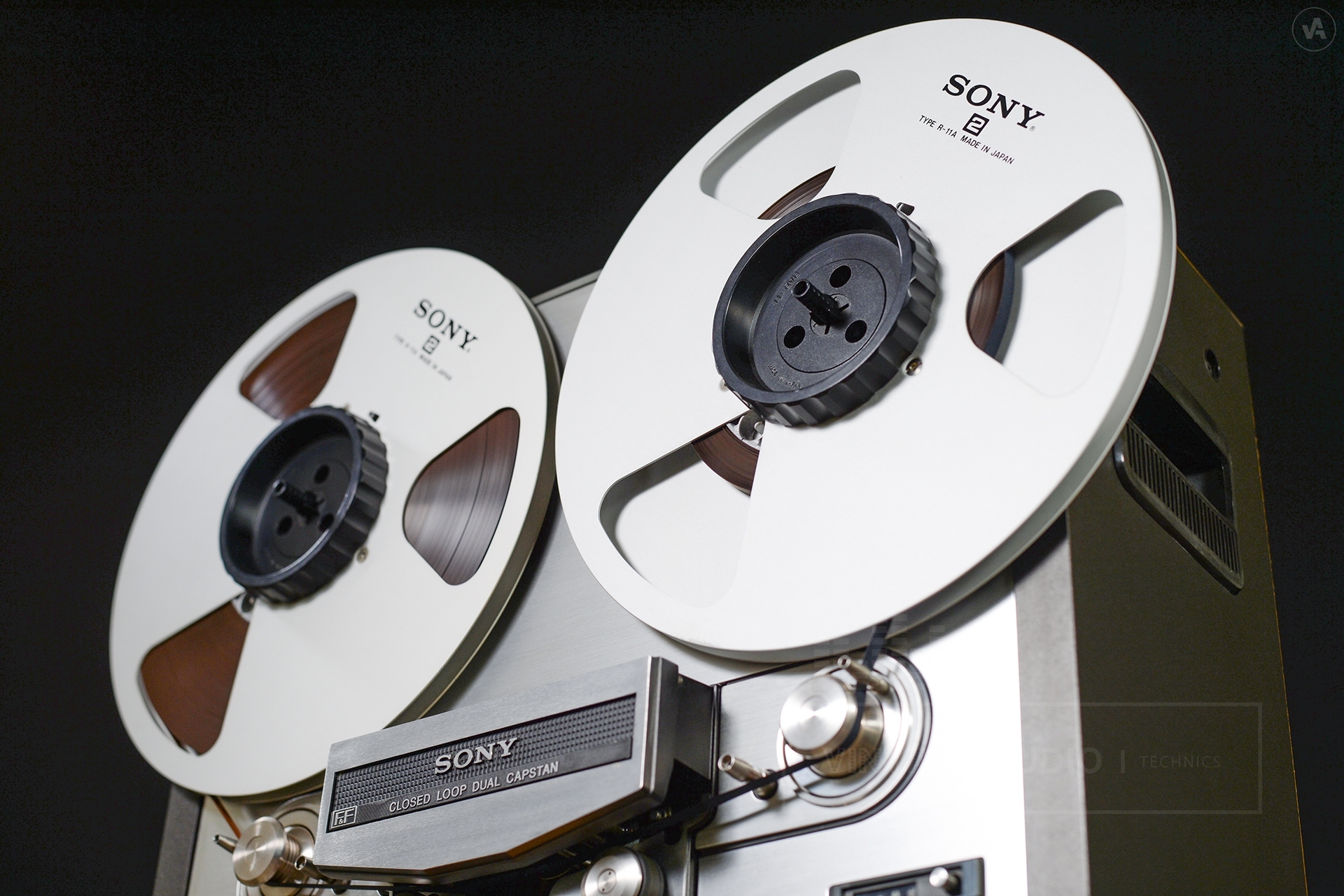

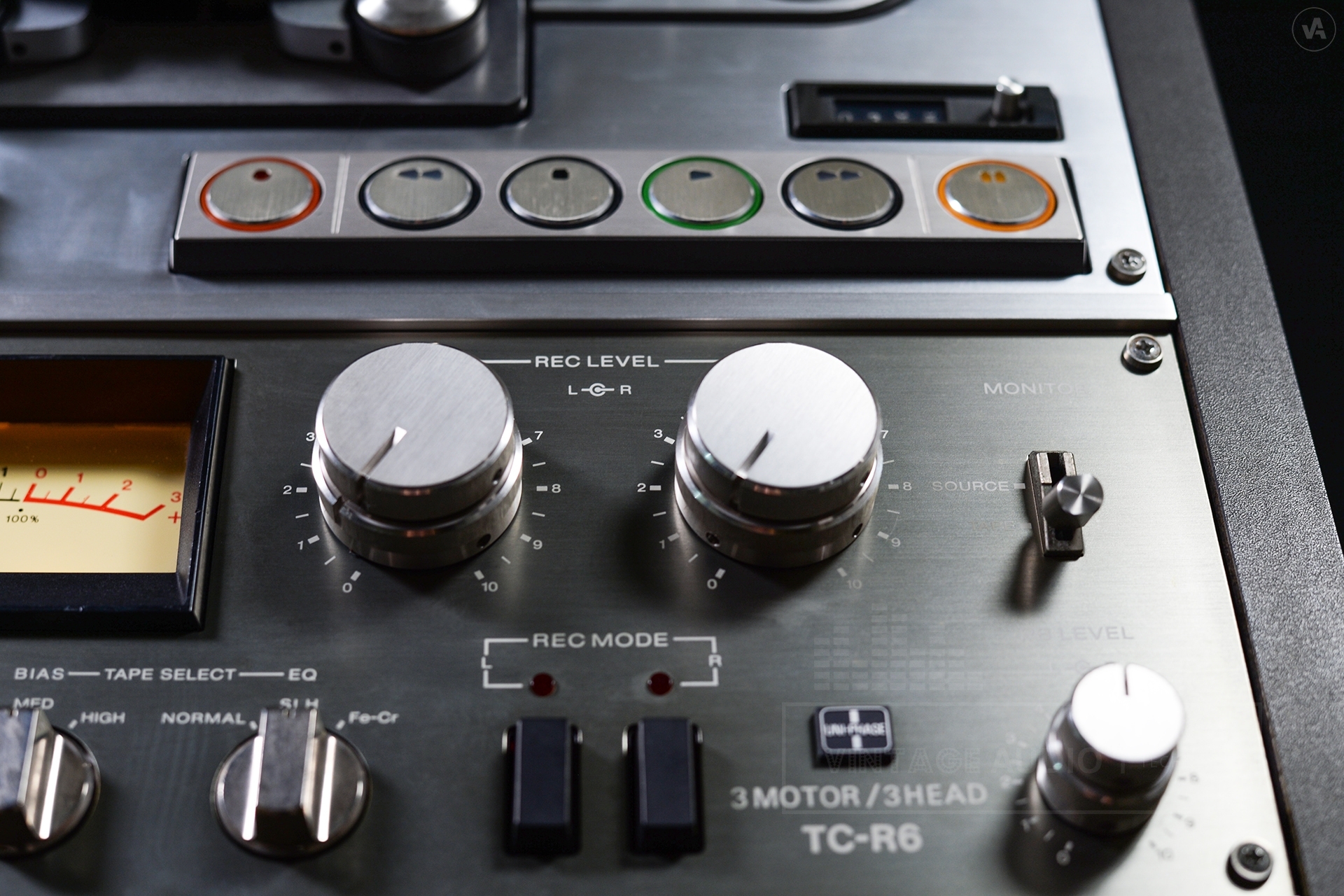

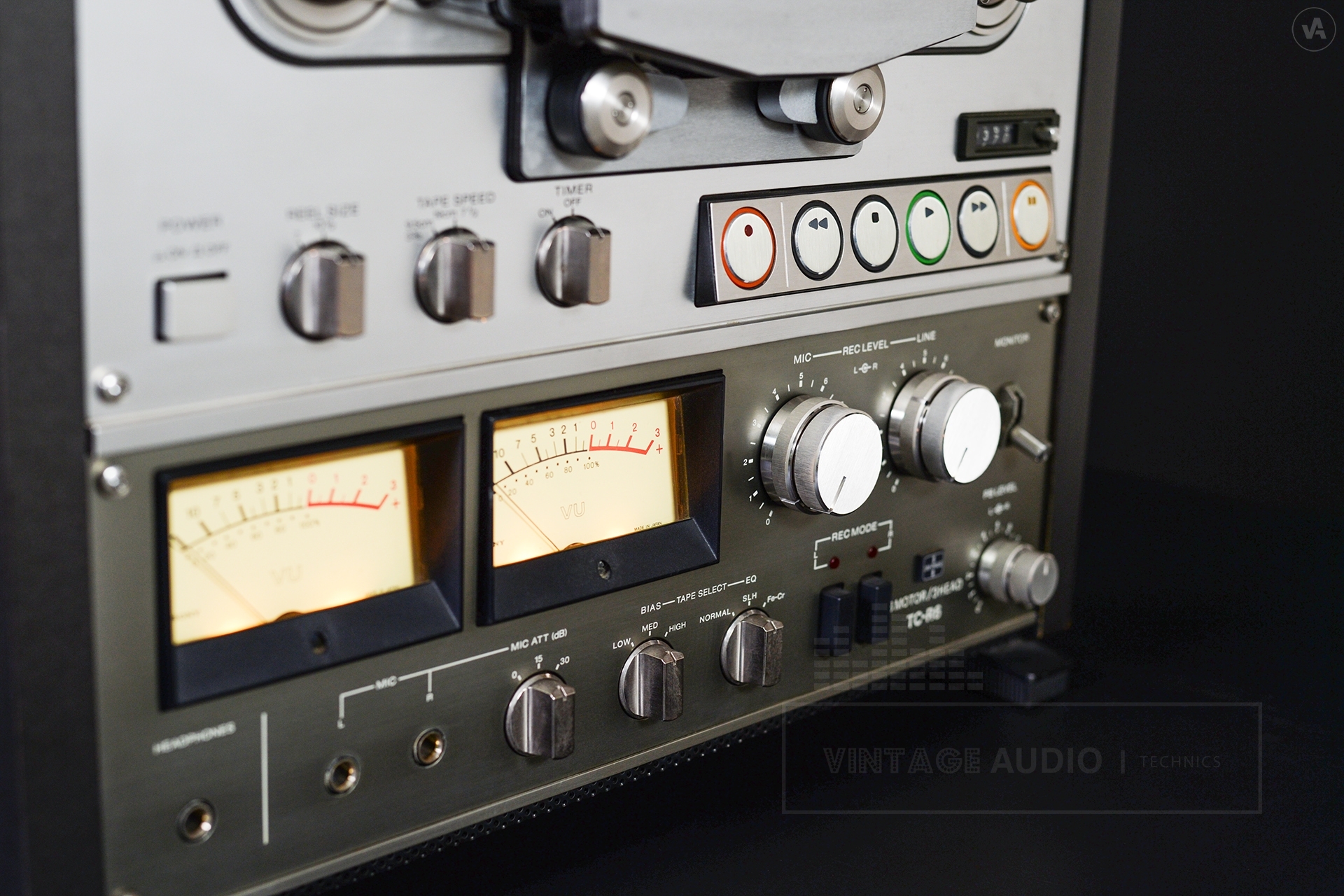

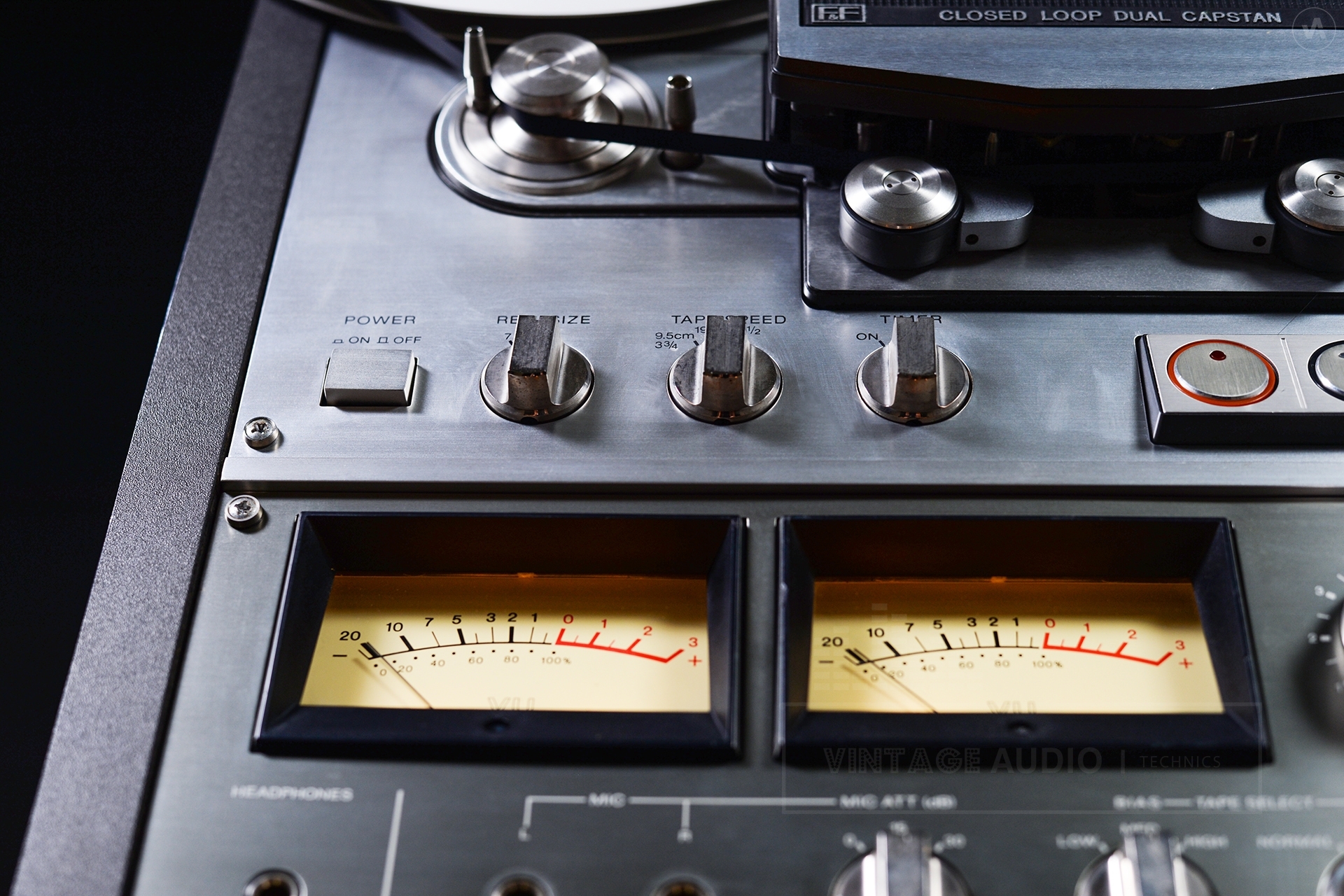

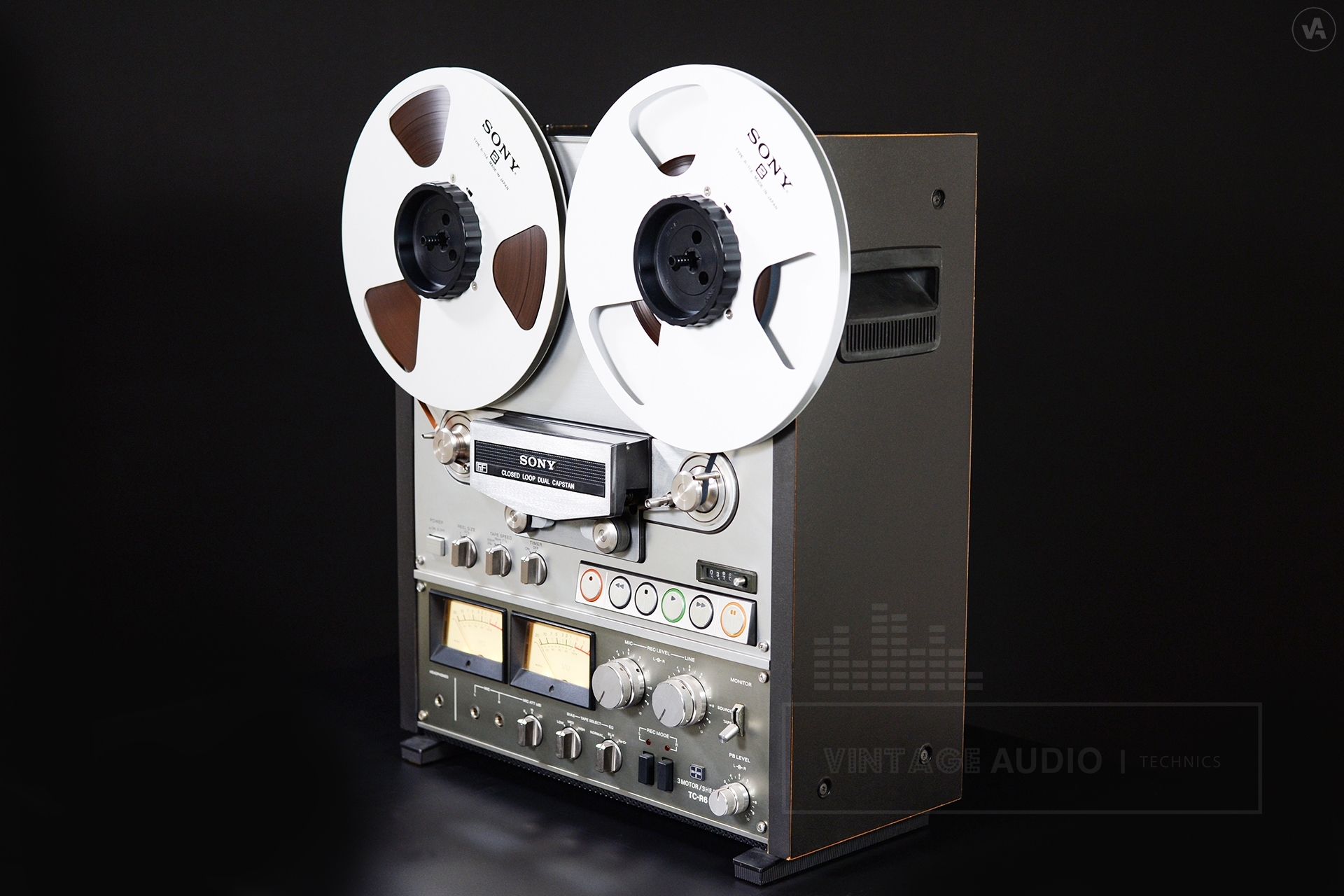

SONY TC-R6
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Reel to Reel Tape Recorder |
Track system: | 4-track, 2-channel, stereo/monaural system |
Heads: | 1 x Playback 1 x Recording 1 x Erase |
Motors: | 2 x Induction motors for Reel 1 x AC servo-controller motor for Capstan |
Reel size: | Up to 10.5” reel |
Tape speeds: | 3 ¾ ips 7 ½ ips |
[Recording time] | |
Stereo: | 180 min. at 7 ½ ips (With 1 100 m, 10.5” reel) |
Mono: | 720 min. at 3 ¾ ips (With 1 100 m, 10.5” reel) |
Fast winding time: | Approx. 150 sec. (With 740 m tape) |
Bias frequency: | 160kHz |
Equalization (JIS standard): | 7 ½ ips - 3 180µs + 50µs 3 ¾ ips - 3 180µs + 90µs |
Title | Lorem ipsum dolor sit amet. |
Wow and flutter: | 0.04% WRMS (7 ½ ips) 0.08% WRMS (3 ¾ ips) |
[Frequency response] | |
With Sony FeCr Tape: | 30Hz to 25kHz, ±3dB (7 ½ ips) 30Hz to 18kHz, ±3dB (3 ¾ ips) |
With regular tape: | 30Hz to 18kHz, ±3dB (7 ½ ips) 30Hz to 15kHz, ±3dB (3 ¾ ips) |
Signal to Noise Ratio: | 61dB (With Sony FeCr Tape) |
Total harmonic distortion: | 0.7% |
Input / Impedance: | 60mV / 100kΩ (Line) 0.2mV / For low impedance (Mic.) |
Output / Impedance: | 0.435V / 100kΩ (Line) |
Headphone output (Phone jack): | 1 |
Semiconductors: | 2 x IC's, 3 x FET's, 104 x Transistors, 89 x Diodes |
Power requirements: | AC 110V, 50 / 60Hz |
Power consumption: | 90W |
Accessories: | Reel adaptor and spacer RAD-11 Reel R-11A Connecting cord RK-74H |
Dimensions (W x H x D): | 445 x 525 x 235mm |
Weight: Approx. | 27kg |
Year: | About 1977 |
