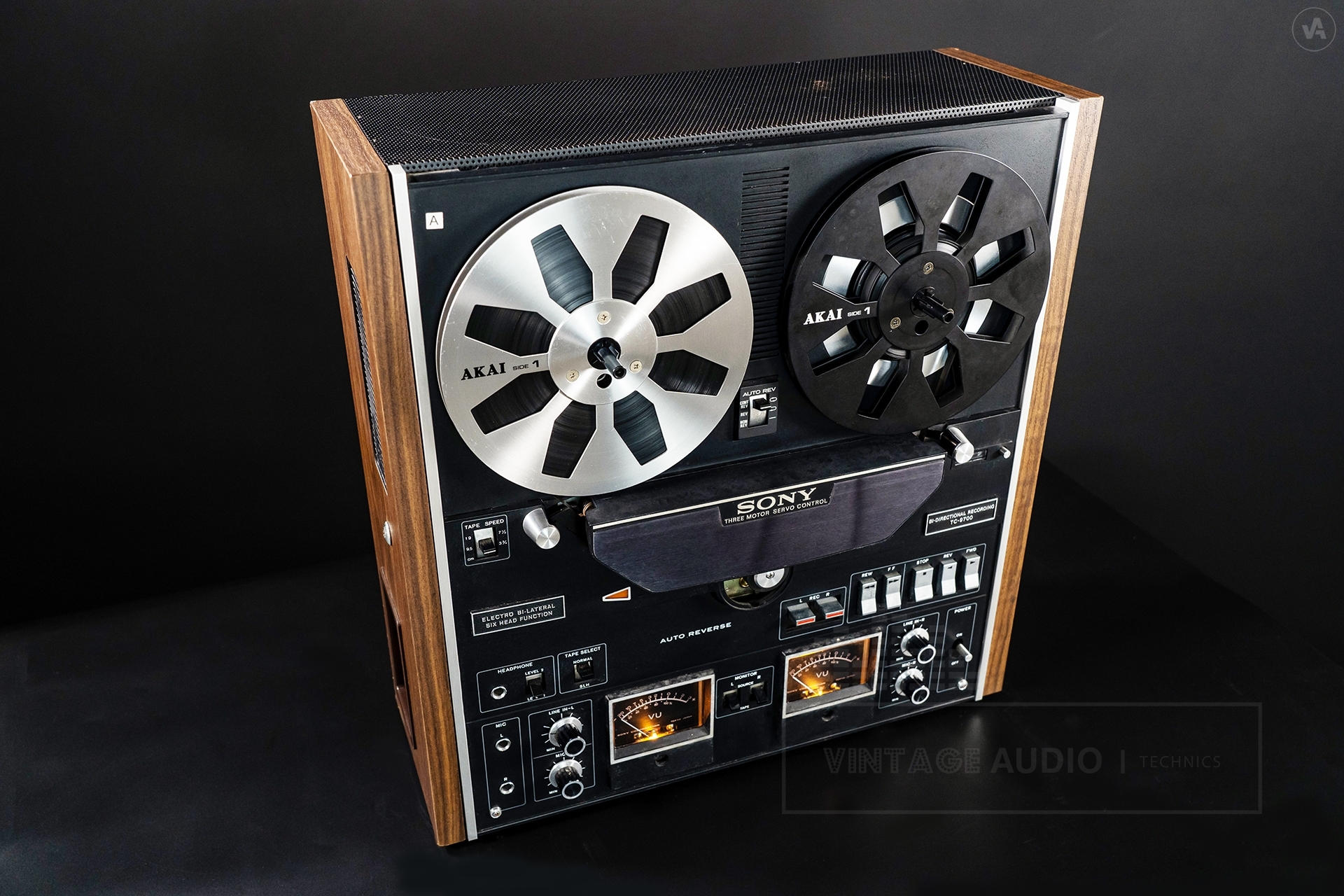

SONY TC-9700
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Tape deck |
Track system: | 4-track stereophonic and monophonic |
Reel size: | Up to 7” reel |
Tape speed: | 19 cm / s 9.5 cm / s 4.8 cm / s |
Used motors: | For Capstan - Eddy current type AC servo motor x 1 For Reel - Eddy current type motor x 2 |
[Recording time] | |
4-track stereo: | 1.5 hrs (19 cm / s) 3 hrs (9.5 cm / s) |
4-track mono: | 3 hrs (19 cm / s) 6 hrs (9.5 cm / s) |
Wow and flatter: | 0.06% WRMS (19 cm / s) 0.1% WRMS (9.5 cm / s) 0.2% WRMS (4.8 cm / s) |
Recording bias: | 160kHz |
[Frequency characteristic] | |
With using SLH tape: | 20Hz to 30kHz / 30Hz to 25kHz, ±3dB (19 cm / s) 20Hz to 20kHz (9.5 cm / s) |
With using Standard tape: | 20Hz to 25kHz (19 cm / s) 30Hz to 17kHz (9.5 cm / s) 30Hz to 9kHz (4.8 cm / s) |
Total distortion rate: | 1.2% |
Overall S / N ratio: | 56dB (With SLH tape) 53dB (With Standard tape) |
Input / Impedance: | 60mV / 100kΩ (Line) 0.2mV / Low impedance (Mic.) |
Output / Impedance: | 0.775V / 100kΩ (Line) 12.5mV / 8Ω (Headphone) |
Semiconductors: | 45 x Transistors 1 x IC’s 27 x Diodes |
Dimensions (W x H x D): | 446 x 225 x 460mm |
Weight: | 19.5kg |
Year: | About 1971 |
