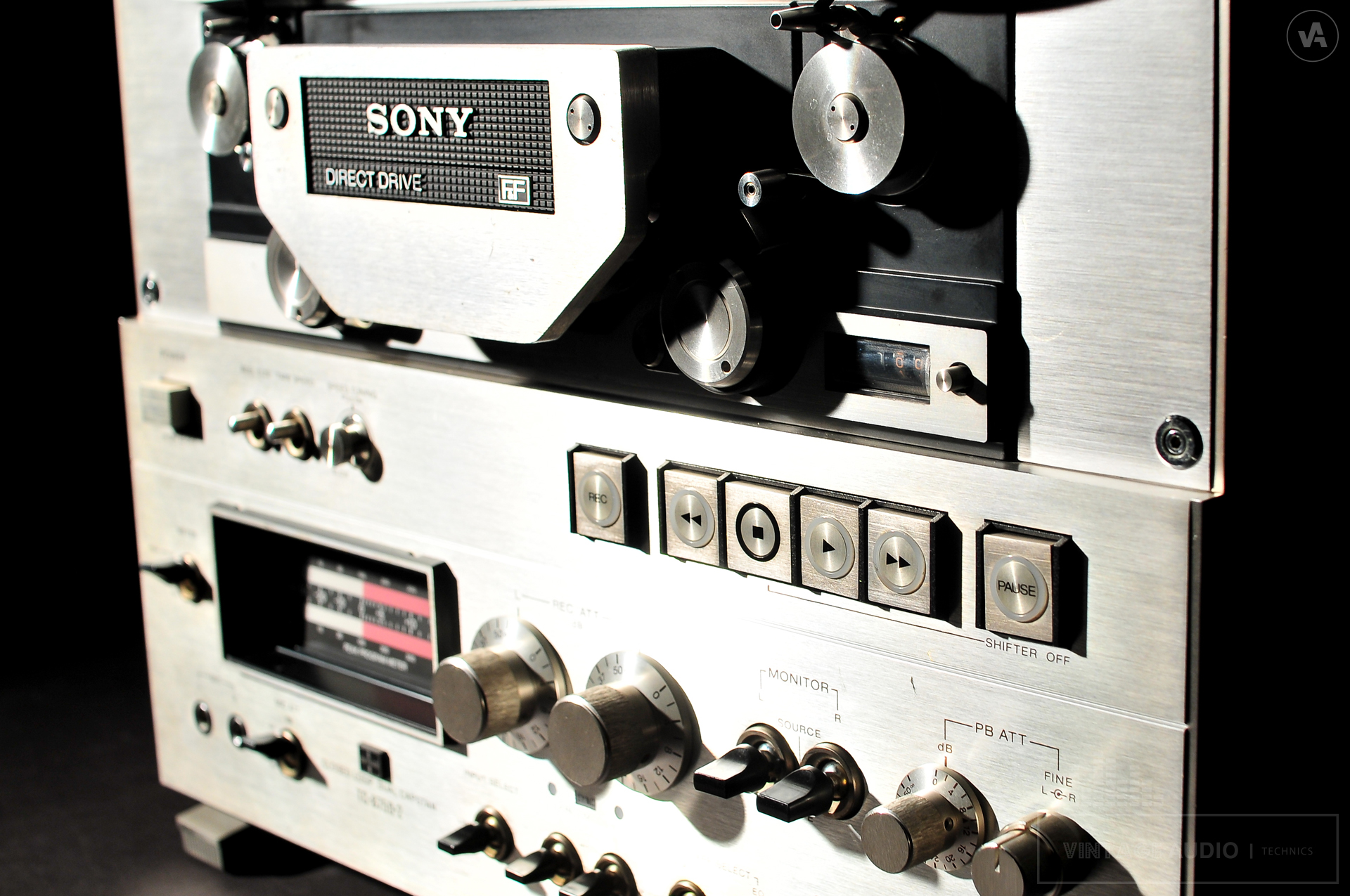

Type: | Stereo Reel to Reel Tape Recorder |
Track system: | 2/4-track, 2-channel, stereo/monaural system |
The speed of the tape: | 38 cm / s, 19 cm / s |
Heads: | 1 x 2T record 1 x 2T playback 1 x 4T playback 1 x erase |
Motor: | 2 x reel 1 x capstan |

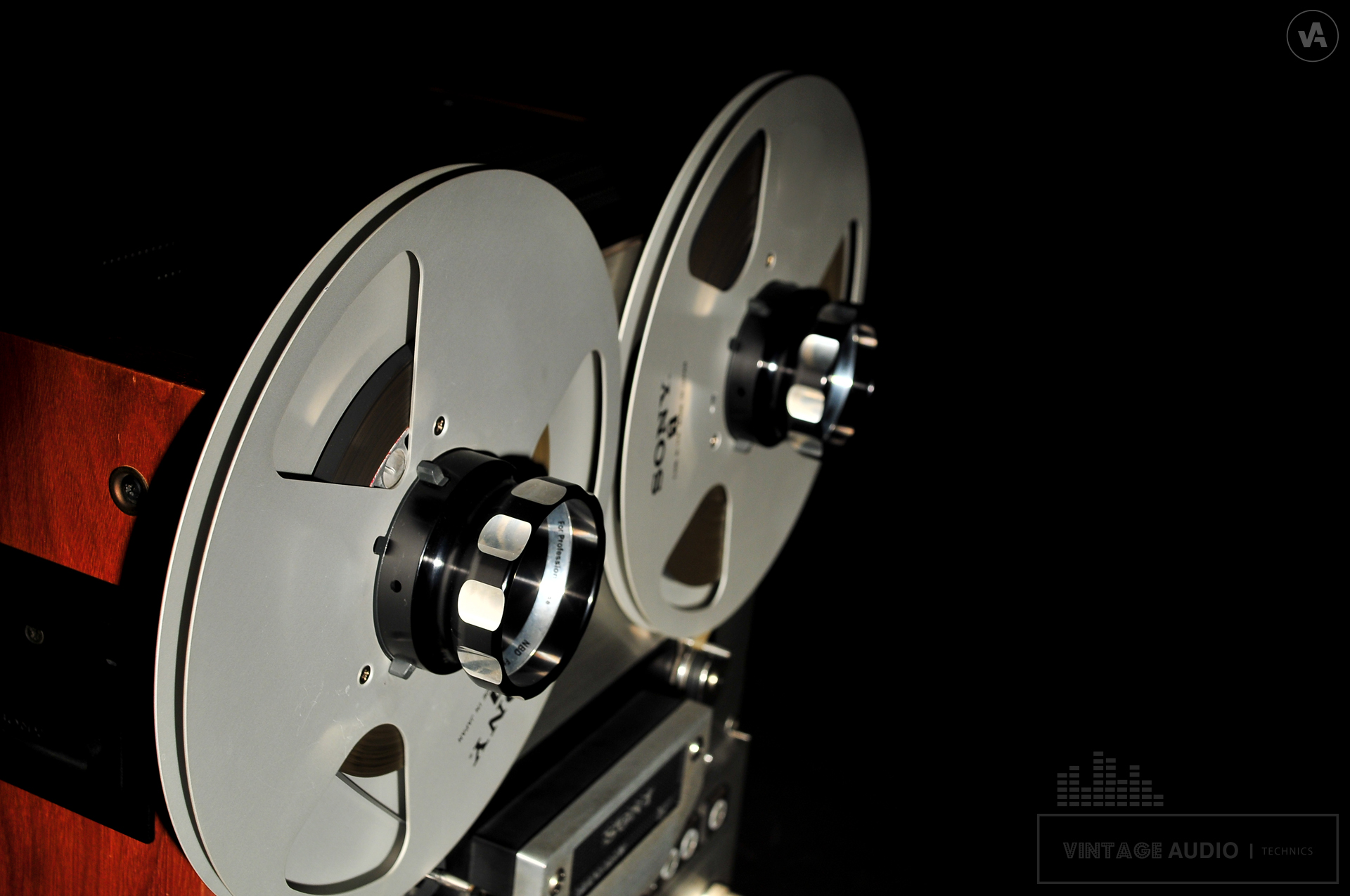

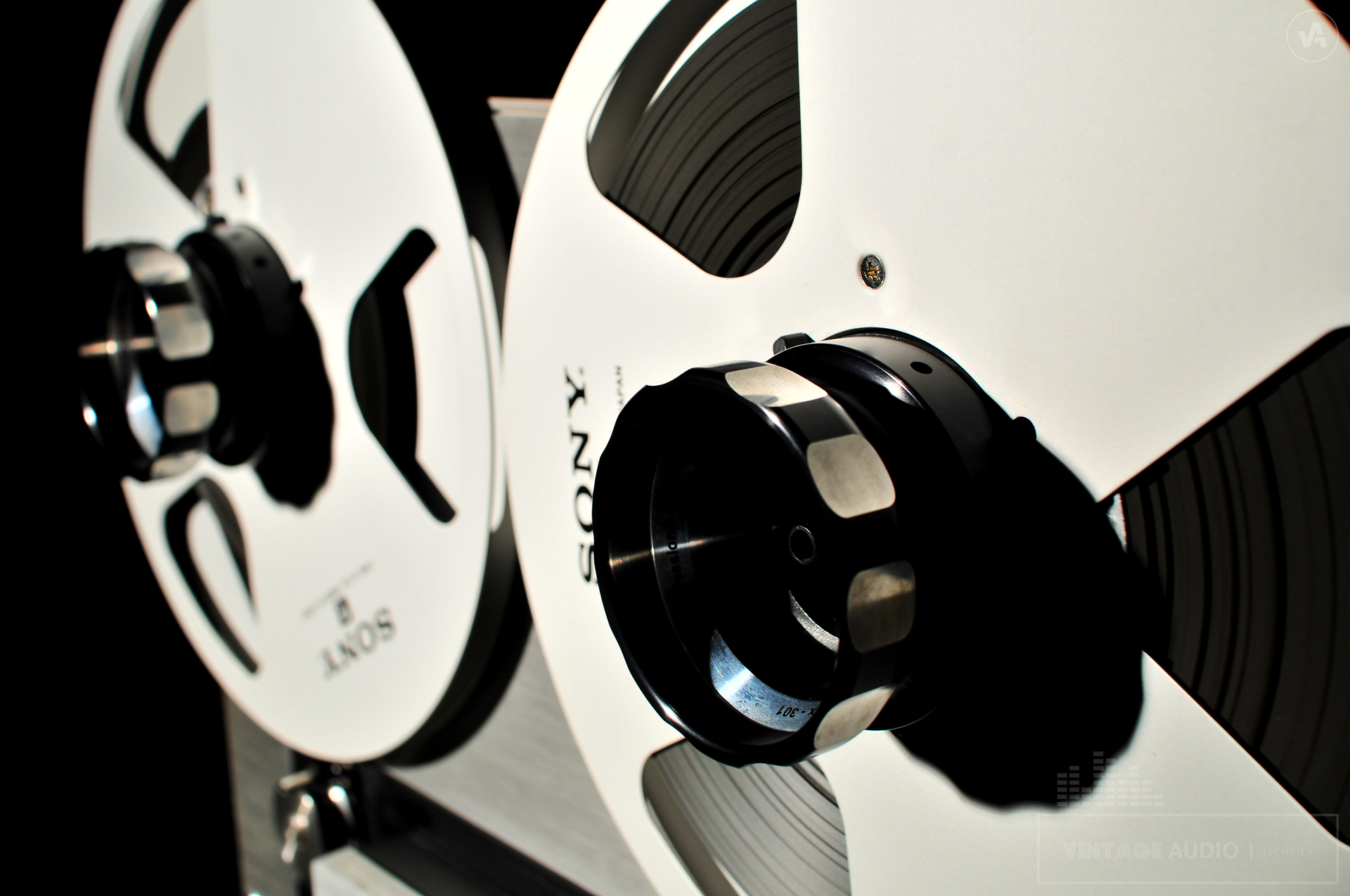

Reel size: | Up to 10.5 inch reel |
Equalization: | Up to 10.5 inch reel |
Wow and flutter: | 0.02% wrms (38 cm / s) 0.03% wrms (19 cm / s) |
The S/N ratio: | 65dB (Dude paper is used) |
Frequency response: | 20Hz to 40kHz ± 2 dB (38 cm / s, Duad tape) 25Hz to 30kHz ± 2dB (19 cm / s, thick tape) |
Total harmonic distortion: | 0.5% |
Input: | 60mV (line) 0.2mV (mic) |
Output: | 0.43V (line) |
Semiconductors: | 5 x IC 17 x FET 149 x transistors 120 x diodes |
Power consumption: | 120W |
Accessories: | Empty reel, RAD-10 reel adaptor, RK-74H connecting cord |
Option: | Remote control RM-16 (¥ 7,500) |
External dimensions (W x H x D): | 435 × 515 × 265mm |
Weight: | 36.5kg |
Year: | 1975 |
