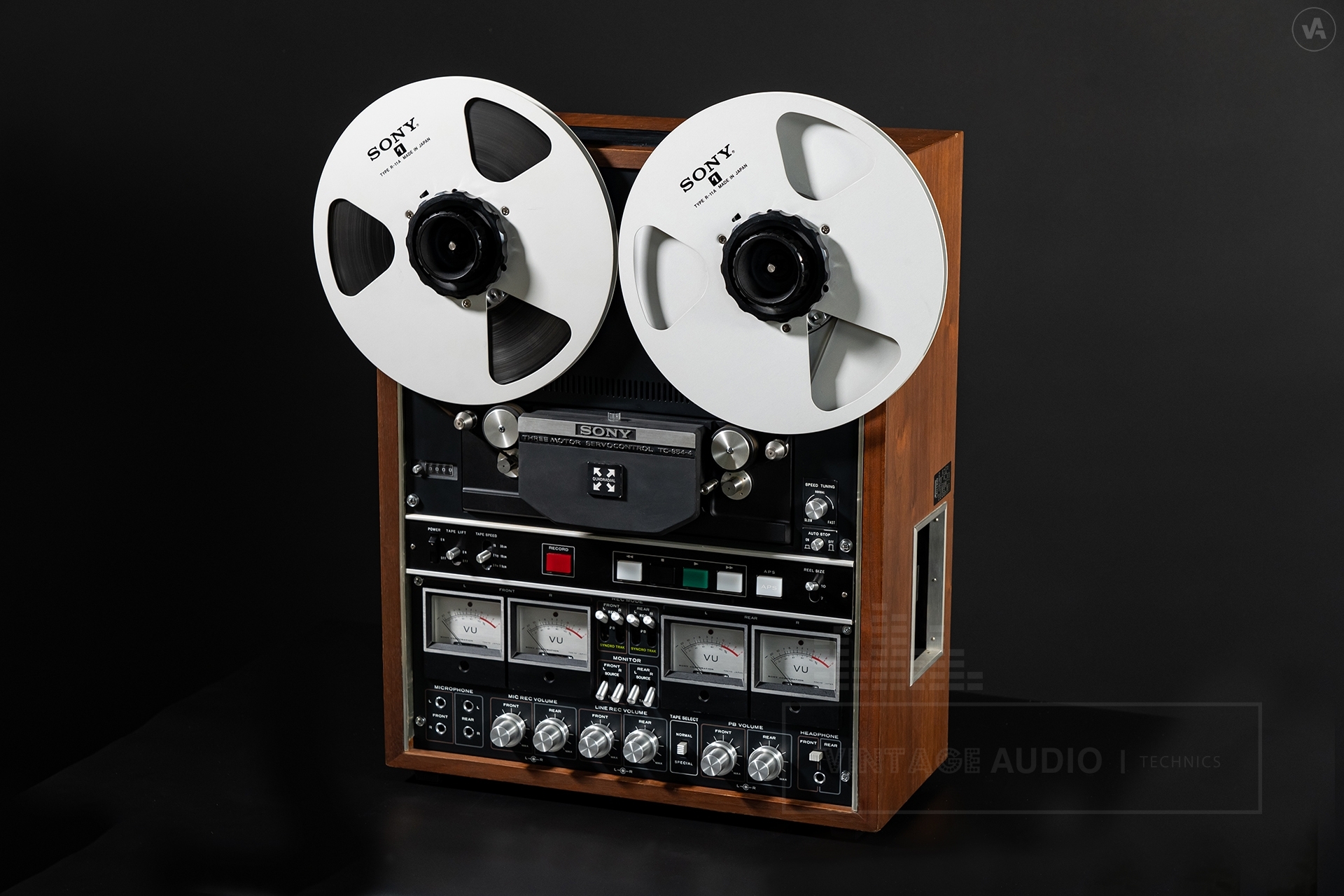

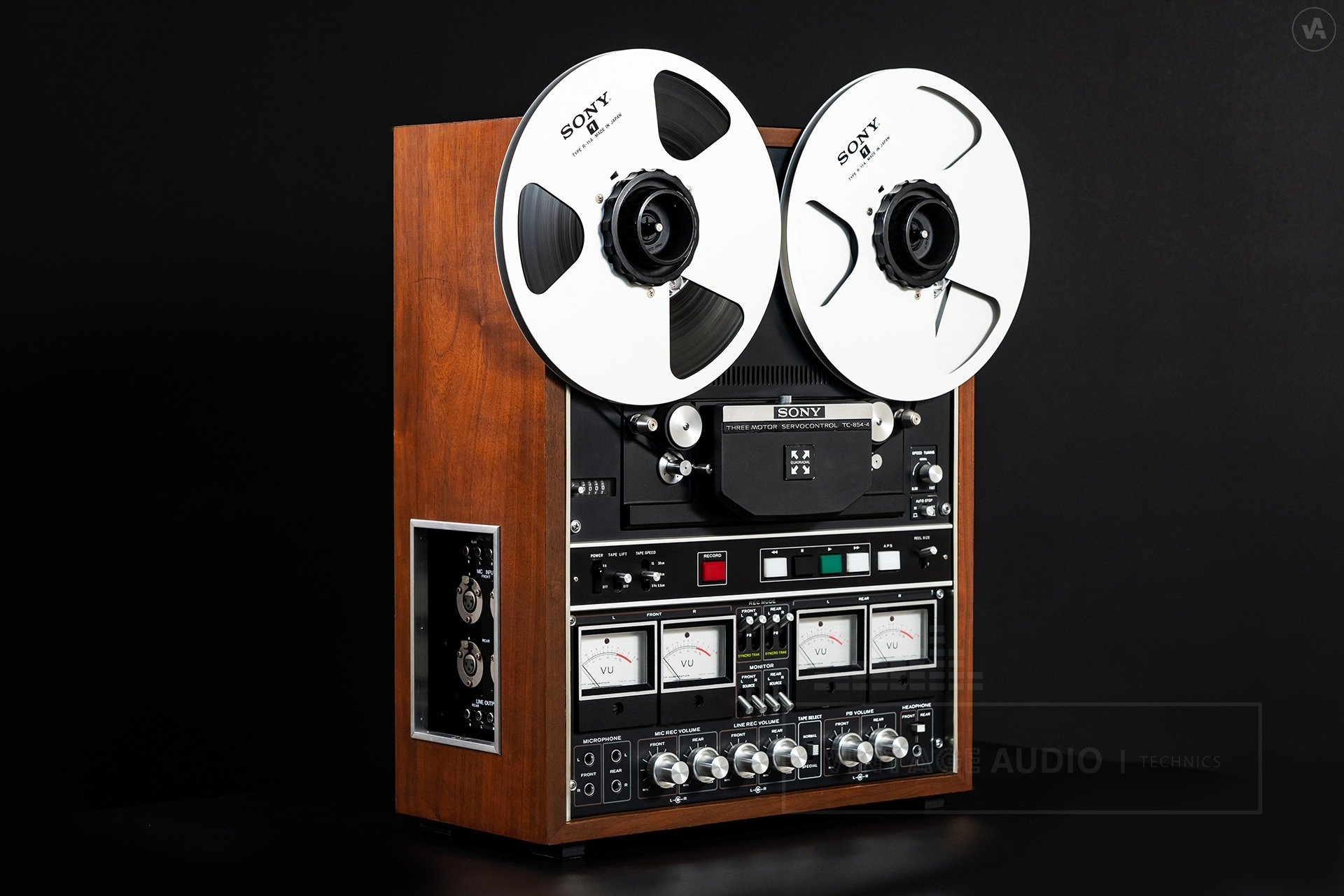

SONY TC-854-4

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco

Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet.
Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet.
Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet.

Technic details

Specifications

Type:
Four Channel Solid State Professional Stereo Tapecorder
Track system:
4-track, 4-channel, stereo/multi-channel system
Heads:
1 x Playback head
1 x Recording head
2 x Erase head
Motors:
2 x Reel
1 x Capstan
Reel size:
Up to 10.5” reel

Recording time:
30 min. - 4-channel stereo at 15 ips with 2 400 ft. tape
1 hr. - 4-channel stereo at 7 ½ ips with 2 400 ft. tape
Fast winding time:
2 min. 10 sec. with 2 400 ft. tape
Wow and flutter:
0.03% (15 ips)
Frequency response (With standard tape):
20Hz to 28kHz (15 ips)
20Hz to 25kHz (7 ½ ips)
20Hz to 18kHz (3 ¾ ips)
Signal to Noise Ratio:
59dB (With SLH tape)
56dB (With standard tape)
Total distortion rate:
Less than 1.5%
Recording bias:
About 120kHz
Inputs:
60mV / -22dB / 100kΩ (Line)
0.2mV / -72dB / 600Ω (Mic.)
Output:
0.775V / 100kΩ (Line)
Semiconductors:
109 x Transistors
103 x Diodes
AC outlet:
300W unswitched
Power requirements:
AC 120V, 60Hz
Power consumption:
110W
Accessories:
10 ½ reel x 1
Reel adaptors, holders, spacers x 2
AC power cord x 1
Connecting cord x 4
4-channel demonstration tape x 1
Cord label x 1 sheet
Sensing foil x 1 sheet
Head cleaning ribbon x 1
Dust protector x 1
Optional:
Remote control RM-16
Microphone ECM-21

Dimensions (W x H x D):
440 x 558.5 x 253mm
Weight:
28kg
Year:
About 1971
