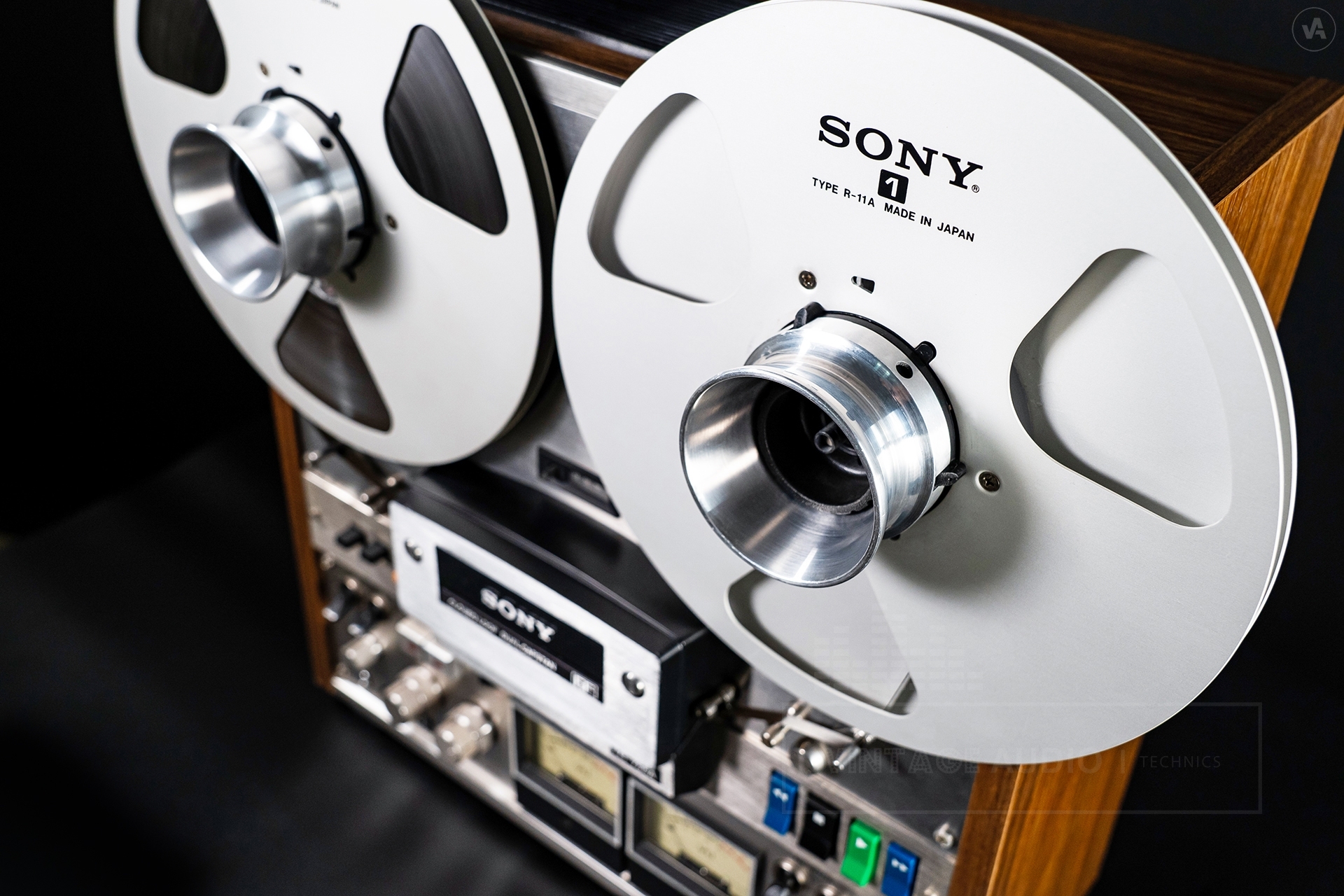

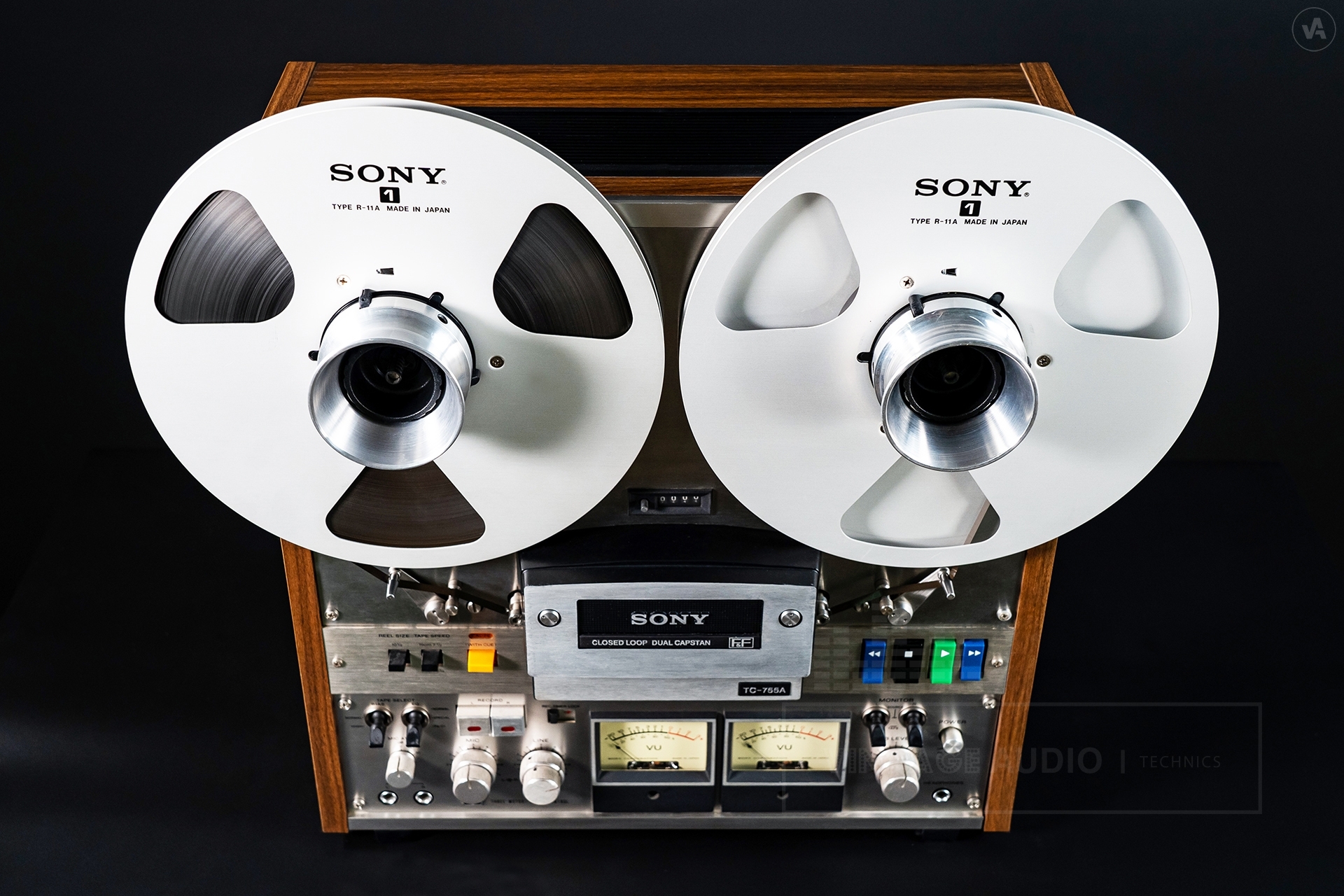

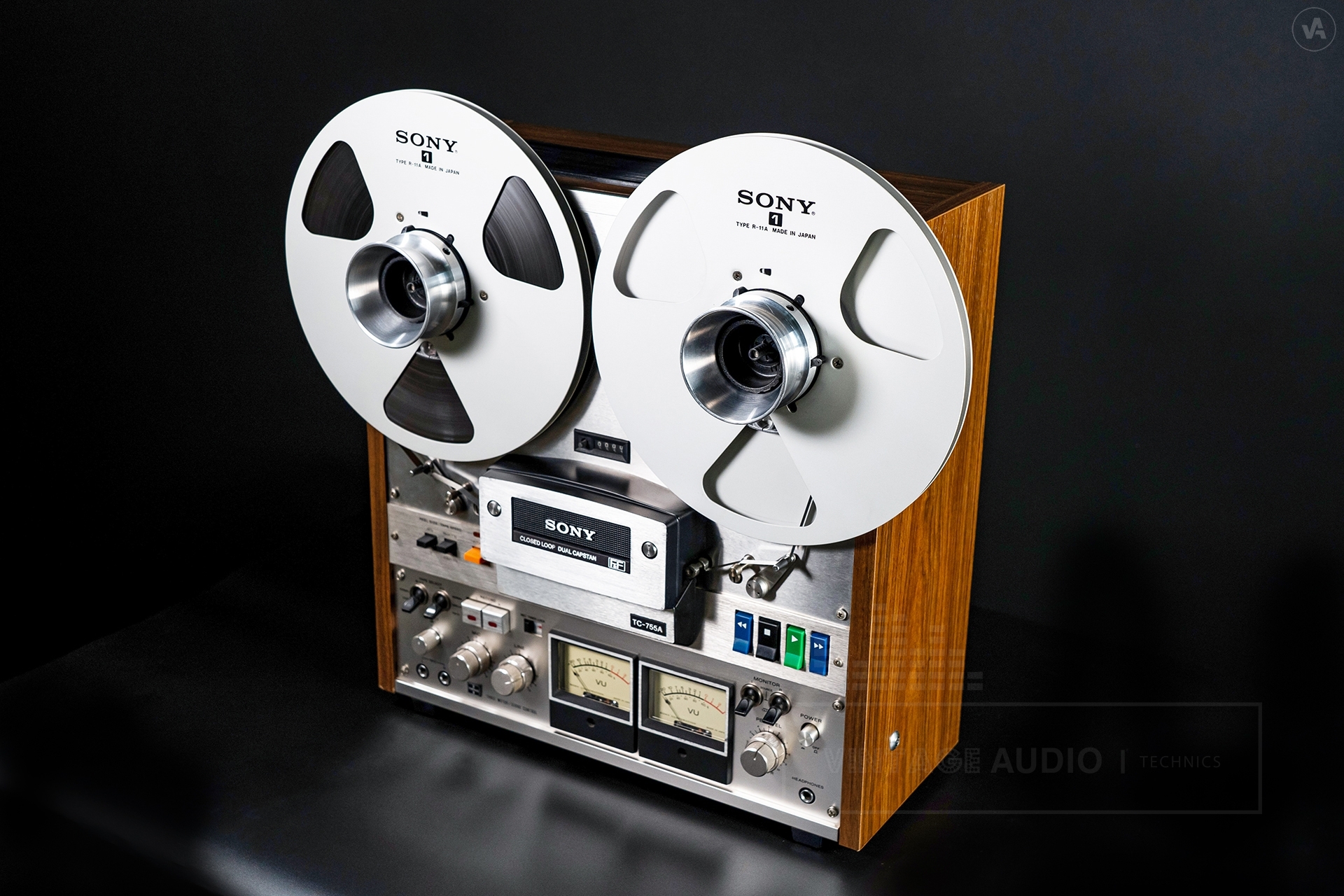

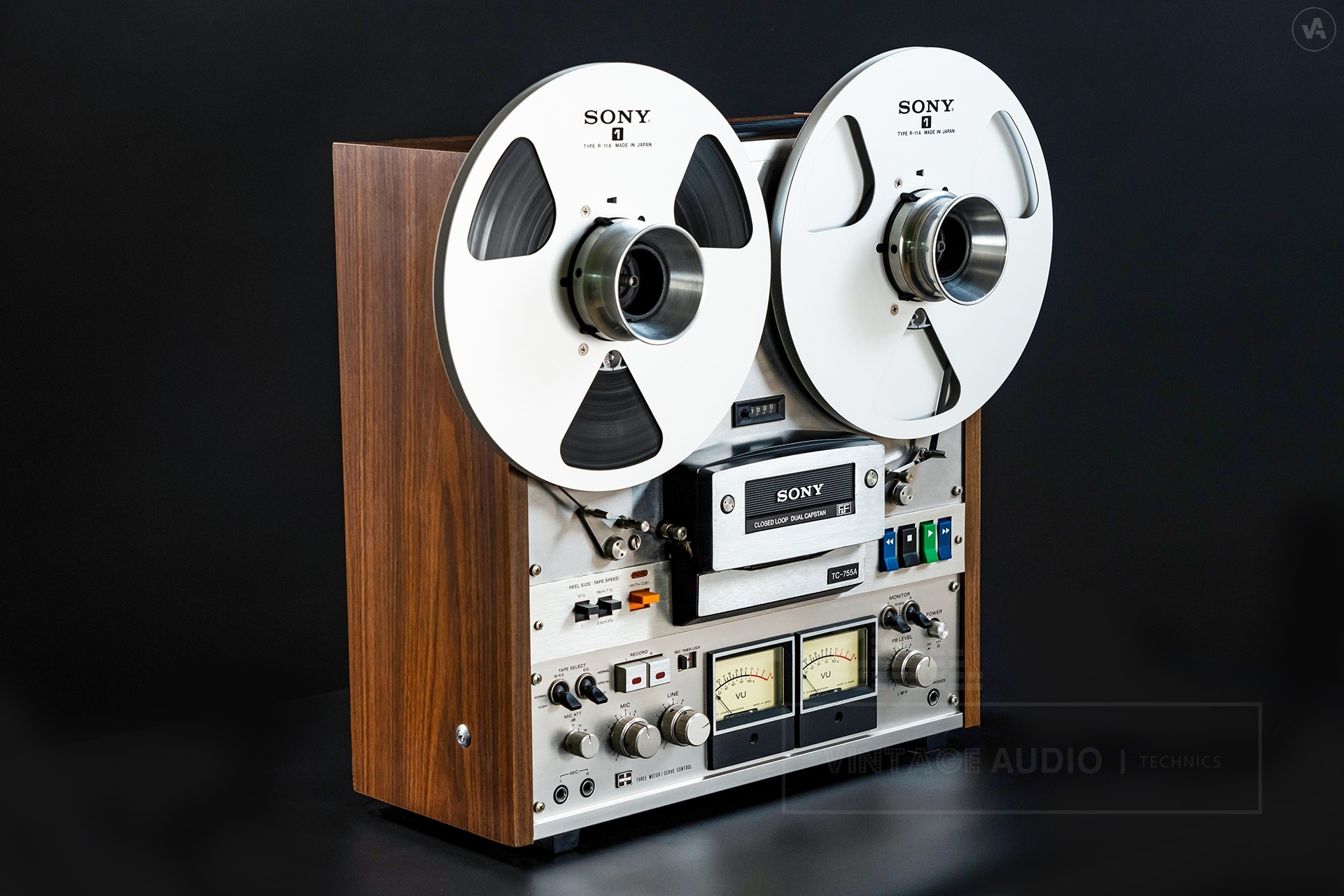

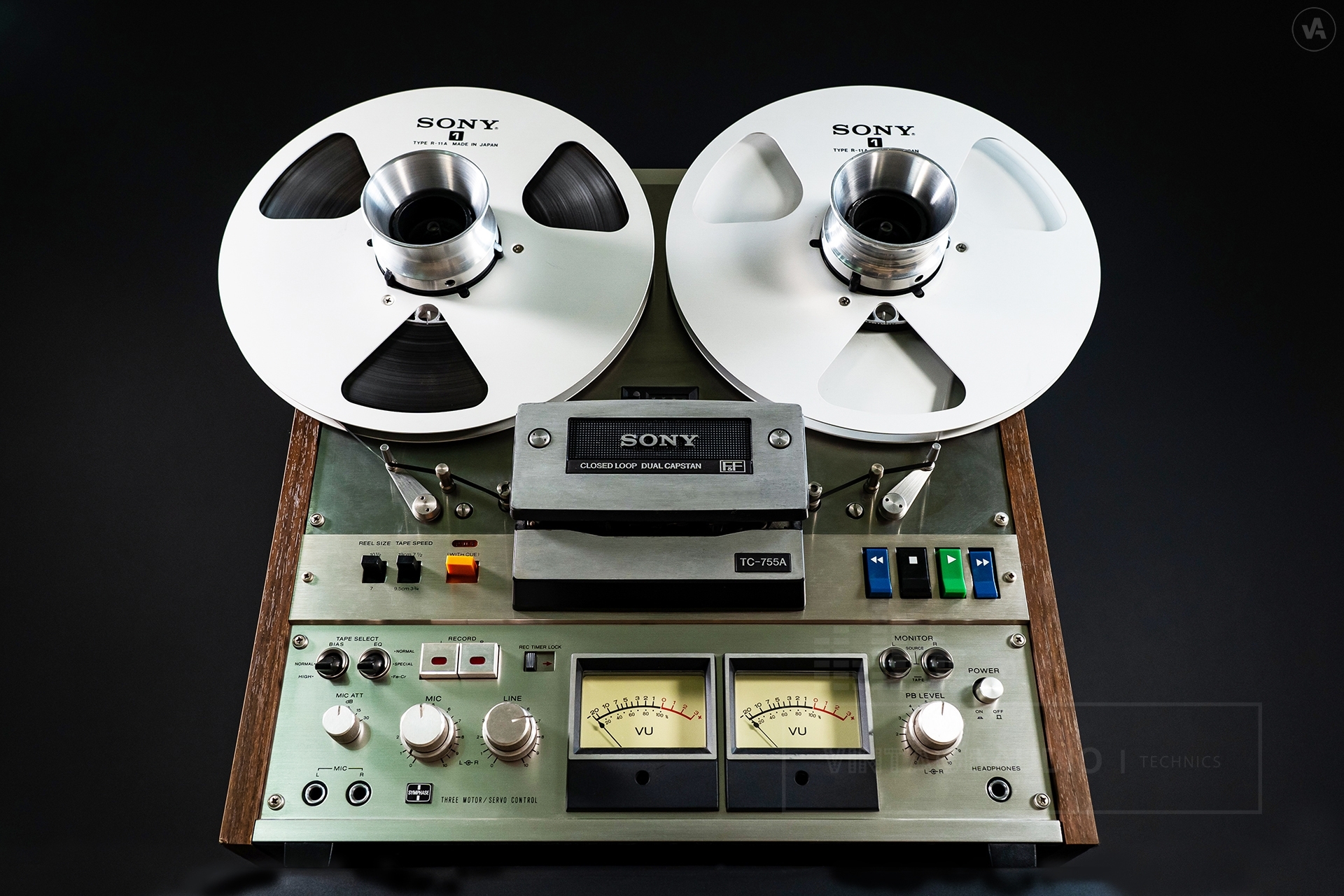

SONY TC-755A
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo Tapecorder |
Track system: | 4-track, 2-channel, stereo/monaural system |
Reel size: | Up to 10 ½” (27cm) reel |
Tape speeds: | 3 ¾ ips (19 cm / s) 7 ½ ips (9.5 cm / s) |
Recording time: | 6 hours total at 3 ¾ ips, stereo recording (With 1 100m tape of 10 ½” reel) |
[Frequency response] | |
With Sony FeCr Tape | 30Hz to 27kHz (7 ½ ips) 30Hz to 18kHz (3 ¾ ips) |
With SLH Tape: | 30Hz to 25kHz (7 ½ ips) 30Hz to 16kHz (3 ¾ ips) |
With Regular Tape: | 30Hz to 20kHz (7 ½ ips) 30Hz to 13kHz (3 ¾ ips) |
Signal-to-Noise Ratio: | 58dB with Sony FeCr tape |
Wow and flutter: | ±0.07% (7 ½ ips) ±0.1% (3 ¾ ips) |
Record bias frequency: | Approx. 160kHz |
Equalization: | NAB standard |
Total harmonic distortion: | 0.8% |
Fast winding time: | 2 min. 30 sec. (With 740 m tape 10 ½” reel) |
Input / Impedance: | 60mV / 100kΩ (Line) 0.2mV / Low (Mic.) |
Output / Impedance: | 0.775V / 10 kΩ or more (Line) 8Ω (Headphones) |
Power requirements: | AC 110 / 127 / 220 or 240V, 50 / 60Hz |
Power consumption: | 110W |
Dimensions (W x H x D): | 435 x 451 x 221mm |
Weight: | 24kg |
Year: | 1975 |
