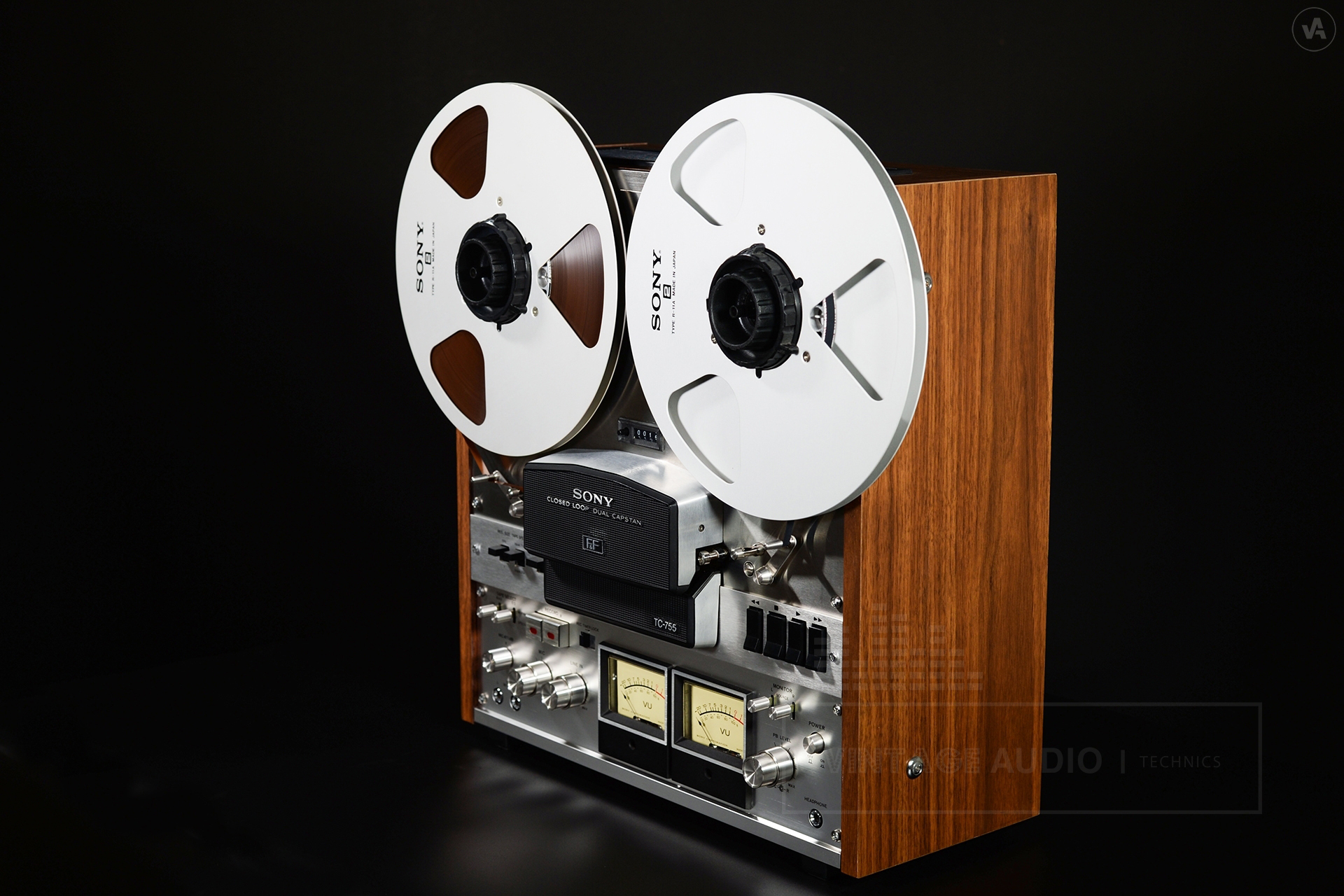

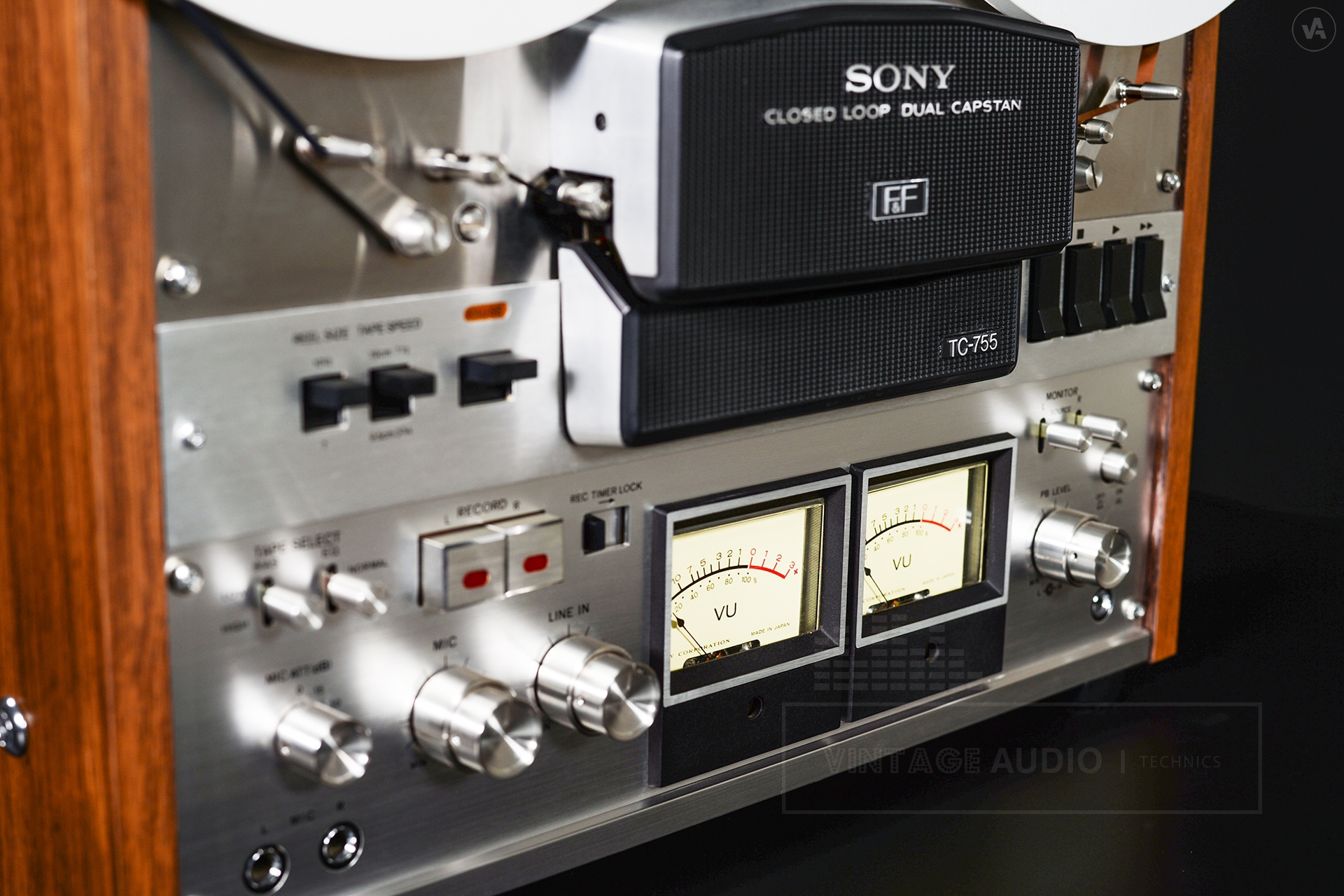

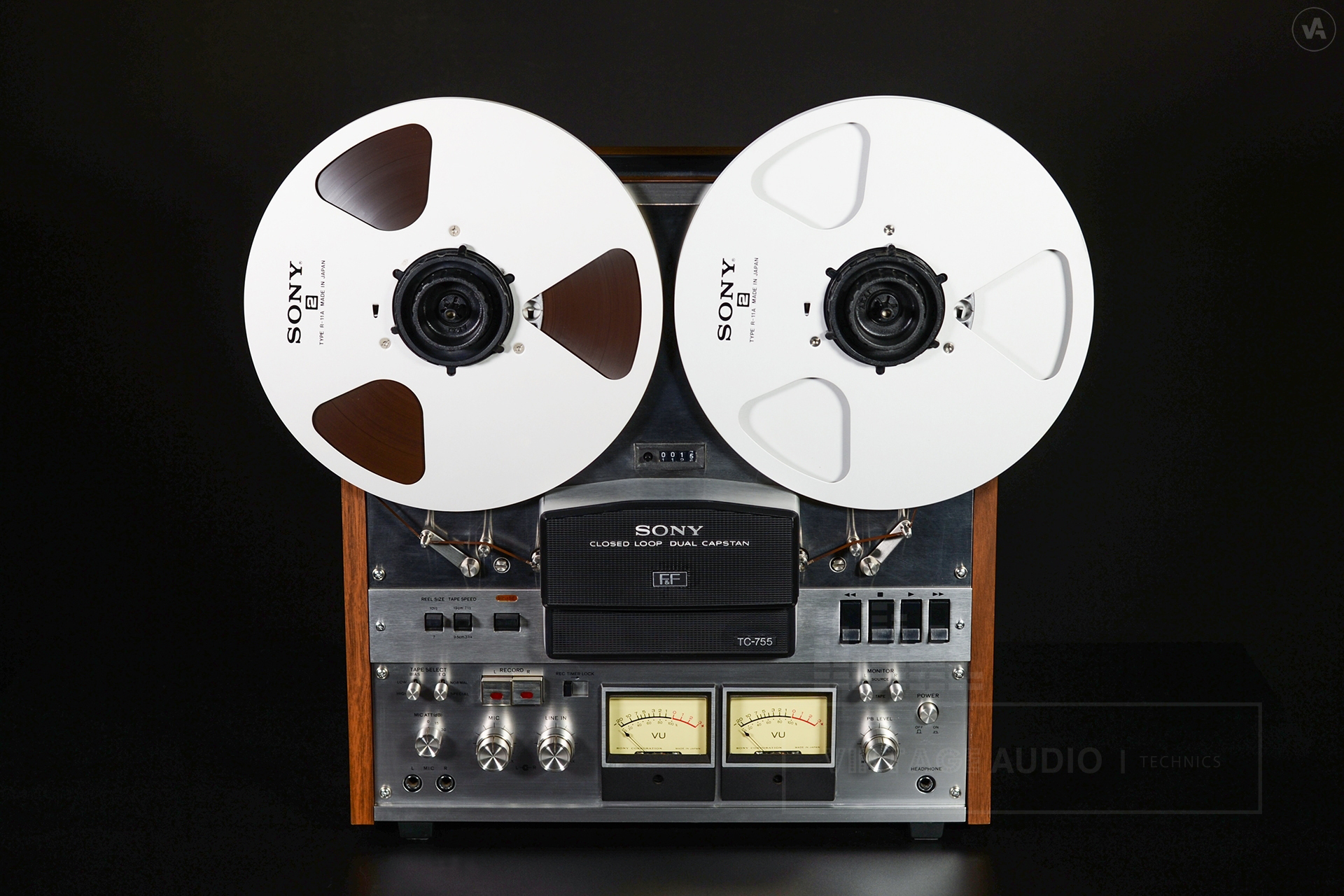

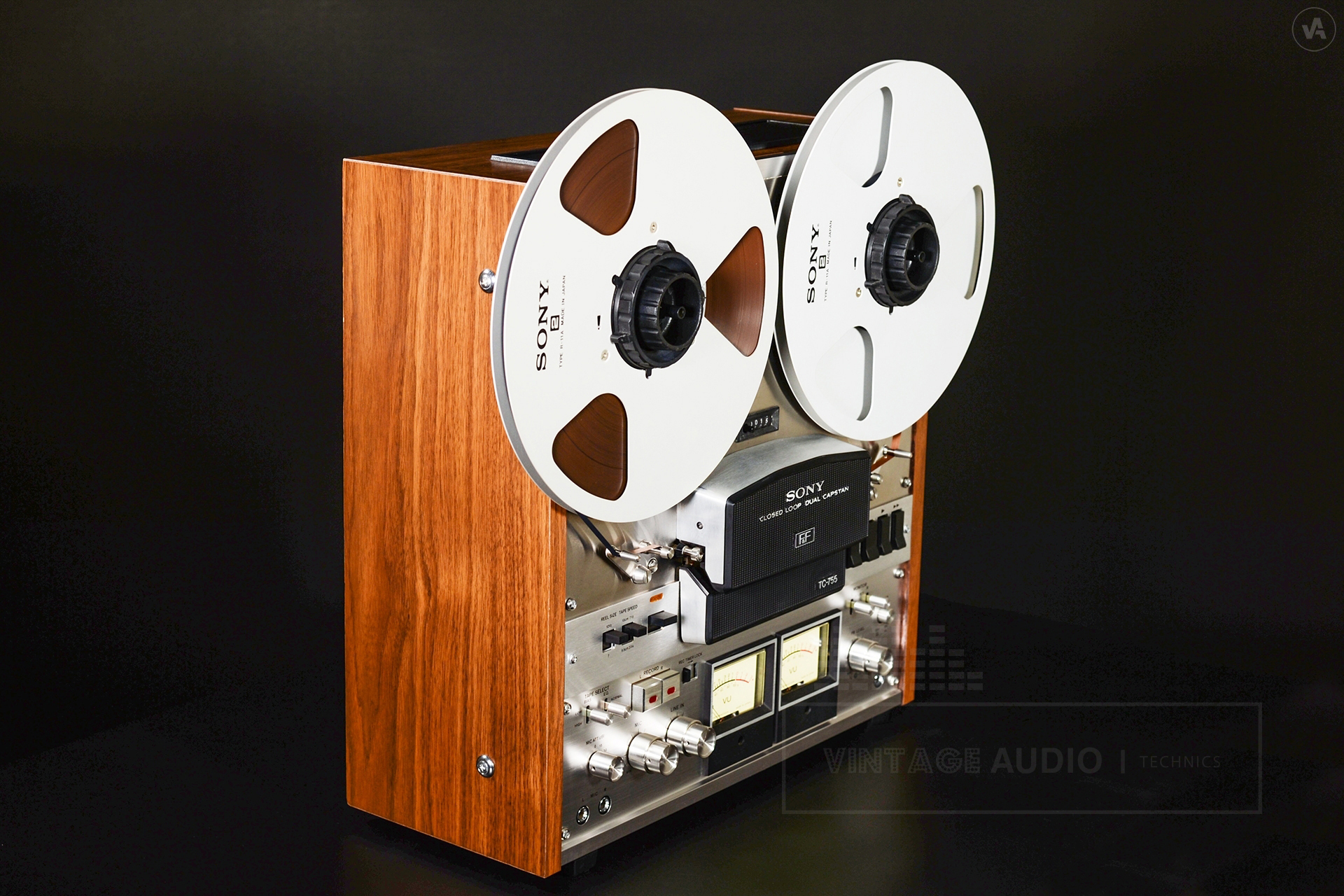

SONY TC-755
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | 4-truck high-grade 3 motor 3 head deck |
Tape speed: | 19 cm / s 9.5 cm / s |
Recording method: | 4-track 2 channel stereo |
Use maximum reel: | No. 10 |
Recording time: | 6 hours total at 9.5 cm / s (Stereo recording, with 1 100m tape of 27cm reel) |
Used heads: | Playback head x 1 Recording head x 1 Erase head x 1 |
Motors: | For Capstan - AC servo motor (IC-624G) x 1 For Reel - Motor (IC-638R) x 2 |
Frequency characteristics (With SONY SLH tape):: | 19 cm / s - 20Hz to 30kHz (30Hz to 25kHz, ±3dB) 9.5 cm / s - 20Hz to 20kHz |
Wow flutter: | 19 cm / s - 0.05% (RMS) 9.5 cm / s - 0.08% (RMS) |
Total S / N: | 56dB (With SONY SLH tape) 53dB (With standard tape) |
Distortion factor: | 1.2% |
Record bias frequency: | Approx. 160kHz |
[Input jack] | |
Microphone jack: | -72dB (0.2 mV) standard jack, low impedance |
Line: | -22dB (60mV) / 100kΩ or more, pin jack |
[Output terminal] | |
Line: | Specified output 0.775V / 10kΩ or more, pin jack |
Counter discharge book: | 8Ω, binaural jack |
Semiconductor used: | Transistors x 56 pieces FET's x 2 pieces IC's x 1 piece Diodes x 41 pieces |
Power supply: | AC 120V, 60Hz (For USA model) AC 100 / 110 / 120 / 127 / 220 or 240V, 50 / 60Hz (For Europe model) AC 110 / 127 / 220 or 240V, 50 / 60Hz (For AEP, UK model) |
Power consumption: | 100W (For USA model) 55W (For Europe model) 110W (For AEP, UK model) |
Included: | Reel R-11B x 1 Head cleaning rod x 1 set Connection cord RK-74 x 2 Reel adapter x 1 set |
Dimensions (W x H x D): | 435 x 451 x 221mm |
Weight: | 24kg |
Year: | 1973 |
