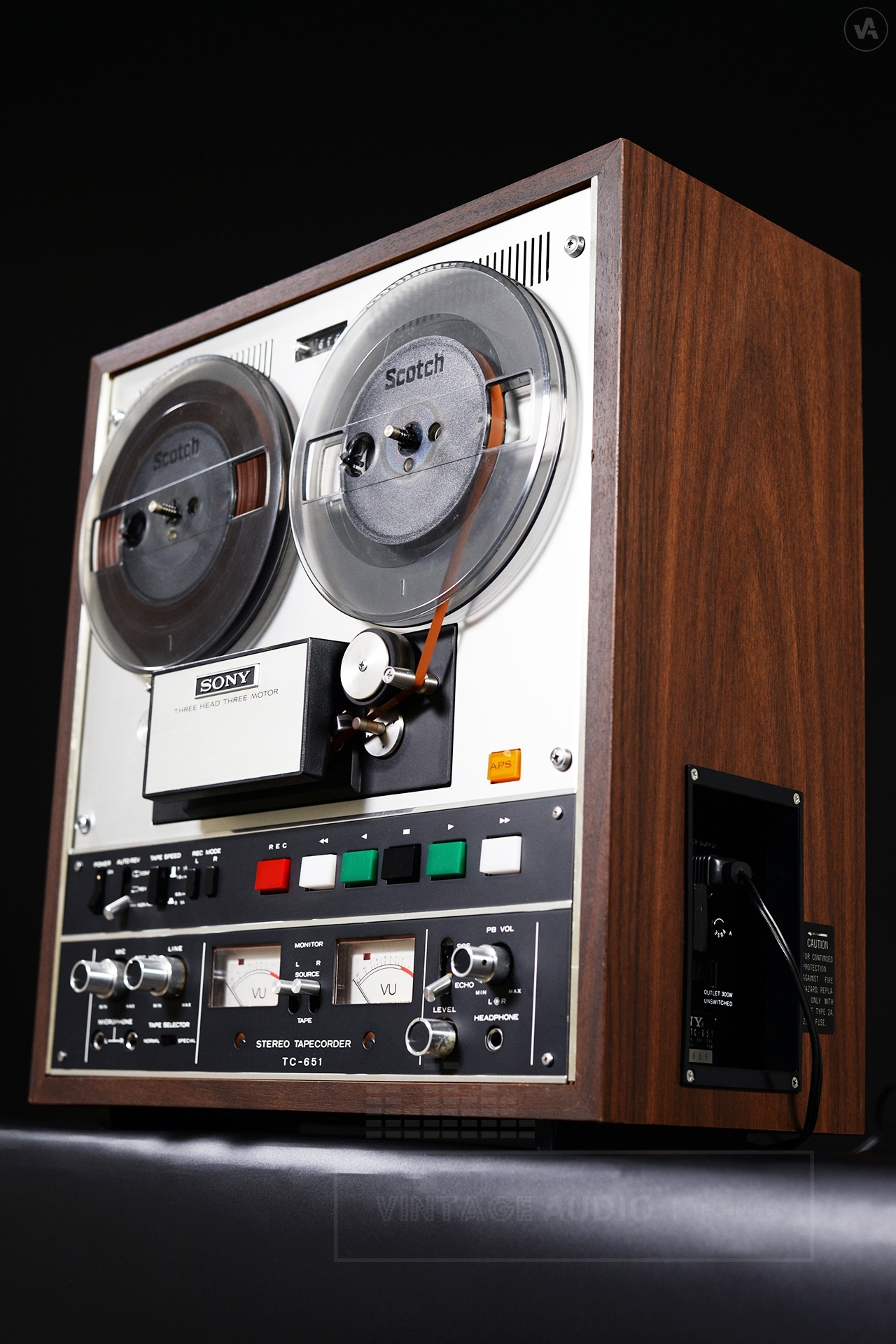

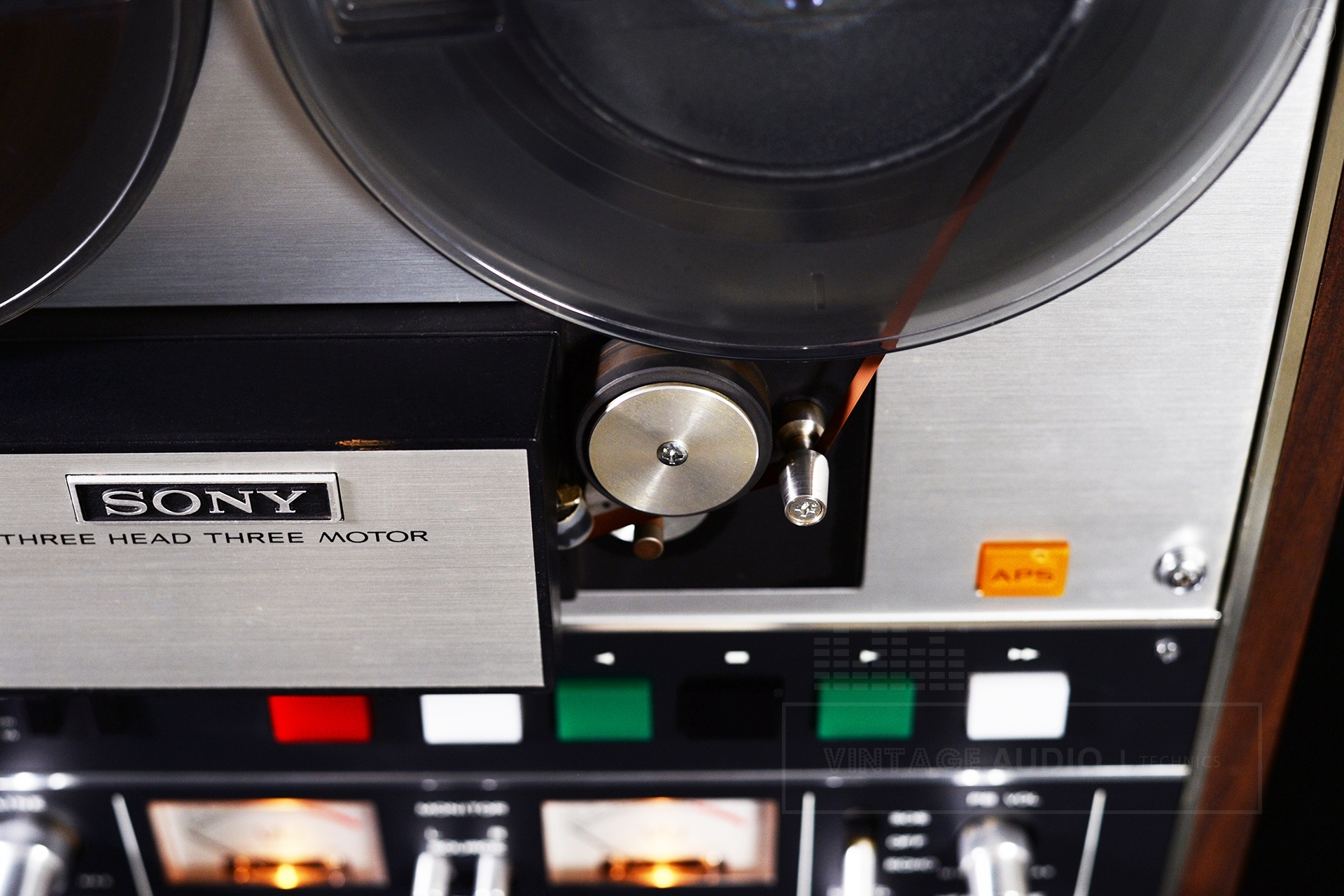

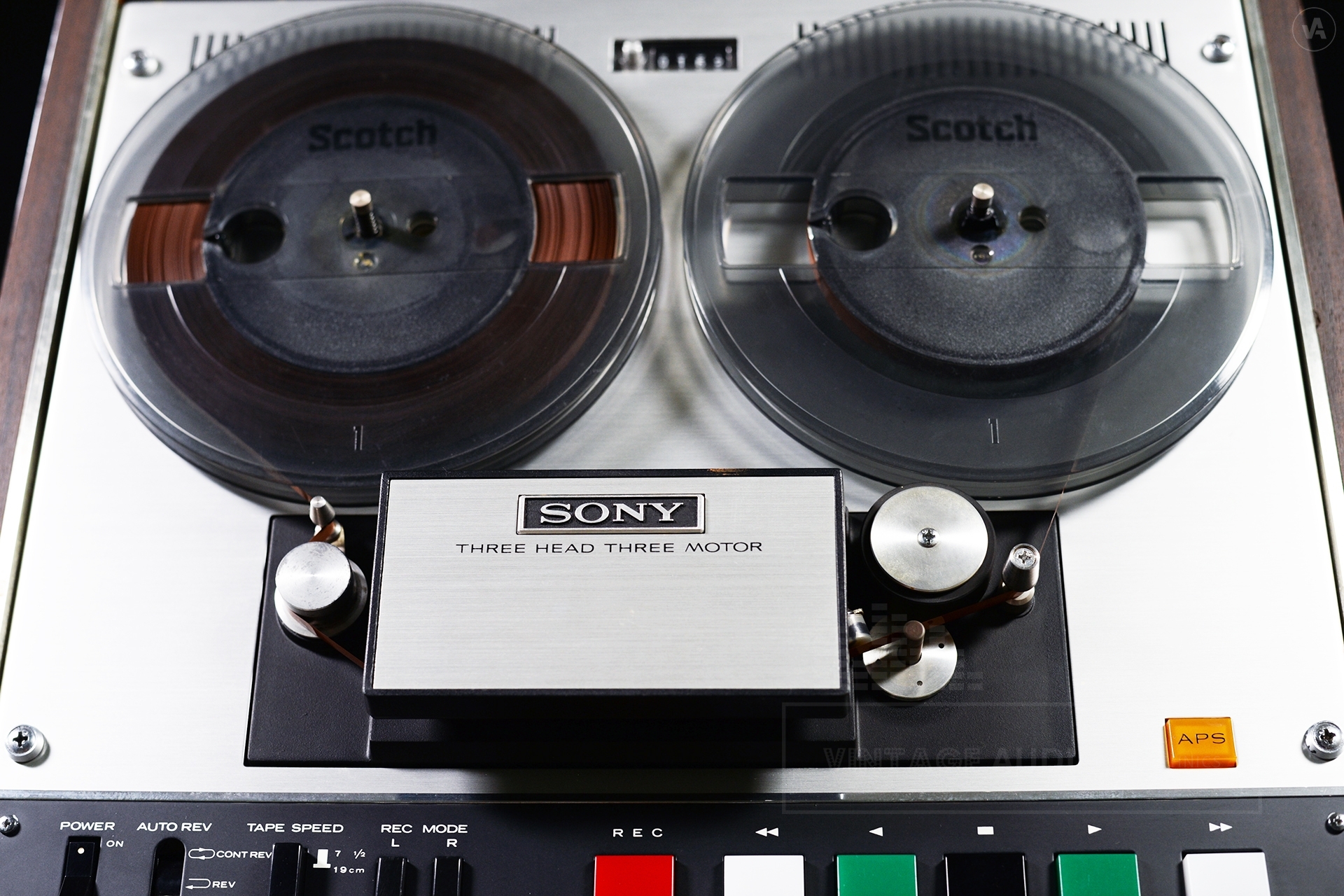

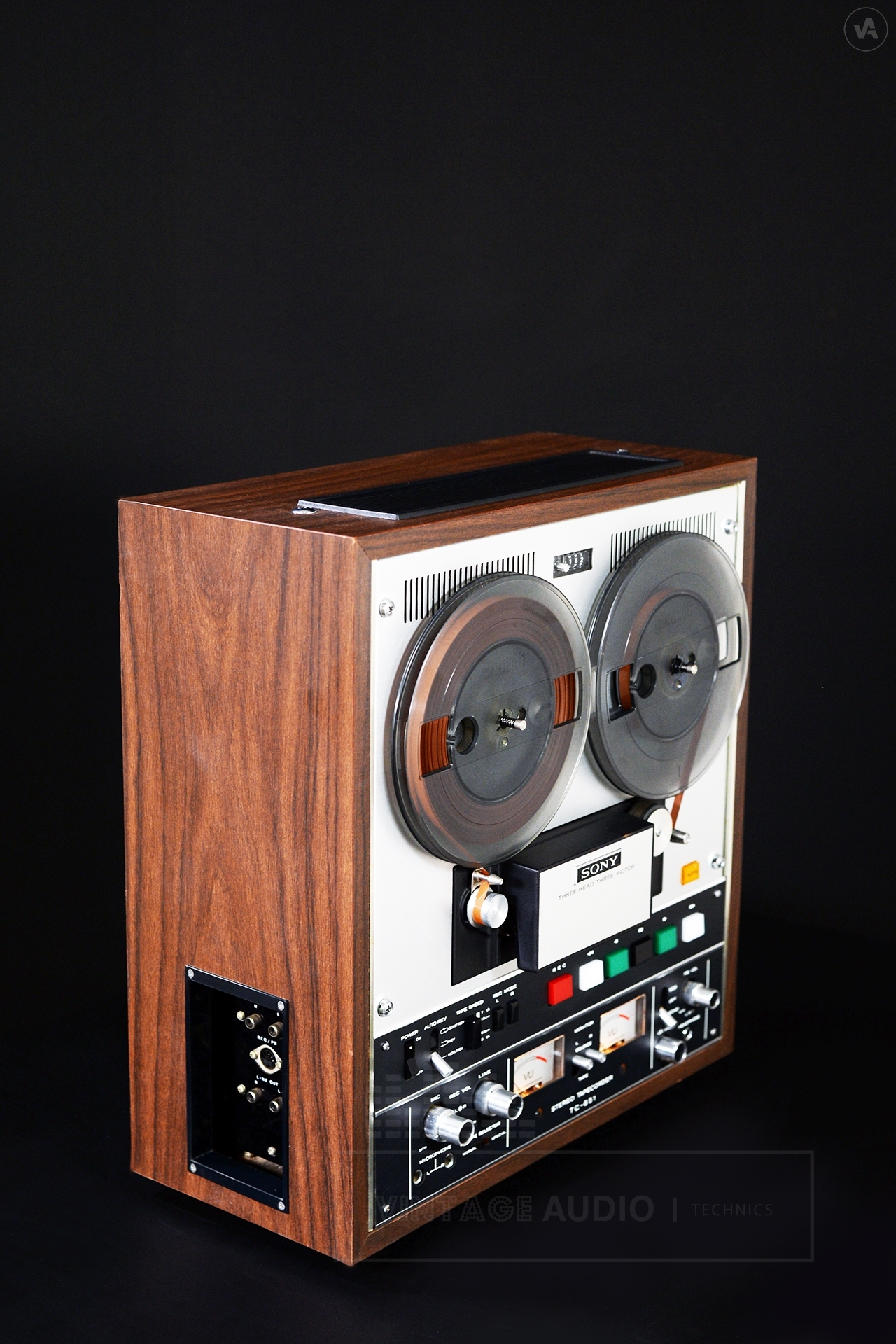

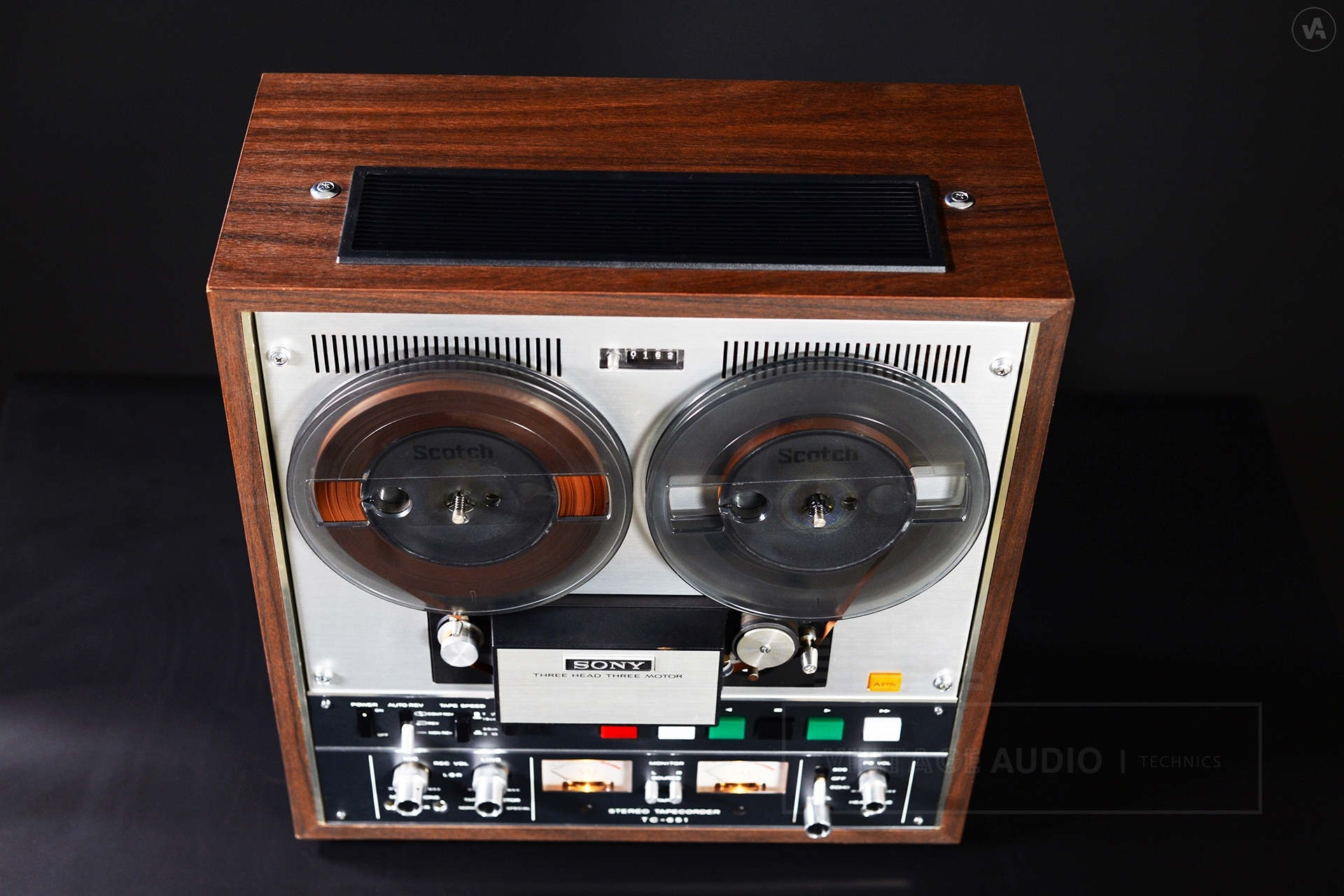

SONY TC-651
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo Tapecorder |
Track system: | Auto reverse, 4-track, 2-channel, stereo / monaural system |
Heads: | 2 x Playback head 1 x Recording head 1 x Erase head |
Motors: | 2 x Reel motors 1 x Capstan motor |
Reel size: | Up to 7" reel |
Tape speeds: | 3-3⁄4 ips (9.5cm / s) 7-1⁄2 ips (19cm / s) |
[Recording time (With 1 800 ft. tape)] | |
4-track stereo: | 1.5 hr. at 7-1⁄2 ips (19cm / s) 3 hr. at 3-3⁄4 ips (9.5cm / s) |
4-track mono: | 3 hr. at 7-1⁄2 ips (19cm / s) 6 hr. at 3-3⁄4 ips (9.5cm / s) |
Frequency response (With standard tape): | 20Hz to 25kHz at 7-1⁄2 ips (19cm / s) 30Hz to 18kHz at 3-3⁄4 ips (9.5cm / s) |
S / N ratio: | 54dB (With standard tape) |
Wow and flutter: | 0.04% at 7-1⁄2 ips (19cm / s) 0.08% at 3-3⁄4 ips (9.5cm / s) |
Recording Bias frequency: | Approx. 120kHz |
Inputs: | 0.2mV / 600Ω (Mic. 1, 2) 70mV / 100kΩ (Line 1, 2) 30.5mV / 80kΩ (Rec. / Playback connector) |
Outputs: | 0.775V / 100kΩ (Line 1, 2) 0.775V / 100kΩ (Rec. / Playback connector) 0.038V / 8Ω (Headphone) |
Semiconductor used: | 74 x Transistors 92 x Diodes |
Power requirements: | AC 100 / 10 / 117 / 120 / 125 / 220 or 240V (Changeable by using the voltage selector), 50 / 60Hz |
Power consumption: | 85W |
Dimensions (W x H x D): | 422 x 457 x 243mm |
Weight: | 20.2kg |
Year: | 1971 |
