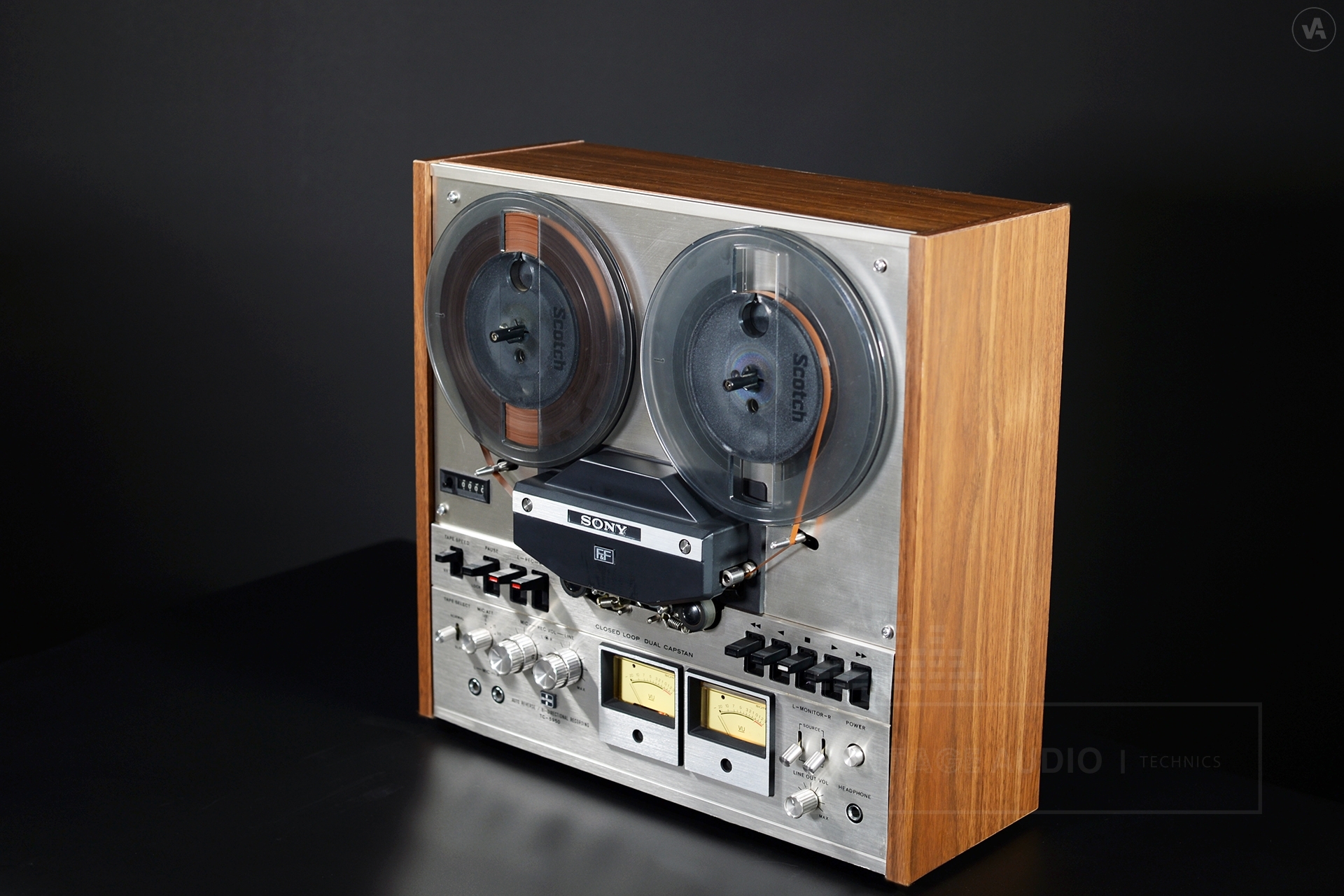

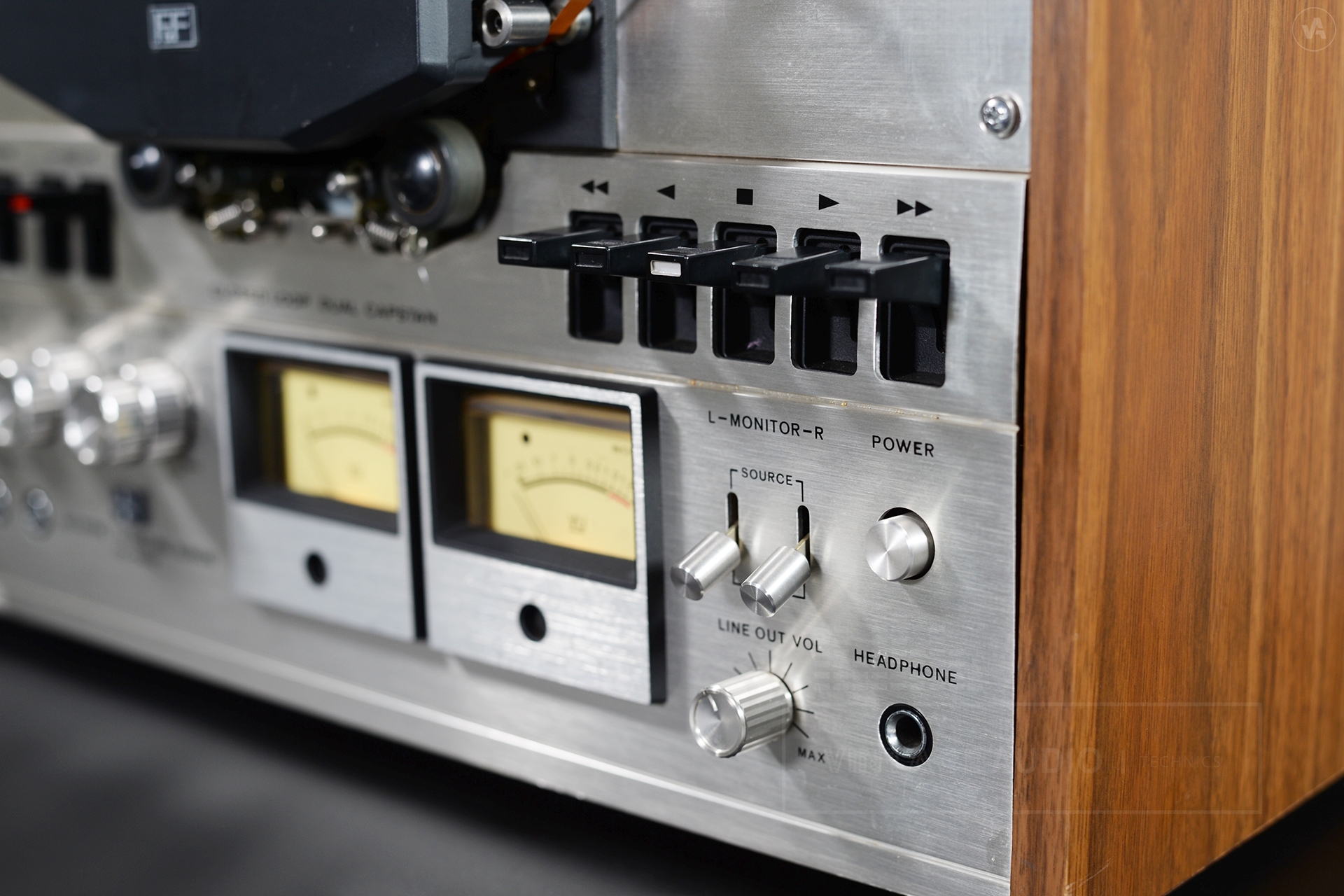

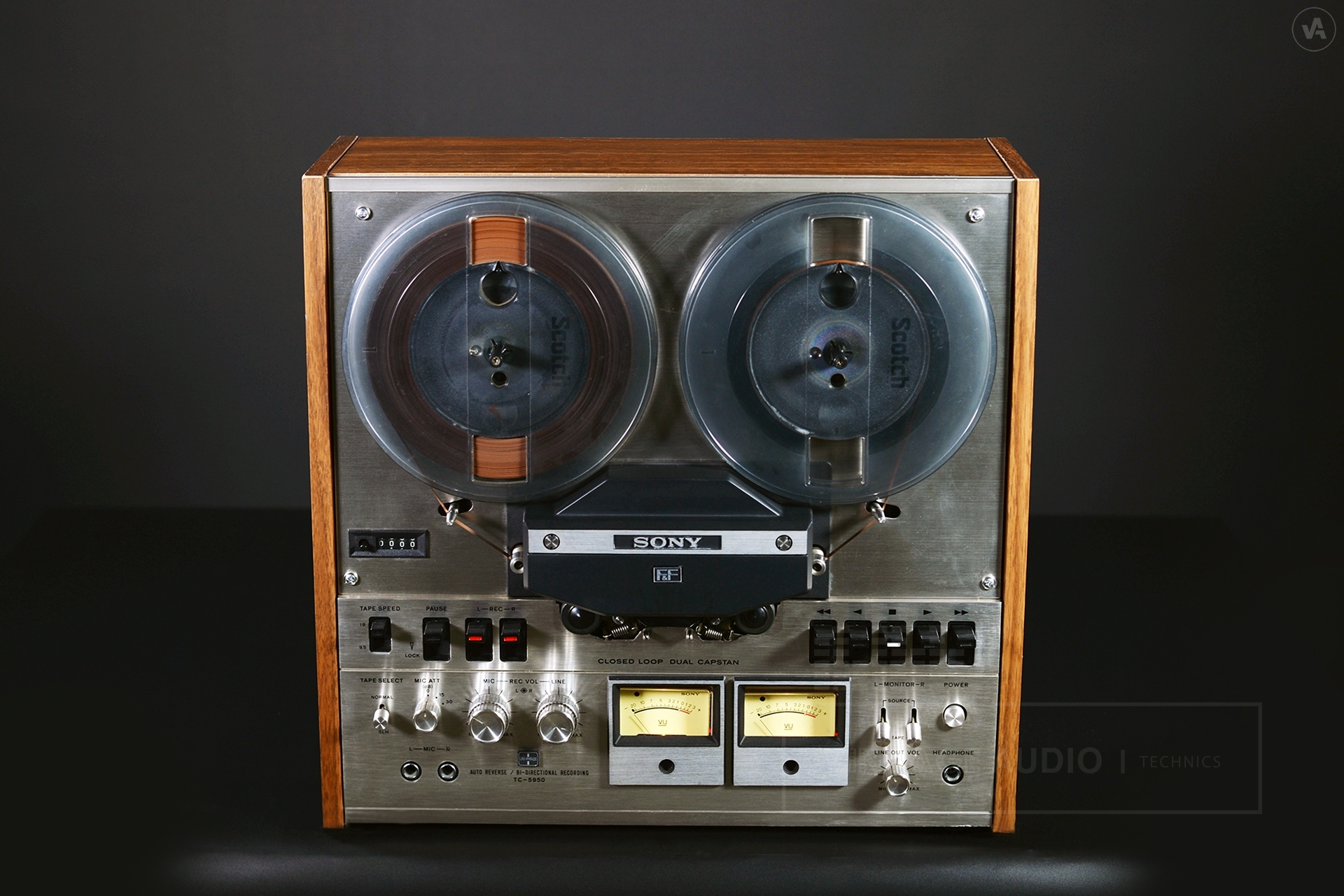

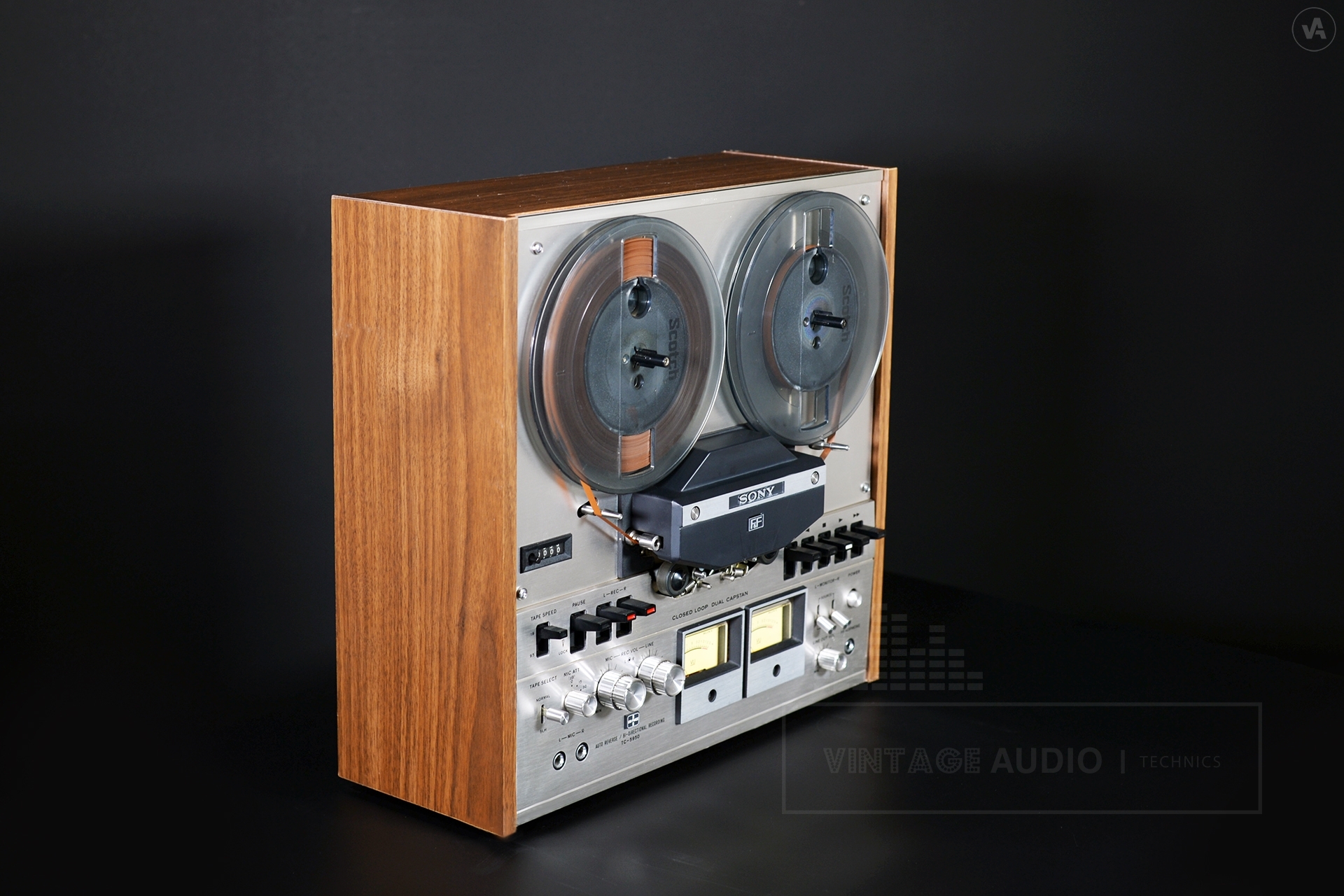

SONY TC-5950
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Tape deck |
Tape speed: | 19 cm / s 9.5 cm / s |
Recordable time: | 3 hours - Stereo round trip (At 9.5 cm / s, 7” Sony Super A) 6 hours - 2 rounds of monaural (At 9.5 cm / s, 7” Sony Super A) |
Fast forward and Rewind time: | 1 min. 30 sec. (Using 370 m tape) |
Maximum use reel: | No. 7 |
Recording method: | 4 tracks 2 channels, stereo / mono recording reproduction |

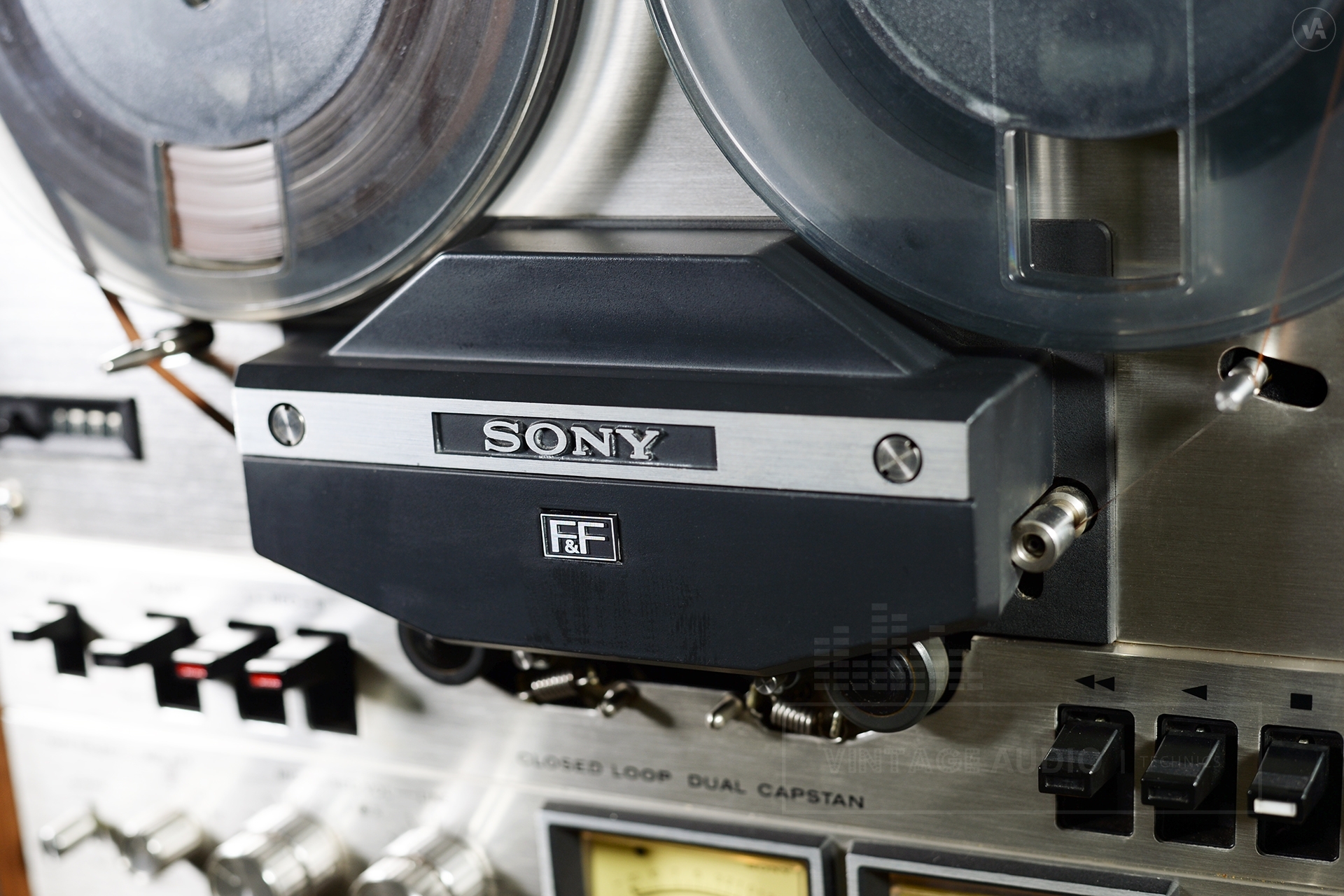

Heads: | Recording - Ferrite head x 1 Reproduction - Ferrite head x 1 Erase - Ferrite head x 2 |
Used motor: | AC servo motor |
Recording bias frequency: | 160kHz |
Total S / N: | 56dB (When using SLH tape) 53dB (When using a general tape) |
Distortion factor: | 1.2% |
[Frequency characteristic] | |
With using SLH tape: | 20Hz to 30kHz / 30Hz to 25kHz, ±3dB (19 cm / s) 20Hz to 20kHz (9.5 cm / s) |
With using a general tape: | 20Hz to 25kHz / 30Hz to 20kHz, ±3dB (19 cm / s) 20Hz to 17kHz (9.5 cm / s) |
Wow and flutter: | 19 cm / s - 0.06% (WRMS) 9.5 cm / s - 0.1% (WRMS) |
[Minimum input level / impedance] | |
Microphone: | -72 dBs (0.2mV) / low impedance |
Line: | -22 dBs (6mV) / 100kΩ |
[Output / load impedance] | |
Line: | 0.775V (With 100kΩ load) / 10kΩ or more |
Headphones: | 0.775V / 8Ω |
[Recording / playback connector] | |
Input impedance: | 10kΩ or less |
Specified output: | 0 dBs (0.775 V) |
Load impedance: | 50kΩ or more |
Semiconductor used: | Transistors - 55 pieces FET's - 2 pieces IC's - 1 piece Diodes - 36 pieces |
Power supply: | AC 100V, 50 / 60Hz |
Power consumption: | 41W |
Supplied: | No. 7 reel, Connection cord (RK-74), Sensing foil, Head cleaning rod |
Dimensions (W x H x D): | 410 x 402 x 206mm |
Weight: | 12.3kg |
Year: | 1973 |
