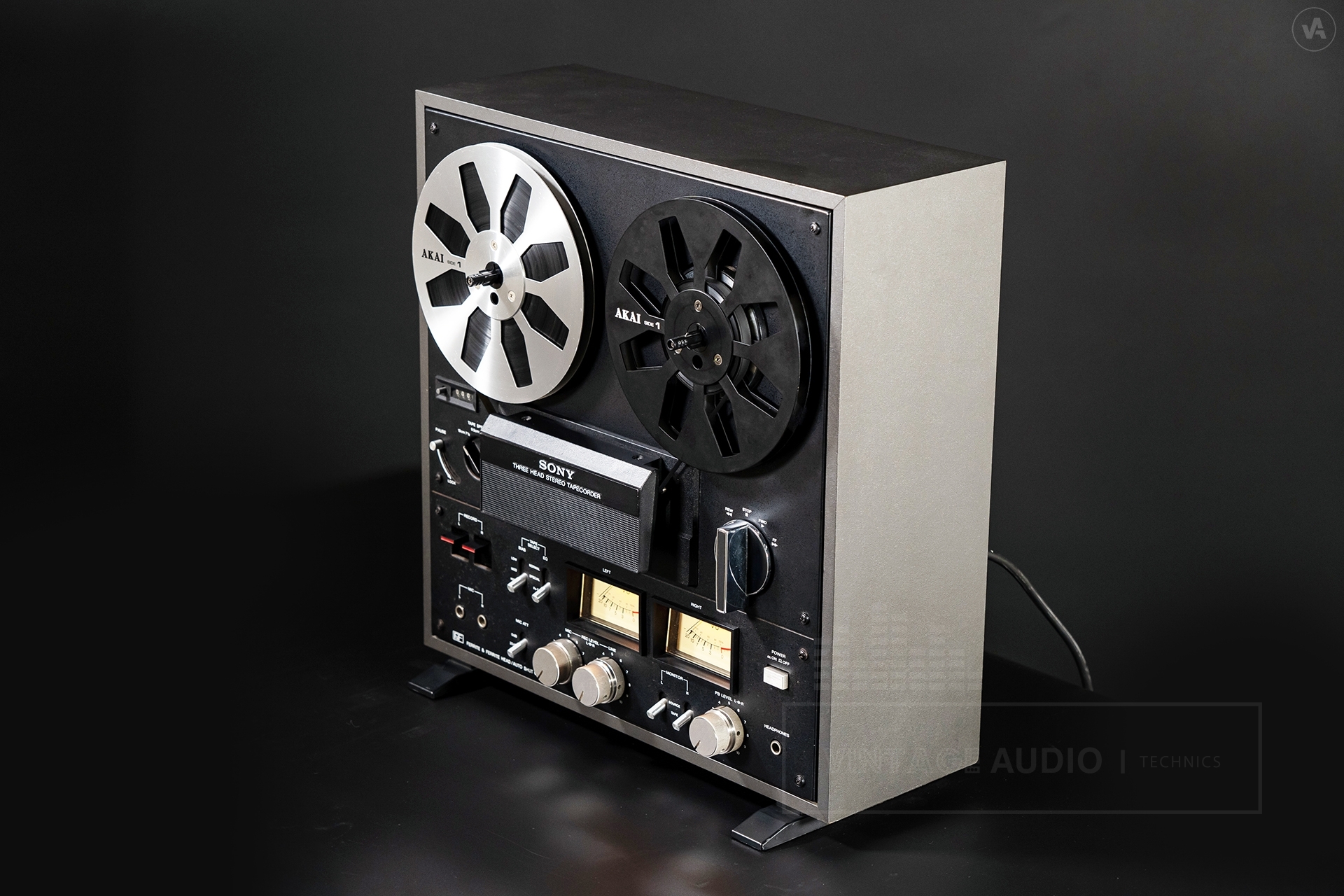

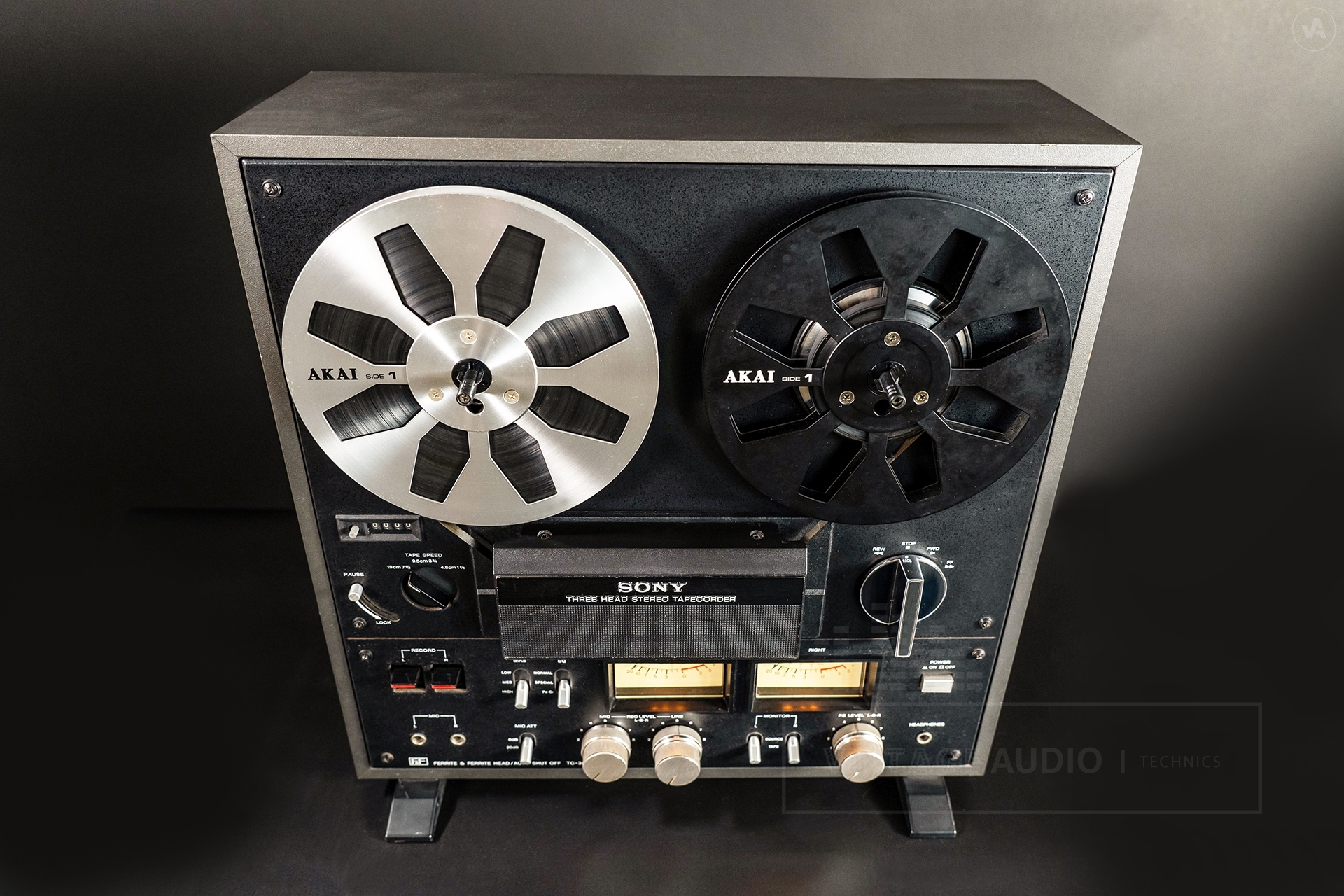

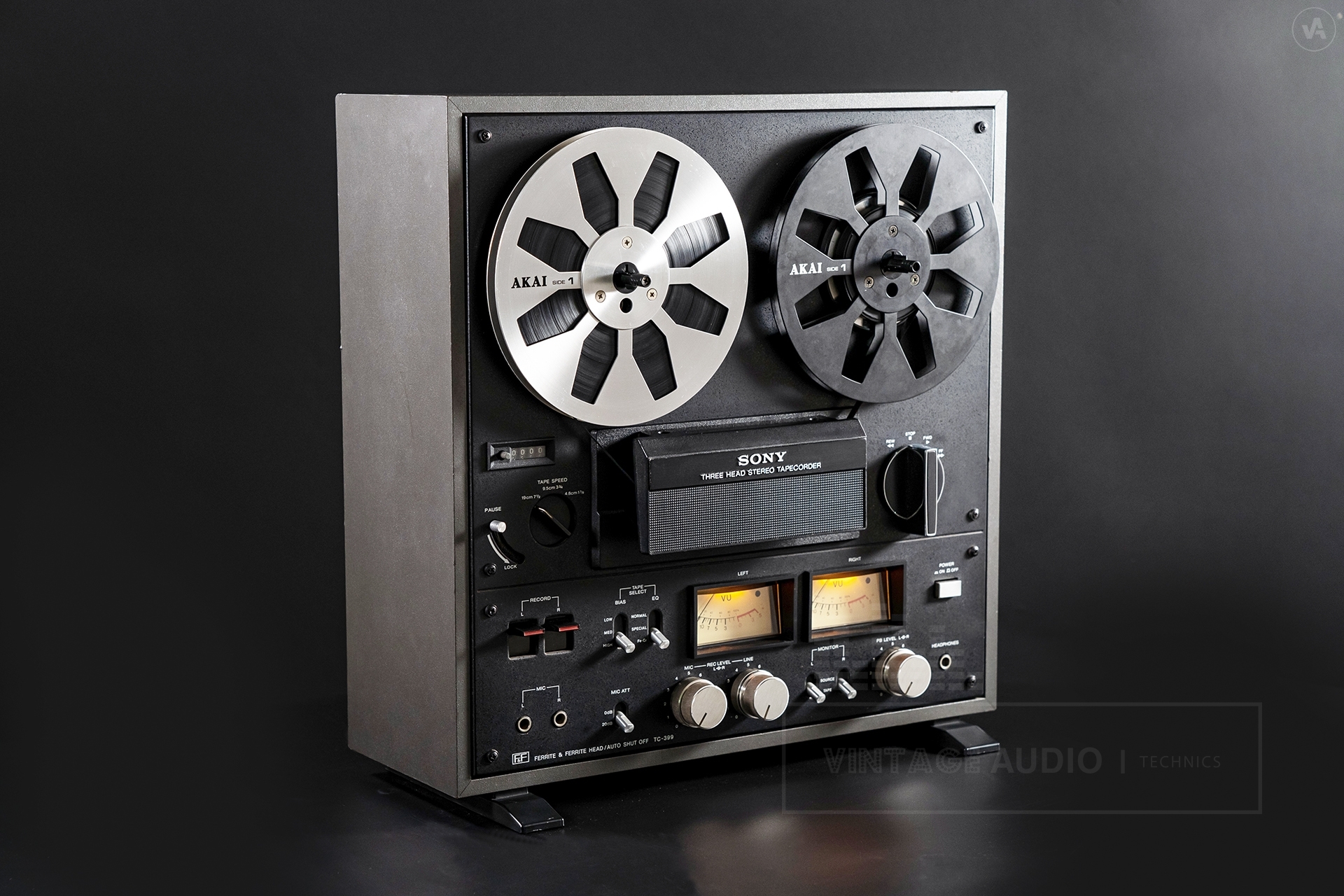

SONY TC-399
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo Reel-to-Reel Tape Recorder |
Track system: | 4-track, 2-channel, stereo / monaural system |
Heads: | Recording head x 1 Playback head x 1 Erase head x 1 |
[Equalization] | NAB standard (US, Canadian model) JIS standard (UK, AEP model): 19cm / s - 3 180µS + 50µS 9.5cm / s - 3 180µS + 90µS |
Reel size: | Up to 7” (18cm) reel |
Tape speeds: | 7-1⁄2 ips (19cm / s) 3-3⁄4 ips (9.5cm / s) 1-7⁄8 ips (4.8cm / s) |
Recording time: | Stereo - 90min. at 19cm / s (With 550m tape, 18cm reel) Mono - 360min. at 9,5cm / s (With 550m tape, 18cm reel) |
Fast winding time: | Approx. 120 sec. with 370m tape |
Record bias frequency: | 160kHz |
S / N ratio: | 61dB at peak level (NAB, with SONY Ferro-Chrome Tape) 58dB (DIN, 1975 rev., UK, AEP model) |
Total harmonic distortion: | 0.8% |
[Frequency response] | |
With Sony Ferro-Chrome tape or SLH tape: | 30Hz to 25kHz, ±3dB at 19cm / s 30Hz to 18kHz, ±3dB at 9.5cm / s |
With regular tape: | 30Hz to 18kHz, ±3dB at 19cm / s 30Hz to 15kHz, ±3dB at 9.5cm / s |
Wow and flutter: | 0.06% at 19cm / s (NAB) ±0.09% at 19cm / s (DIN, UK, AEP model) 0.09% at 9.5cm / s (NAB) ±0.12% at 9.5cm / s (DIN, UK, AEP model) |
Inputs: | 77.5mV / 100kΩ (Line) 0.25mV / For low impedance (Mic.) Less than 10kΩ (Rec. / Playback (DIN), UK, AEP model) |
Outputs: | 0.775V / 100kΩ (Line) 38.8mV / 8Ω (Headphone) Less than 10kΩ (Rec. / Playback (DIN), UK, AEP model) |
Power requirements: | AC 120V, 60Hz (US, Canadian model) AC 110 / 120 / 220 / 240V, 50 / 60Hz (UK, AEP model) |
Power consumption: | 25W (US, Canadian model) 35W (UK, AEP model) |
Dimensions (W x H x D): | 415 x 435 x 190mm |
Weight: | Approx. 12.6kg (US, Canadian model) Approx. 12.9kg (UK, AEP model) |
Year: | 1978 |
