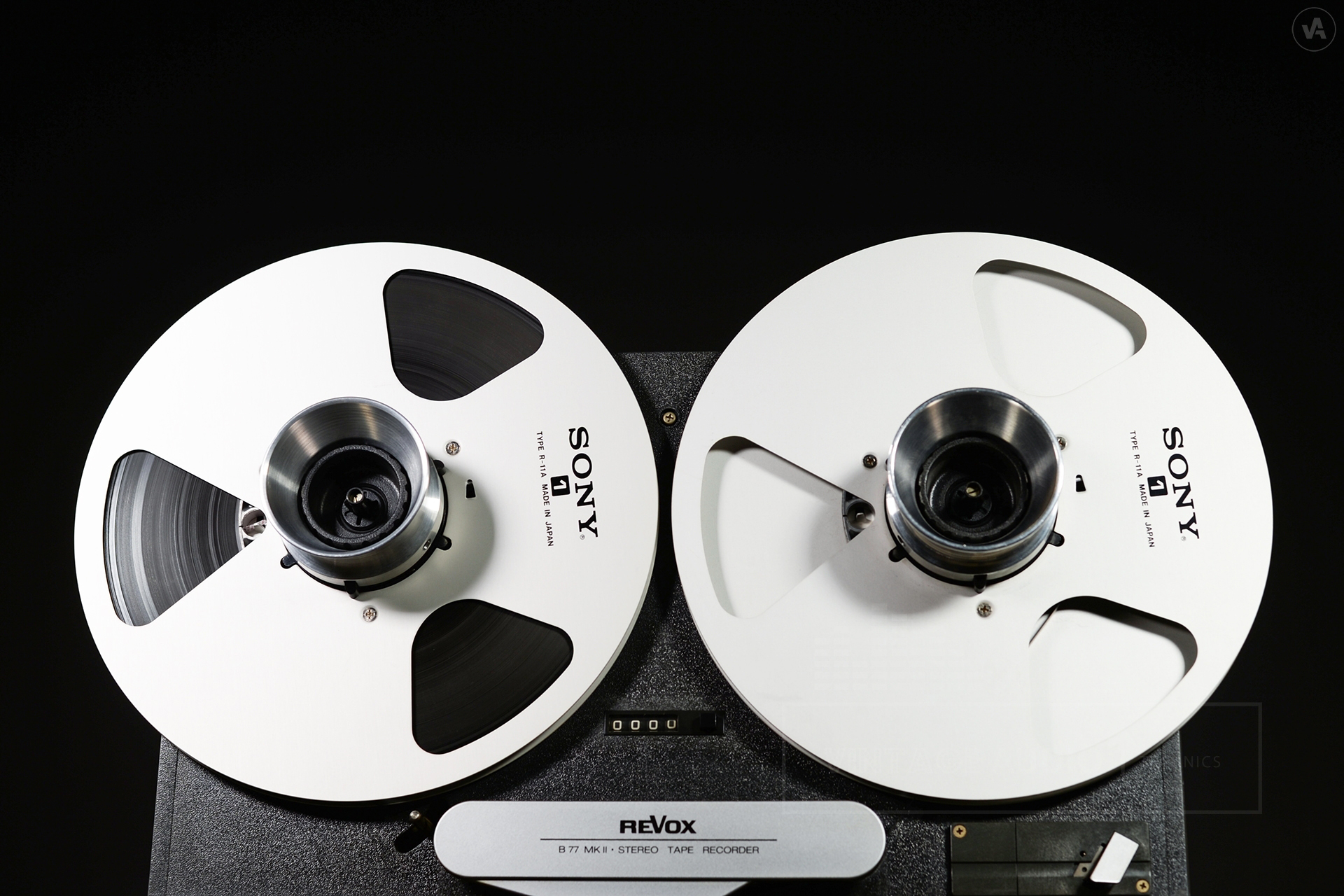

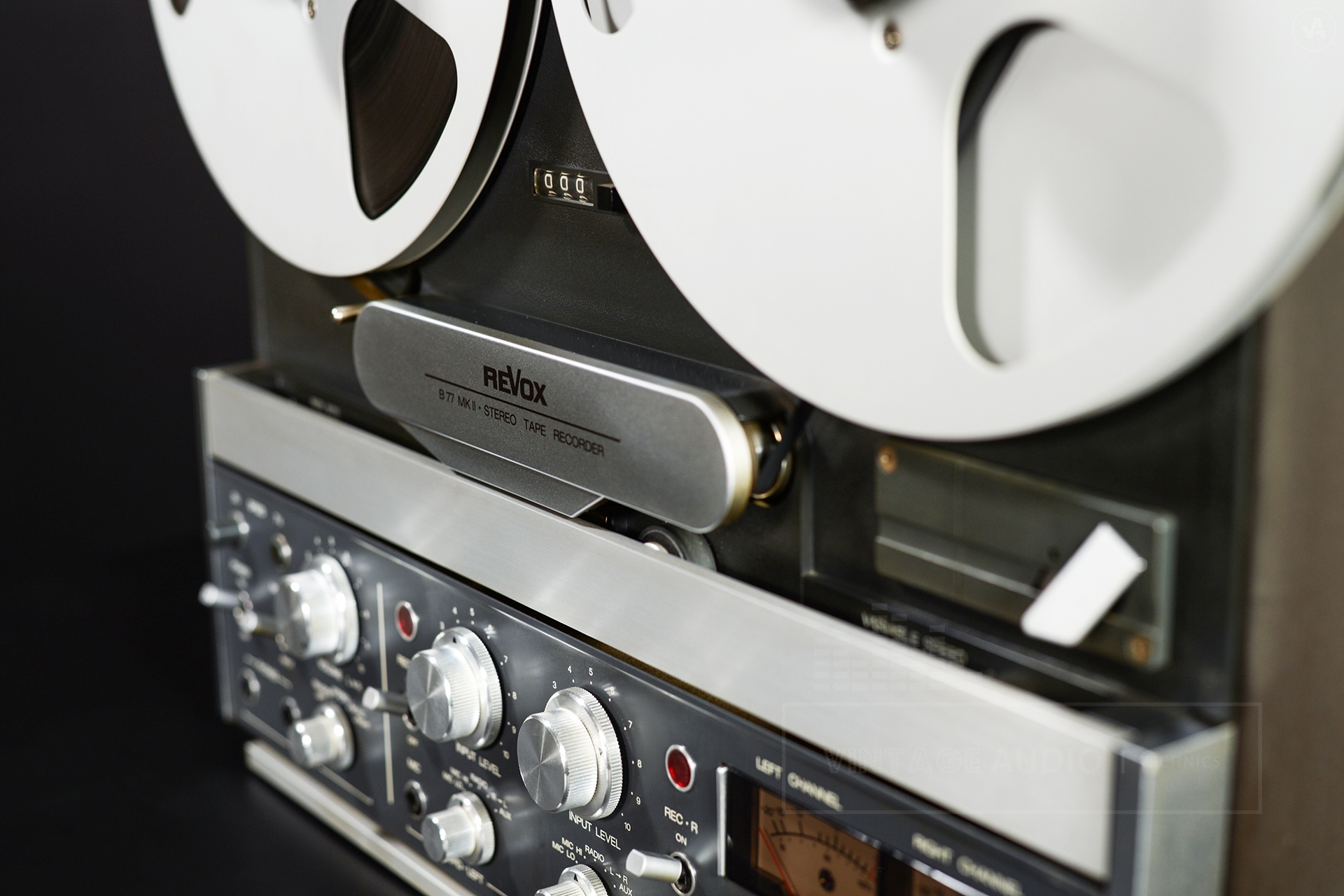

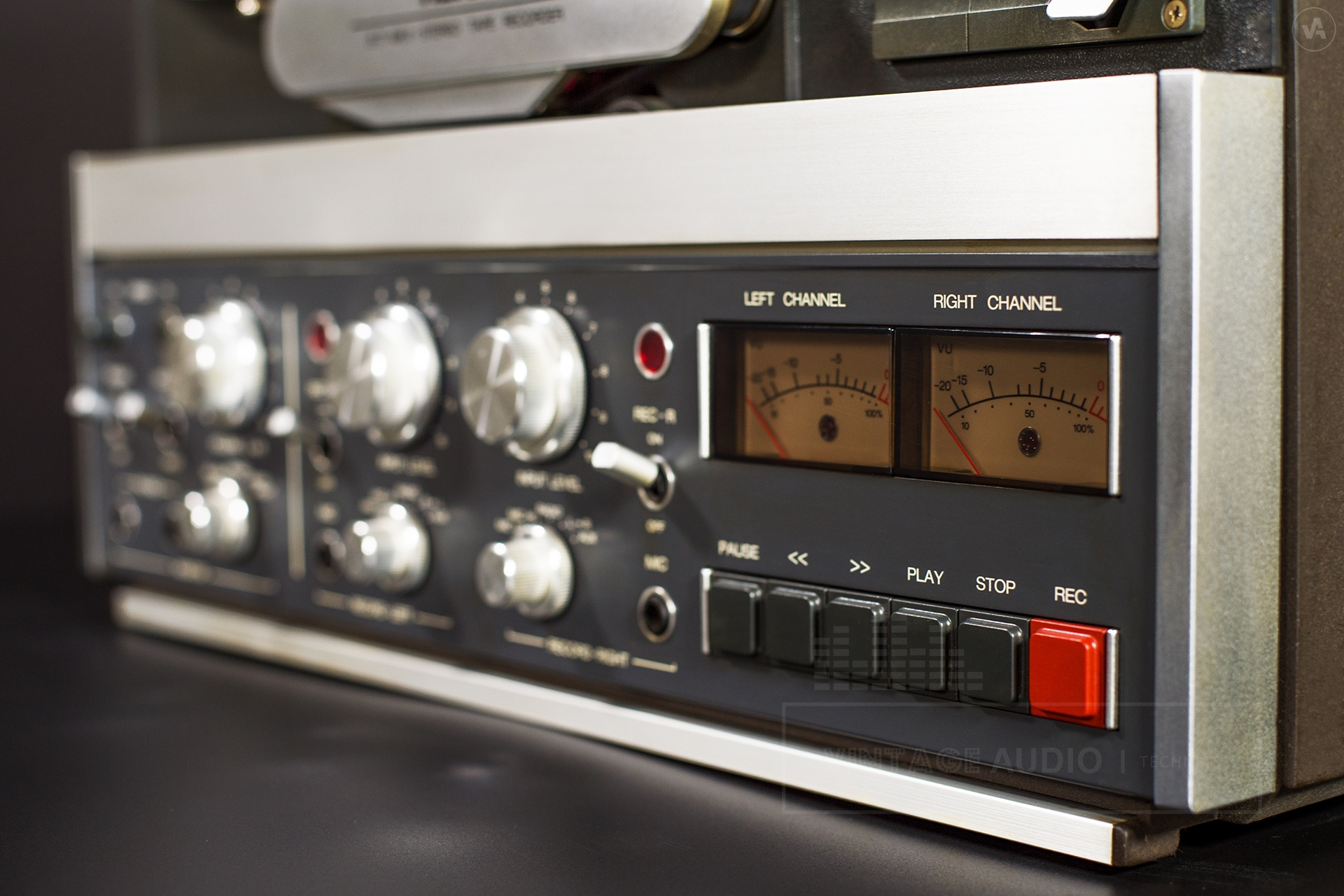

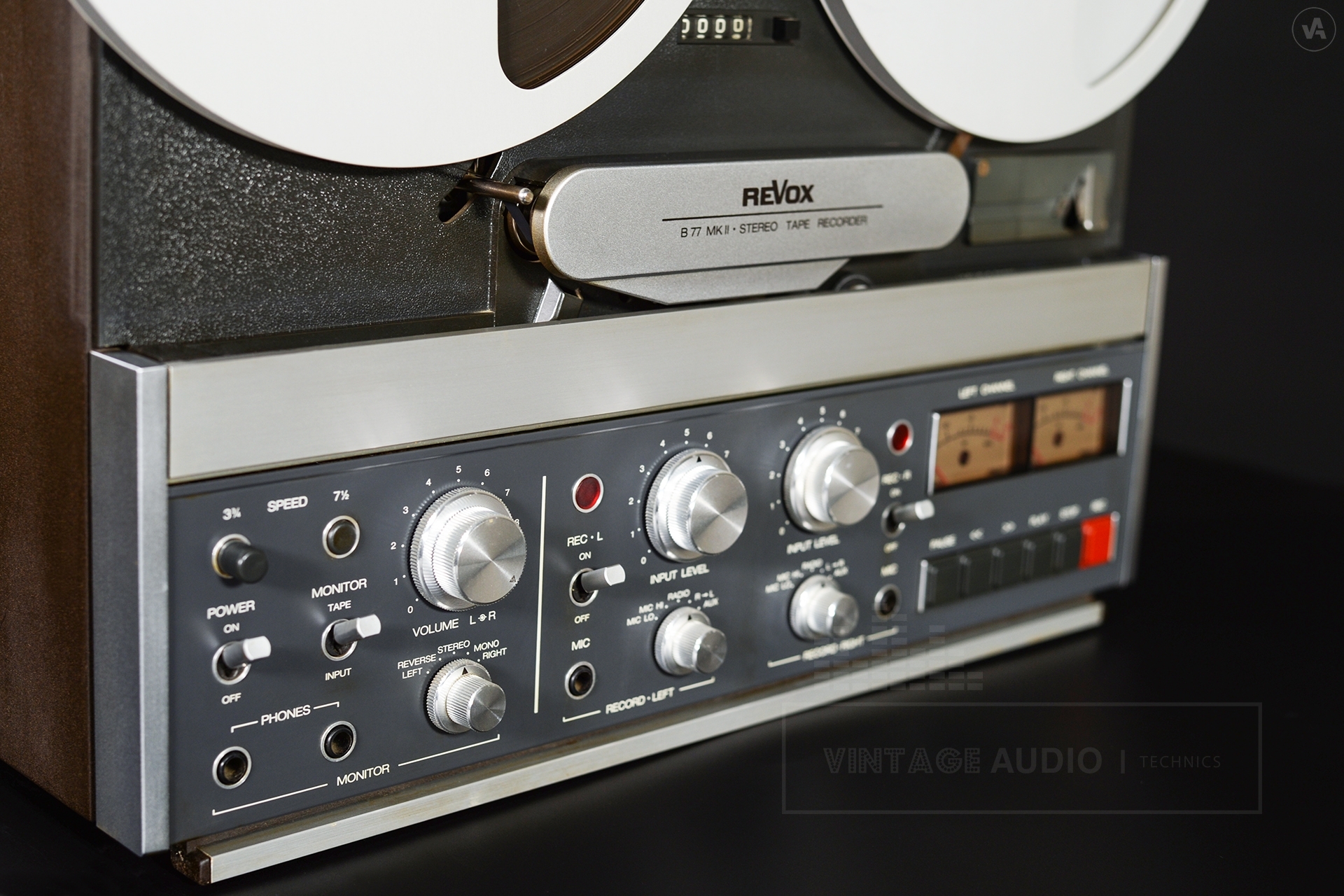

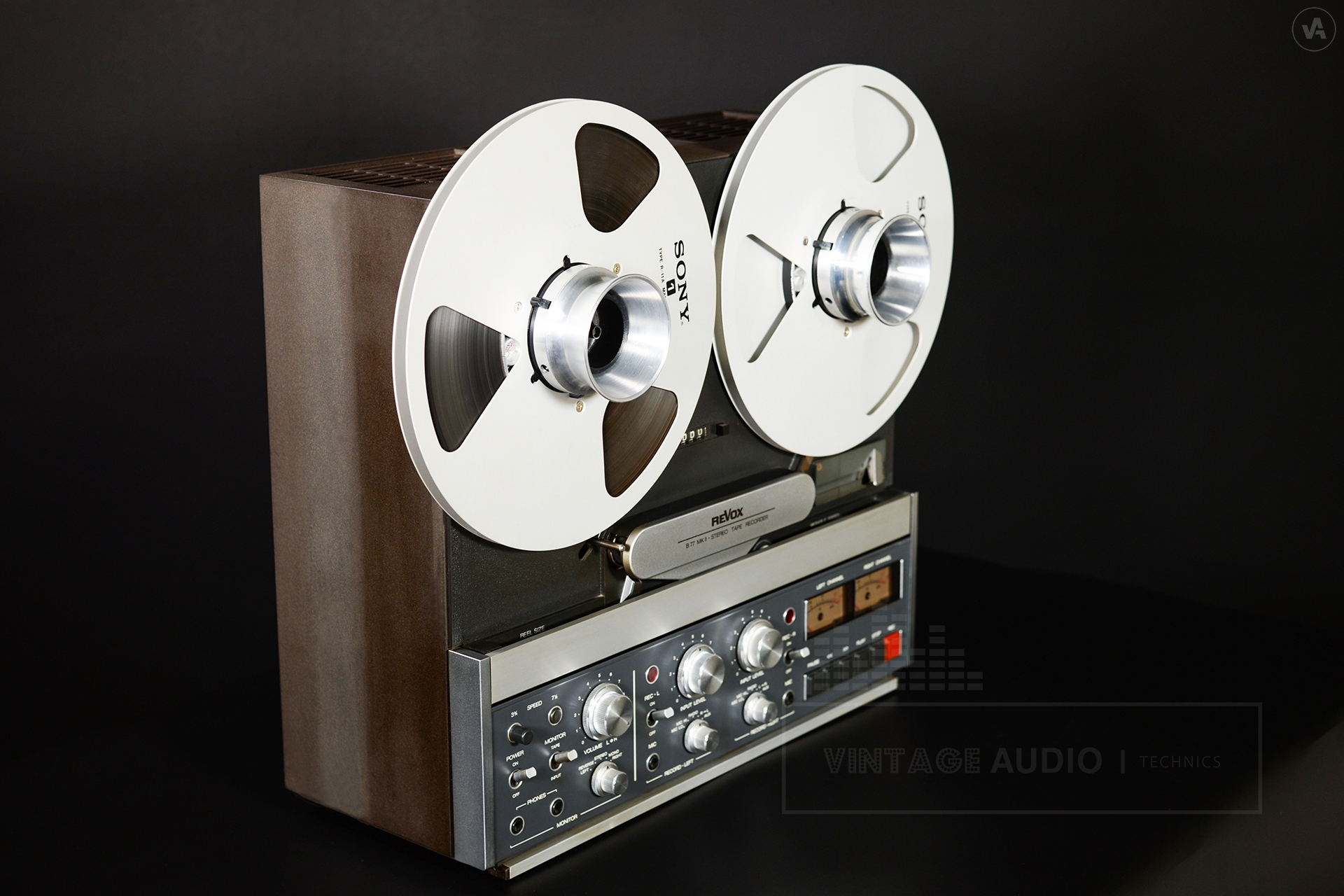

Revox B77 MKII
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Reel to Reel Tape Recorder |
Track system: | Stereo system |
Tape transport mechanism: | 3-motor tape drive, 2 AC driven spooling motors, 1 AC driven capstan motor, electronically regulated |
Tape speeds: | 3.75 and 7.5 ips, electronic change-over |
Tolerance from nominal: | ± 0.2% |
Wow and flutter: | At 7.5 ips less than 0.08% |
Reel size: | Up to 10.5 inch diameter |
Winding time: | Approx. 135 sec for 3600 ft of tape |
Frequency response (measured via tape, at -20 VU): | At 3.75ips - 30Hz ... 16kHz +2 / -3dB At 7.5ips - 30Hz ... 20kHz +2 / -3dB |
Distortion At 0 VU (257 nWb/m): | At 7.5ips - <0.6% |
Signal to noise ratio: | Half track at 7.5 ips - better than 67 dB Quarter track at 7.5 ips - better than 63 dB |
Crosstalk (1000 Hz): | Stereophonic - Better than 45 dB Monophonic - Better than 60 dB |
Semi-conductor complement: | 11 IC, 1 opto-coupler, 4 Triac, 60 transistors, 33 diodes, 5 LED, 2 full wave rectifiers, 3 relays |
Electric current supply (voltage sector): | AC 100 / 120 / 140 / 200 / 220 / 240V, 50 ... 60Hz, max 80W |
Main fuse: | 100 ... 140 V - 1 A slow-blowing 200 ... 240 V - 0,5 A slow-blowing |
Dimensions (W x H x D): | 17.8 x 16.3 x 8.14 inches (452 x 414 x 207mm) |
Weight: | Approx. 37lbs. 7ozs (17kg) |
Year: | 1981 |
