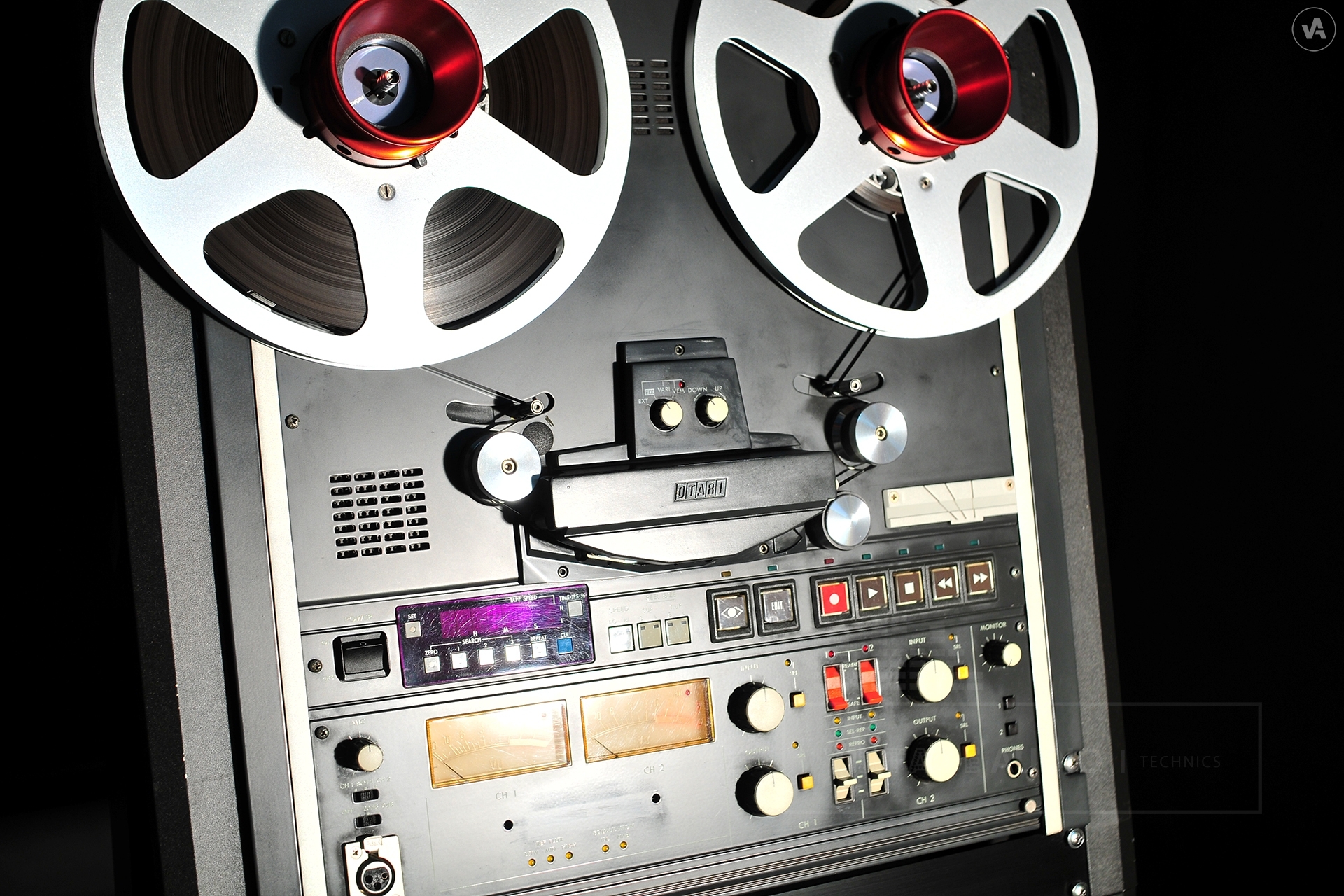

Type: | Professional Tape Recorder |
Track system: | 2-track, 2-channel, stereo system |
Motors: | 1 x reel (AC Induction Motor) 1 x capstan (DC Brushless Motor, Quartz PLL Controlled Direct Drive) |
Pitch Control: | ±20% continuously variable control Percentage or ips readout with 0.01% precision multiturn encoder servo system |
Fast Wind Time: | 60Hz = 100s, 50Hz = 110s (2,500ft tape) |
Reel size: | Up to 11.8 inch reel |
Equalization: | NAB, IEC |
Tape speeds: | 38.1 and 19.05 cm/s (15 and 7.5 ips) switchable Changeable to 19.05 and 9.5 cm/s (7.5 and 3.75 ips) |
Speed Accuracy: | Within ±0.2% |
Speed Deviation: | Less than 0.2% |
Wow and flutter: | 0.06% (15 ips) |
Frequency response: | 30Hz to 20kHz ±2dB (0dB) (38.1 cm/s) 20Hz to 18kHz ±2dB (-10dB) (19.05 cm/s) 20Hz to 10kHz ±2dB (-20dB) (9.5 cm/s) |
Total harmonic distortion: | 0.3% (38.1 cm/s, 1kHz, 250 nWb/m) |
Signal to Noise Ratio: | 69dB |
Crosstalk: | 55dB |
Inputs level/ Impedance: | Mic - Min. -70dBu / 10 kΩ (20 Hz to 20 kHz) Line - Max. +30dBu / 10kΩ |
Outputs level / Load Impedance: | Line - Max. +26dBu (bal. load), +21dBu (unbal. load) / Min. 200Ω |

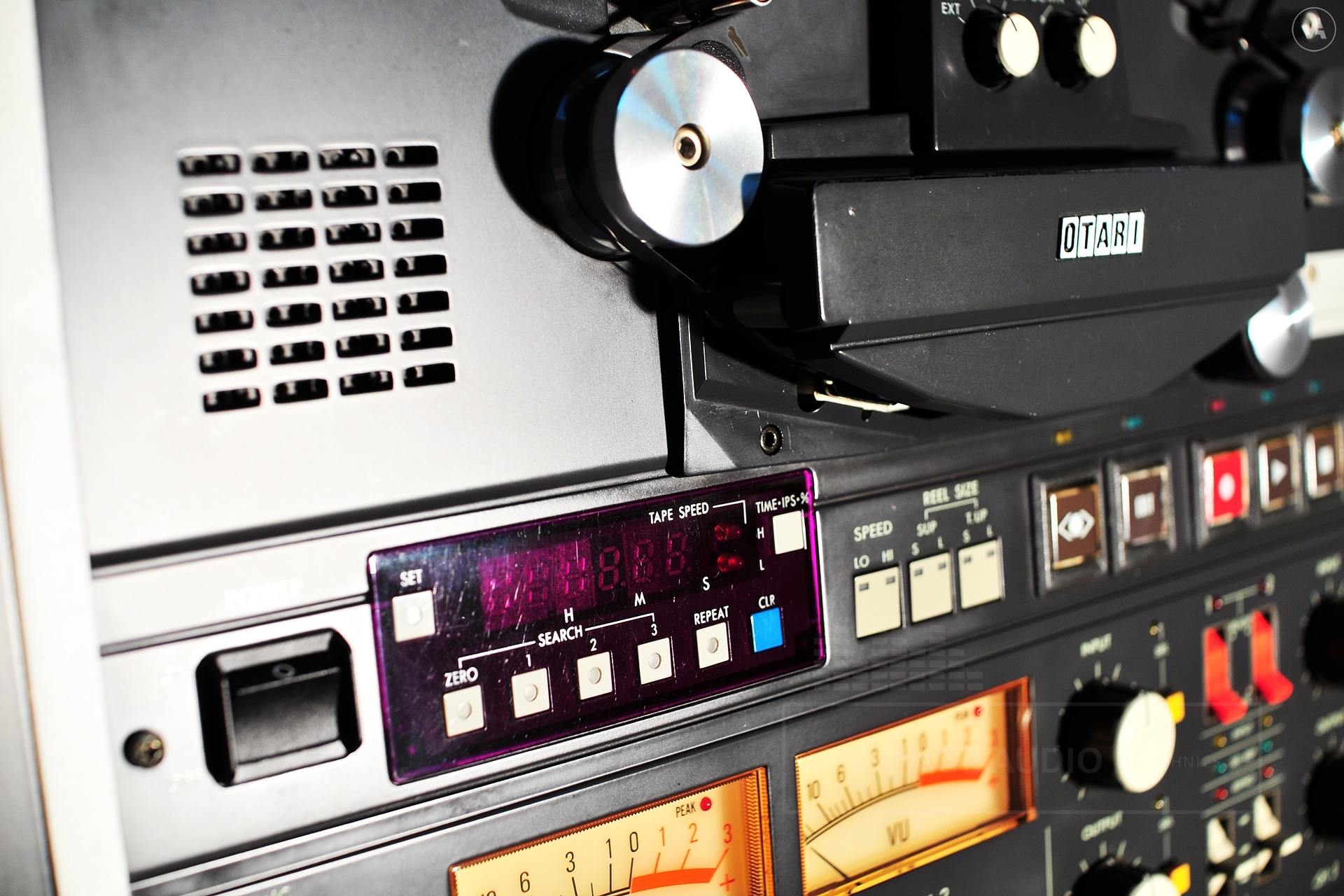

Tape Timer: | Seven segment LED readout from tachometer/logic measurement circuit Indicates tape time in Hours, Minutes and Seconds |
Power Requirement: | AC 100 / 110 / 117 / 200 / 220 / 240V ±10%, 50/60 Hz |
Power Consumption: | 150W |
Accessories: | Reel hold down knob, empty reel |
Dimensions (W x H x D): | 440 x 488 x 222mm |
Weight: | 30kg |
Optional Accessories: | CB-127-S Remote Controller, ZA-81G-S Stand (with Reel Spacer. Tilt Adjustable), ZA-81B-T Stand (without Reel Spacer), ZA-81D-S Reel Spacer (for ZA-81B-T), ZA-5CG Rack Mount Bracket, SB-12S Scissors, ZA-5CU Fader Control Kit, PB-1AXAS VEM (Voice Edit Mode) PCB, ZA-5CW Proximity Switch Kit, ZA-5CX Multi Purpose Phone Jack Kit, ZA-5CL Input Transformer, ZA-5CM Output Transformer |
