Type: | 2-track 3-Speed Stereo Tape Recorder |
Speeds: | 15, 7.5 and 3.75 ips |
Motors: | 1 Hysteresis synch, drive moto Reel, 2 capacitor-run torque motors |
Reel Size: | 10.5-inch (NAB) - max 5-inch - min |
-43b2bb83.webp)
Record/Play Frequency Response: | 15 ips - ±2 dB, 30 to 30 kHz 7.5 ips - ±2 dB, 30 to 20 kHz 3.75 ips - ±2 dB, 30 to 10 kHz |
Signal-to-Noise Ratio: | 15 ips - 57 dB 7.5 ips - 56 dB 3.75 ips - 50 dB |
Bias Frequency: | 100kHz |
Wow & Flutter: | 15 ips - 0.06% 7.5 ips - 0.09% 3.75 ips - 0.18% |
Tone Controls: | Bass, 15 dB atten. or boost at 30 Hz Treble, 15 dB atten. or boost at 15 kHz |
Outputs: | Two per channel, 600-ohm unbalance One low-Z output (stereo phone jack) on front panel |

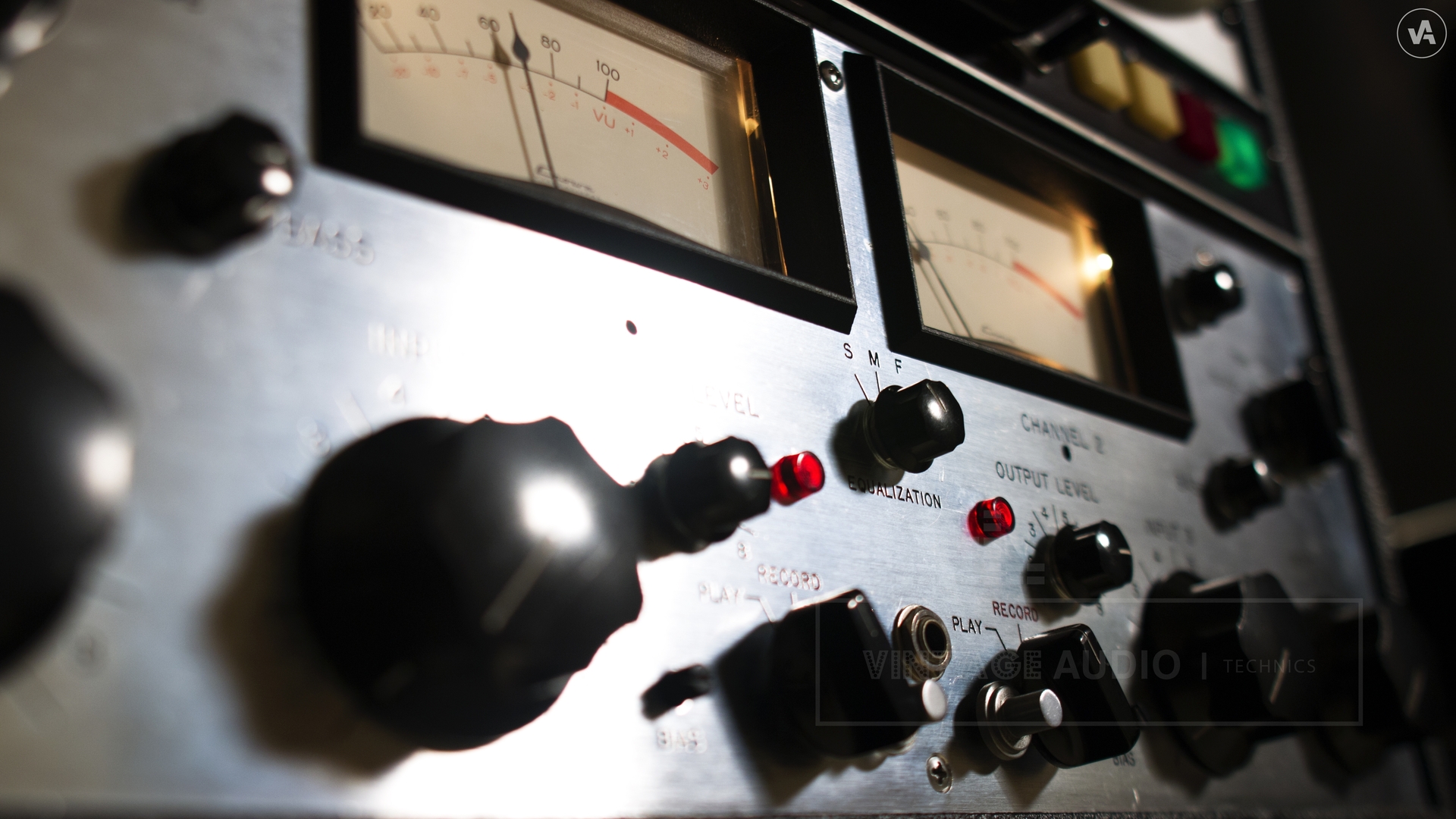

VU Meters: | Two 5-in. professional types with edge lighting |
Material: | Various materials |
Dimensions (W x H xD): | 19 x 17.5 x 9 inch (483 x 445 x 229 mm) |
Weght: | 52 lbs (23.6kg) |
Year: | 1968 |
