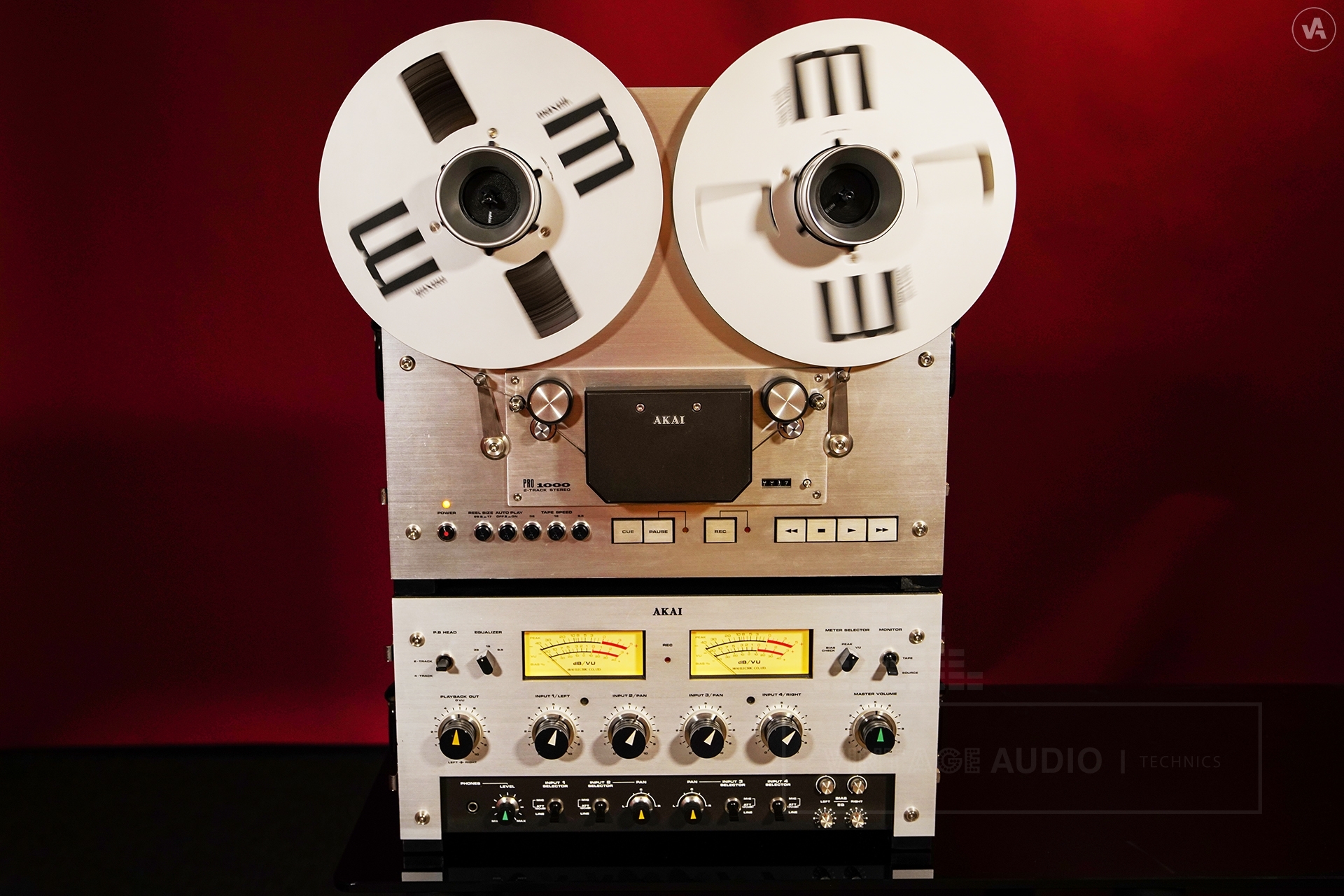

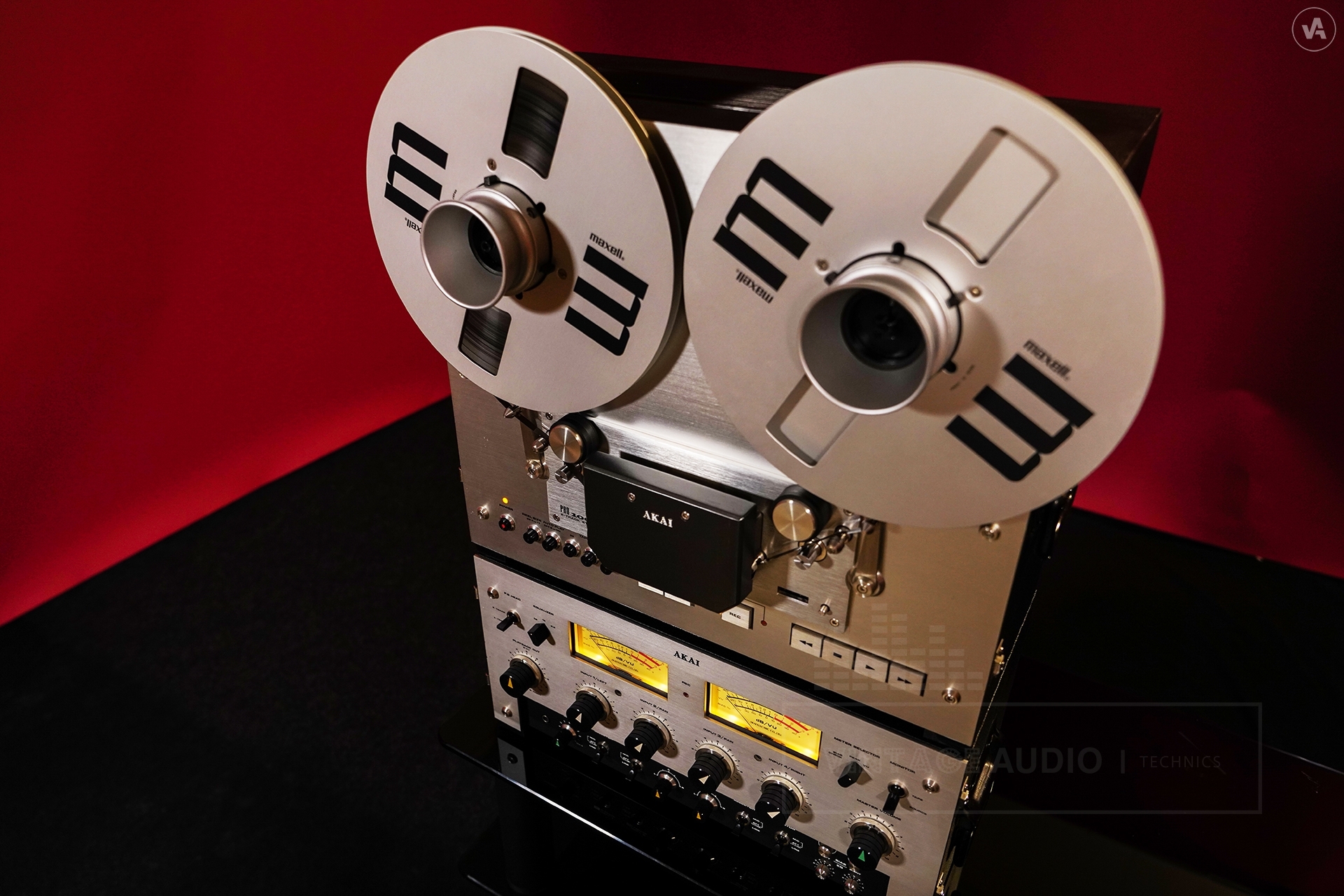

Type: | Professional Tape Recorder |
Track system: | 2/4-track, 2-channel, stereo system |
Heads: | 2 x GX record 2 x GX playback 1 x 4 track GX head 1 x erase |
Motor: | 2 x reel drive 1 x capstan |

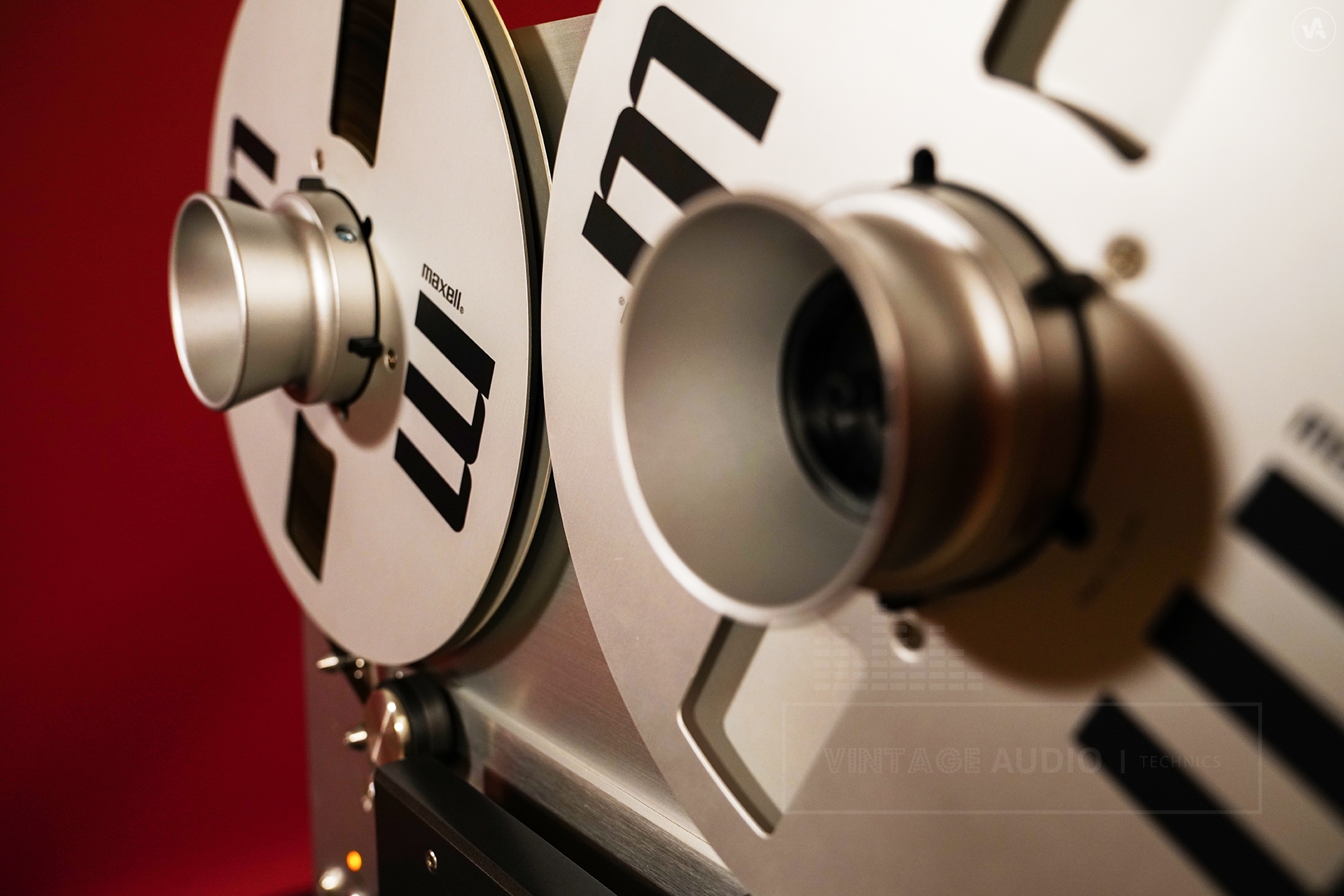

Reel size: | Up to 10.5 inch reel |
Equalization: | NAB |
Tape speeds: | 3 3⁄4, 7 1⁄2, 15 ips |
Wow and flutter: | 0.025% (15 ips) |
Frequency response: | 50Hz to 20kHz (15 ips) |
Signal to Noise Ratio: | 60dB |
Total harmonic distortion: | 1% |
Input: | 70mV (line), 0.3mV (mic) |
Output: | 0.775V (line) |
Semiconductors: | 130 x transistors 94 x diodes 6 x FET 2 x IC |
Dimensions Transport Type (W x H x D): | 486 x 412 x 284mm |
Weight Transport Type: | 28.3kg |
Dimensions Amplifier Module (W x H x D): | 486 x 231 x 309mm |
Weight Amplifier Module: | 10.2kg |
Accessories: | 1 x empty reel, 2 x reel hub adaptor, 1 x connecting cord set, 1 x sensing tape |
Year: | 1976 |
