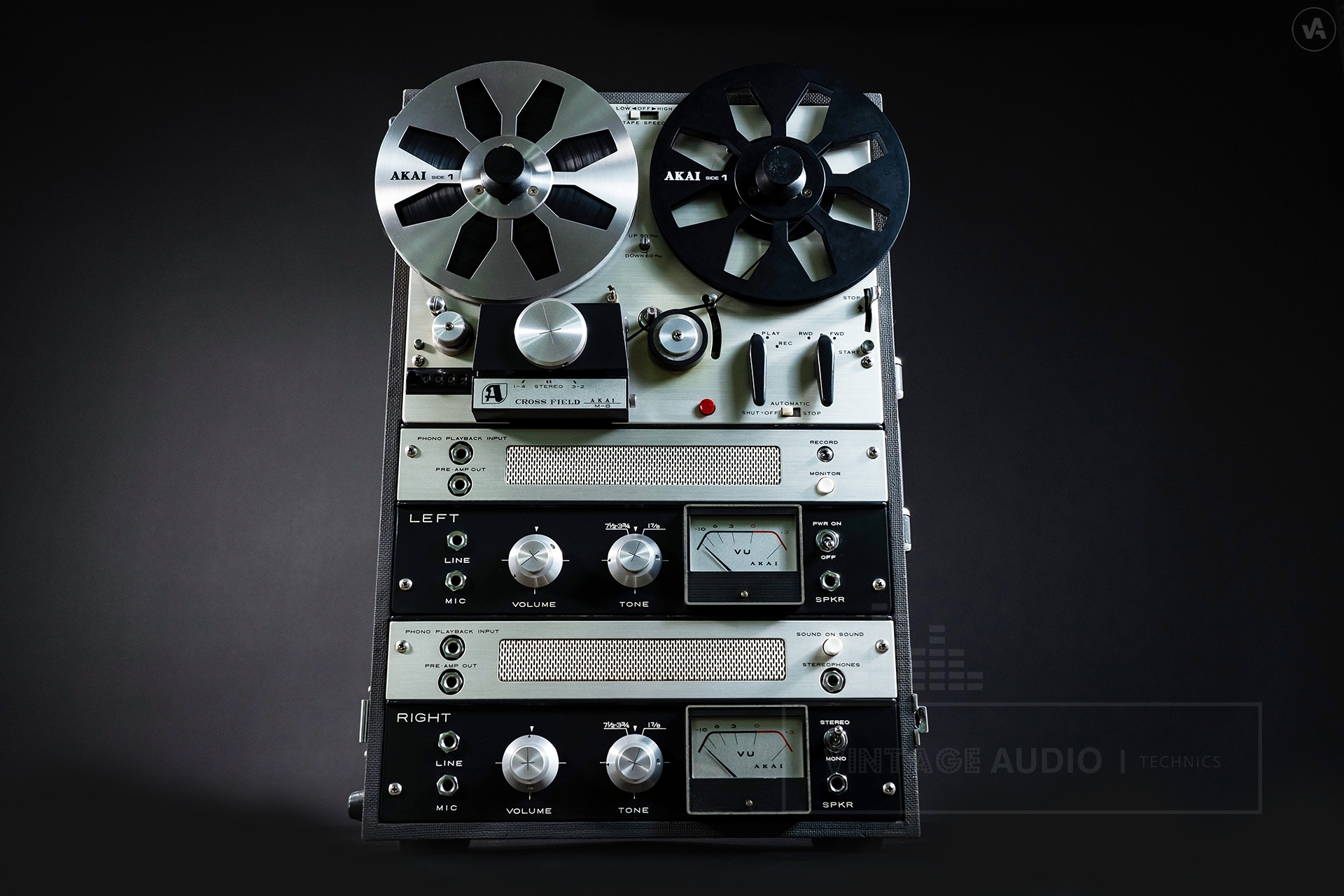

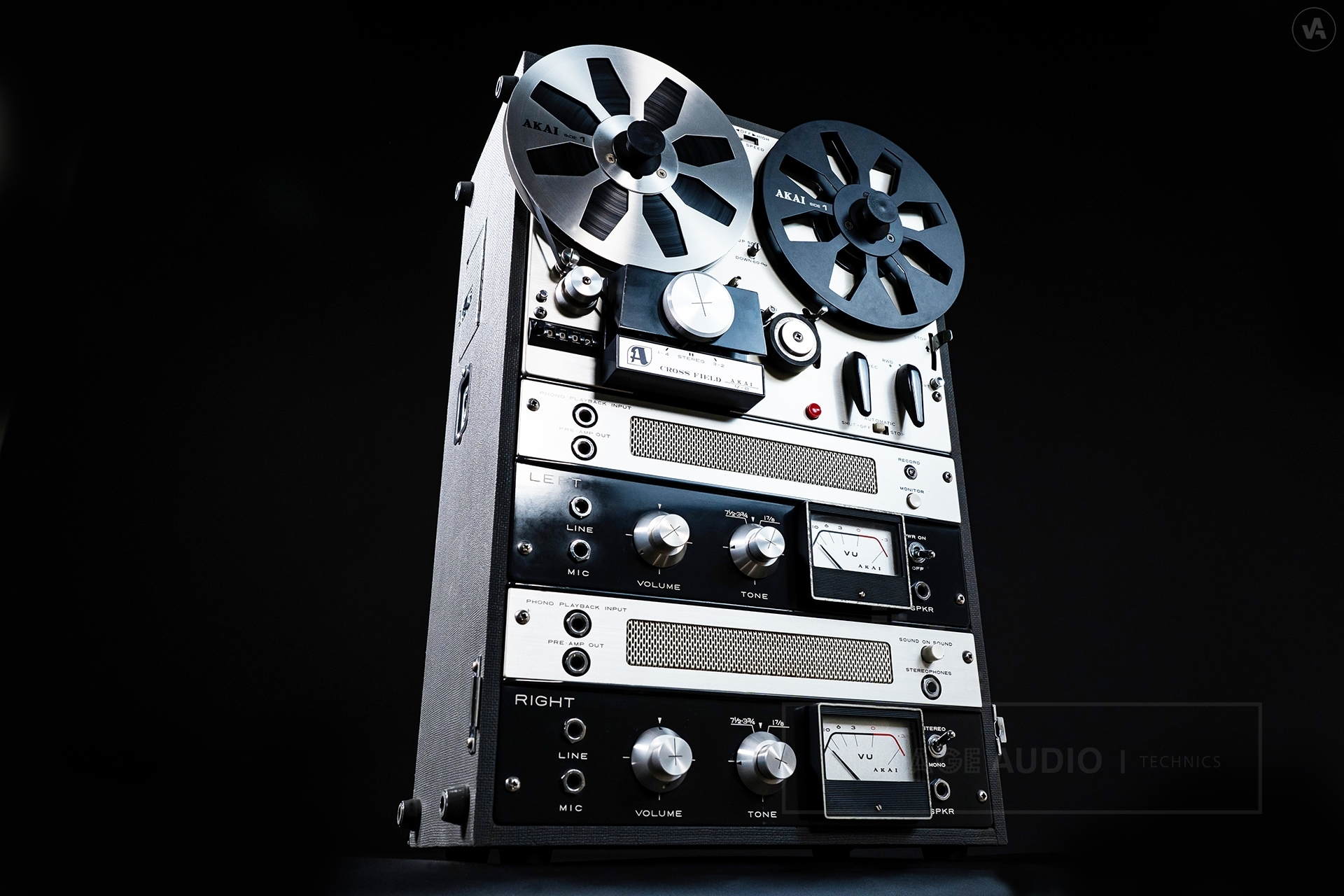

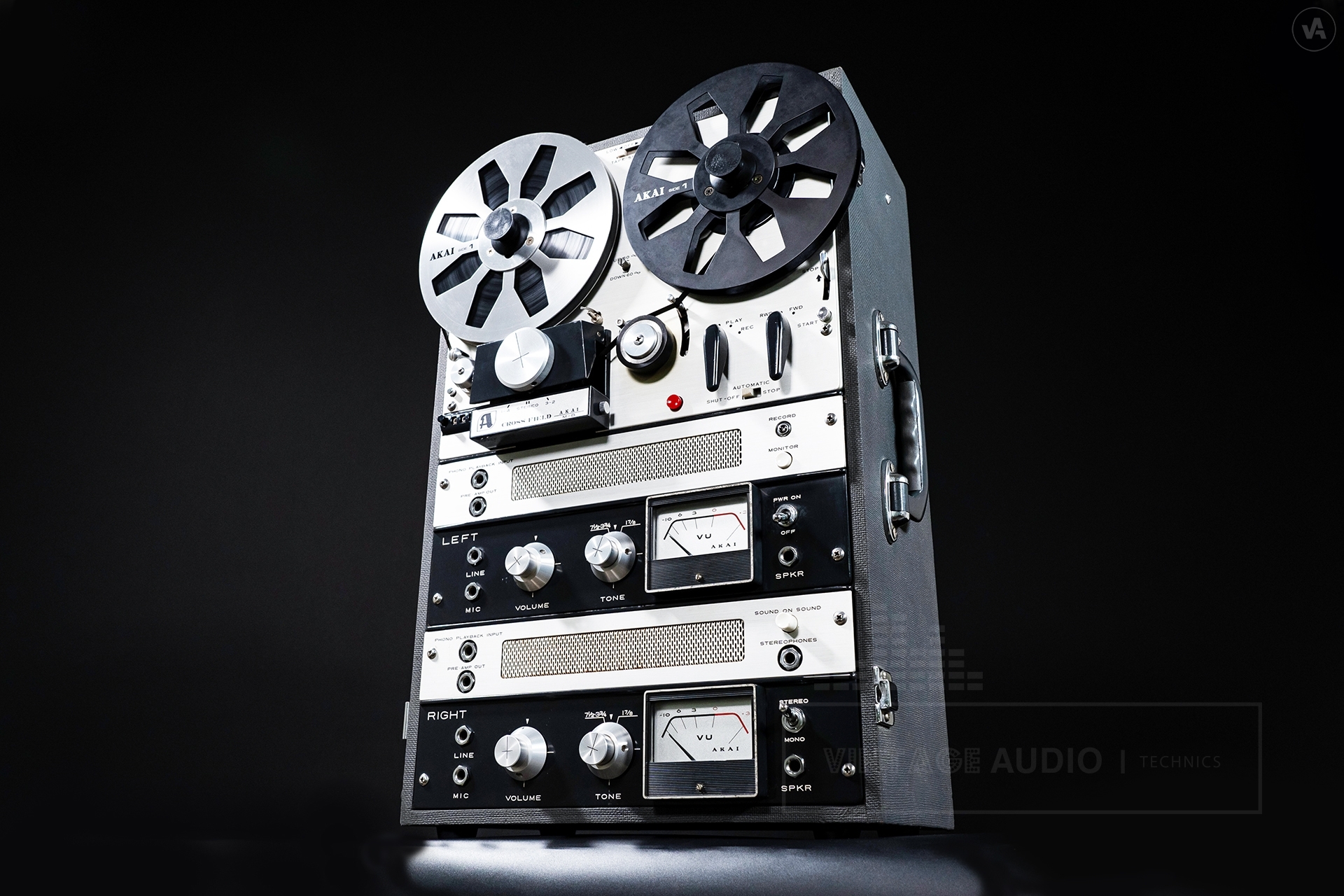

AKAI M-8
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Reel to Reel Tape Recorder |
Tape speed: | 4.75 cm / s 9.5 cm / s 19 cm / s 38 cm / s (Adaptor mainly for high-speed tape duplication) |
Wow flutter: | 0.15% RMS or less (19 cm / s) 0.25% RMS or less (9.5 cm / s) 0.35% RMS or less (4.75 cm / s) |
Total harmonic distortion: | 2% or less (1kHz, 0 VU) |
Frequency response: | 30Hz to 25kHz (19 cm / s) 40Hz to 21kHz, ± 3dB (19 cm / s) 40Hz to 18kHz, ± 3dB (9.5 cm / s) 40Hz to 10kHz, ± 4dB (4.75 cm / s) |
Output: | 6W + 6W |
Equalizer characteristics: | NARTB characteristics (reproduction) |
Recording level instruction: | VU meter x 2 (shared with playback level indication, with lamp) |
Recording system: | 4 track stereo / monaural, cross field bias system (Japanese Patent No. 451906) |
Fast forward, rewind method: | Each 90 sec. (370m tape, 50Hz) Each 75 sec. (370m tape, 60Hz) |
Motor: | Hysteresis synchronous 2 speed motor |
Speaker: | 10cm cone type x2 |
Used vacuum tube: | 6267 (EF86) x 2 12AD7 (12AX7) x 2 6BQ5 x 2 6X4 × 2 6AR5 x 1 |
Power supply voltage: | AC 100V to 240V, 50Hz / 60Hz (6 stages switching between) |
Power consumption: | 100W |
Dimensions (W x H x D): | 340 x 510 x 226mm |
Weight: | 21.5kg |
Year: | 1963 |
