AKAI M-11D
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
nef 9607
Type: | Tape deck |
Track system: | 4 track 2 channels stereo mono |
Maximum use reel: | No. 7 |
Tape speed: | 19 cm / s, 9.5 cm / s, ± 2% |
Wow • Flutter: | 0.10% rms or less (19 cm / s) 0.14% rms or less (9.5 cm / s) |
Recording (reproduction) compensation characteristics: | NAB characteristics |
Frequency response: | 30Hz to 25kHz, ± 3dB (19 cm / s, using AKAI.S.R. T tape) 30Hz to 23kHz, ± 3dB (19 cm / s) 30Hz to 17kHz, ± 3dB (9.5 cm / s) |
Distortion factor: | 1.5% or less (at 1kHz, 0 VU) |
S / N ratio: | 54dB or more |
Elimination rate: | 70dB or more |
Crosstalk: | Mono - More than 60dB Stereo - 40dB or more |
Recording bias frequency: | 65kHz |

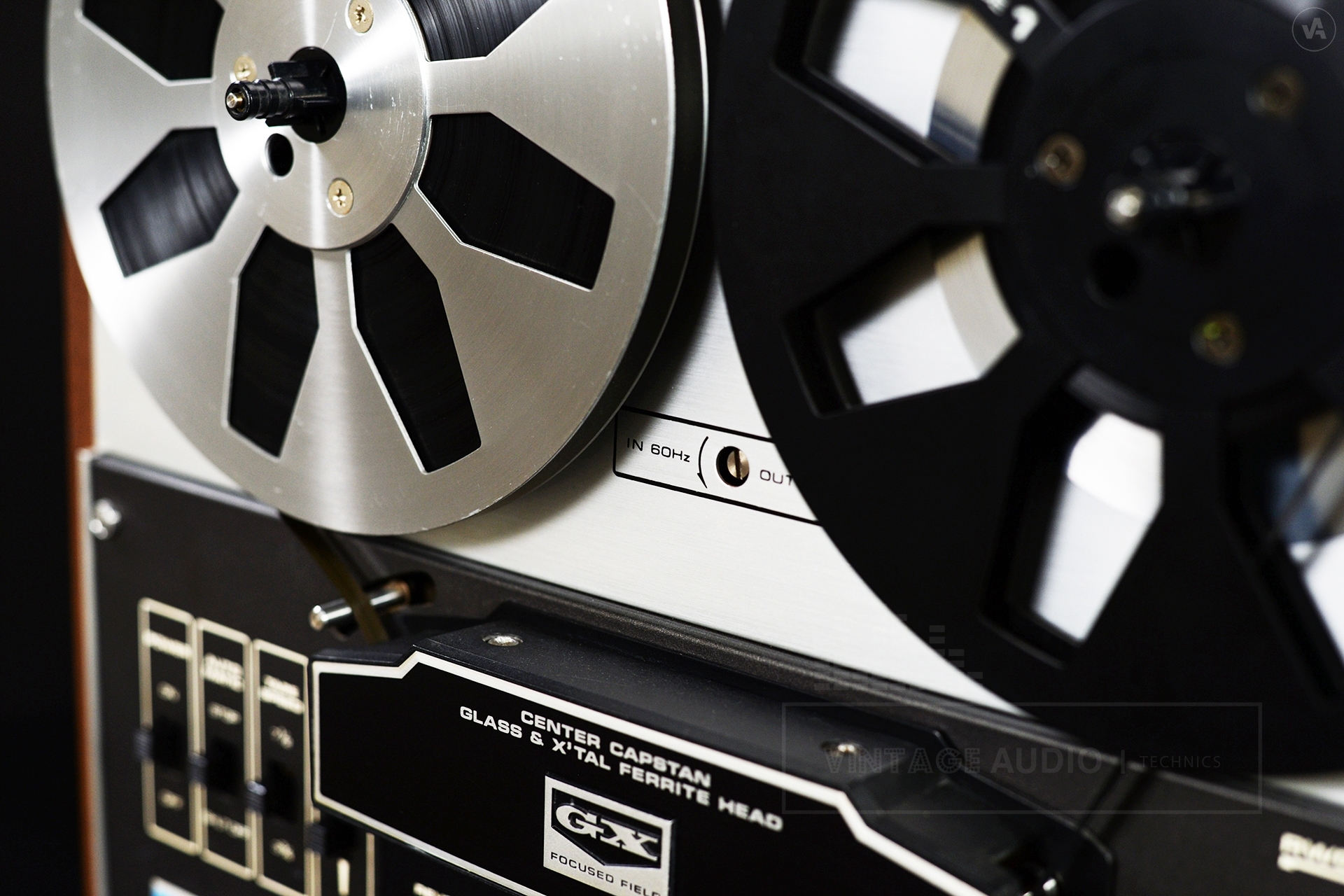

Heads: | Recording / reproduction - Glass & Crystal Ferrite head Reverse play - Glass & Crystal Ferrite head Erasing head |
Motor: | Hysteresis synchronous 2 speed motor |
Fast forward / rewind time: | 110 sec. (370m tape use, 60Hz) 140 sec. (using 370m tape, 50Hz) |
Recording time: | 2 hours stereo recording (9.5 cm / s, using 370m tape) |
Output line: | 1.23V (0 VU) / 100Ω, optimum load impedance 20kΩ or more |
Headphone: | 30mV / 8Ω |
Inputs: | Microphone - 0.3mV / 4.7kΩ Line - 100mV / 200kΩ DIN jack - 0.4V / 5mV |
Semiconductor used: | Transistors - 9 pieces Linear IC - 2 pieces Diode - 6 pieces |
Attached: | No. 7 Air Metallic Reel Sensing tape DIN / RCA connection code Spare fuse x 2 |
Power supply: | AC 100V to 240V, 50Hz / 60Hz |
Power consumption: | 65W |
Outer dimensions (W x H x D): | 412 x 404 x 225mm |
Weight: | 15.3kg |
Year: | 1972 |
