AKAI GX-635D

A great tape recorder with a great sound. And to this day Akai GX-635D is in high demand in the vintage market high end...

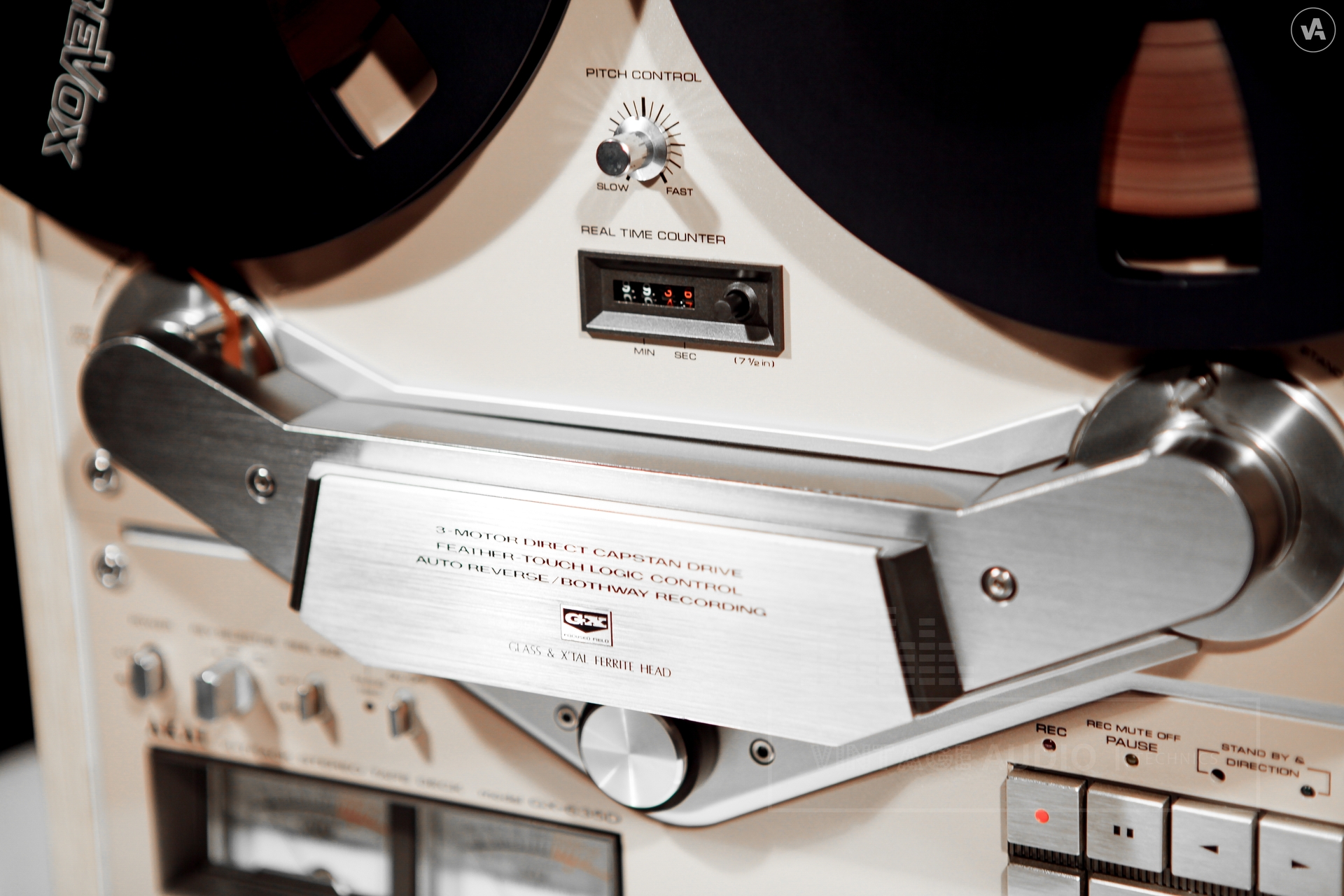

It was produced in the period from 1979 to 1980. It is a model of the company Akai with the logic control system "IC logic" and noise reduction Dolby. With 12 holes on the head block cover, the Akai GX-635D is similar to the GX-266D. The recorder has a speed adjustment, as well as the ability to mix a line signal and a microphone. It was the first tape recorder with a mechanical counter of real time (only for a speed of 19 cm / s).
A reverse selector is also installed, which reacts to the installed metal foil on the film passages. The linear output is adjustable.Akai GX-635D has six heads, one for the main motor and the drive shaft 2 for reel motor. There are two color variations: silver and black. This model was extremely popular, and still occupies the top lines of resale all over the world.

Technic details

Specifications

Type:
Stereo Tape Recorder
Track system:
Auto reverse, 4-track, 2-channel, stereo/monaural system
Heads:
2 x GX record, 2 x GX playback, 2 x erase
Motor:
2 x reel drive, 1 x capstan
Reel size:
Up to 10.5 inch reel
Tape speeds:
3 3⁄4, 7 1⁄2 ips
Wow and flutter:
0.04% (7 1⁄2 ips)
Tape speeds:
3 3⁄4, 7 1⁄2 ips
Frequency response:
30Hz to 27kHz (7 1⁄2 ips)
Signal to Noise Ratio:
62dB
Total harmonic distortion:
0.5%
Crosstalk:
40dB
Input:
70mV (line), 2mV (DIN), 0.25mV (mic)
Output:
0.775V (line), 0.3V (DIN)
Dimensions (W x H x D):
440 x 483 x 256mm
Weight:
21kg
Accessories:
connection cords, reel hub adaptors, empty reel
