AKAI GX-400D-SS
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Surround Stereo Tape Deck |
Track system: | Auto reverse, 4-track, 4-channel, stereo / multi-channel system |

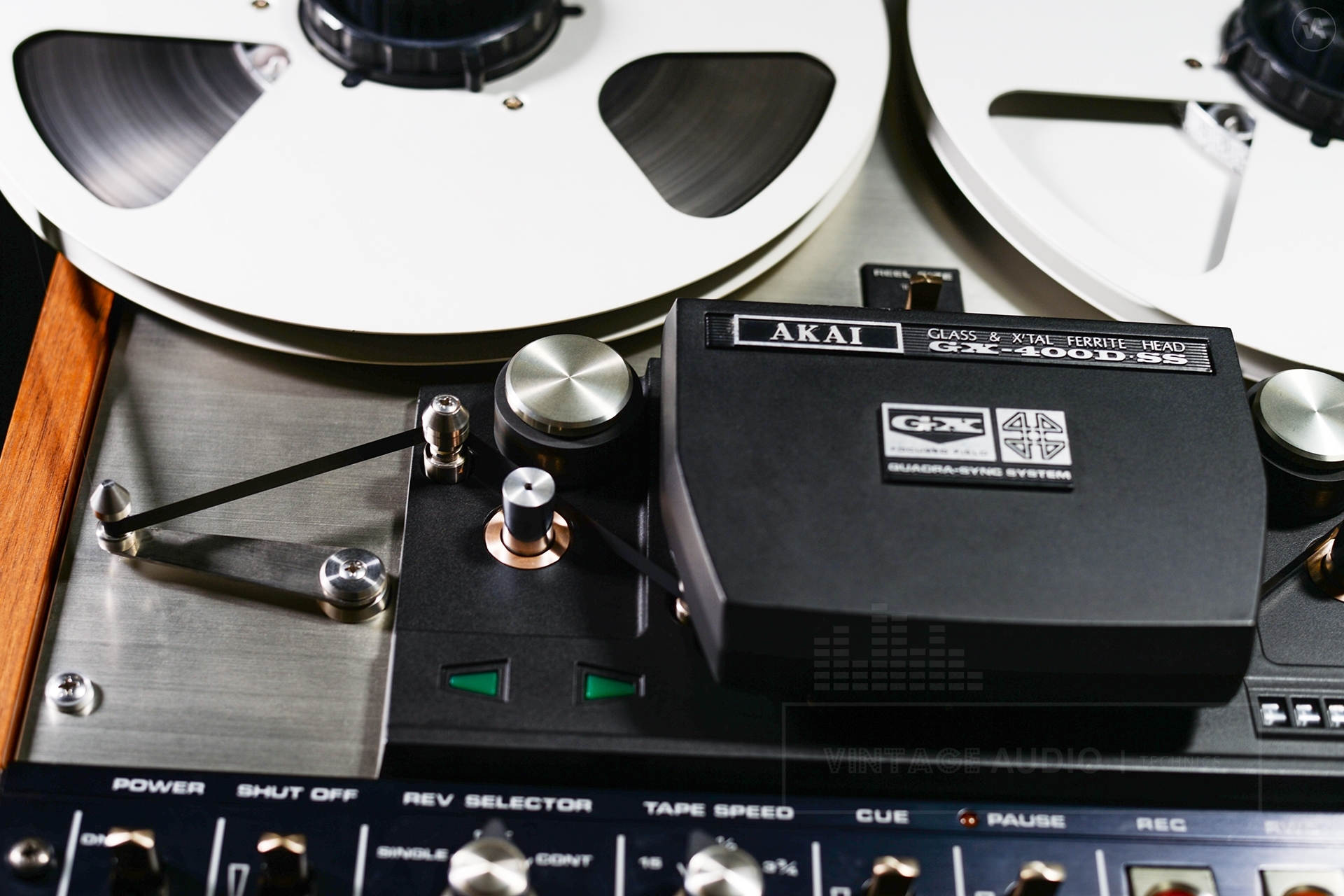

Heads: | 1 x Record 1 x Playback 2 x Erase |
Motors: | 2 x Reel 1 x Capstan |
Fast Forward & Rewind Time: | 75 / 90 sec., using 700m Tape at 60Hz / 50Hz |
Reel size: | Up to 10.5” reel |
Equalization: | NAB |
Tape speeds: | 3 3⁄4 ips 7 1⁄2 ips 15 ips |
Wow and flutter: | Less than 0.035% (15 ips) Less than 0.05% (7 1⁄2 ips) Less than 0.08% (3 3⁄4 ips) |
Frequency response: | 20Hz to 27kHz (30Hz to 25kHz, ±3dB) at 15 ips, Low Noise Tape) 20Hz to 26kHz (30Hz to 23kHz, ±3dB) at 7 1⁄2 ips, Low Noise Tape) 20Hz to 18kHz (30Hz to 15kHz, ±3dB) at 3 3⁄4 ips, Low Noise Tape) 20Hz to 26kHz (30Hz to 24kHz, ±3dB) at 15 ips, Regular Tape) 20Hz to 24kHz (30Hz to 22kHz, ±3dB) at 7 1⁄2 ips, Regular Tape) 20Hz to 16kHz (30Hz to 23kHz, ±3dB) at 3 3⁄4 ips, Regular Tape) |
Total harmonic distortion: | Less than 1% (1kHz, 0 VU) |
Signal to Noise Ratio: | Better than 52dB, 55dB using Low Noise Tape |
Erase Ratio: | Better than 70dB |
Cross-Talk: | Better than 40dB |
Biass Frequency: | 100kHz |
Inputs: | 100mV (Line) 10mV (DIN) 0.5mV (Mic) |
Outputs: | 1.23V (Line) 0.6V (DIN) |
Semiconductors: | 95 x Transistors 88 x Diodes 4 x Linear IC’s |
Power Requirements: | AC 100V to 240V, 50 / 60Hz |
Power Consumption: | 160W |
Dimensions (W x H x D): | 457 x 590 x 240mm |
Weight: | 31.2kg |
Year: | 1975 |
