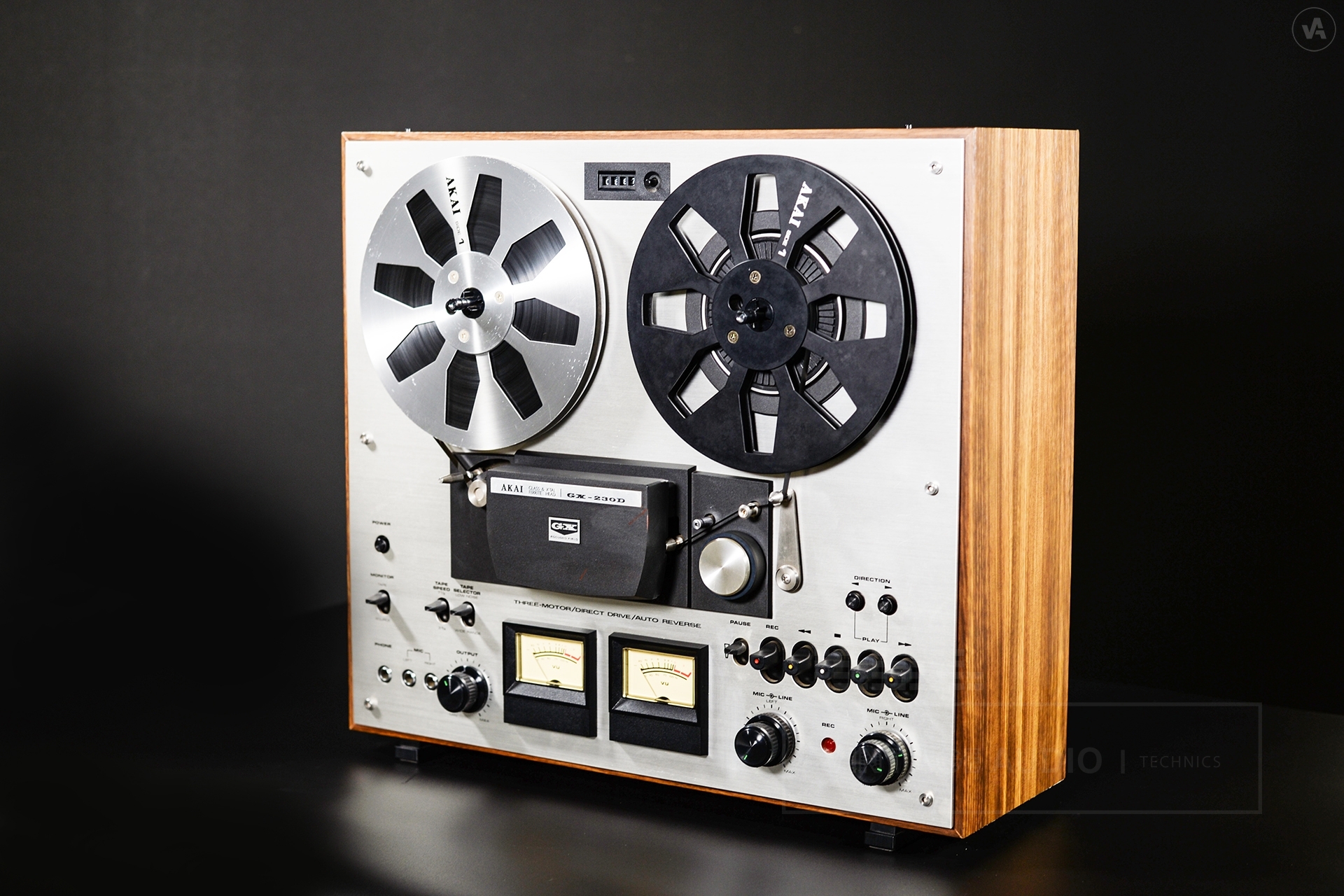

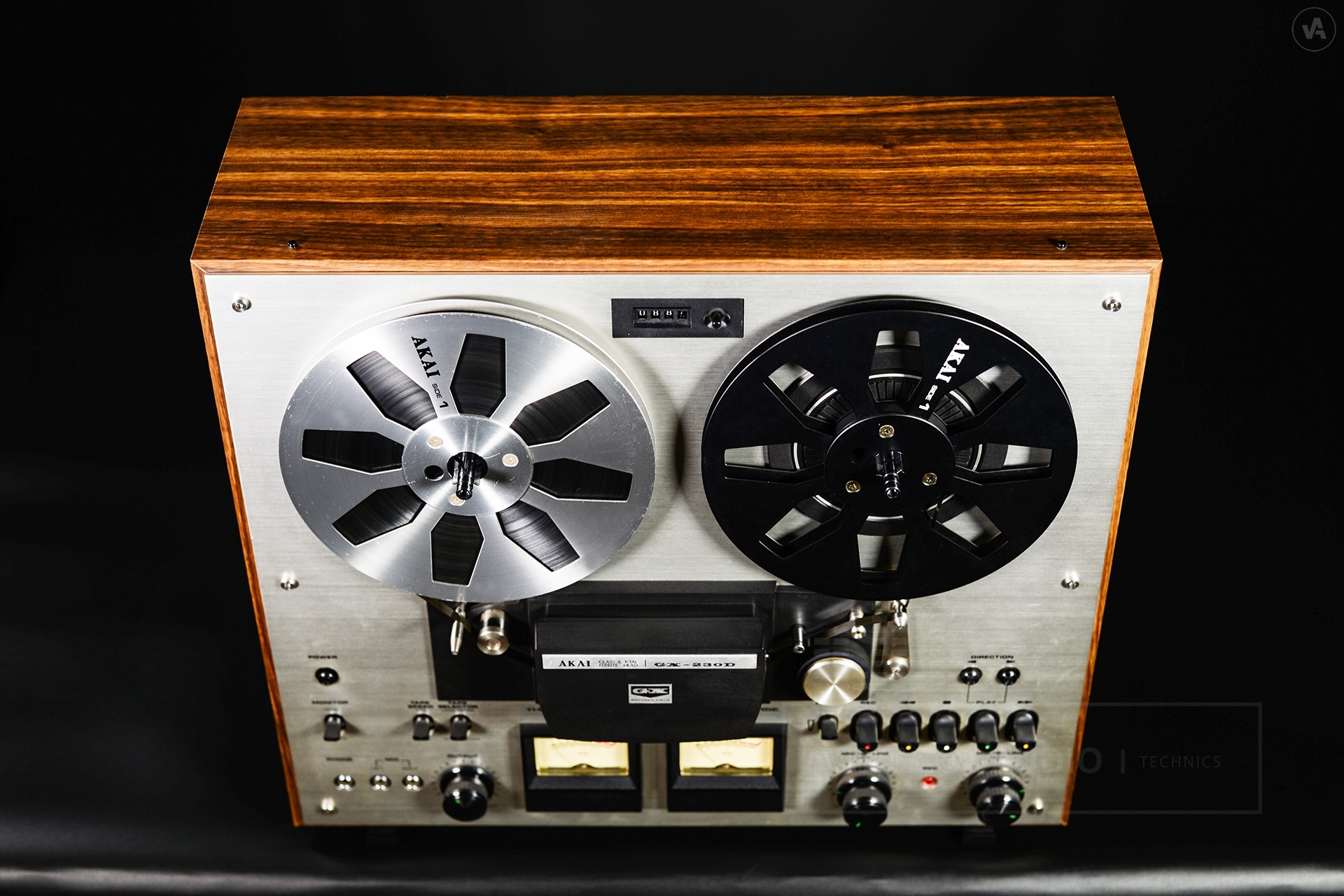

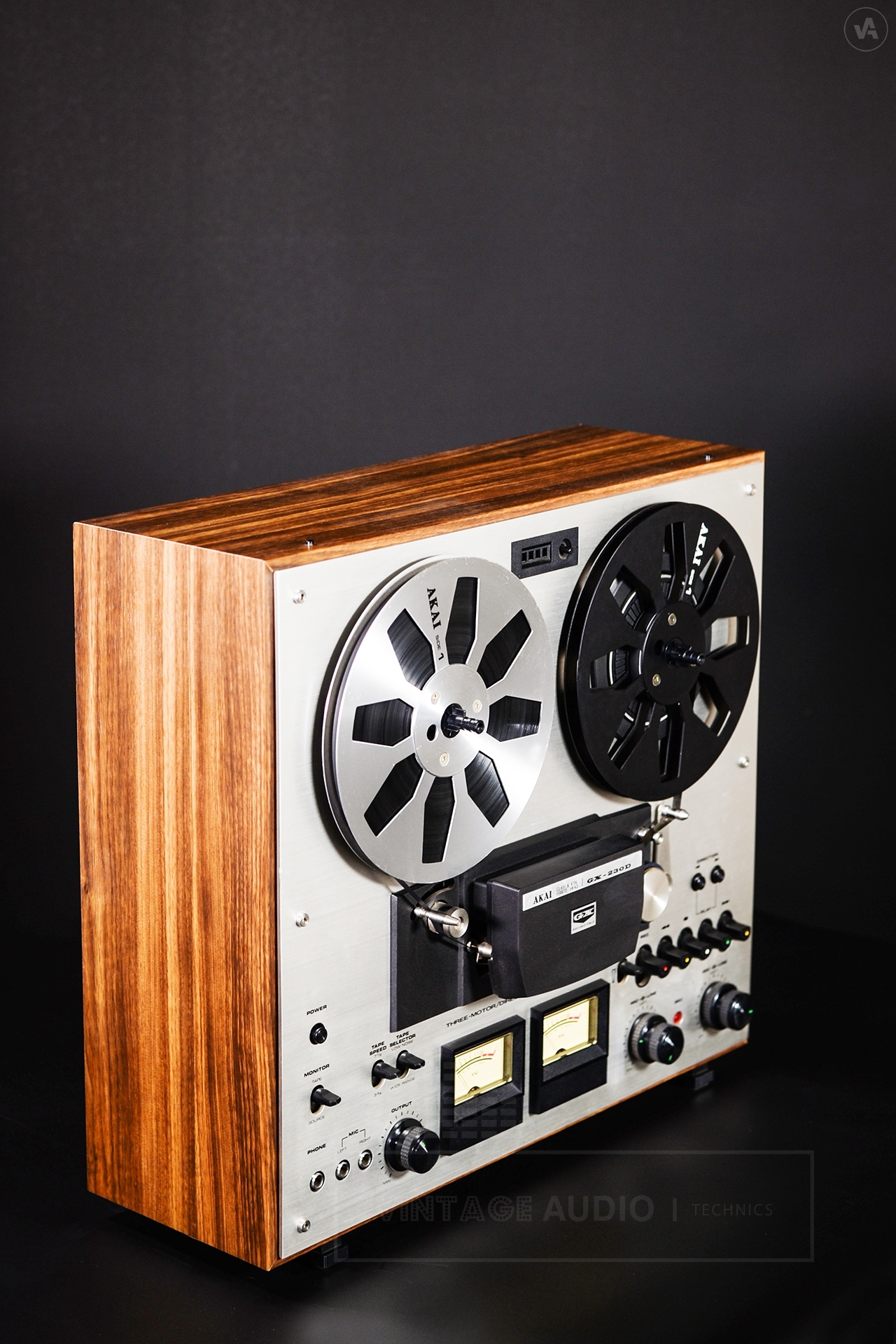

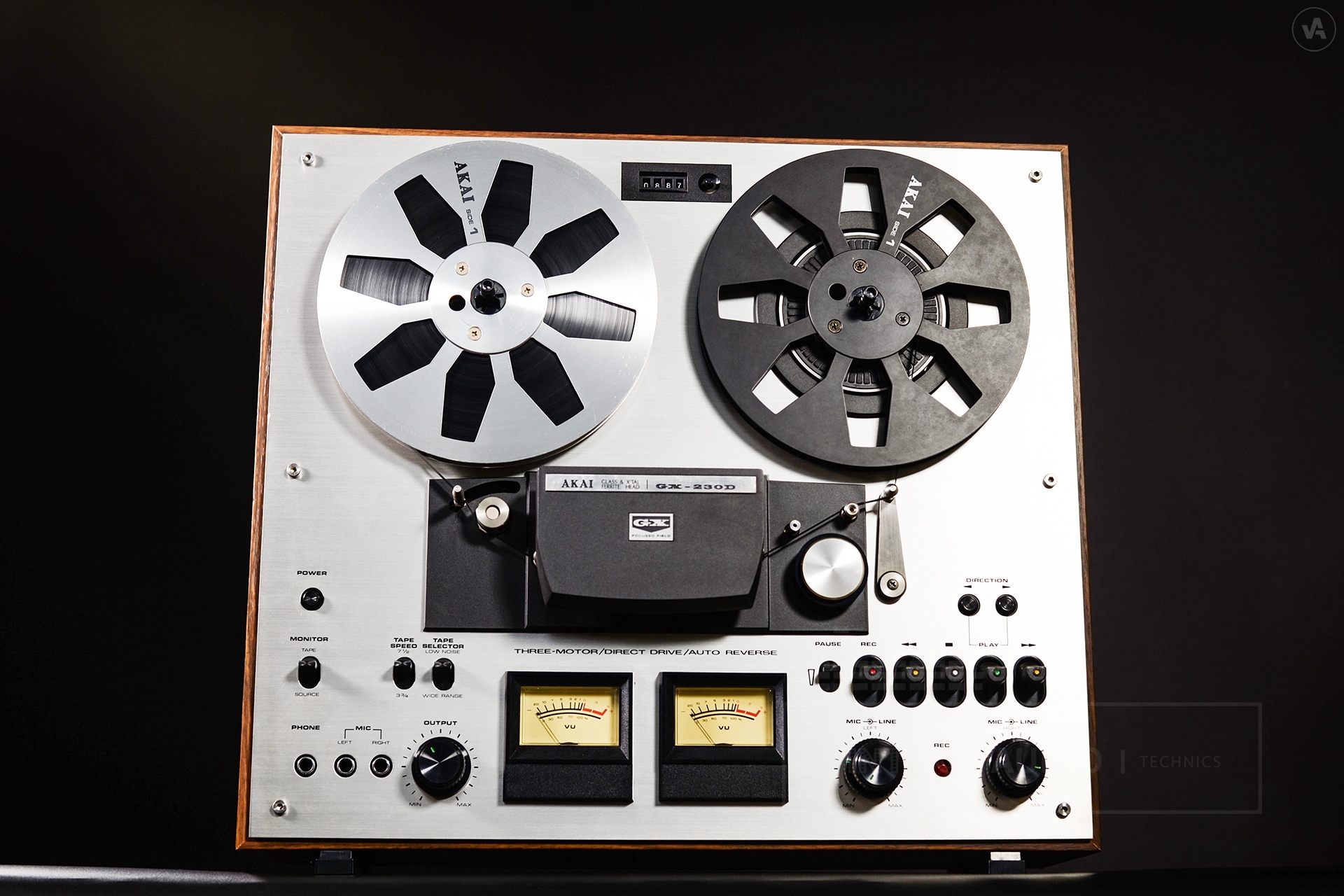

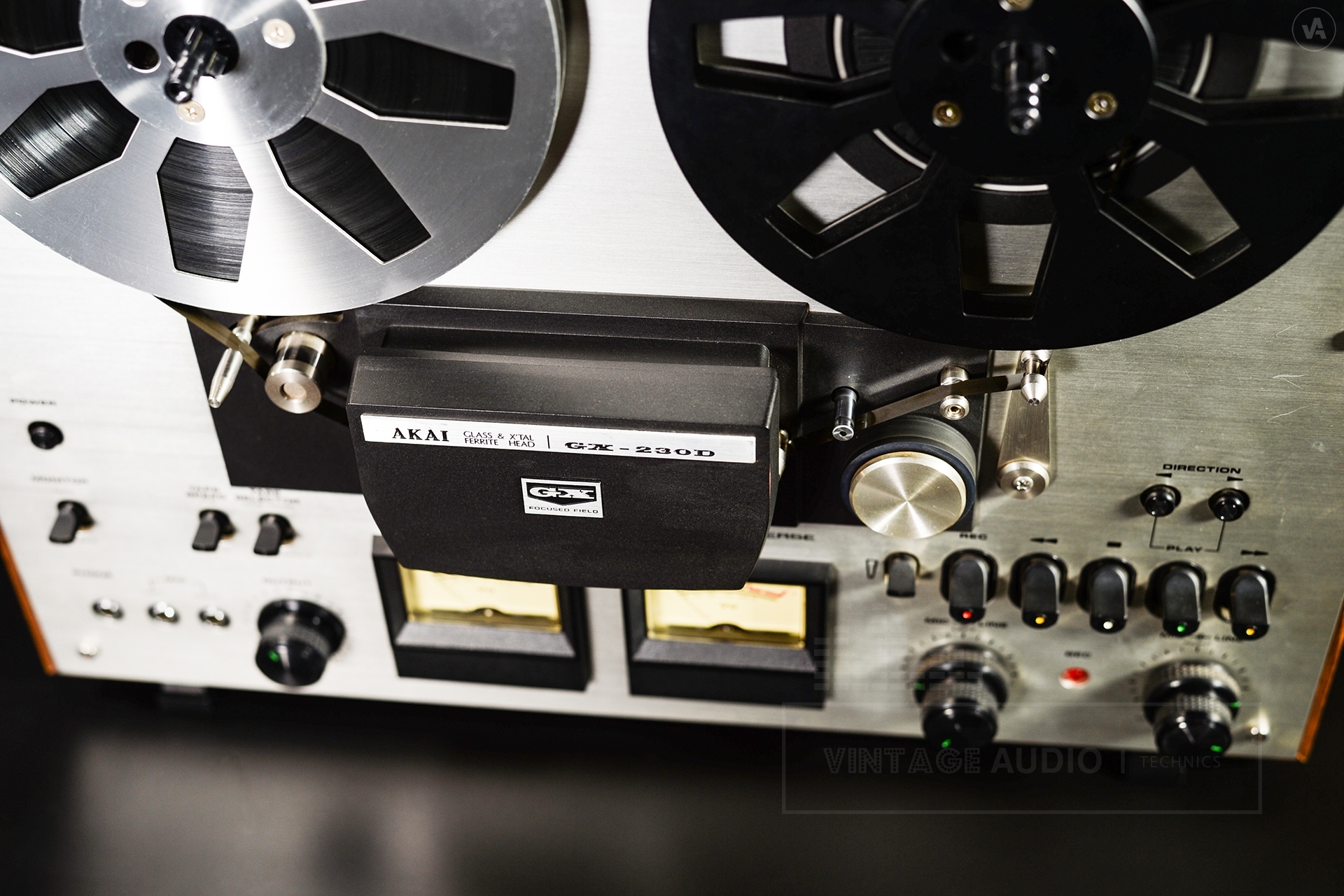

AKAI GX-230D
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Tape Deck |
Track system: | Auto reverse, 4-track, 2-channel, stereo/monaural system |
Heads: | 1 x GX Forward Playback 1 x GX Reverse Playback 1 x Combination GX Recording / Erase |
Motors: | 2 x Eddy current motors for Reel drive 1 x AC Servo Motor for Capstan drive |
Reel size: | Up to 7” reel |
Tape speeds: | 3 3⁄4 ips 7 1⁄2 ips |
Wow and flutter: | 0.07% (7 1⁄2 ips) |
Frequency response: | 30Hz to 23kHz, ±3dB (7 1⁄2 ips, using AKAI LN-150-7 Tape) 30Hz to 19kHz, ±3dB (3 3⁄4 ips, using AKAI LN-150-7 Tape) |
Signal to Noise Ratio: | Better than 60dB |
Erase Ratio: | Better than 70dB |
Total harmonic distortion: | Less than 1% (1kHz, 0 VU) |
Fast Forward & Rewind Time: | 75 sec. using a 1 ,200 ft. tape |
Input: | 70mV (Line) 0.3mV (Mic) 0.5V (Din) |
Output: | 0.775V (Line) |
Output power: | 7W x 7W minimum RMS at 8Ω (100Hz to 20kHz with no more than 3% THD) |
Semiconductors: | 41 x Transistors 28 x Diodes |
Power Requirements: | AC 120V, 60Hz only (USA and Canada (CSA, UL and LA Models) AC 220V, 50Hz only (CEE Models) Ac 100V to 240V, 50 / 60Hz (Other Models, Switchable) |
Power Consumption: | 90W |
Dimensions (W x H x D): | 440 x 395 x 205mm |
Weight: | 15.2kg |
Year: | 1975 |
