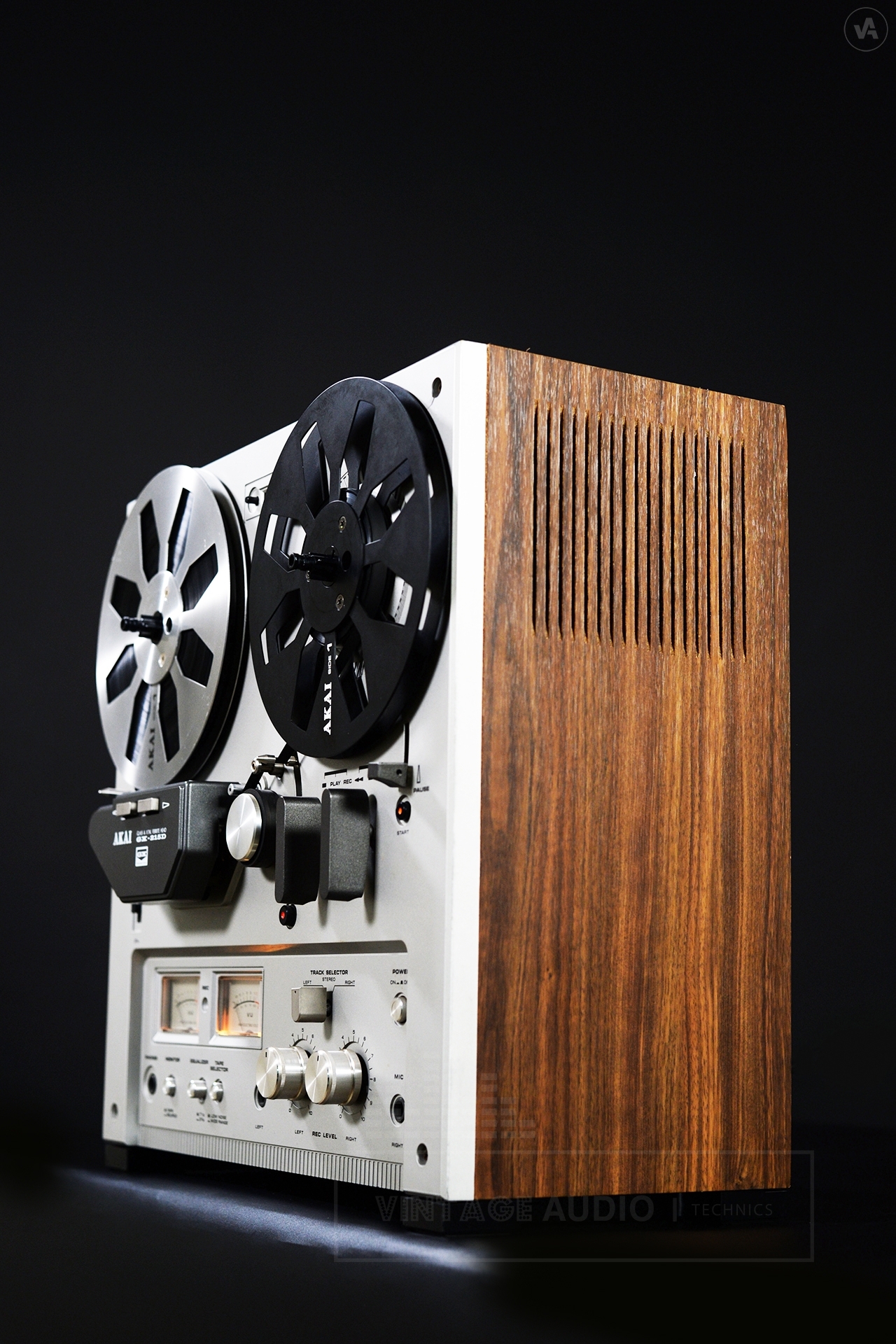

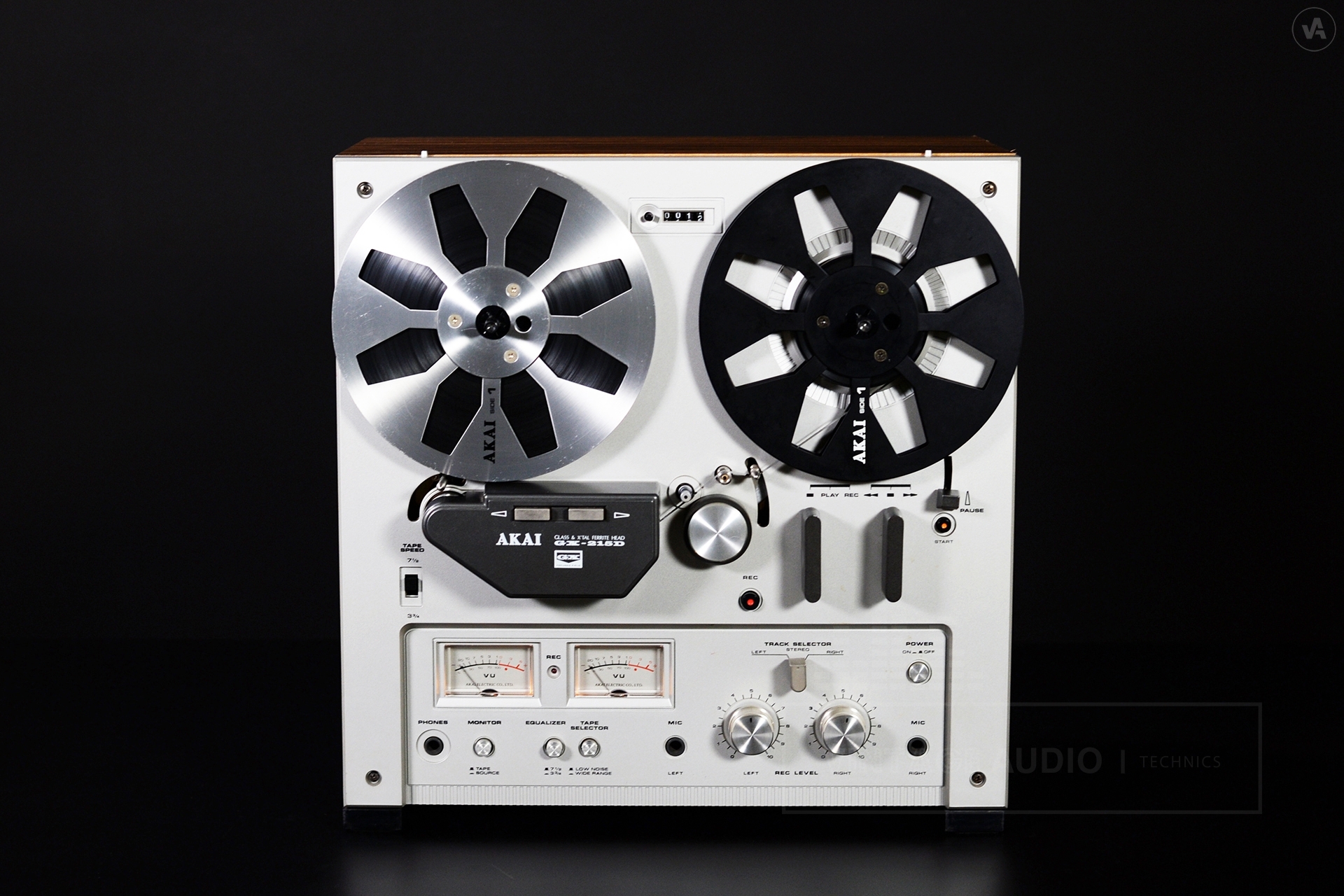

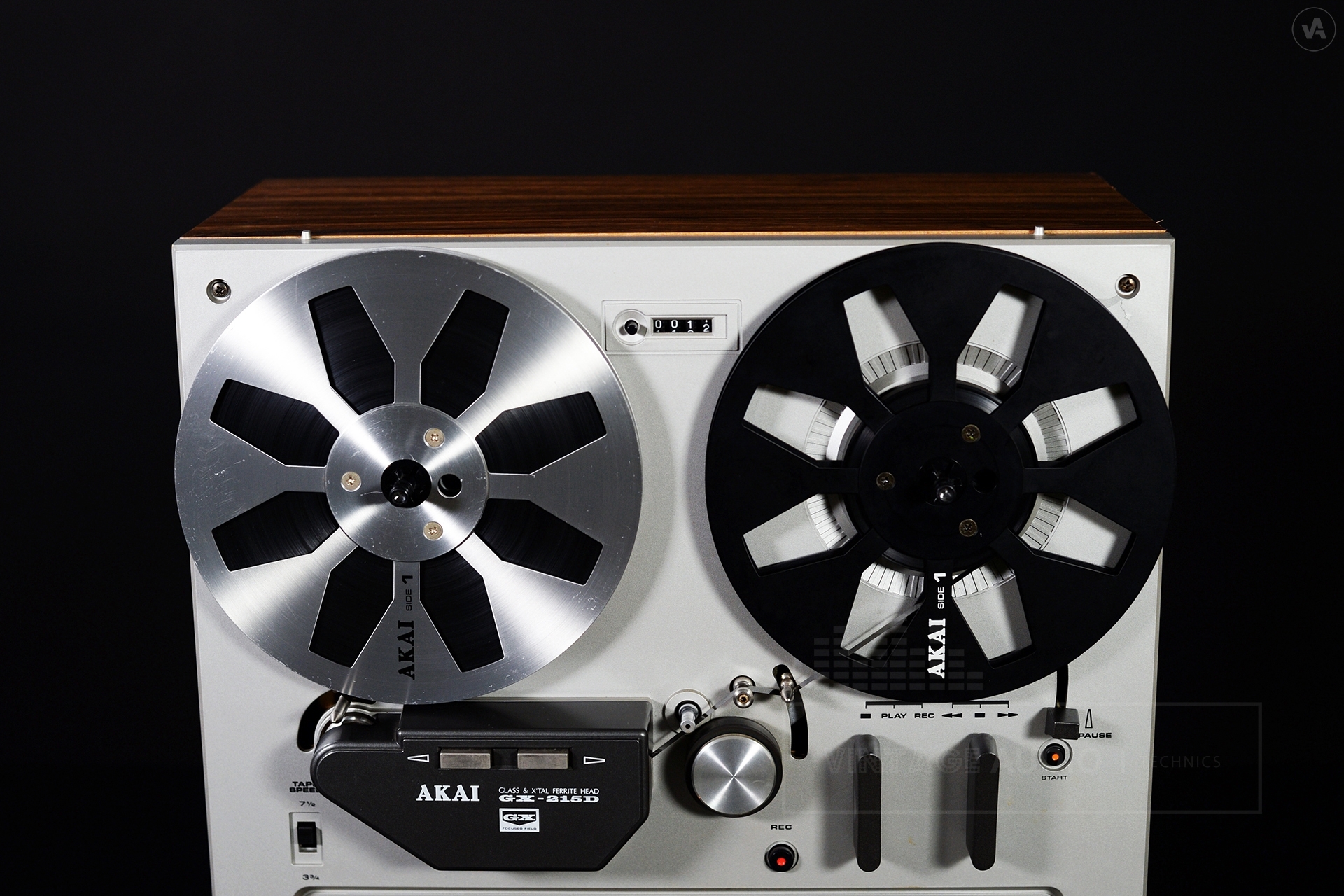

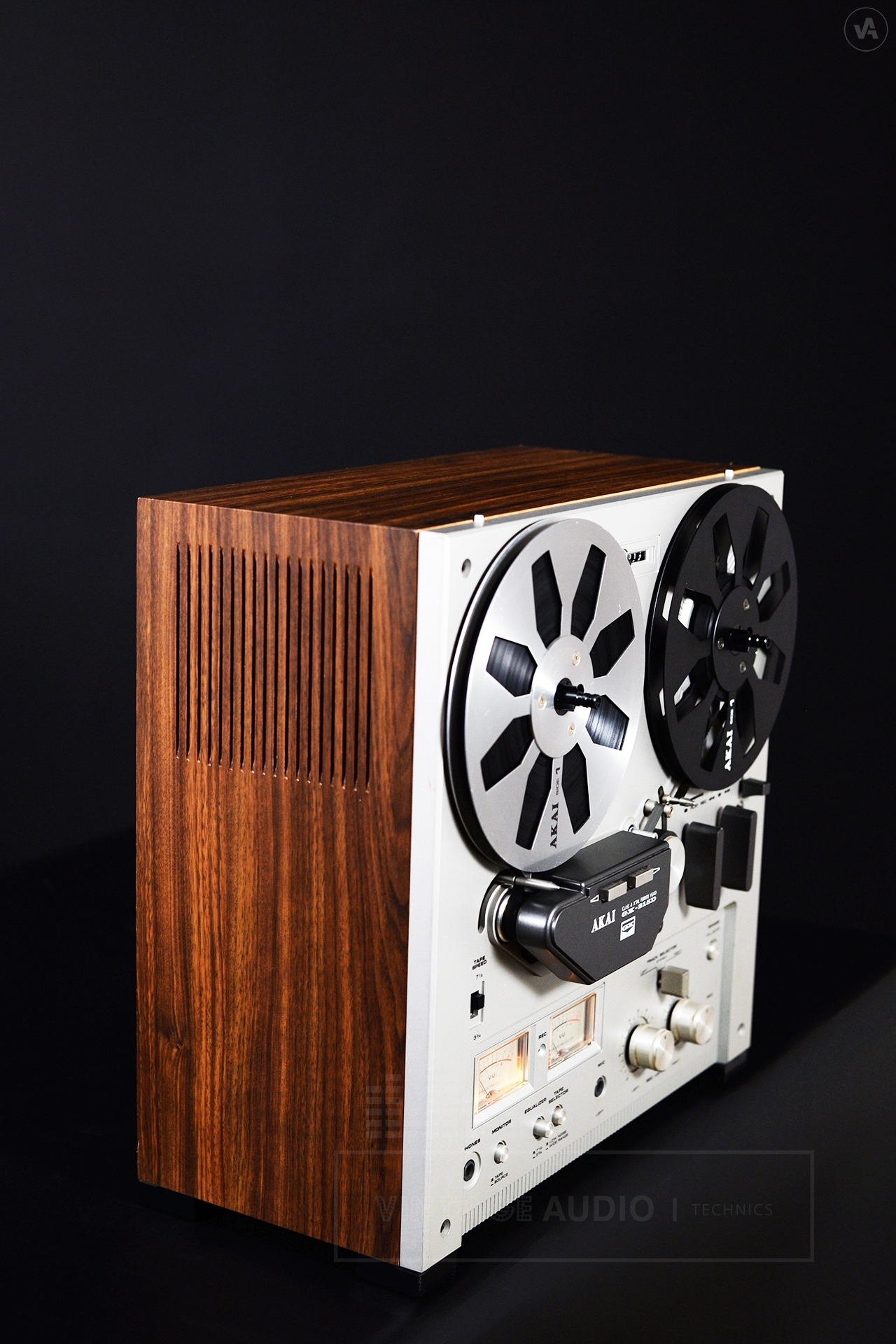

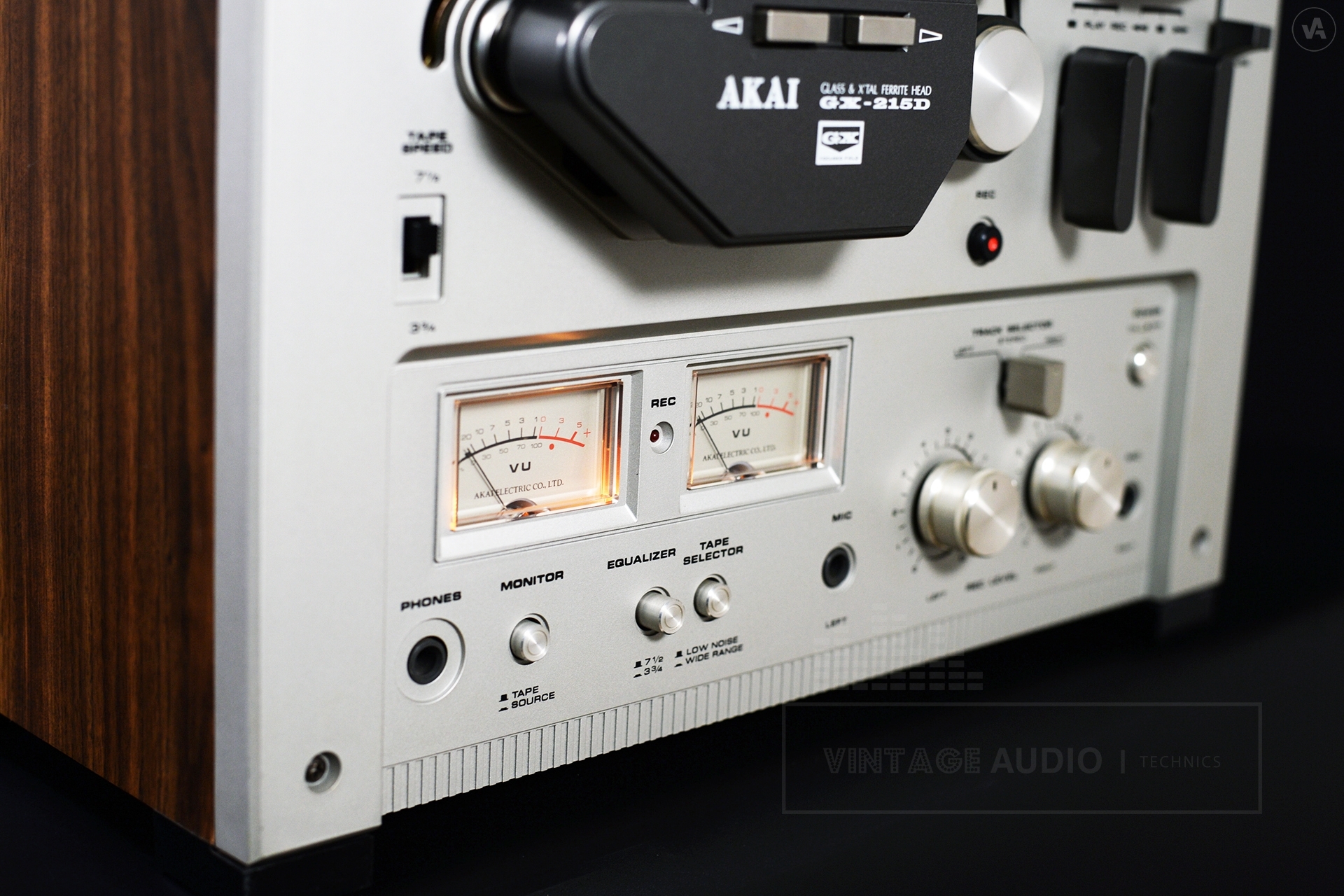

AKAI GX-215D
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
nef 9668
Type: | Reel to Reel Tape Recorder |
Track system: | 4-track, 2-channel, stereo/monaural system |
Heads: | 1 x GX playback 1 x GX record 1 x Erase |
Motors: | 2 x Eddy current outer-rotor Reel drive motors 1 x 4/8 pole self-lubricating hysteresis synchronous Capstan drive motor |
Reel size: | Up to 7” reel |
Fast Forward & Rewind Time: | 90 sec. using 1 ,200 ft. tape |
Tape speeds: | 3 3⁄4 ips 7 1⁄2 ips |
Wow and flutter: | Less than 0.09% RMS (7 1⁄2 ips) Less than 0.18% RMS (3 3⁄4 ips) |
Frequency response: | 30Hz to 25kHz, ±3dB (7 1⁄2 ips) 30Hz to 19kHz, ±3dB (3 3⁄4 ips) |
Signal to Noise Ratio: | Better than 56dB |
Erase Ratio: | Better than 70dB |
Bias Frequency: | 100kHz |
Total harmonic distortion: | Less than 1% (1kHz, 0 VU) |
Input / Impedance: | 70mV / 100kΩ (Line) 0.3mV / 2.2kΩ (Mic) |
Output / Impedance: | 0.775V / More than 20kΩ (Line) 50mV / 8Ω (Phone) |
Semiconductors: | 27 x Transistors 17 x Diodes |
Power Requirements: | AC 120V, 60Hz only (CSA, UL and LA Models) AC 220V, 50Hz only (CEE Models) AC 110 / 120 / 220 / 240V, 50 / 60Hz Switchable (Other Models) |
Dimensions (W x H x D): | 380 x 390 x 295mm |
Weight: | 15.7kg |
Year: | 1975 |
