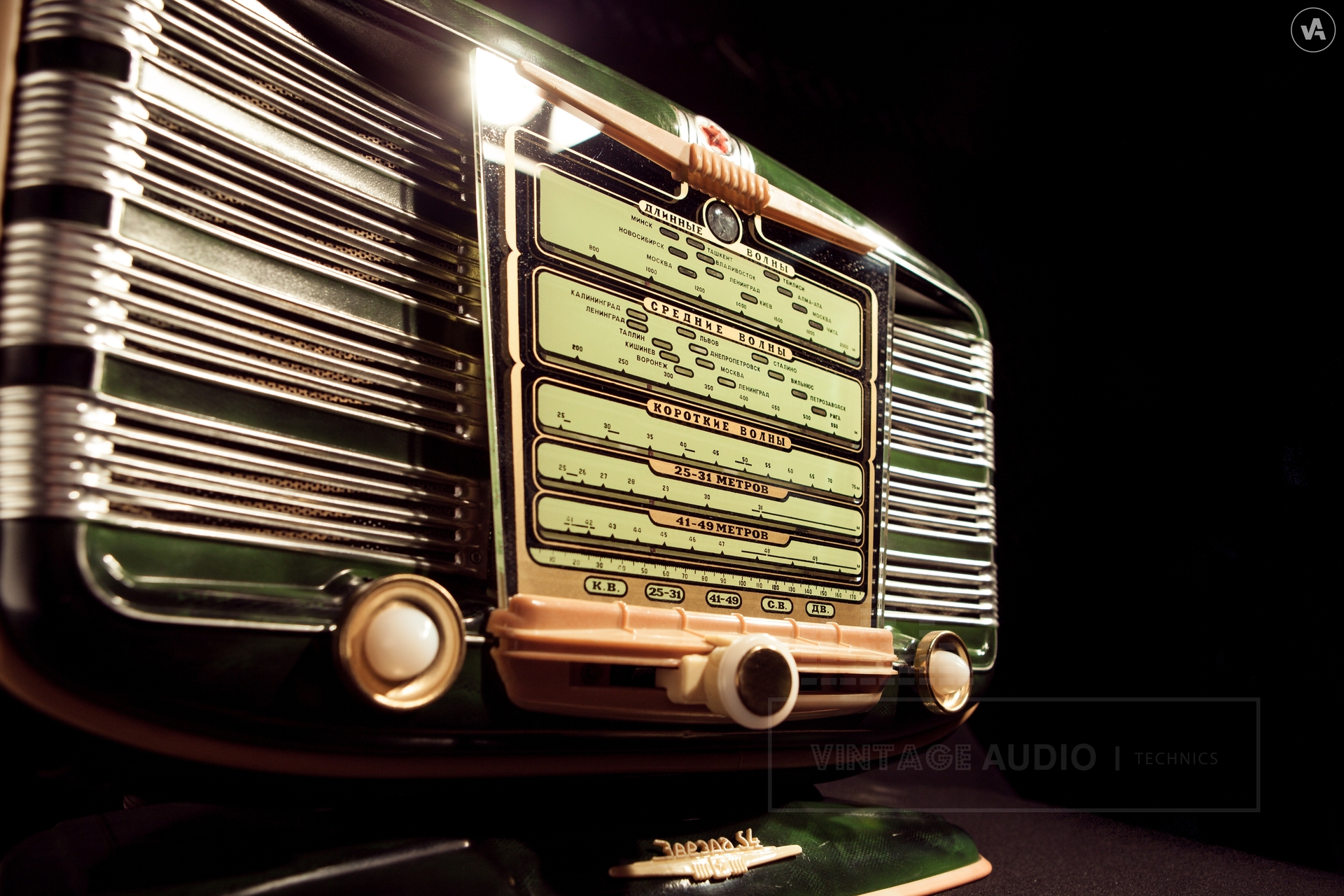

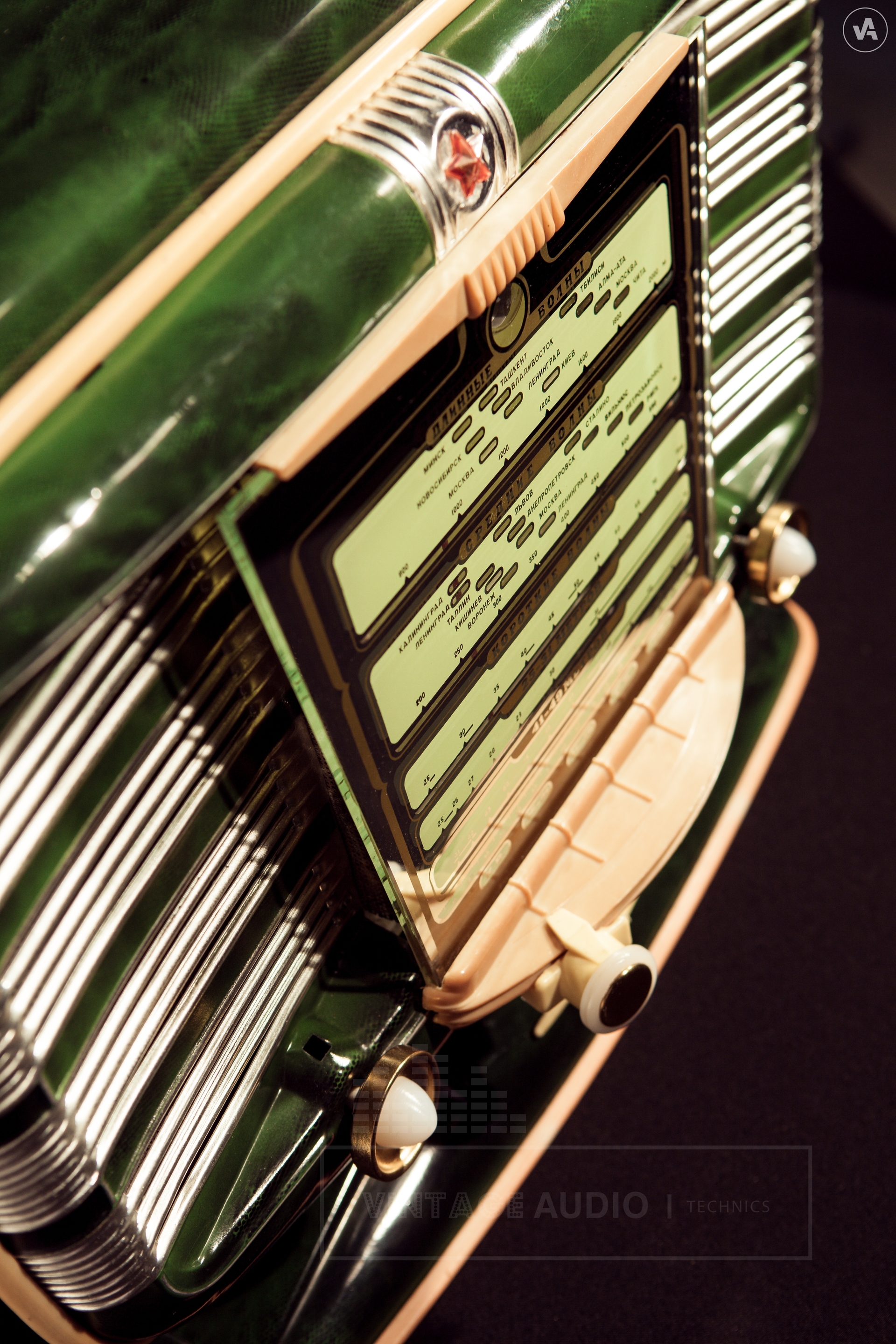

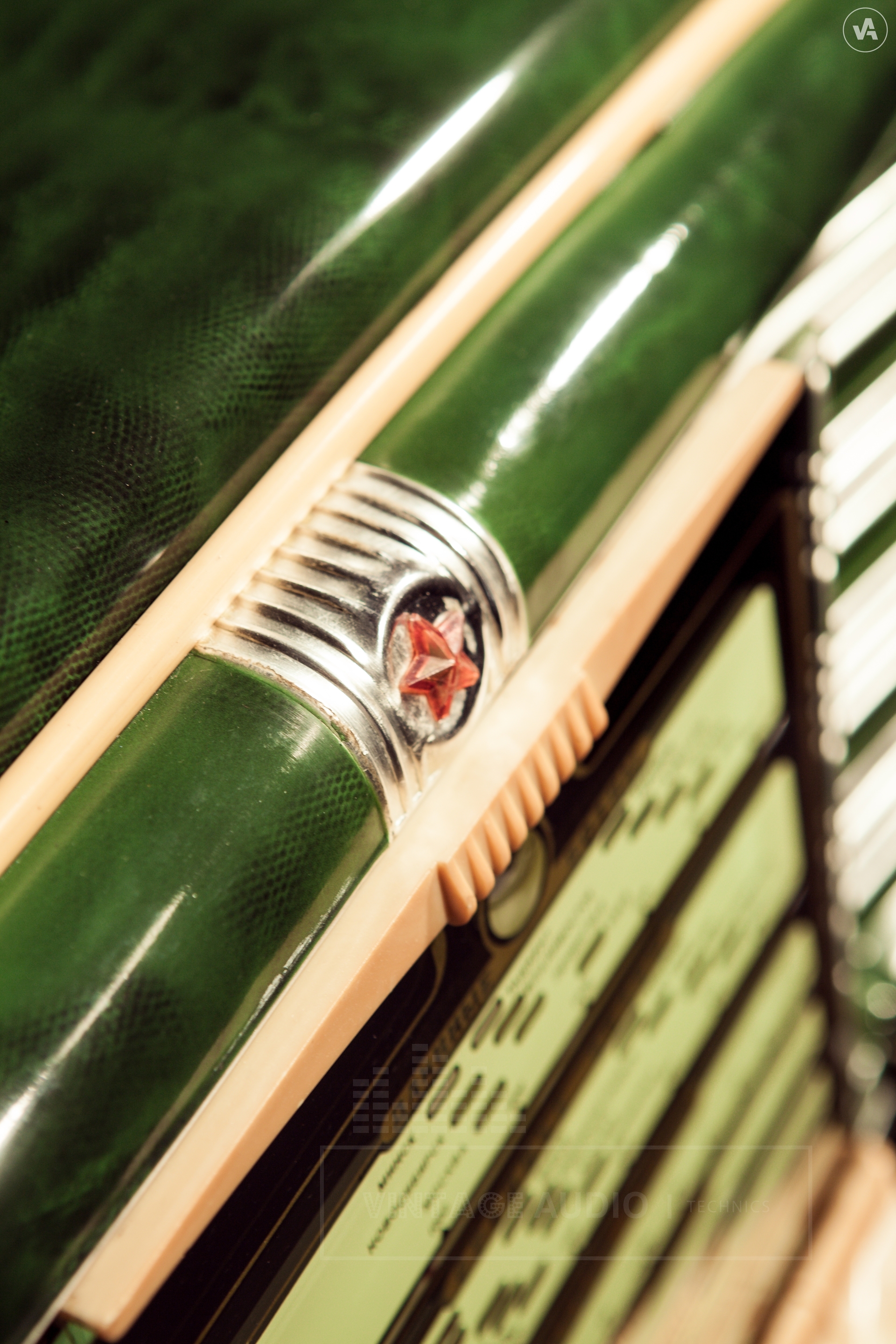

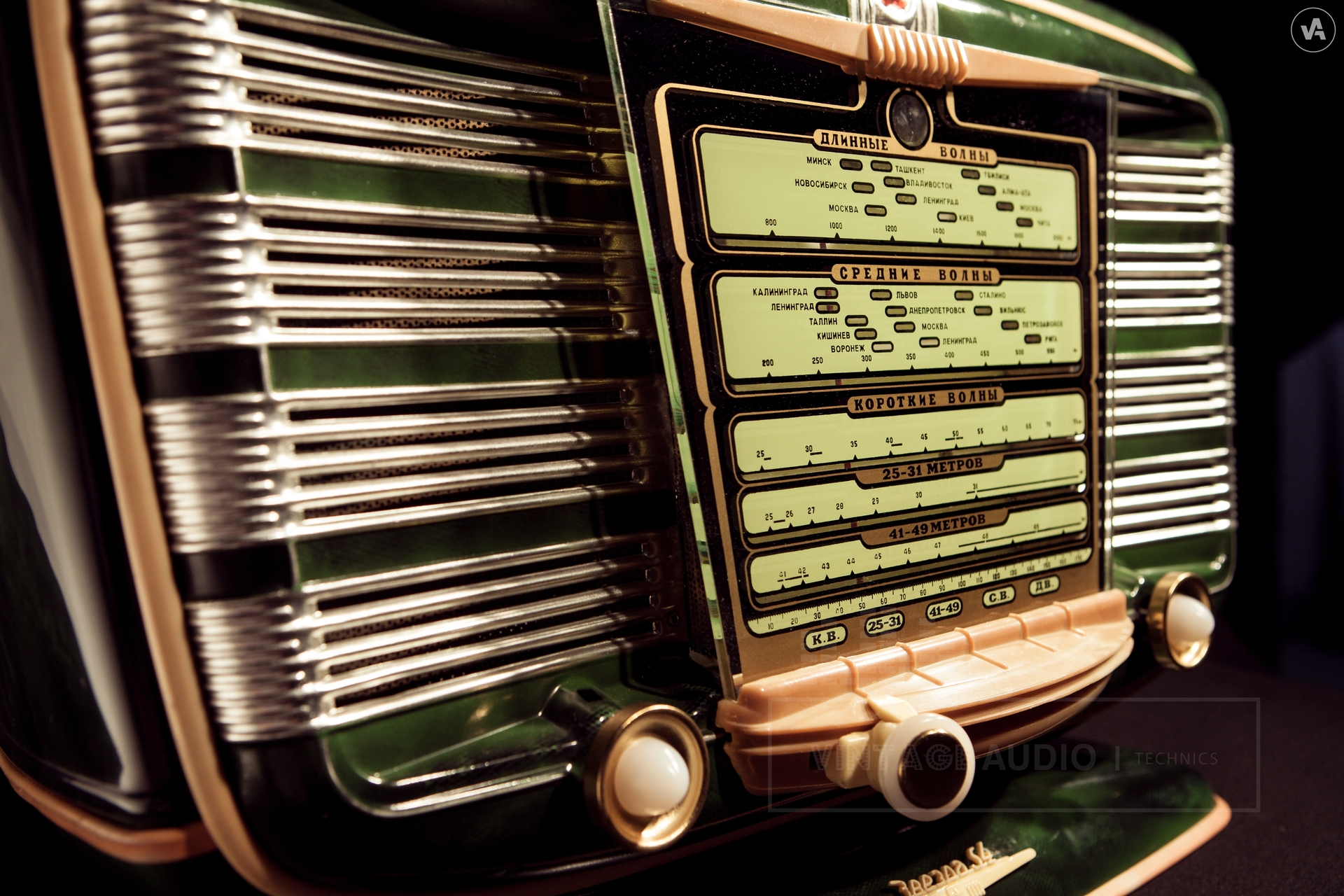

ZVEZDA 54

The ZVEZDA 54 is a vintage vacuum tube radio that was manufactured in the Soviet Union in the 1950s. This is a superheterodyne receiver that uses seven tubes.

The ZVEZDA 54 was designed for use in the household and is known for its warm and rich sound. It features a simple and elegant design, with a wooden cabinet and a large tuning dial that allows users to easily scan through the radio frequencies.

Overall, the ZVEZDA 54 is a popular vintage radio among collectors and enthusiasts. Its simple and elegant design, warm sound quality, and historical significance make it a prized possession for those interested in vintage electronics.

FV 3860
FV 3846 2
FV 3854
FV 3846
FV 3856

Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet.
Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet.
Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet. Item Lorem ipsum dolor sit amet.

Technic details

Specifications
Type:
Super heterodyne receiver, 7 tubes
Reception / frequency:
LW / 150 - 410kHz
MW / 520 - 1600kHz
SW1 / 6,13 - 7,34MHz
SW2 / 9,5 - 12,1MHz
SW3 / 3,95 - 12,1MHz
Intermediate frequency:
465kHz
Sensitivity:
LW / MW - 200mKv
SW - 300mKv

Selectivity for the adjacent channel:
26dB
Selectivity on the mirror channel:
LW-36dB
MW-30dB
SW-12dB
Rated Output Power:
1.5W
The range of reproduced audio frequencies:
150Hz - 4kHz
Tubes:
6А7, 6Ж3П (2 pcs.), 6Х2П, 6П1П, 6Е5С, 6Ц4П

0
Power supply:
AC 127 / 220V
Power Consumption:
60W
Dimensions (W x H x D):
530х320х180mm
Weight:
15kg
