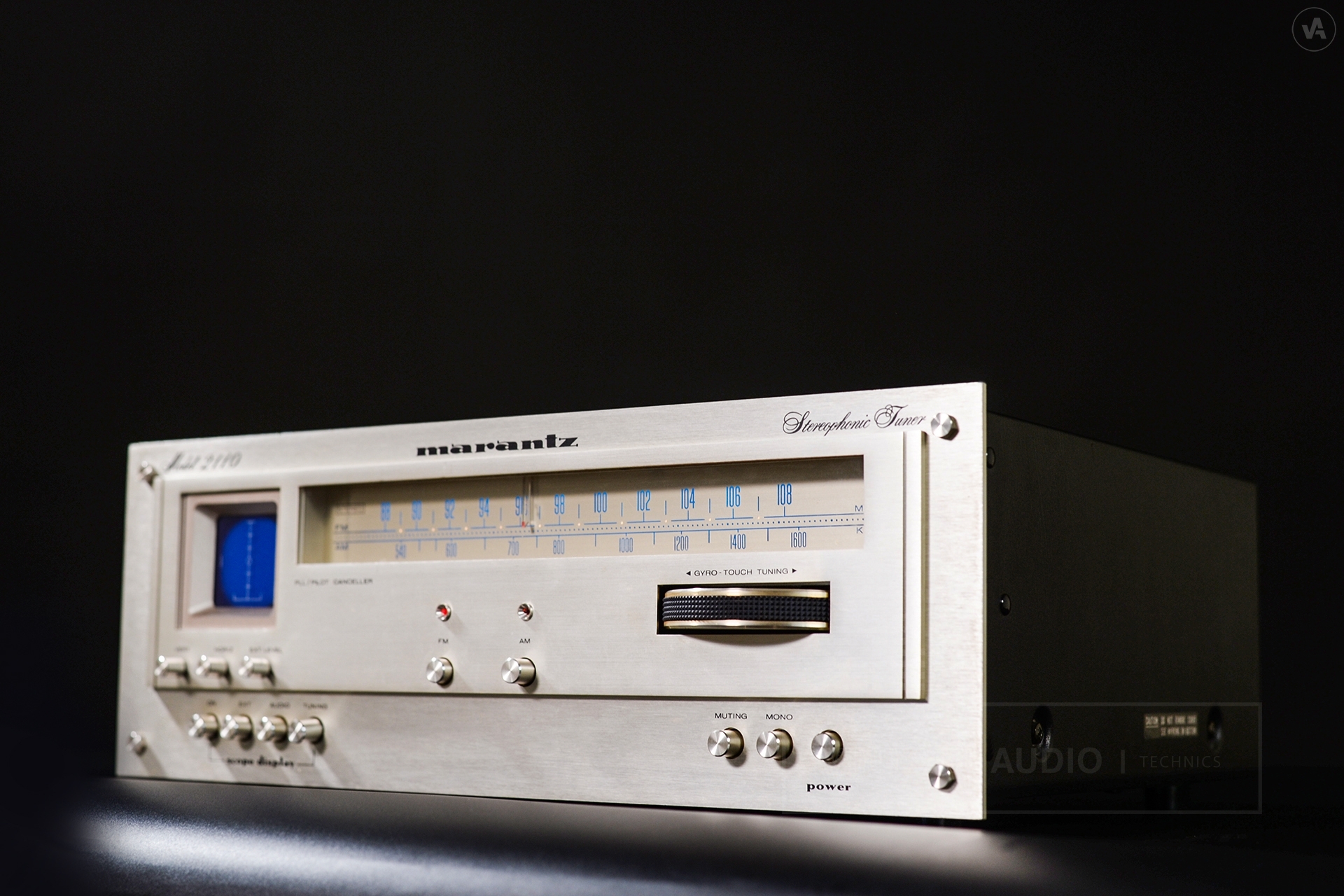

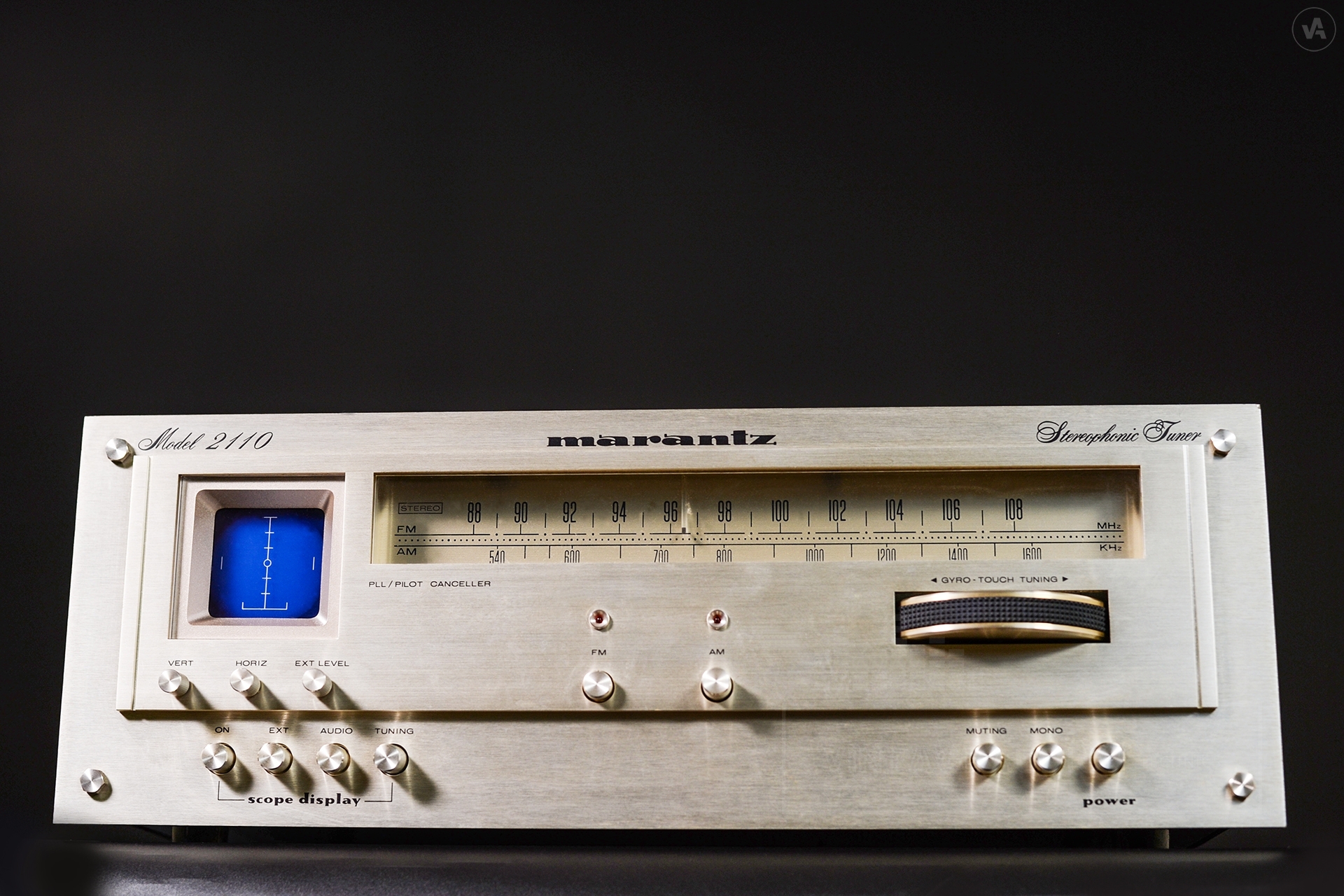

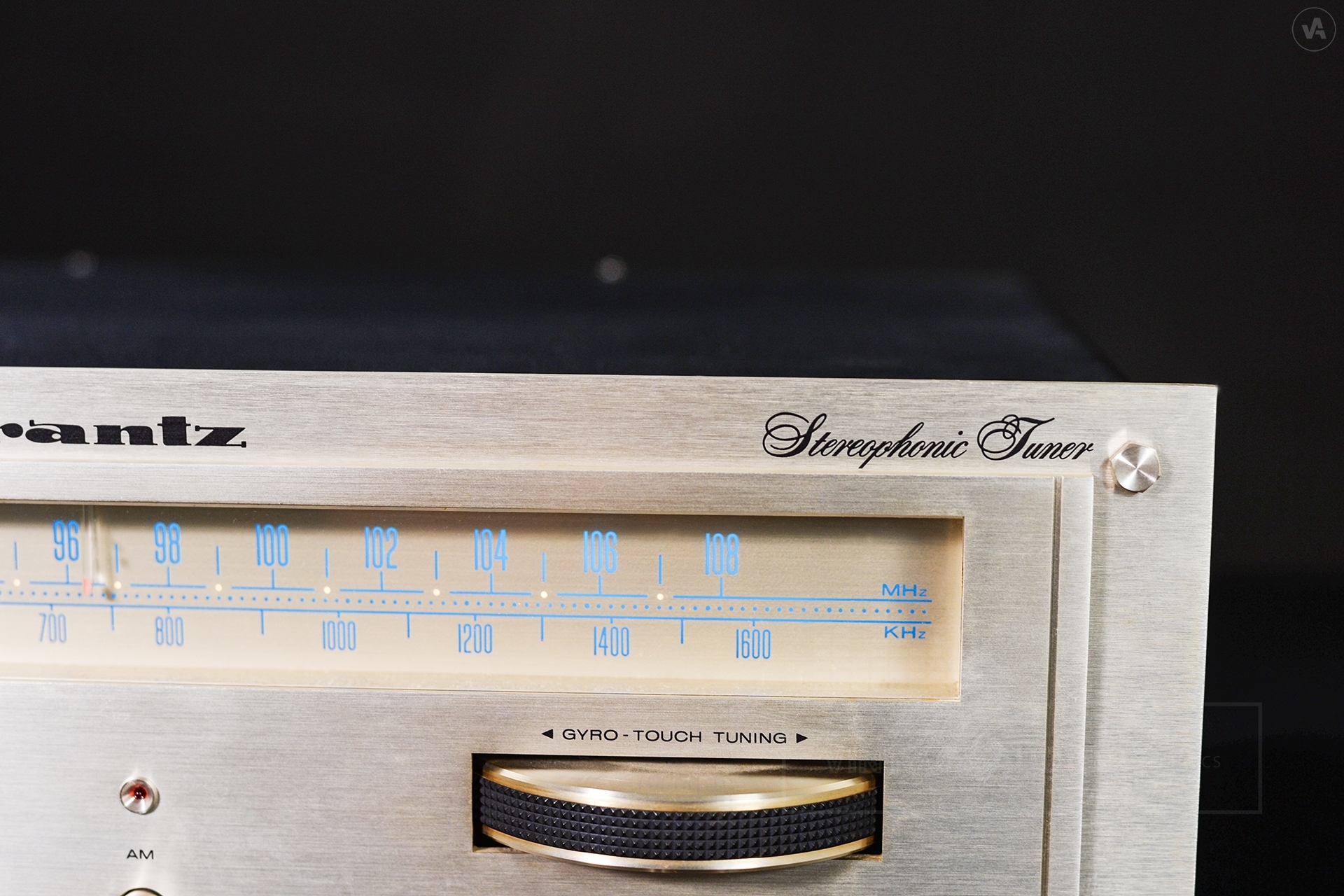

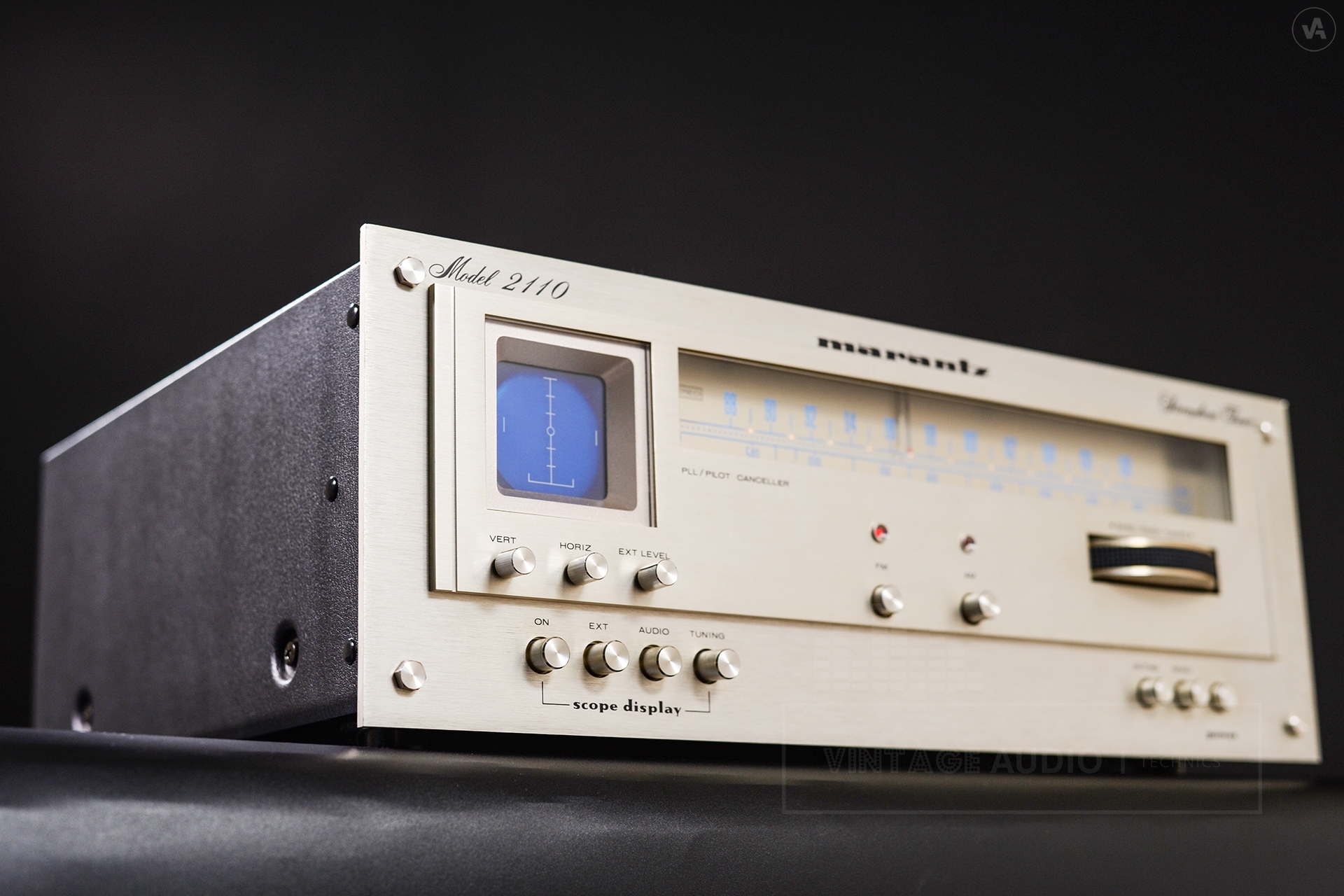

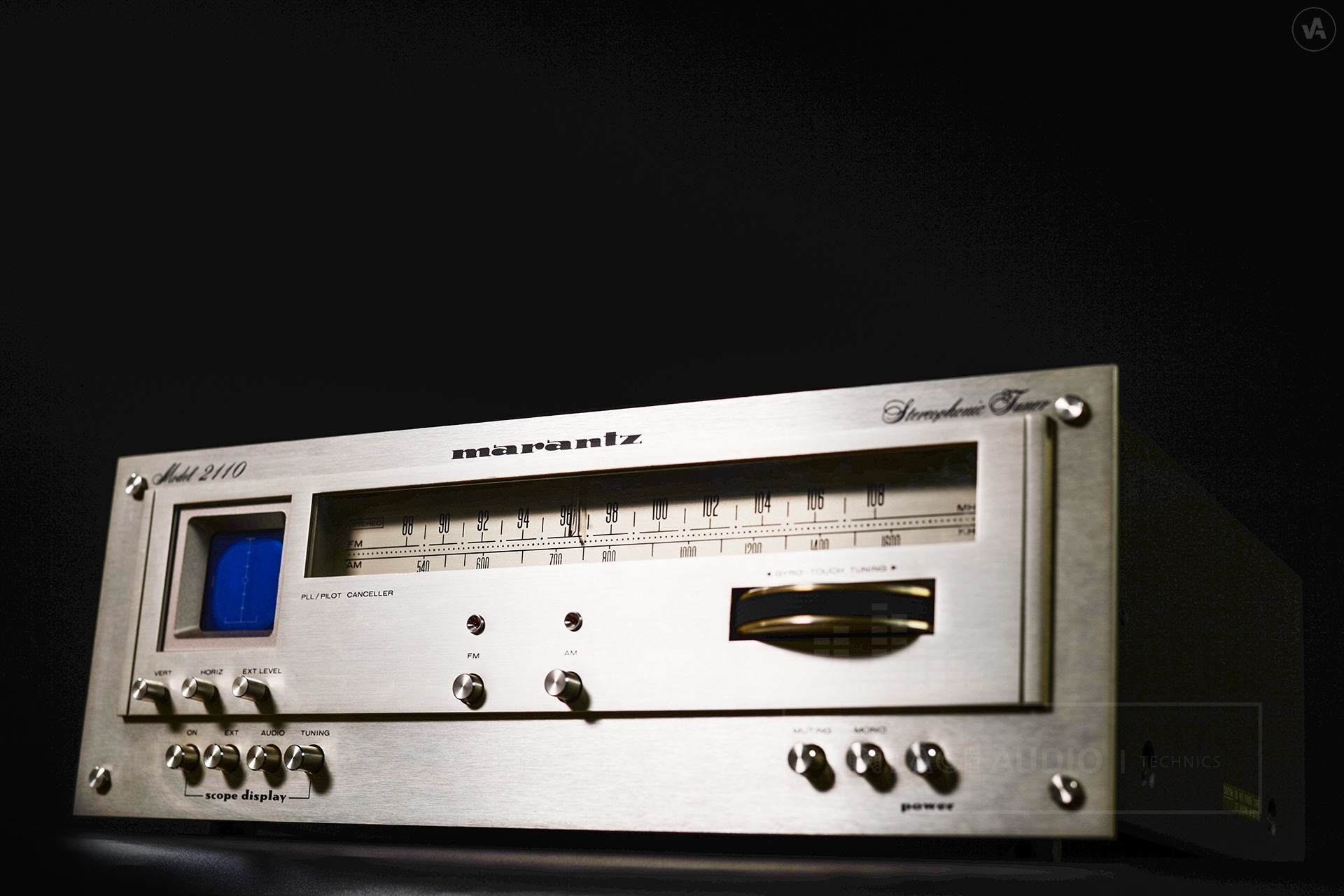

MARANTZ Model 2110
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | FM / AM tuner |
[FM tuner section] | |
Frequency Range: | 87.5 - 108MHz |
Sensitivity: | Mono, S/N 26dB - 1.4µV (40kHz deviation, 98MHz) Stereo, S/N 46dB - 45µV (40kHz deviation, 98MHz) |
Alternate Channel Selectivity: | 75dB (98MHz ±300kHz) |
IF Rejection: | 60dB (98MHz) |
AM Suppression: | 59dB (98MHz) |
[S / N Ratio] | |
Unweighted: | Mono - 65dB Stereo - 60dB |
Weighted: | Mono - 68dB Stereo - 64dB |
Total Harmonic Distortion: | Mono - 0.06% Stereo - 0.17% |
Frequency Response: | 30Hz to 15kHz, +0/-0.4dB |
Stereo Separation: | 55dB |
Channel Balance: | 0.3dB |
Output Voltage / Impedance: | 560mV / 1kΩ (1kHz) |
Acceptable Load Impedance: | 10kΩ (1kHz) |
Antenna Terminals: | Balanced - 300Ω Unbalanced - 75Ω |
[AM Tuner Section] | |
Frequency Range: | 515 - 1650kHz |
Sensitivity: | 25µV (26dB, S/N 30%, Mod., 1 MHz) |
Selectivity: | 46dB (1MHz ±9kHz) |
Image rejection: | 45dB (At 1 MHz) |
IF rejection: | 40dB (At 1 MHz) |
S / N ratio: | 60dB (At 1 MHz) |
Frequency Response: | 40Hz to 2.6kHz (1MHz, ±3dB) |
Total harmonic distortion: | 0.5% (At 1 MHz) |
Semiconductor Complement: | 4 x IC’s, 20 x Transistors, 19 x Diodes, 5 x Field Effect Transistors |
Power Requirements: | AC 220V, 50Hz AC 110 / 120 240V, 50 / 60Hz (E, N and Others versions) |
Power consumption: | 30W |
External dimensions (W x H x D): | 416 x 146 x 301mm |
Weight: | 6kg |
Year: | 1978 |
