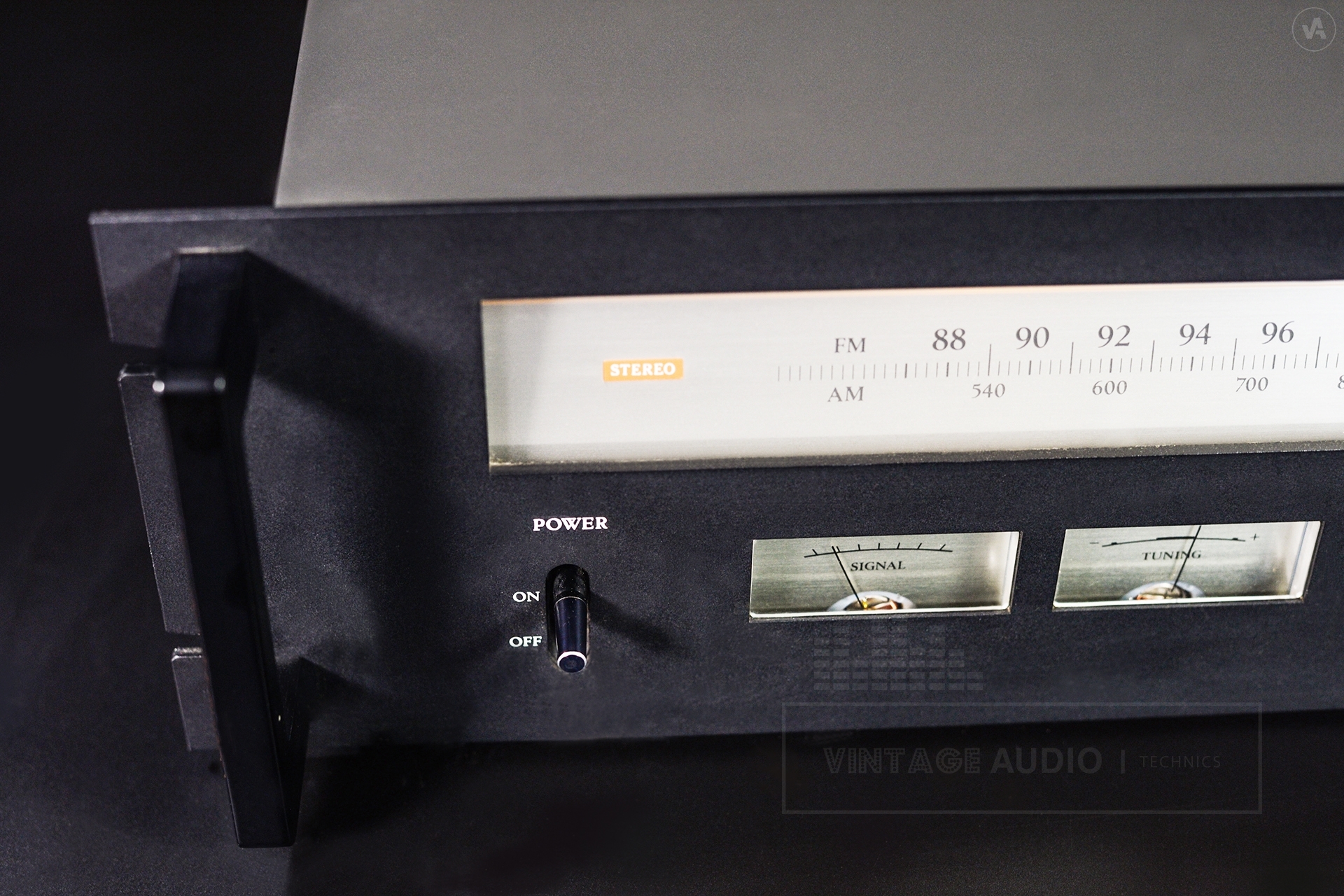

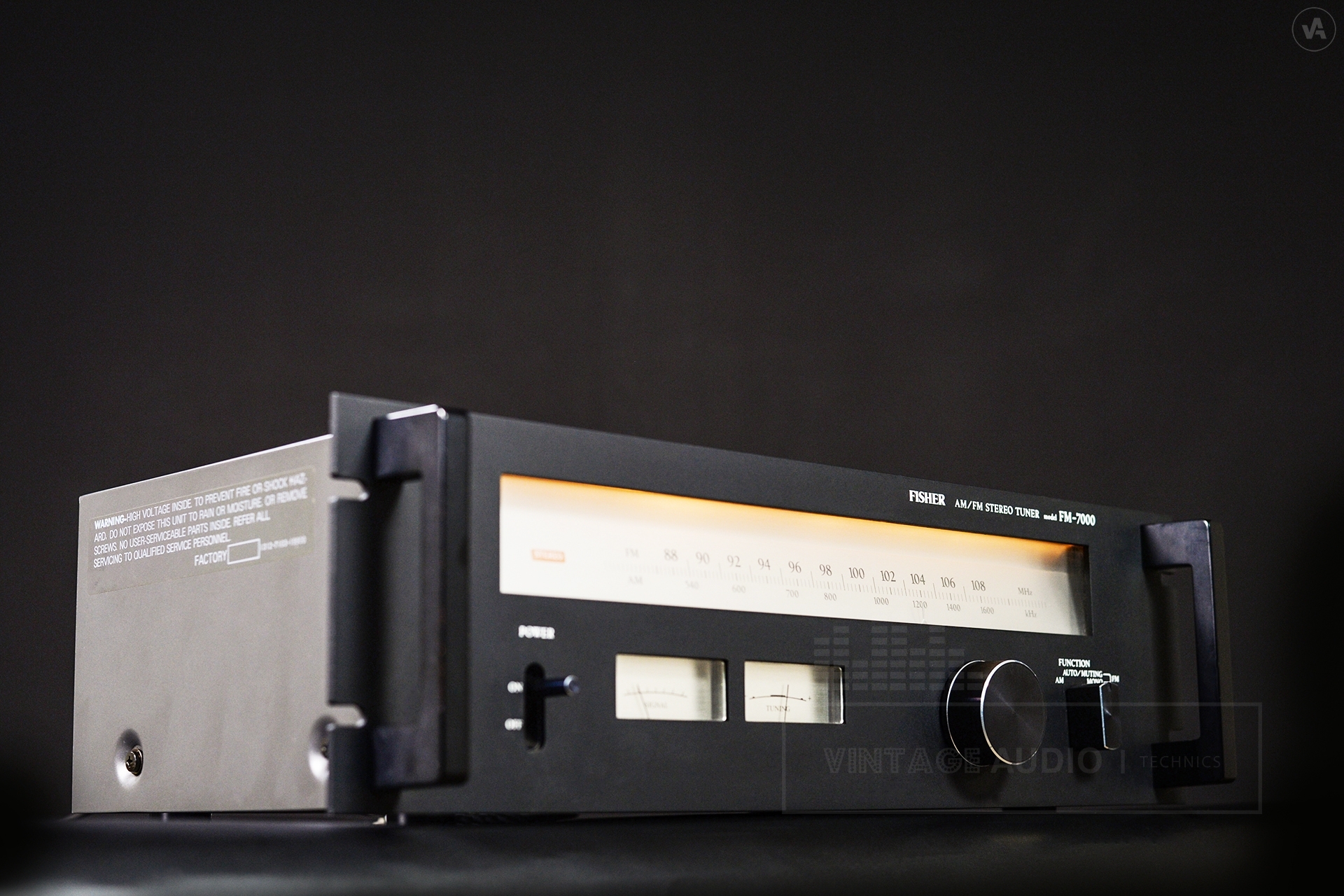

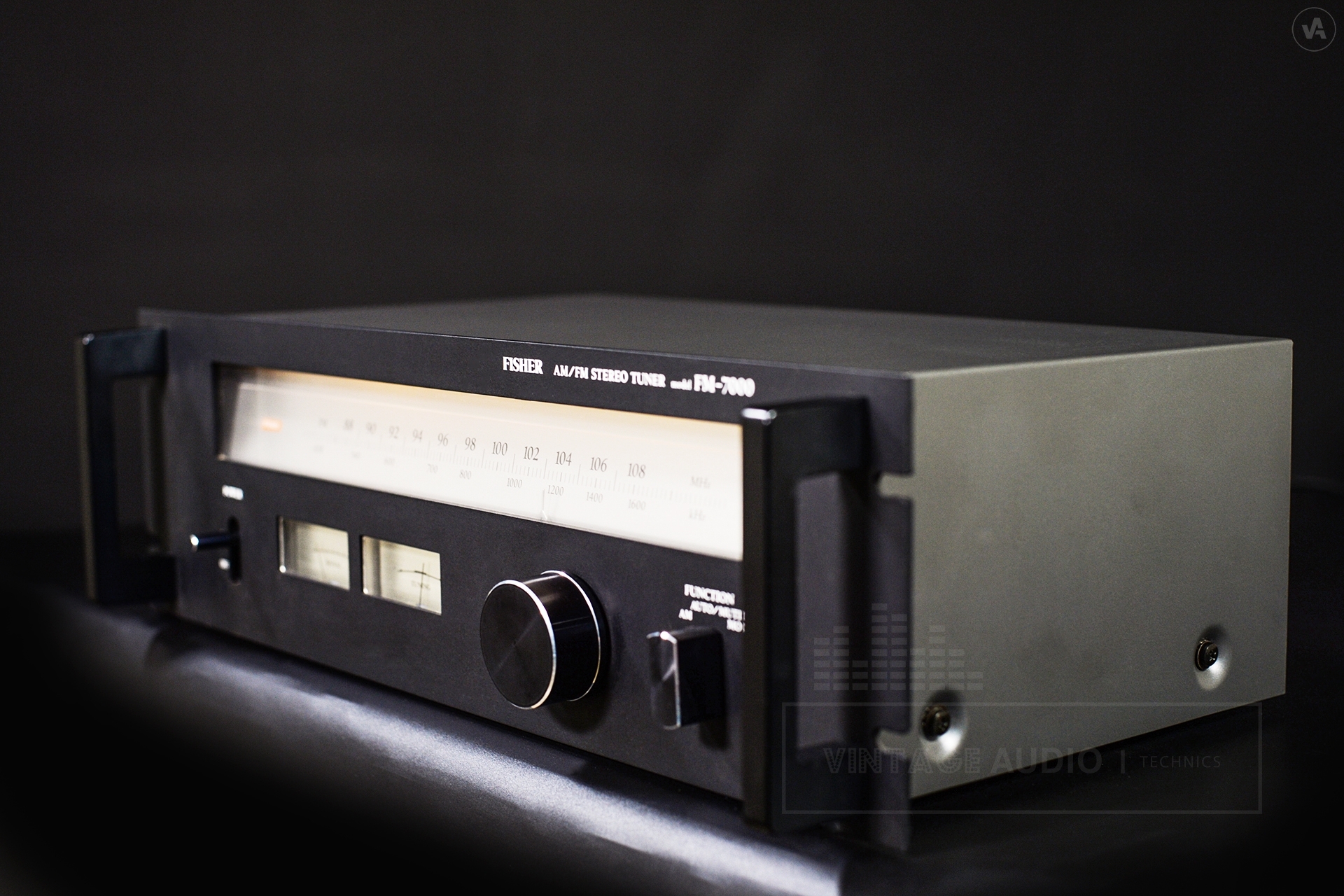

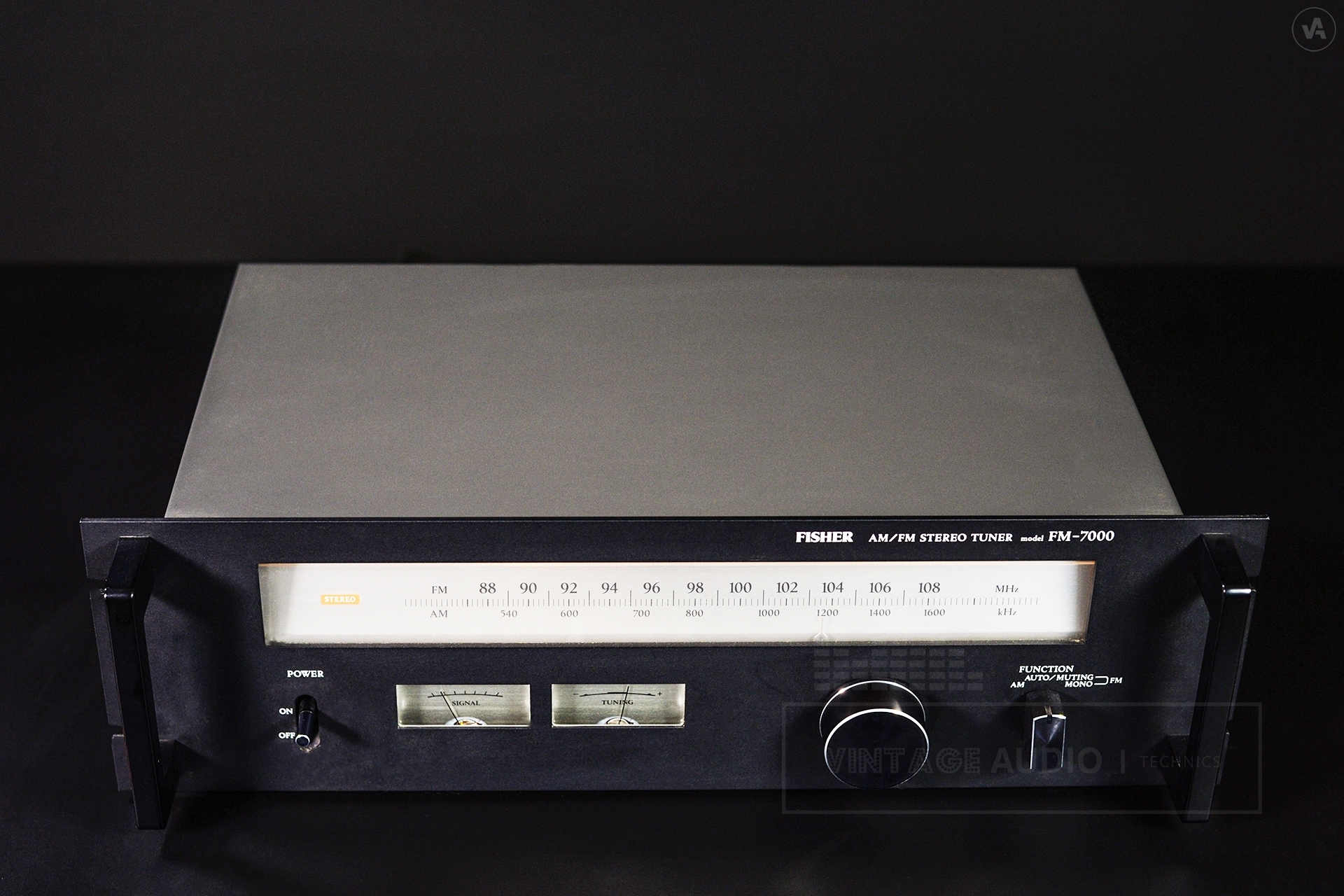

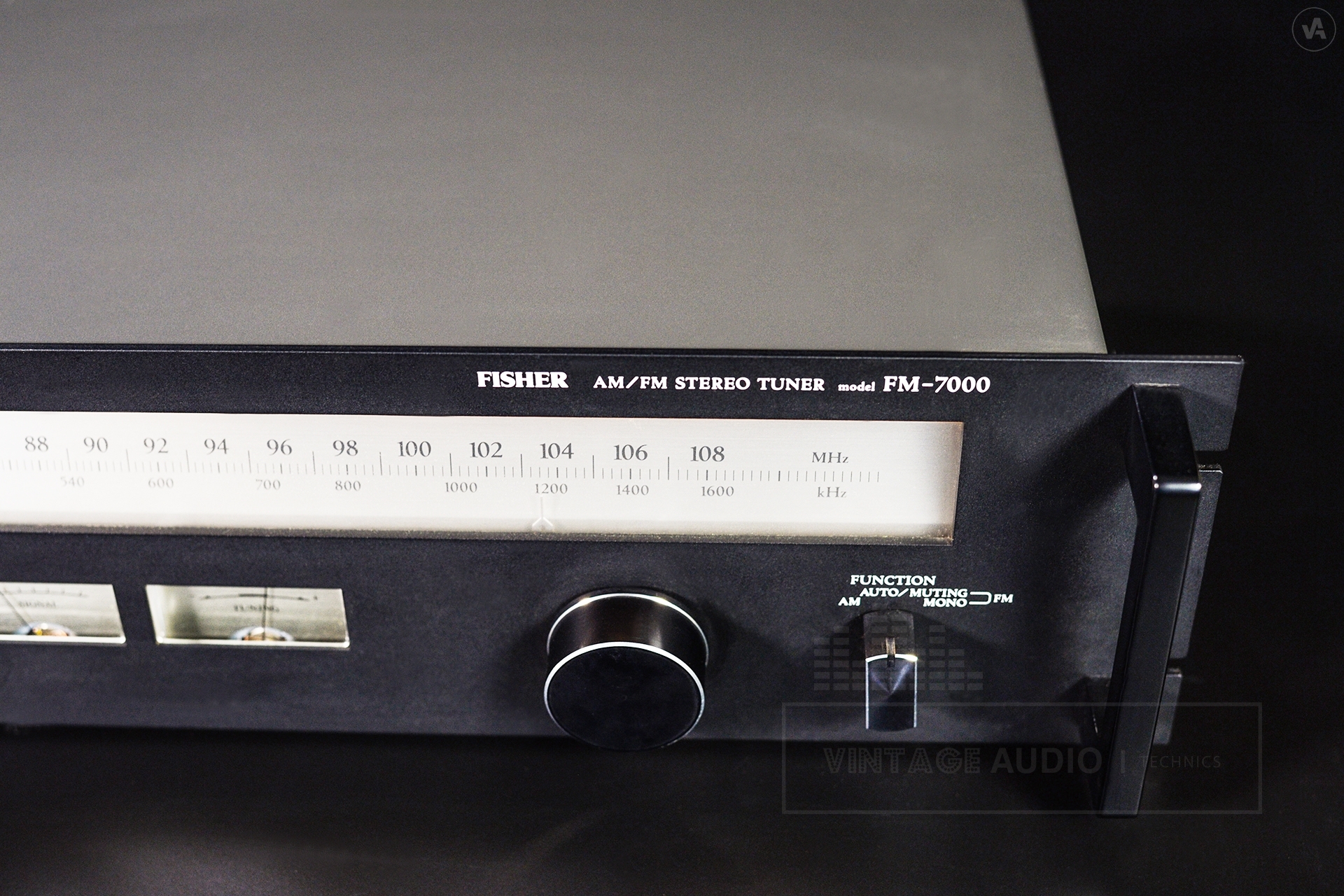

Fisher FM-7000
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Broadcast Receiver |
Main principle: | Superheterodyne |
Wave bands: | FM / AM |
[FM Tuner Section] | |
Sensitivity: | 1.9µV (IHF) |
Image Response Ratio: | 55dB |
IF Response Ratio: | 70dB |
AM Suppression Ratio: | 55dB |
Capture Ratio: | 1.4dB |
Selectivity: | 80dB |
S / N Ratio: | 65dB (Mono) |
Total Harmonic Distortion: | 0.18% (Mono) |
Stereo Separation: | 40dB (400Hz) |
[AM Tuner Section] | |
Sensitivity: | 300µV / m (Rod Antenna) |
Image Response Ratio: | 40dB |
IF Response Ratio: | 45dB |
Selectivity: | 35dB |
S / N Ratio: | 55dB |
Power Requirements: | AC 110 / 220V, 50 / 60Hz |
Power Consumption: | 11W |
Dimensions (W x H x D): | 450 x 135 x 265mm |
Weight: | 4kg |
Year: | Around 1977 |
