EXCLUSIVE F3

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco

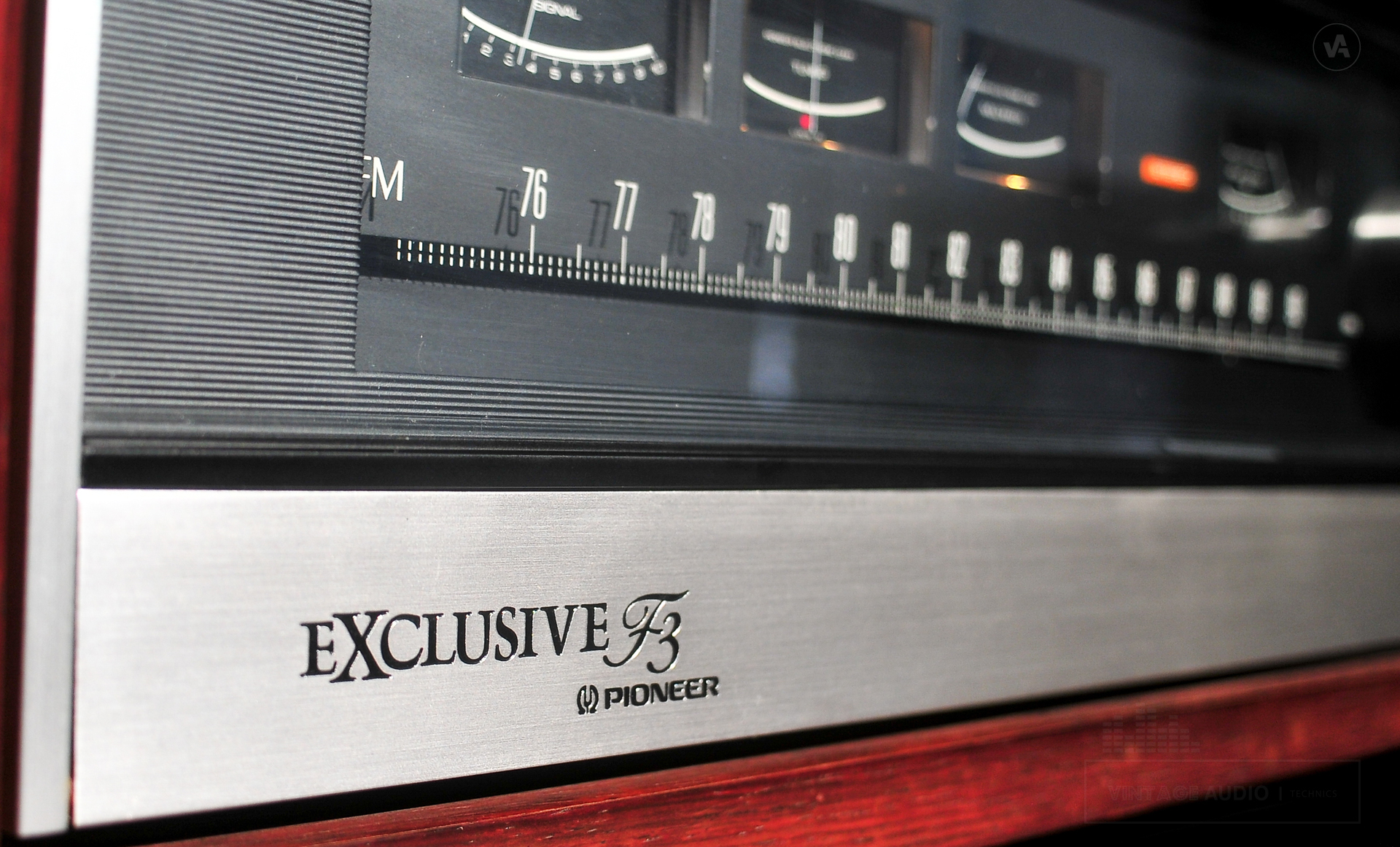

DSC 0332

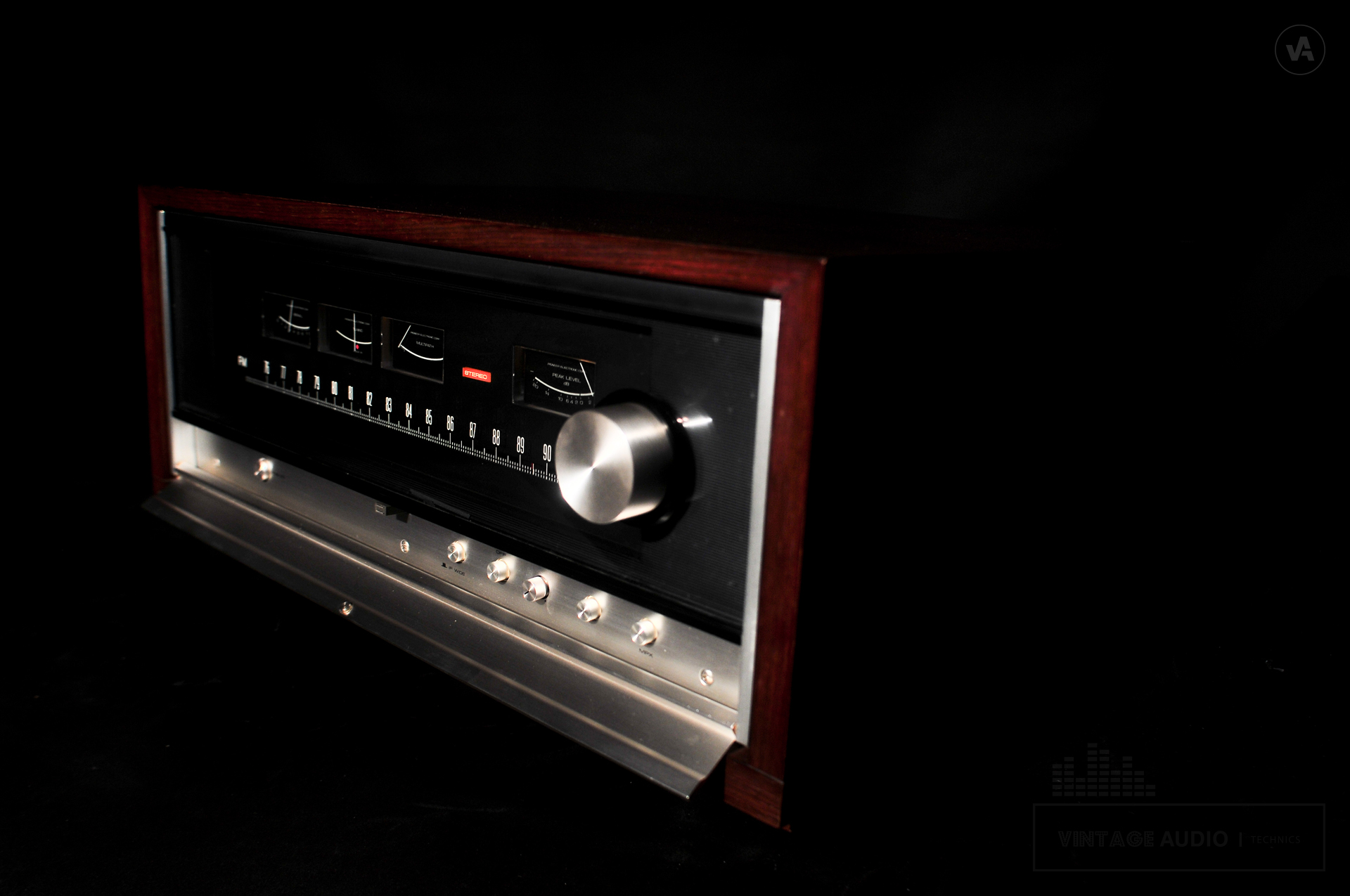

DSC 0344

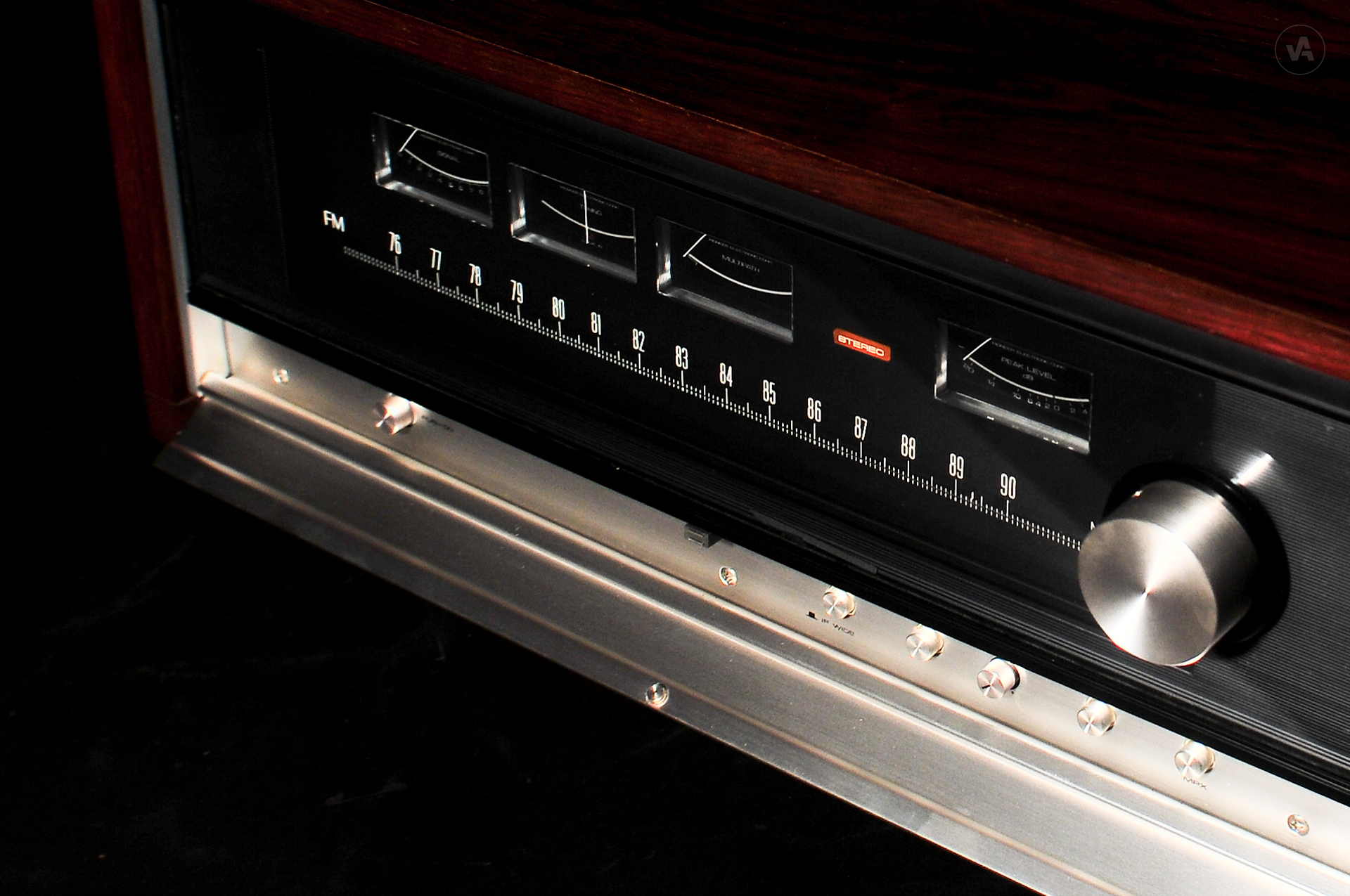

DSC 0352 2

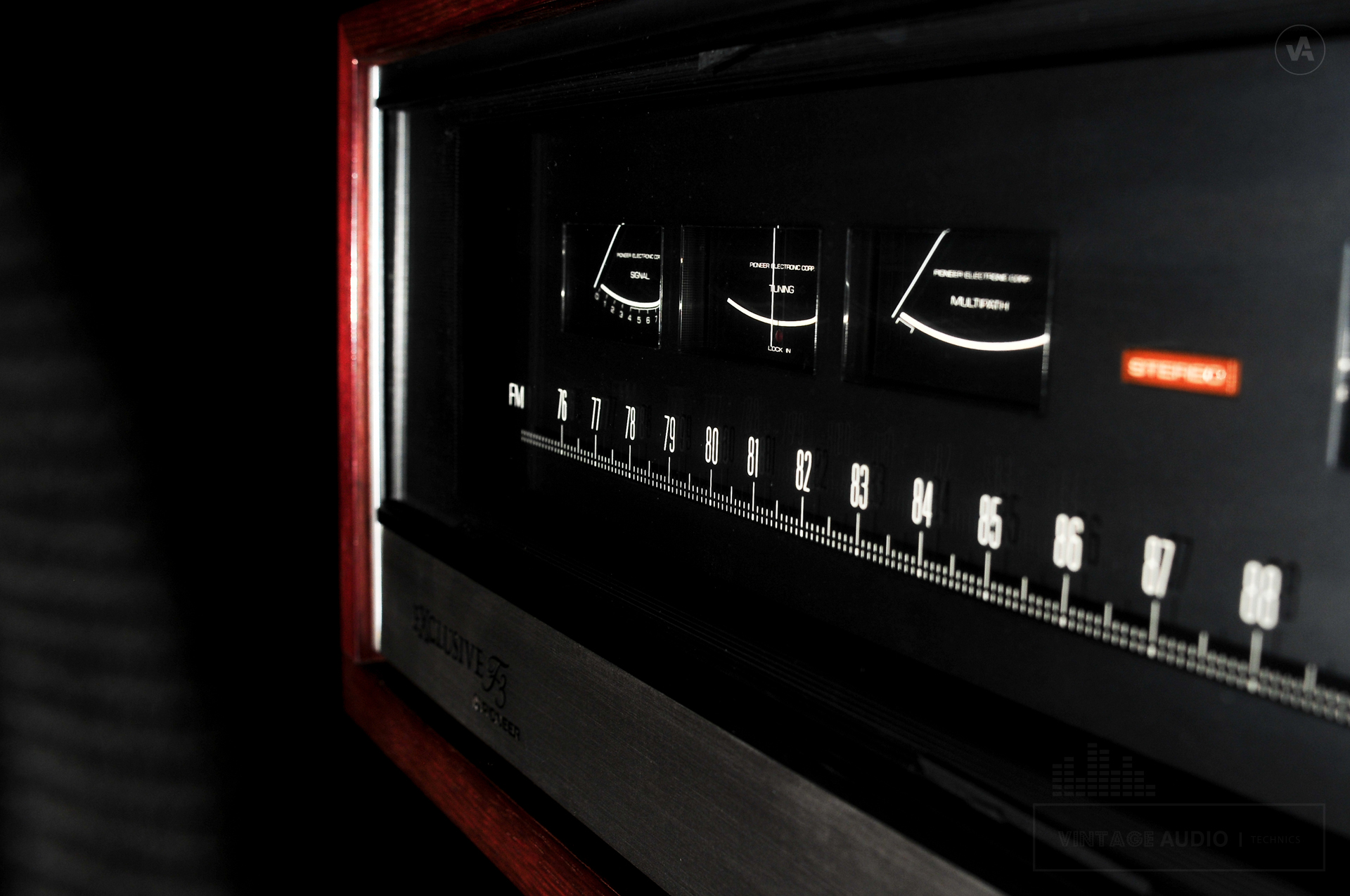

DSC 0370

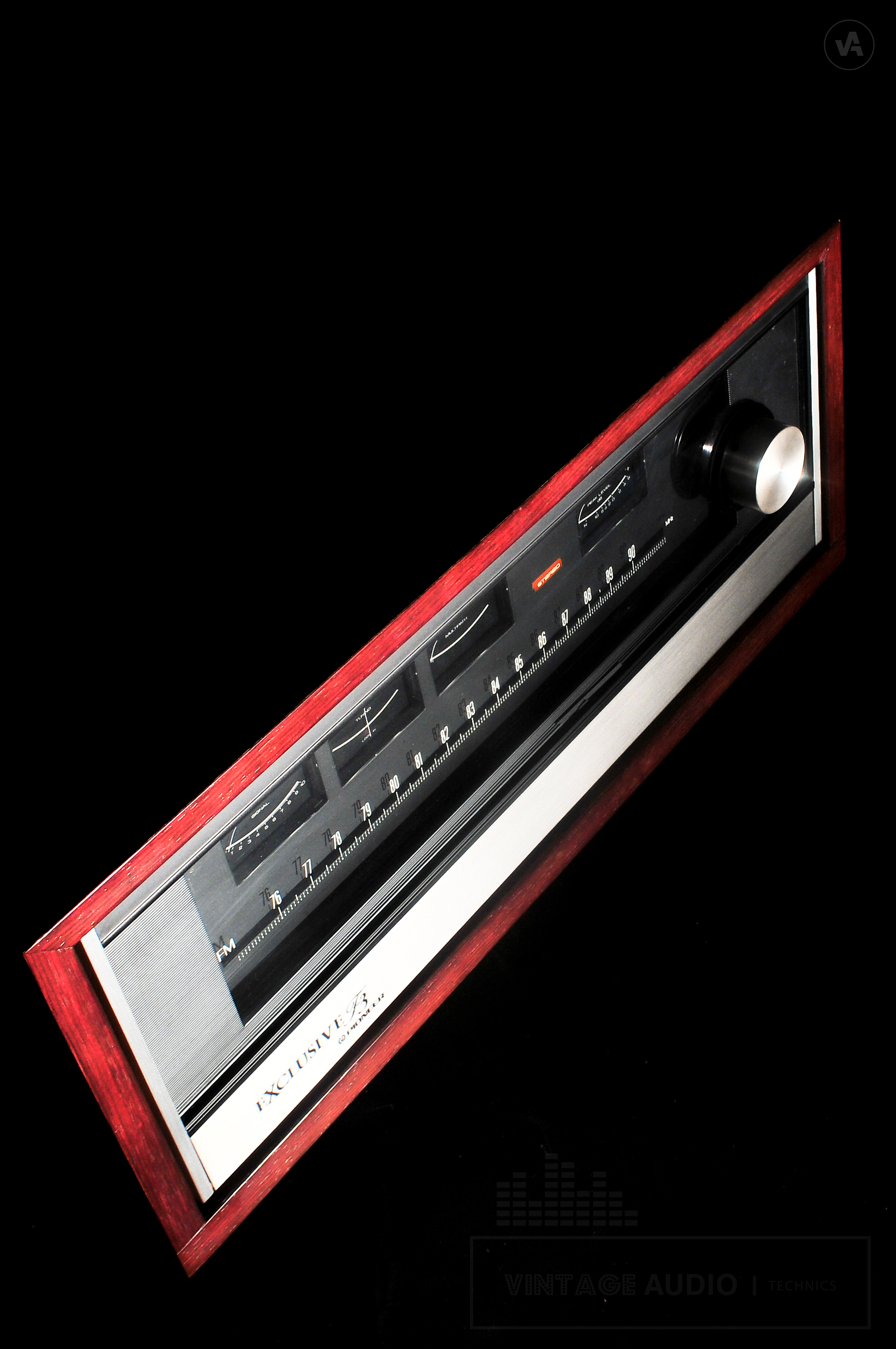

DSC 0365

Technic details

Specifications

Type:
FM stereo tuner
Circuit system:
Two steps of MOS FET RF, a 7-unit variable condenser automatic phase color system
Phase locked tuning scheme Super-wide band linear detection machine with an IF BAND switching
19kHz cancellar circuitry, PLL+ double NFB scheme MPX
Practical speed mono:
4 microvolts (S/N 50dB)
2.2 microvolts (IHF)
Practical speed stereo:
45 microvolts (S/N 50dB)

S/N ratio wide / narrow:
0dB (mono), 75dB (stereo) / 80dB (mono), 75dB (stereo)
THD wide mono / stereo:
100Hz - 0.08%, 1kHz - 0.08%, 10kHz - 0.08% / 100Hz - 0.3%, 1kHz - 0.3%, 10kHz - 0.5%
THD narrow mono / stereo:
100Hz - 0.1%, 1kHz - 0.1%, 10kHz - 0.1% / 100Hz - 0.3%, 1kHz - 0.3%, 10kHz - 0.5%
Capture ratio wide / narrow:
1dB, 12dB(300kHz), 30dB(400kHz) / 2.0dB, 12dB(200kHz), 65dB(300kHz)
Separation wide / narrow:
50dB(1kHz), 40dB (50Hz - 10kHz) / 40dB(1kHz), 35dB (50Hz - 10kHz)
AM supression ratio wide / narrow:
60dB / 60dB
Carrier leakage supression ratio wide / narrow:
70dB / 50dB
Frequency characteristic:
20Hz-10kHz+0 -0.2 dB
20Hz-15kHz+0 -0.5 dB
Image / IF / Spurious stonewalling ratio:
120dB or more / 120dB or more / 120dB or more
Muting operation level:
5mkV - a 1.6mV variable
Antenna:
300-ohm balance type
75-ohm unbalance type
An Output voltage/impedance:
Fixed: 650mV / 3kohm
Variable: 70mV - 2V / 5kohm
4ch MPX: 400mV / 1kohm

The semiconductor used:
Transistor - 71 pieces, FET - 10 pieces, IC - 20 pieces, Diode, others - 57 pieces
Supply voltage:
AC 100V, 50Hz/60Hz
Power dissipation:
25W
AC outlet:
Power switch un interlocking - 1 line
Dimensions (W x H x D):
468 x 206 x 389mm
Weight:
16.6kg
Year:
1978
