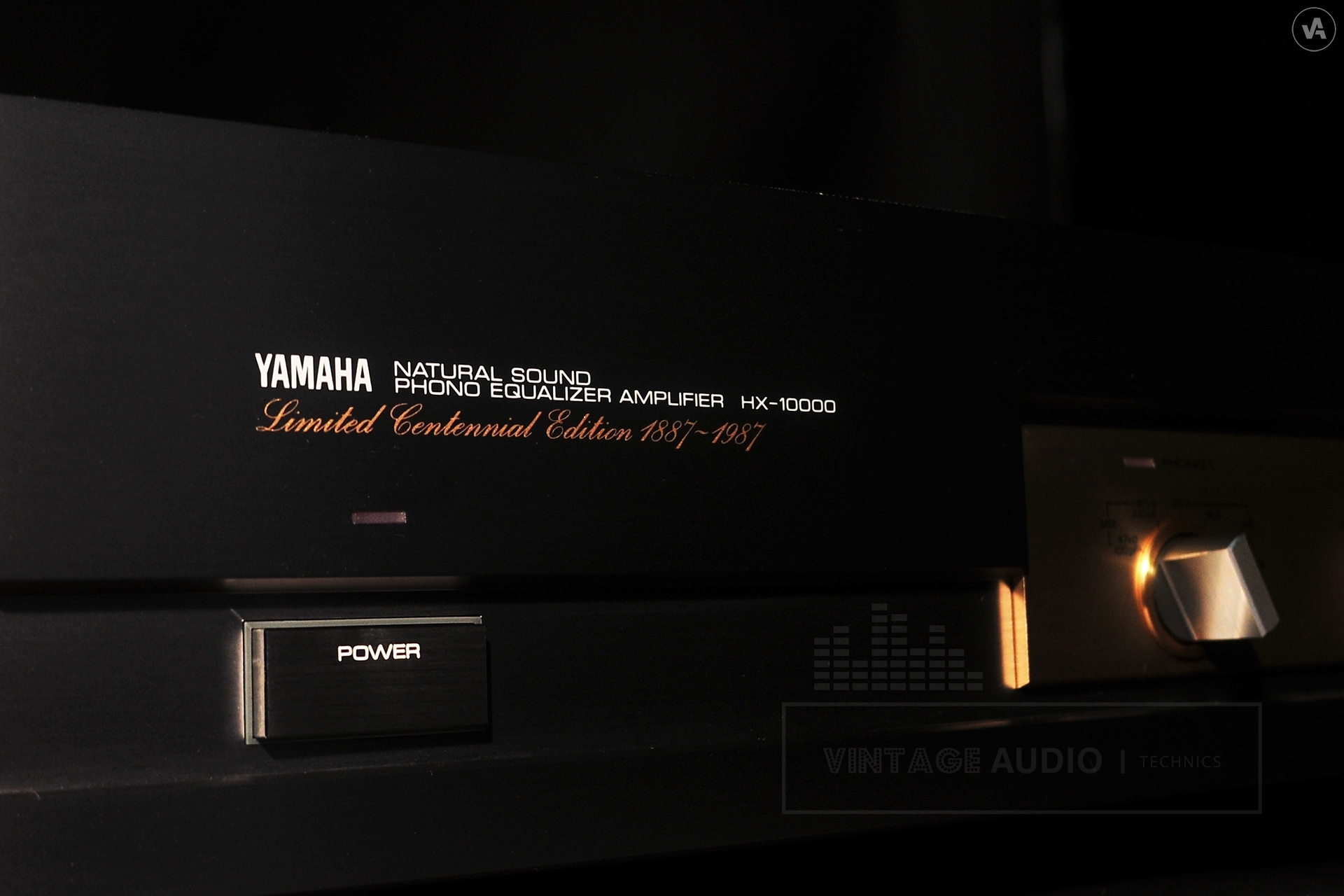

Type: | Phono Equalizer |
Input sensitivity / impedance: | MC cartridge with high gain - 60μV / 10Ω, 30Ω MC cartridge with low gain - 200μV / 30Ω, 100Ω MM cartridge - 2.5mV / 47kΩ * 100pF, 47kΩ * 330pF |
The maximum allowable input voltage (1 kHz, 0.01% THD): | MC cartridge with high gain - 3.4 mV MC cartridge with low gain - 12 mV MM cartridge - 120 mV |
Output voltage / impedance: | 150mV / 470Ω |
The maximum output voltage: | 5V (20Hz - 20000Hz, 0.01% THD) |
RIAA deviation: | ±0.2 dB (20Hz - 20000Hz) |
Total Harmonic Distortion: | MC cartridge - 0.002% (20Hz - 20000Hz, when the output is 3V) MM cartridge - 0.001% (20Hz - 20000Hz, when the output is 3V) |
Signal to noise ratio (IHF-A correction): | MC cartridge - 88dB (250μV short-circuit input) MM cartridge - 93dB (2.5mV short-circuit input) |
Equivalent input noise level: | MC cartridge - -160dBV (250μV short-circuit input) MM cartridge - -145dBV (2.5mV short-circuit input) |
Channel separation (1kHz): | MC cartridge - 50dB MM cartridge - 86dB |
Power supply: | AC 100V 50Hz / 60Hz |
Power consumption: | 20W |
Dimensions (W x H x D): | 475 × 130 × 432mm |
Weight: | 20kg |
Year: | 1987 |
