Type: | Pre amplifier |
Input sensitivity / impedance: | Analog - 150mV / 47kΩ Digital - 0.5Vp-p / 75Ω Video - 1Vp-p / 75Ω |
Total harmonic distortion factor: | 0.003% (20Hz to 20kHz, analog login, DEQ off) |
Maximum output voltage: | 3Vrms |
S / N ratio: | 110dB (IHF-A correction) |
Frequency response: | 15Hz to 100000Hz (Ana login, DEQ off) |

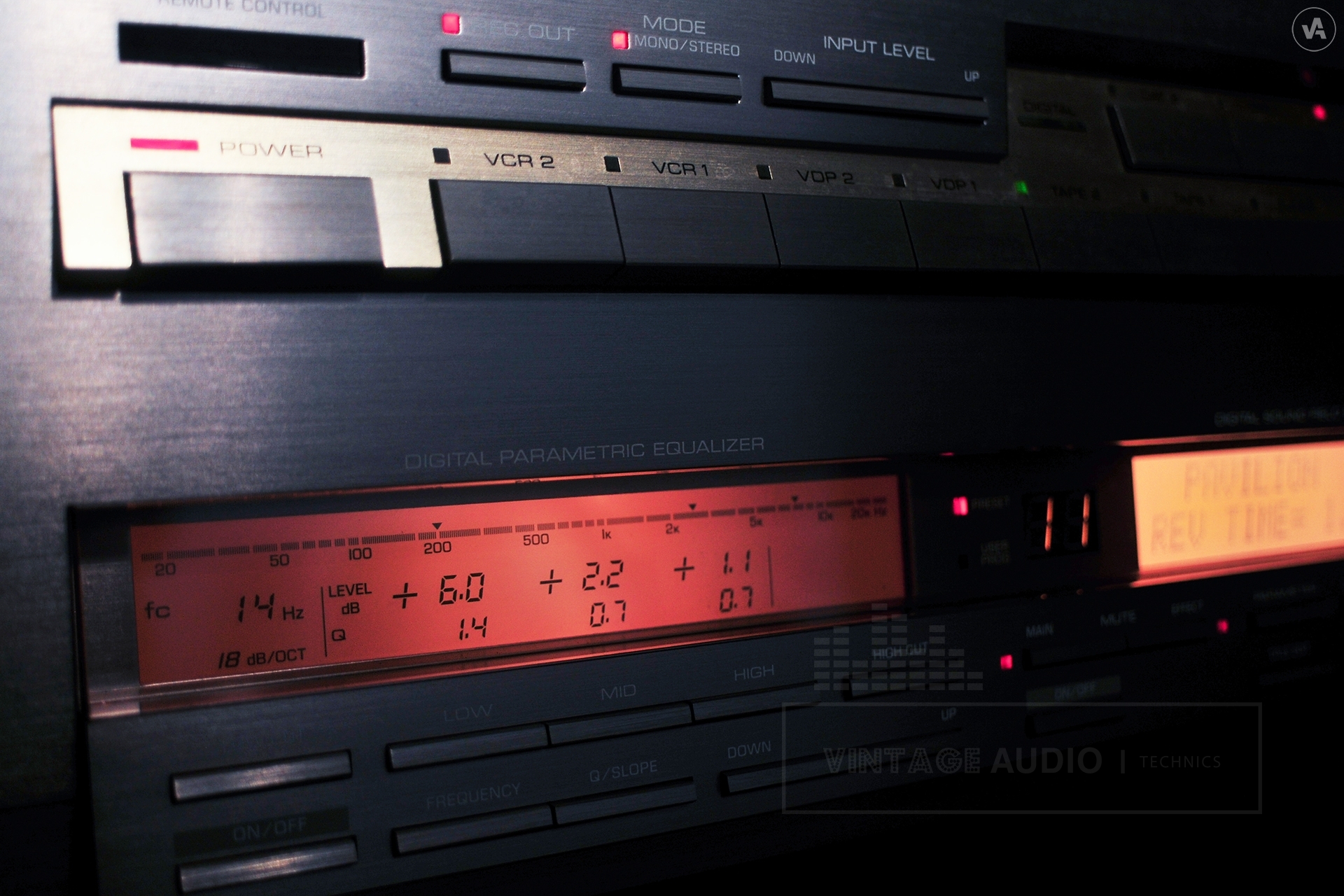

[Tone control characteristics] | |
LOW band: | Fo: 20Hz to 500Hz |
Level variable range: | -12dB to +6dB |
Q: | 0.7, 1.4, 3.0, 6.0 |
MID band: | Fo: 22Hz to 18kHz |
Level variable range: | -12dB to +6dB |
Q: | 0.7, 1.4, 3.0, 6.0 |
HIGH band: | Fo: 2kHz to 20kHz |
Level variable range: | -12dB to +6dB |
Q: | 0.7, 1.4, 3.0, 6.0 |
LOW cut filter: | Fc: 14Hz to 900Hz |
Slope characteristics: | 6dB / oct, 12dB / oct, 18dB / oct |
HIGH cut filter: | Fc: 1kHz to 19kHz |
Slope characteristics: | 6dB / oct, 12dB / oct, 18dB / oct |
Power supply: | AC 100V 50/60 Hz |
Power consumption: | 70W |
External dimensions (W x H x D): | 475 × 177 × 442mm |
Weight: | 25kg |
Accessories: | Remote control |
Year: | 1987 |
