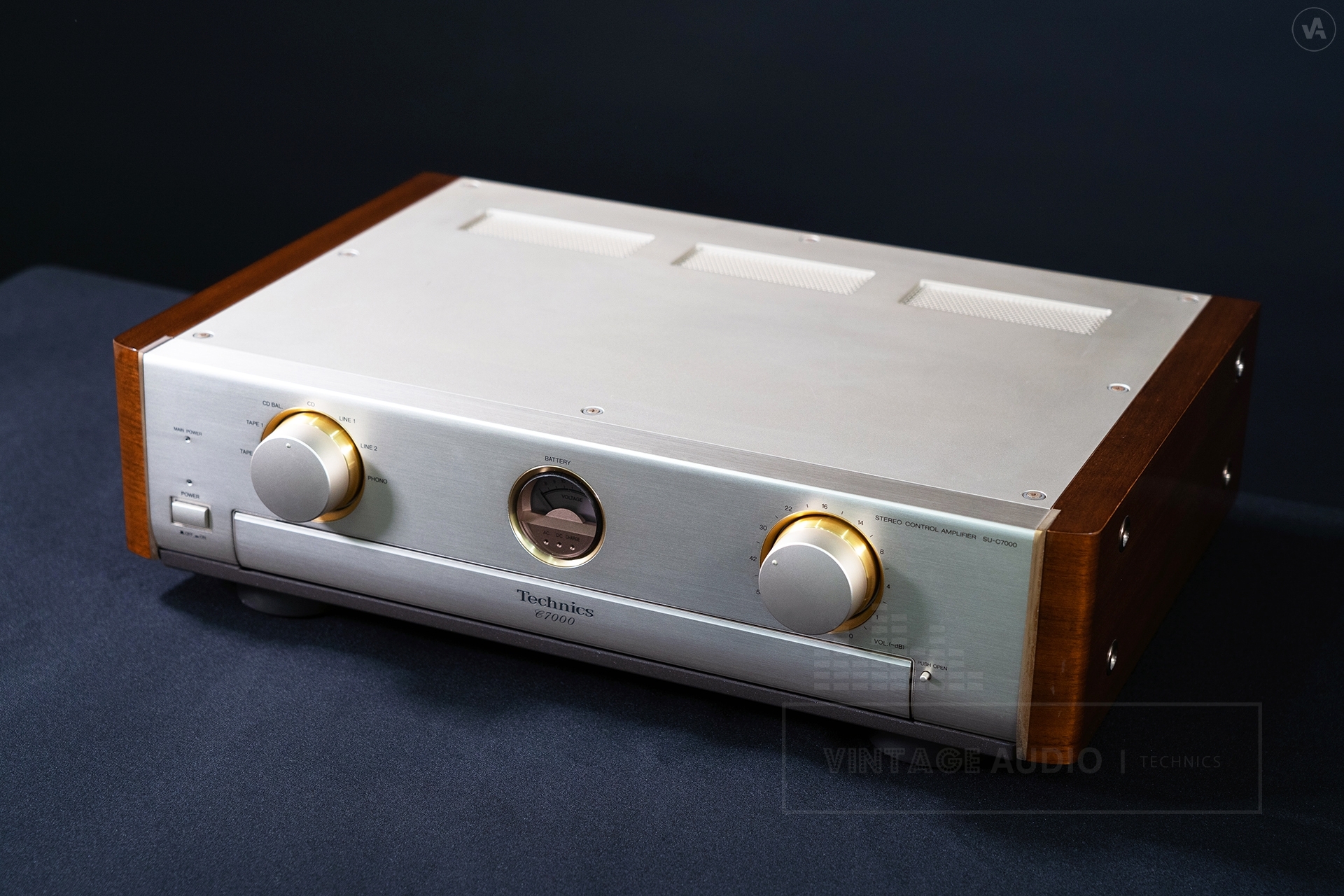

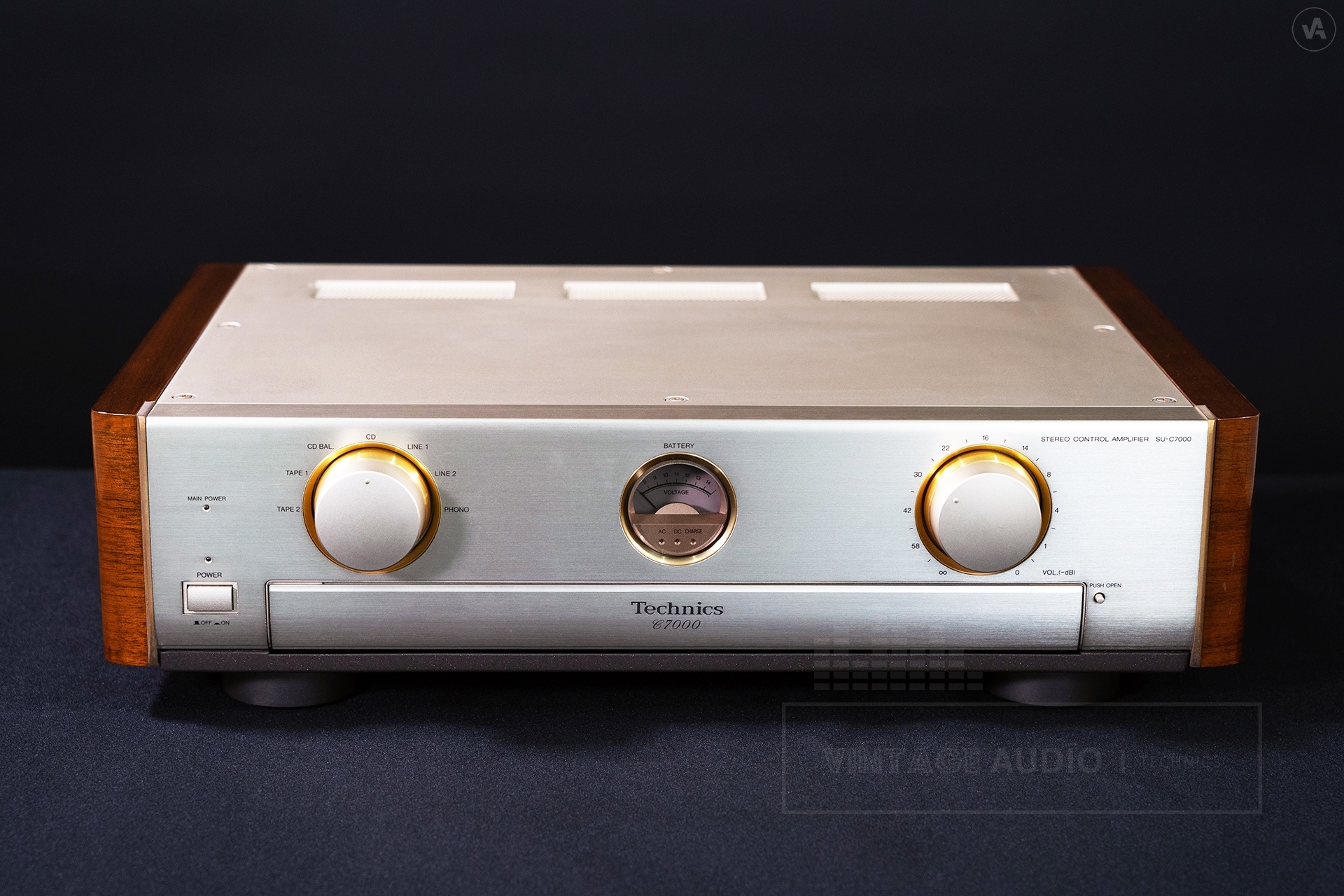

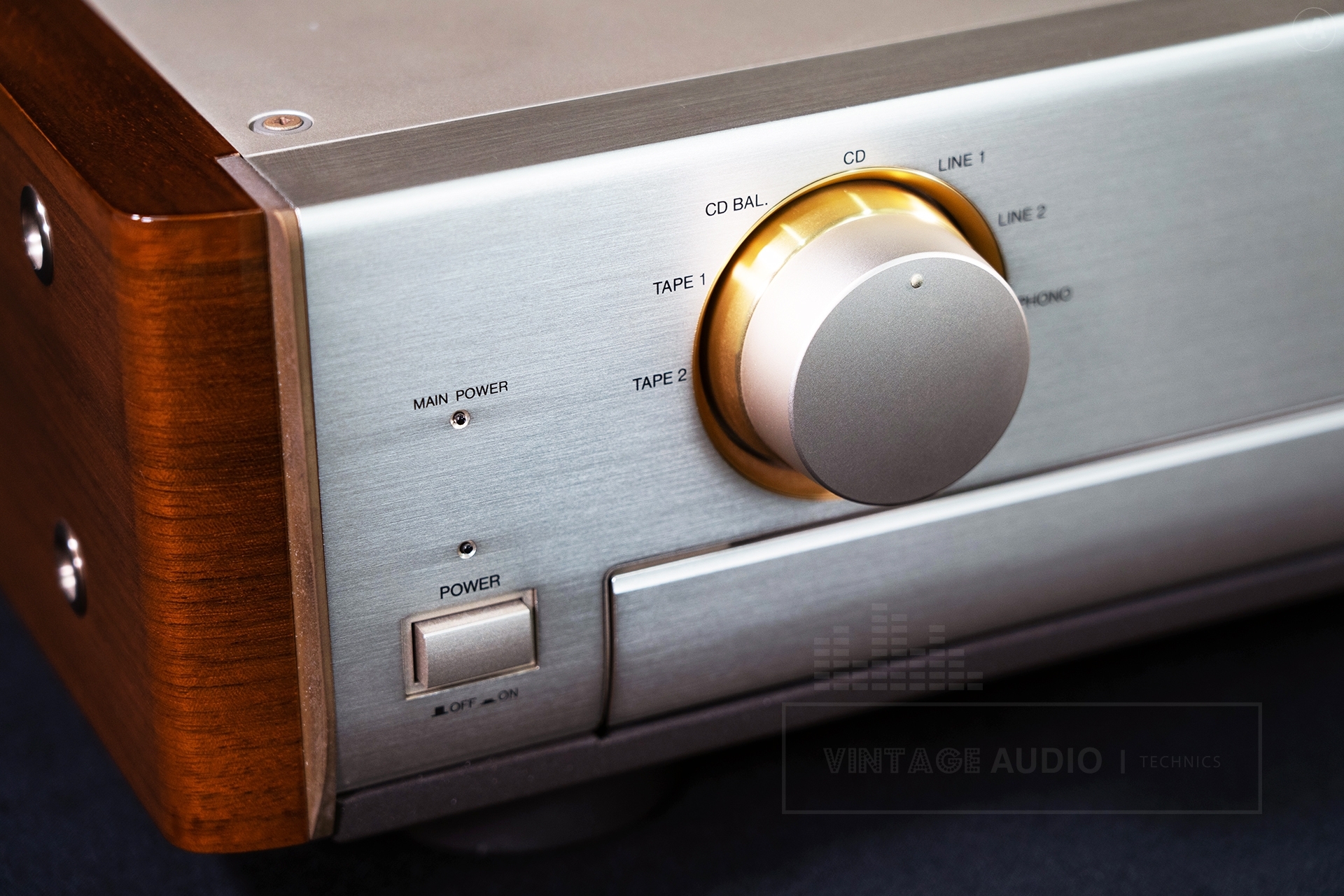

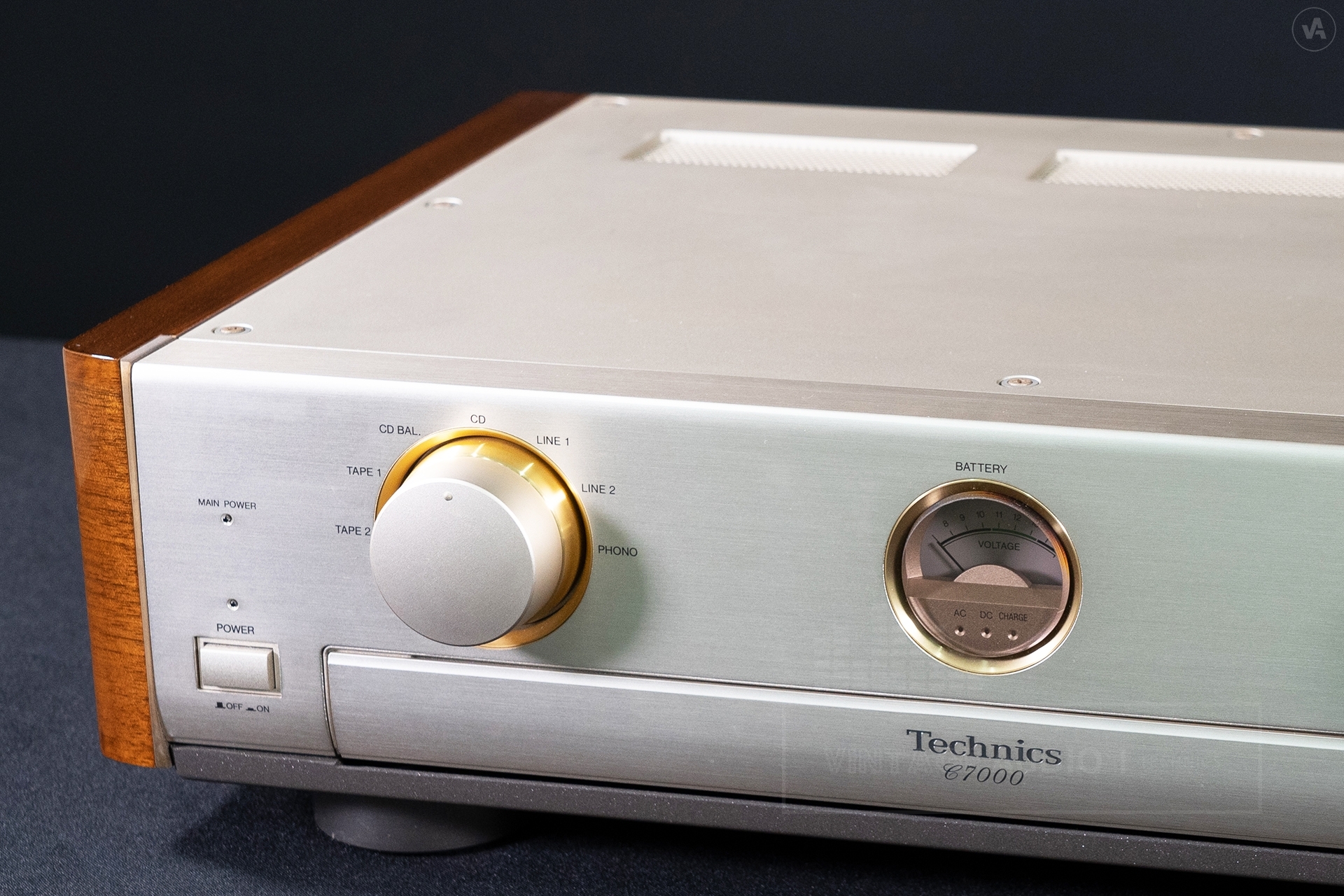

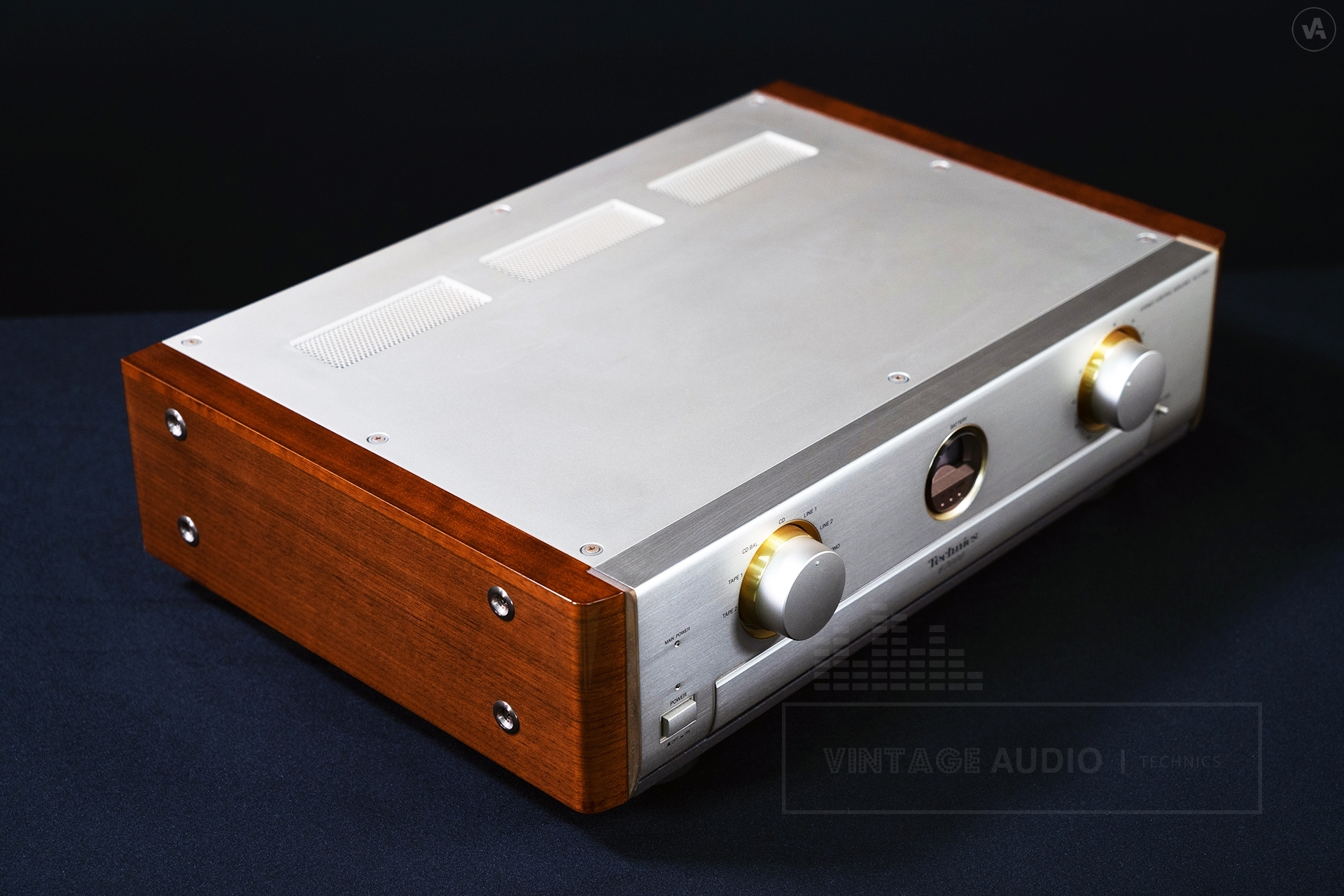

Technics SU-C7000
Type: | Control amplifier |
THD (20Hz - 20kHz): | Phono man month (Rec out, EIAJ) - 0.001% Line1/2, compact disk, tape 1/2 - 0.001% |
S/N ratio: | Phono MM - 86dB (EIAJ), 88dB (IHF'66) Line 1/2, CD, tape 1/2 - 97dB (EIAJ), 104dB (IHF'66) |
Maximum permissible input MM: | 100mV |
Frequency characteristic: | Line1/2, compact disk, and tape1/2 - 20Hz-20kHz (+0 -0.1 dB), 0.5Hz - 125kHz (+0dB-3dB) Balance - 30Hz-20kHz (±0.3dB) Phono RIAA deflection - 20Hz-20kHz (±0.2dB) |
Output power Pre out: | 1V (20Hz - 20kHz, 0.001%) |
Power source: | AC100V, 50Hz/60Hz |
Power consumption: | 32W |
Option: | Interchangeable battery driving power supply 2212X2 AU (2x12V, 2.2Ah/20HR) of LC-R (Replacement-parts treatment, build to order, 19,800yen) |
Dimensions (W x H x D): | 483 x 134 x 375mm |
Weight: | 17.5kg (battery power-source included) |
Year: | 1992 |
