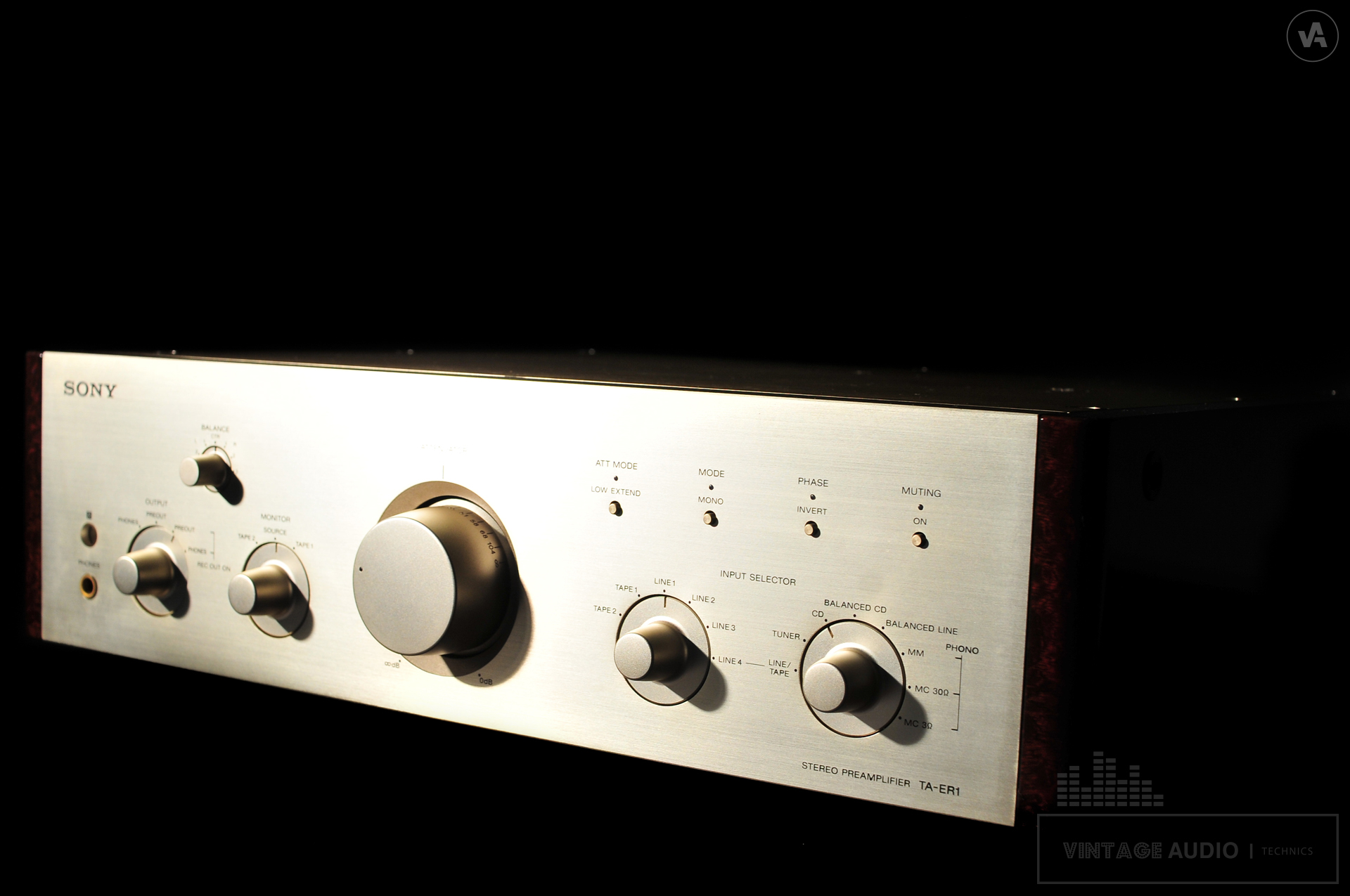

Type: | Stereo pre amplifier |
Input sensitivity / impedance: | Balanced CD / Line - 250mV / 4MΩ (2MΩ / 2MΩ, 100kΩ when Rec out on) Phono MM - 4mV / 100kΩ • 100pF Phono MC (3Ω) - 0.2mV / 125Ω Phono MC (30Ω) - 0.4mV / 500Ω CD / Tuner / Line 1 to 4 - 250mV / 2MΩ (Rec out on - 50kΩ) Tape 1, 2 - 250mV / 2MΩ (Tape Monitor - 20kΩ) |
Channel separation: | 110dB or more (all inputs) |
Output level / impedance: | Balanced Pre out - 2V / 4Ω (2Ω / 2Ω) Unbalanced Pre out - 1.25V / 2Ω Phones (Front / Rear) - 39mW / 2Ω Rec out - 375mV / 1kΩ |
Maximum output level: | Balanced Pre out - 20V Unbalanced Pre out - 10V Phones (Front / Rear) - 1000mW Rec out - 10V |
Frequency characteristics MC transformer: | 20Hz to 20kHz +0 - 1.0dB Phono equalizer deviation - 20Hz to 20kHz ± 1dB CD → Pre out - 20Hz to 20kHz + 0 - 0.1dB |
Distortion factor (THD + N, ATT - 0dB, 5dB output): | Phono MM - 0.003% or less Phono MC (3Ω, 30Ω) - 0.005% or less Line - 0.003% or less |
Power source: | AC 100V, 50Hz / 60Hz |
Power consumption: | 45W |
External dimensions body (W x H x D): | 470 × 135 × 420mm |
Weight Main body: | About 19.5kg |
Power supply: | SONY RPS-ER1 |
Dimensions power supply unit (W x H x D): | 260 × 135 × 395mm |
Weight Power supply section: | Approximately 12.5kg |
Included: | Wireless remote control RM - ER 1 |
Remote control method: | Infrared pulse method |
Power supply: | DC 3V, 2 AA batteries used |
External dimensions (W x H x D): | 38 × 160 × 22mm |
Weight: | About 220g (including batteries) |
