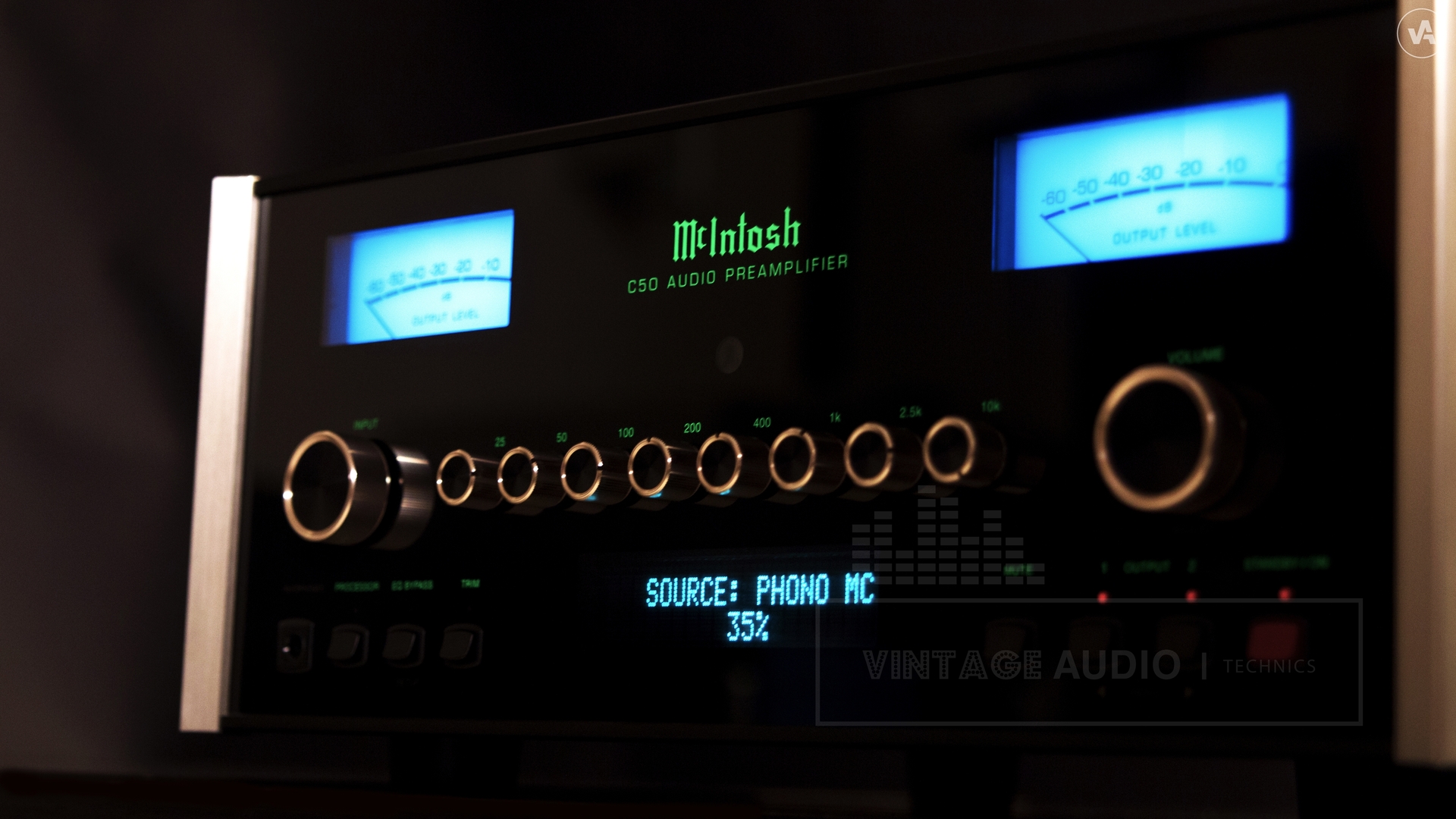

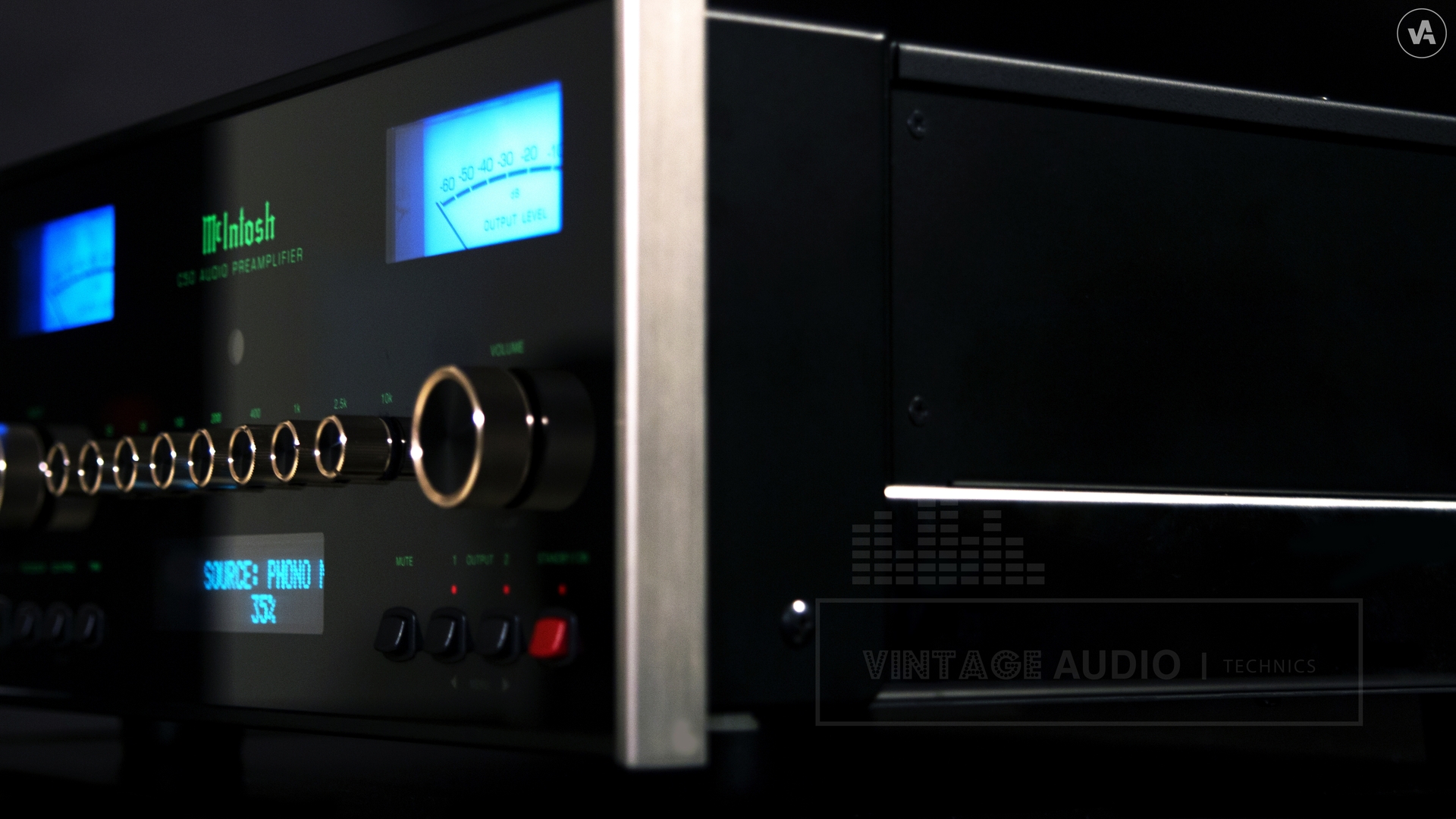

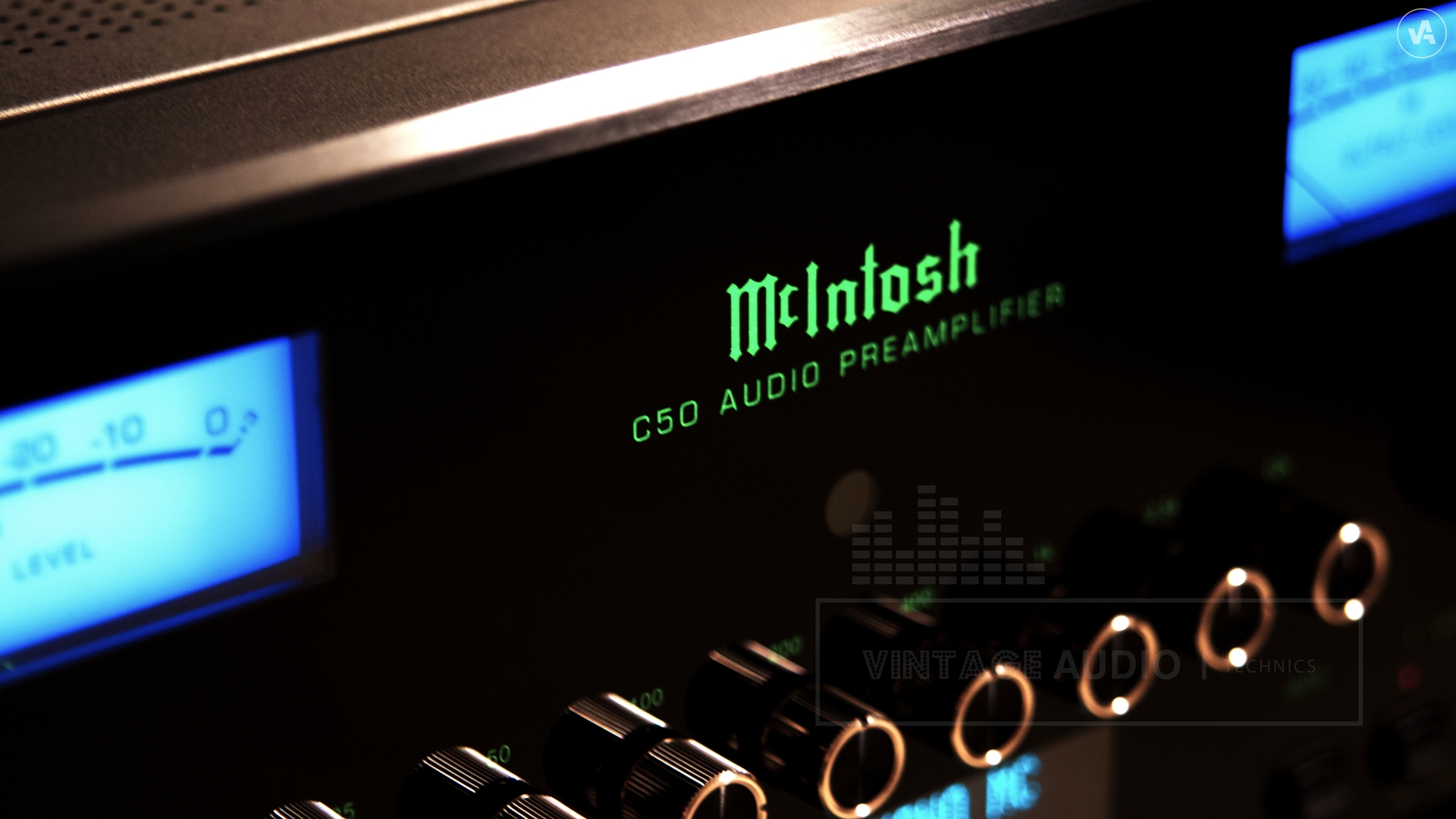

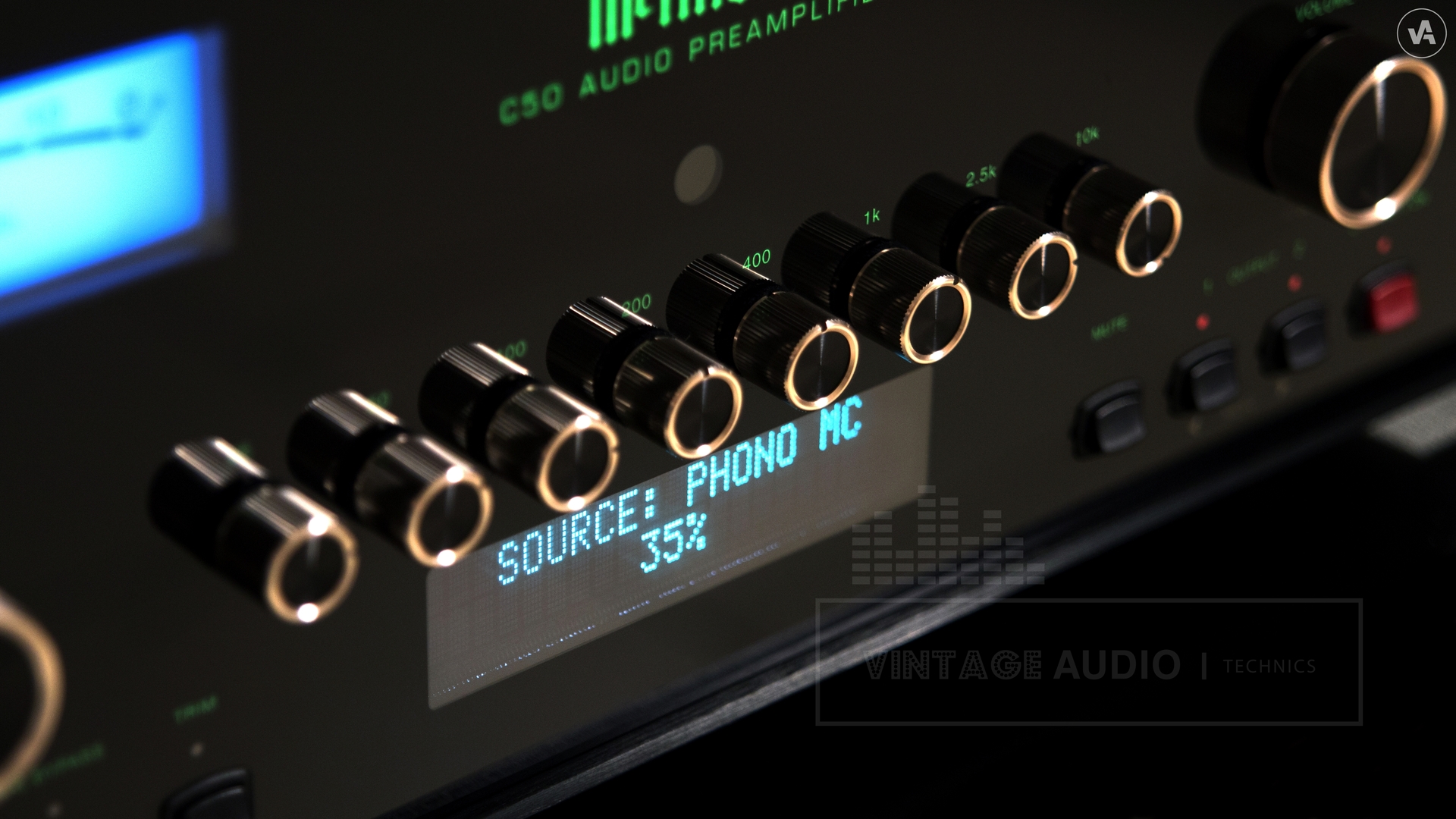

Type: | Stereo Preamplifier |
Frequency Response: | +0, -0.5dB from 20Hz to 20,000Hz +0, -3dB from 15Hz to 100,000Hz |
Total Harmonic Distortion: | 0.002% from 20Hz to 20,000Hz |
Rated Output (Main): | 2.5V Unbalanced 5V Balanced |
Maximum Voltage Output: | 8V RMS Unbalanced 16V RMS Balanced |
Sensitivity (for rated output): | High Level, 450mV unbalanced 900mV balanced Phono MM, 4.5mV Phono MC, 0.45mV |
Signal To Noise Ratio (A-Weighted): | High Level, 100dB Phono, 88dB |
Input Impedance: | High Level, 22K ohms unbalanced 44k ohms balanced Phono MM, 47K ohms; 50 to 750pF, in 50pF steps Phono MC, 25, 50, 100, 200, 500 or 1,000 ohms; 100pF |
Maximum Input Signal: | High Level, 5V Unbalanced 10V Balanced Phono MM, 50mV Phono MC, 5mV |
Voltage Gain: | High Level to Record Output - 0dB High Level to Main Output - 15dB Phono MM to Record Output - 40dB Phono MC to Record Output - 60dB |
Output Impedance: | 220 ohms |
Headphone Load Impedance: | 100 ohms to 600 ohms |
Digital Input Sample Rates: | Optical - 16Bit, 24Bit, 32kHz to 96kHz Coaxial - 16Bit, 24Bit, 32kHz to 96kHz USB - 16Bit, 24Bit, 32kHz to 192kHz; 24Bit, 32Bit, 32kHz to 96kHz |
Power Control and Trigger Output: | DC 12V, 25mA |
[Power Requirements] | |
Is factory configured for one of the following AC Voltages: | 100 Volts, 50/60Hz at 30 watts 110 Volts, 50/60Hz at 30 watts 120 Volts, 50/60Hz at 30 watts 220 Volts, 50/60Hz at 30 watts 230 Volts, 50/60Hz at 30 watts 240 Volts, 50/60Hz at 30 watts |
Standby Power: | less than 0.5 watts |
Overall Dimensions: | Width is 17-1/2 inches (44.45cm) Height is 7-5/8 inches (19.37cm) including feet Depth is 18 inches (45.72cm) including the Front Panel, Knobs and Cables |
Weight: | 28.5 pounds (12.9 kg) net 44 pounds (20.0 kg) in shipping carton |
Year: | 2010 |
