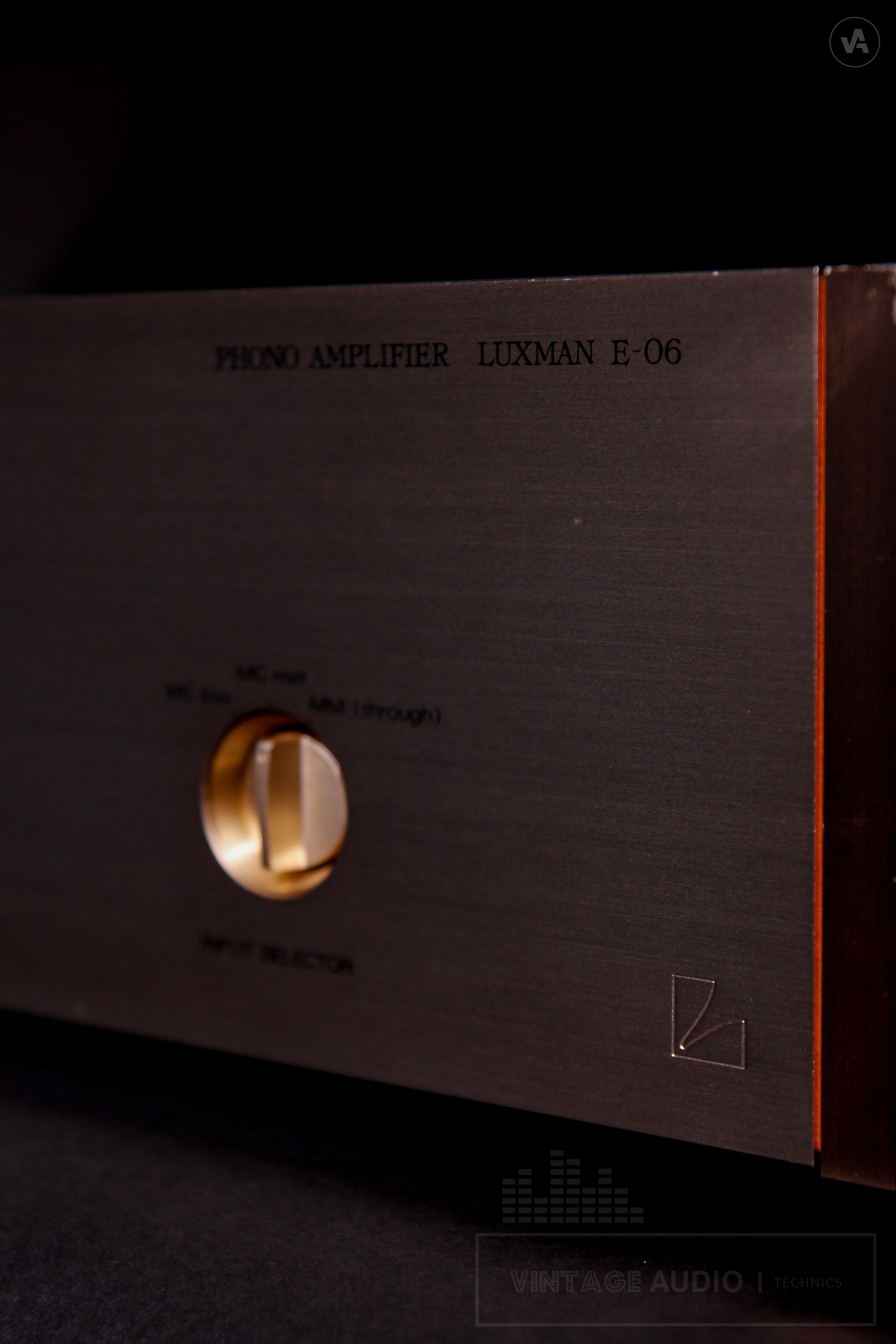

Type: | Phono amplifier |

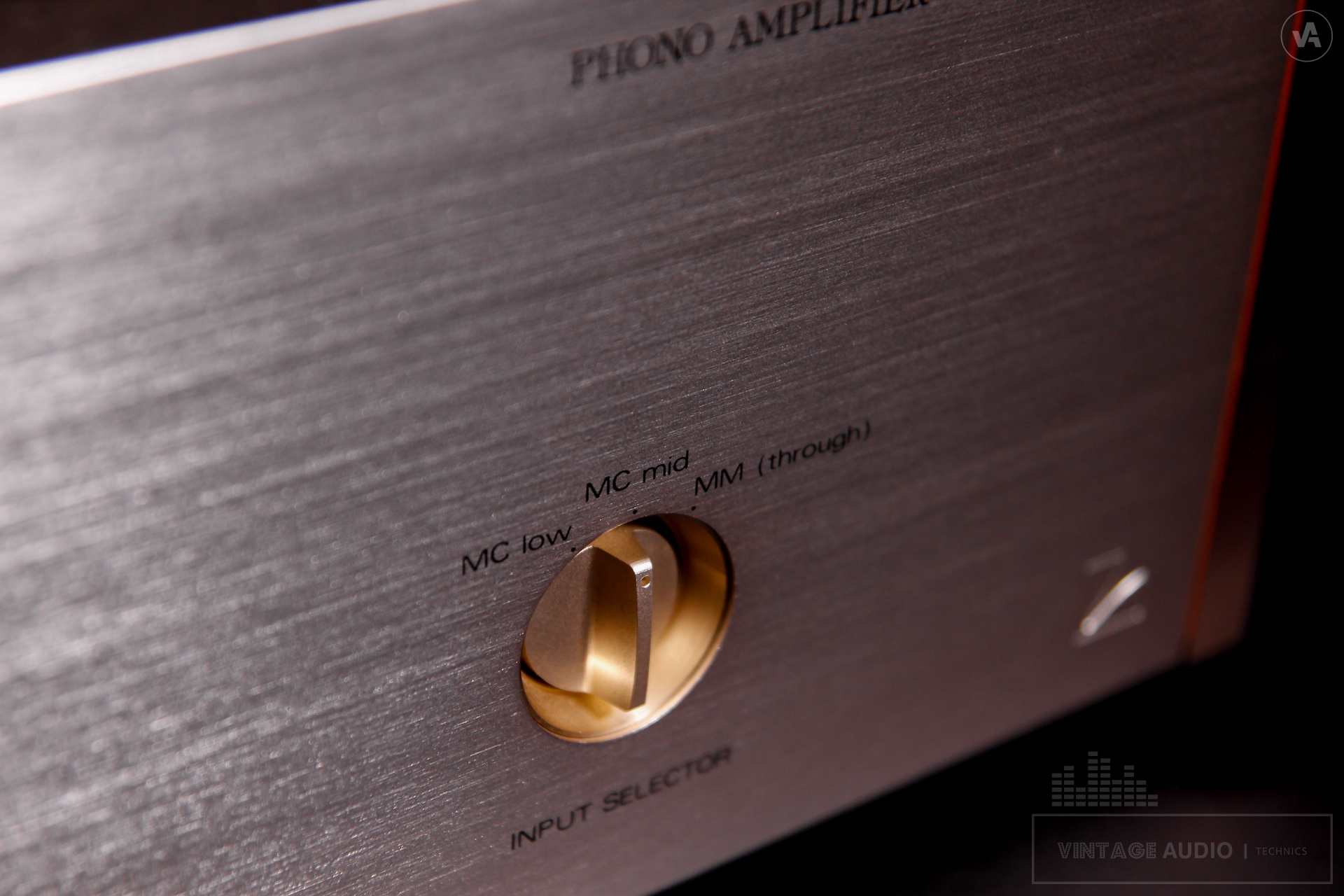

Input terminals: | MC Low (Balance / Unbalance) MC Mid (Balance / Unbalance) MM (Unbalance) - Coaxial type |
Input sensitivity: | MC Low - 70μV MC Mid - 200μV MM - 2.5mV |
Input impedance (1kHz) (Applicable cartridge impedance): | MC Low - 35Ω (2 to 10Ω) MC Mid - 300Ω (10 to 100Ω) MM - 47kΩ |
Gain: | MC Low - 73dB MC Mid - 64dB MM (Through) - 42dB |

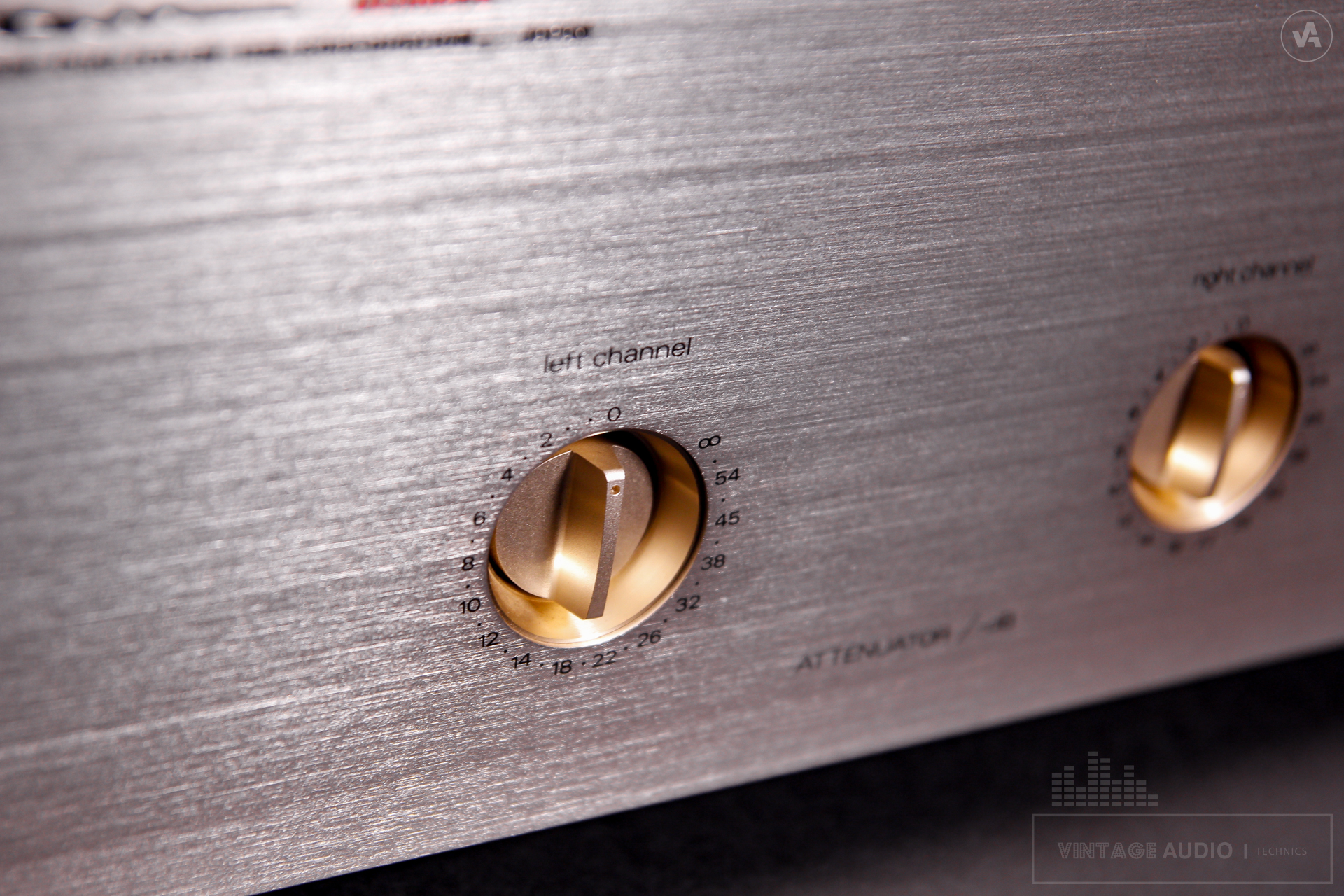

Output level adjustment: | 10kΩ fixed resistance switching type 32 point attenuator |
Output Direct / Variable: | Rated 300mV, maximum 10V (1kHz) |
Output impedance: | 20Ω (1kHz) |
Total harmonic distortion factor: | 0.005% or less (MM, 1kHz) 0.007% or less (MC Low, MC Mid, 1kHz) |
Frequency response: | 20Hz to 20kHz, RIA A ± 0.2dB or less (MM) |
S/N ratio (IHF - A): | MC Low - more than 76dB MC Mid - 78dB or more MM - 80dB or more |
Channel separation: | 90dB or more (10kHz) |
Power supply voltage: | AC 100V, 50Hz / 60Hz |
Power consumption: | 4W |
External dimensions (W x H x D): | 460 × 120 × 408mm |
Weight: | 10kg |
Year: | 1987 |
