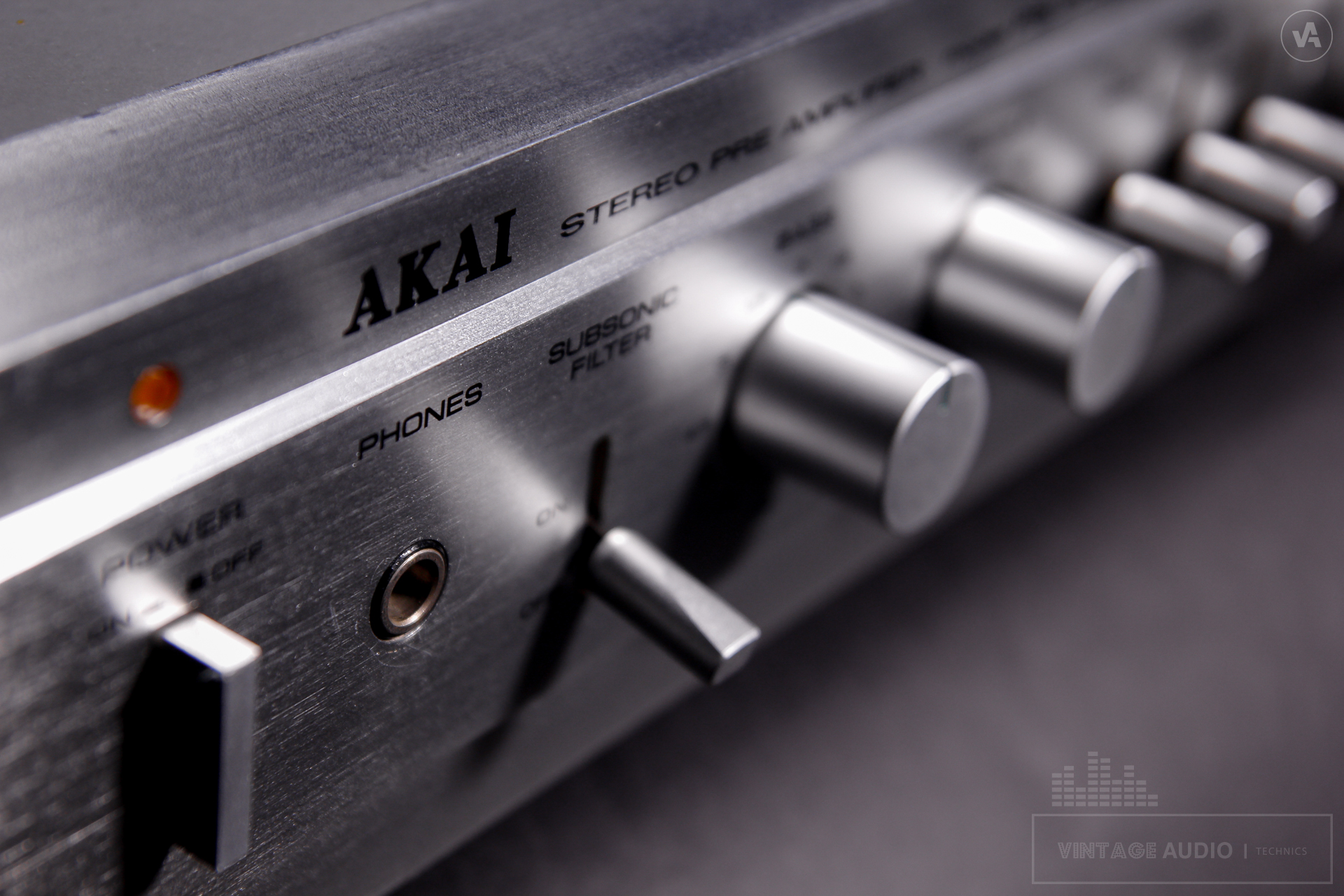

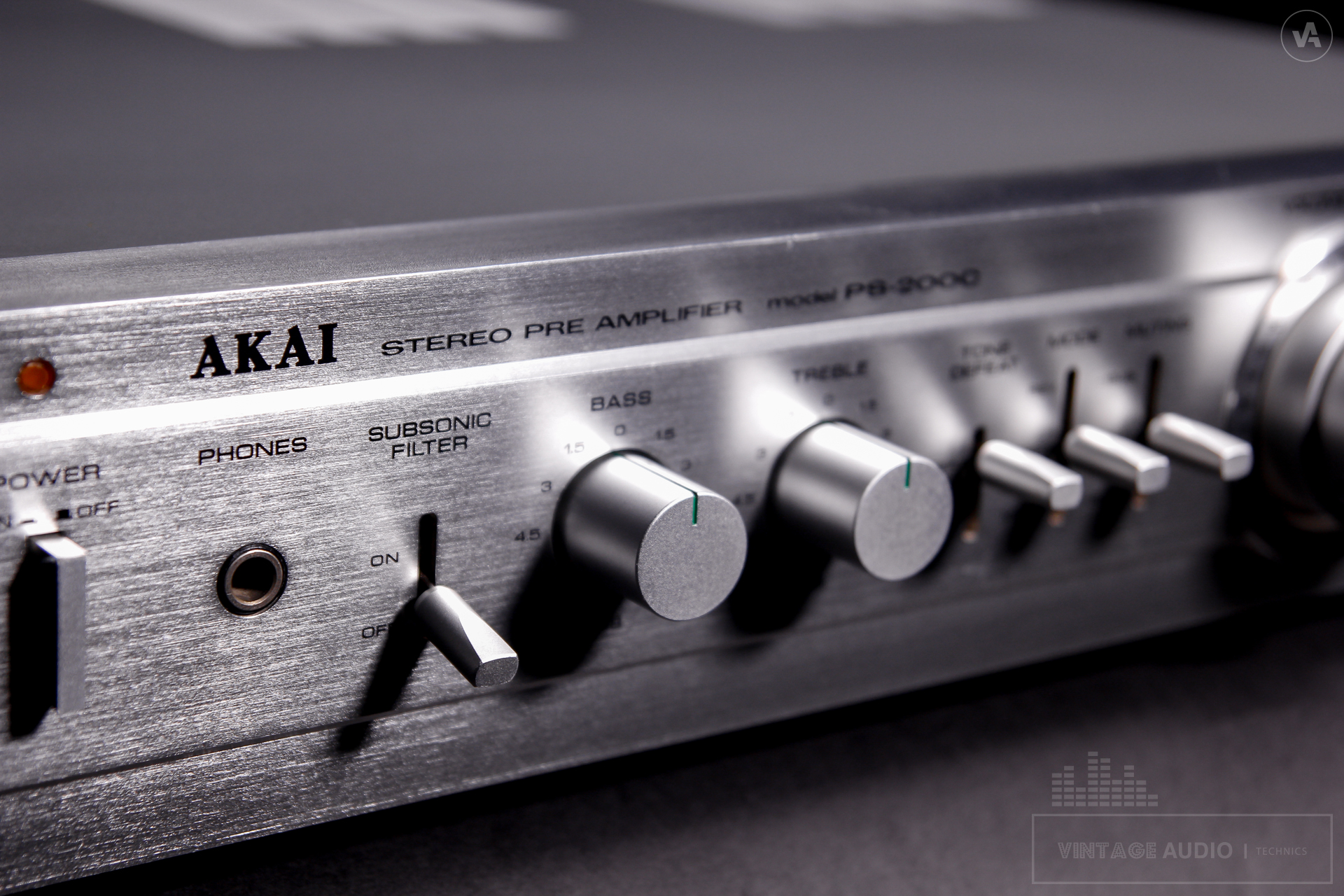

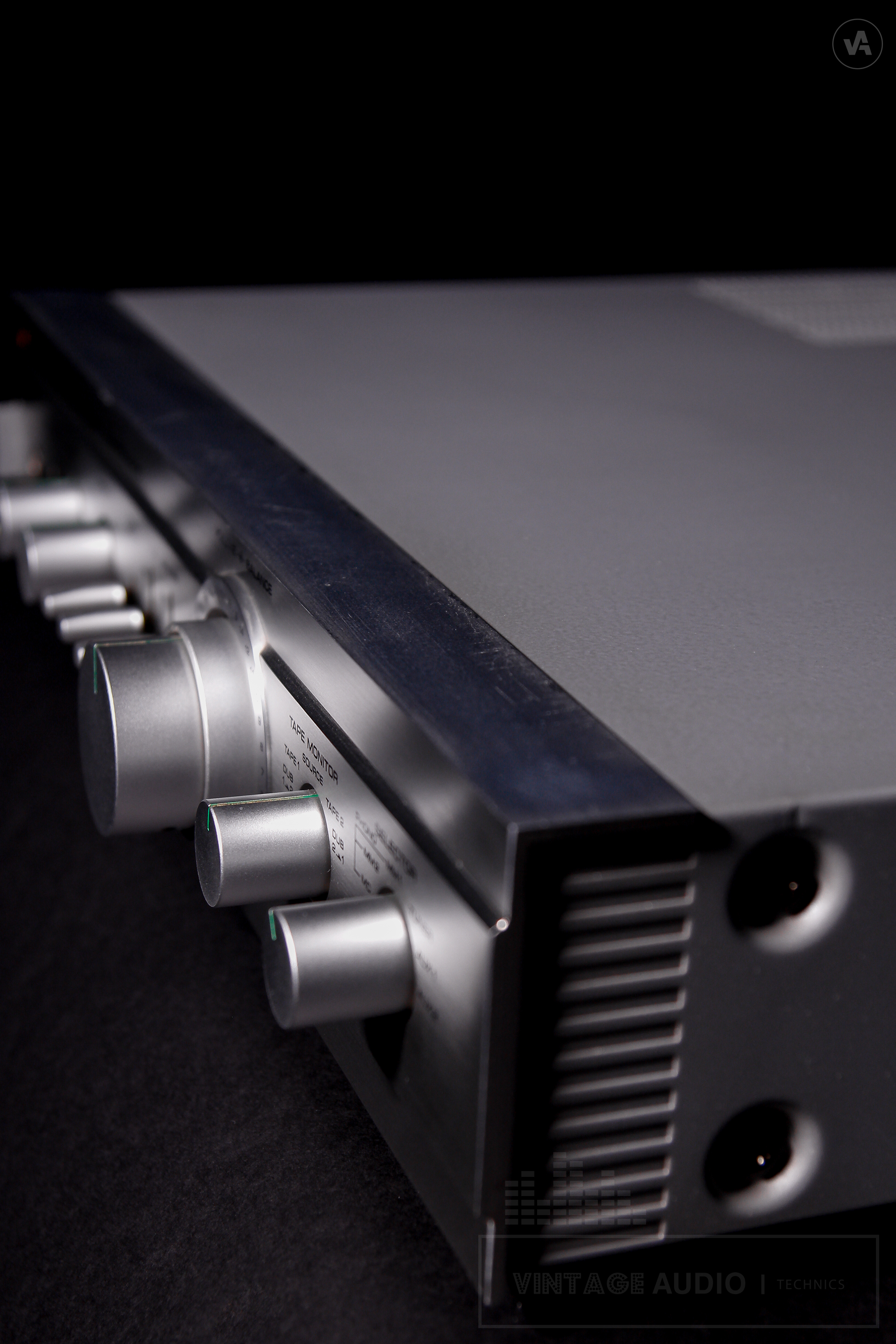

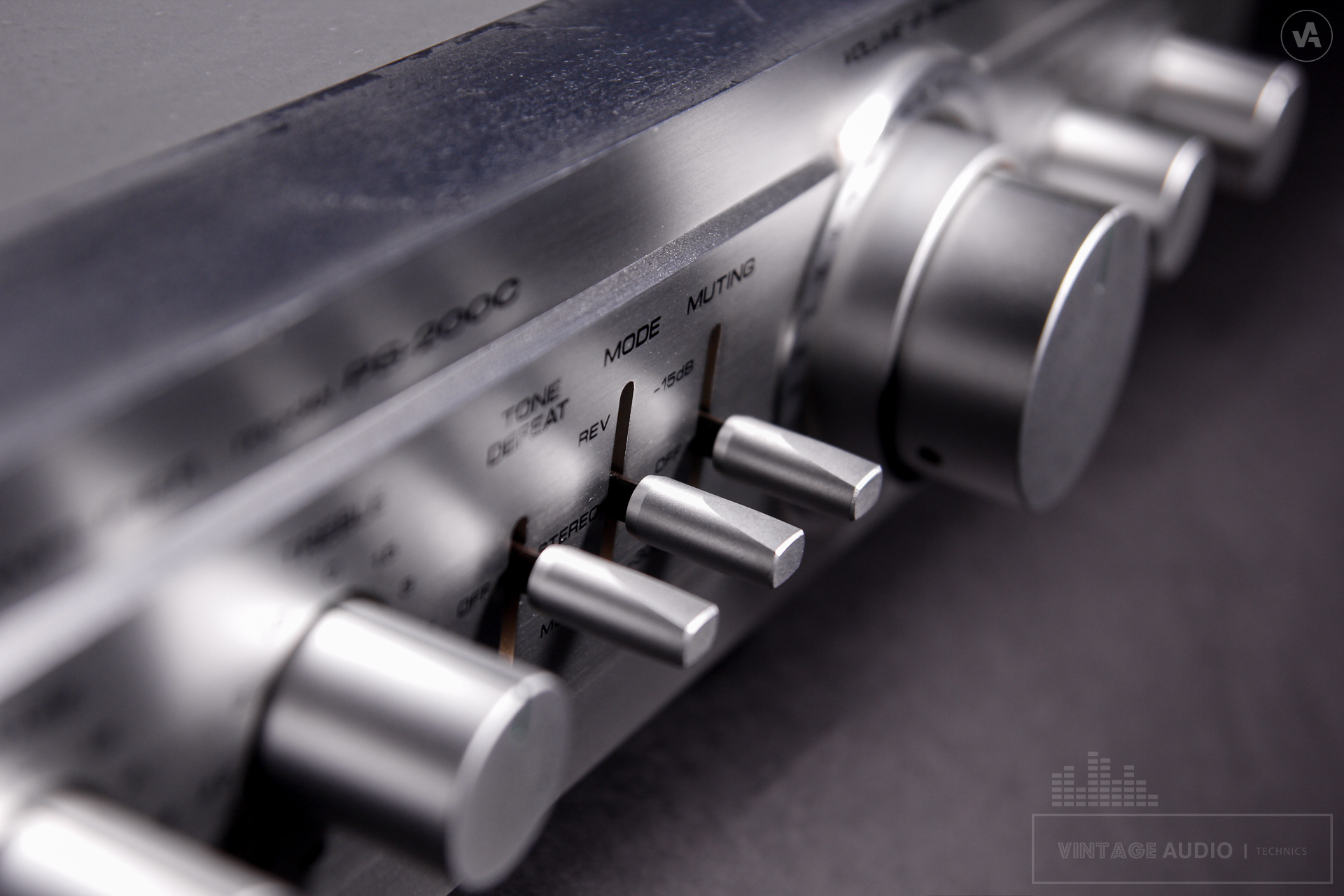

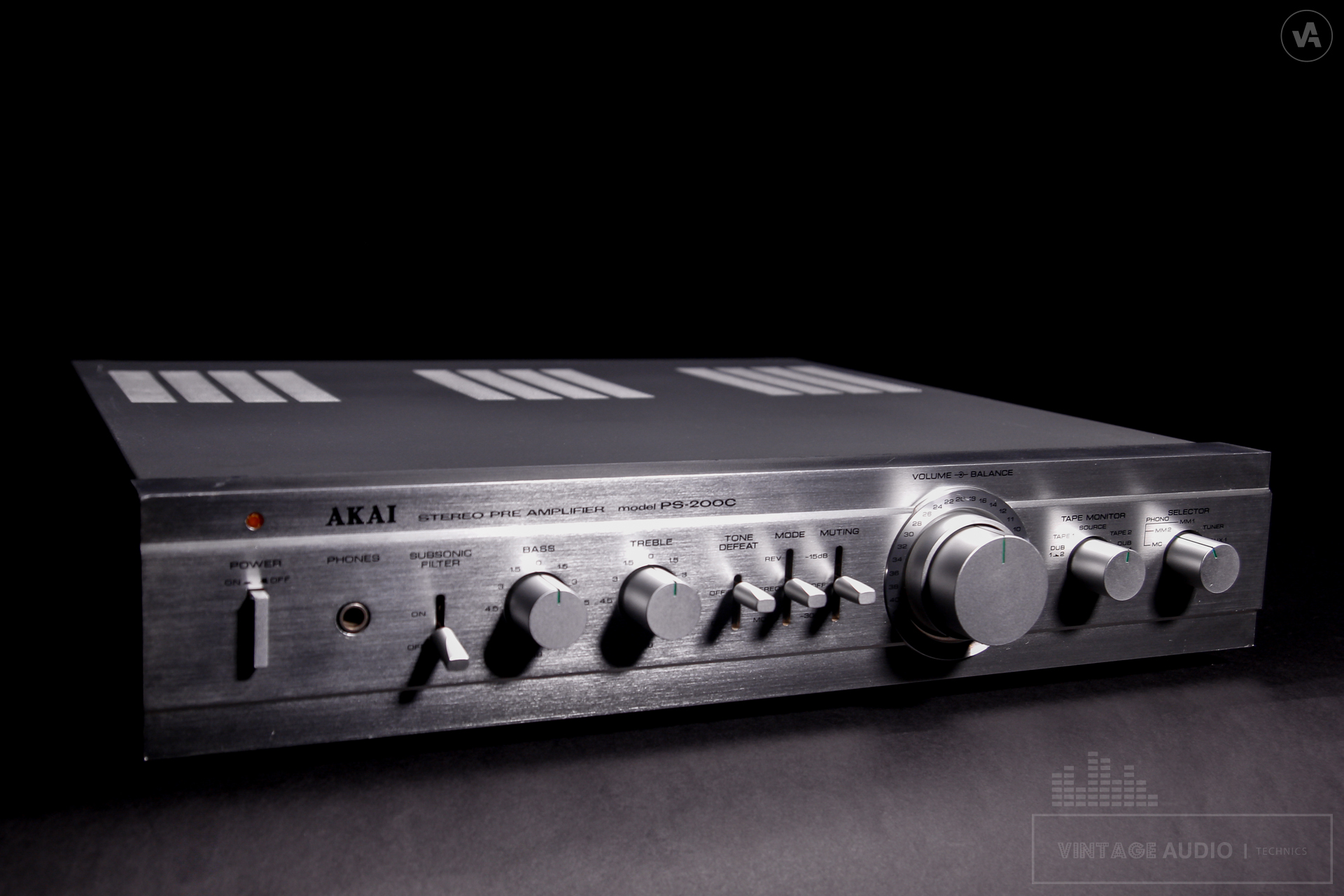

Type: | Stereo Pre Amplifier |
Input Sensitivity/Impedance/S/N ratio: | Phono 1 (MM) - 2.5mV/47k ohms/88dB Phono 2 (MM) - 2.5mV/33, 47, 100kohms/88dB Phono 3 (MC) - 0.07mV/10 ohms/72dB Tuner - 150mV/47kohms/106dB AUX 1&2- 150mV/47kohms/106dB Tape Play 1&2 - 150mV/47kohms/106dB |
Output Level/Impedance: | Tape Rec 1&2 - 150mV/600ohms Output - 1.5V/600ohms Rated Load Impedance - 1kohms |
Phono Max. Input Level (1KHz): | Phono 1&2 - 450 mV Phono 3 - 10 mV |
Frequency Response: | Tuner/AUX 1&2/Tape Play 1&2 - 0.8Hz to 100kHz ± 1dB Phono 1&2 (RIAA curve deviation) - 30Hz to 15kHz ± 0.2dB Phono 3 (RIAA curve deviation) - 30Hz to 15kHz ± 0.2dB |
[Total Harmonic Distortion (20Hz to 20KHz)] | |
Tuner/AUX 1&2/Tape Play 1&2: | 0.005% at output 1V (Volume Max.) - 0.002% at output 7V 0.005% at output 15V |
Phono 1&2: | (Volume Max.) - 0.005% at output 15V (Volume-20dB) - 0.005% at output 1.5V |
Phono 3: | (Volume Max.) - 0.005% at output 15V (Volume -20dB) - 0.005% at output 1.5V |
Tone Control: | Bass - ±9dB at 100Hz Treble - ±9dB at 10kHz |
Subsonic Filter: | 12dB/oct. at 18Hz |
Channel Separation: | (AUX 1&2) - 70dB (Shorted Circuit) |
Power Requirements: | 110V/220V/240, 50/60HZ internally switchable for other countries |
Dimensions (W x H x D): | 440 x 90 x 457mm |
Weight: | 7.5kg |
