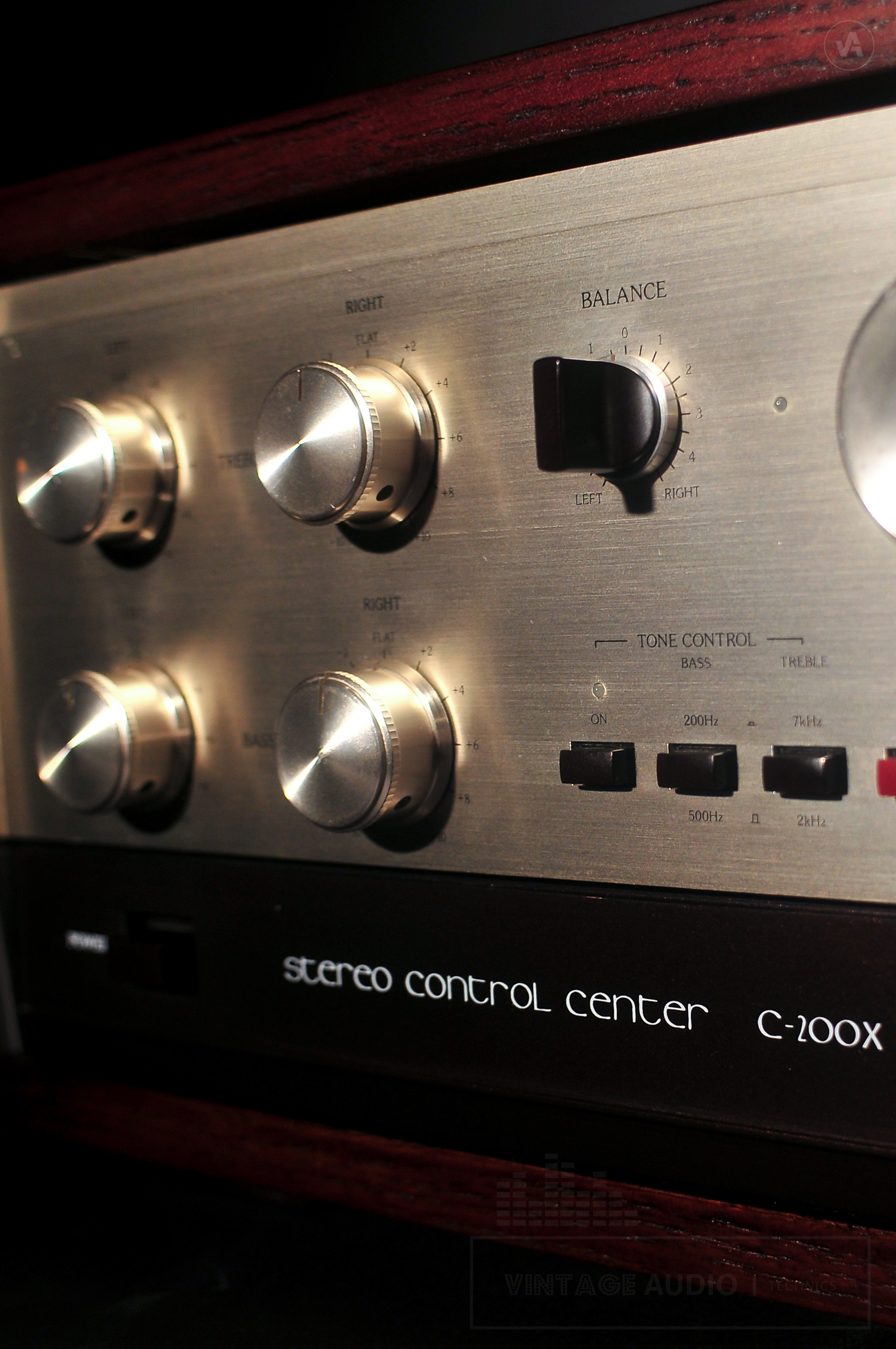

Type: | Stereo control center |
Frequency response (new IHF): | High level - 20 Hz to 20 kHz + 0 - 0.2 dB Disc - 20 Hz to 20 kHz ± 0.2 dB |
An Output power/Output load impedance: | Output - 2.0V/2 ohm Tape rec - 126mV/200 ohms (at the time of a disc input) |
Minimum load impedance: | Output - 1kohm Tape rec - 10kohm |
Headphone jack: | Output load impedance - 0.3ohm Output - 0.25W (8ohms, 1kHz, 0.01% of distortion) |
S / N ratio: | Disc(head amp off) - 85dB (a rated input, input short-circuit, A compensation) Disc(head amp on) - 72dB (a rated input, input short-circuit, A compensation) Tuner, aux, tape play - 110dB (a rated input, input short-circuit, A compensation) |
The disc maximum input: | Head amp off:400mVrms Head amp on:20mVrms (1kHz, 0.005% or less of distortion) |
Gain: | Tuner, aux, tape play->tape rec - 0dB Output - 24dB Disc(head amp off)->tape rec - 36dB Output - 60dB (at the time of head amp on: +26dB) |
Attenuator: | -20dB |
The semiconductor used: | Transistor - 102 pieces FET - 29 pieces IC - 11 pieces Diode - 50 pieces |
Power source: | AC100V/117V/220V/240V, 50Hz/60Hz |
Power consumption: | 80W |
Dimensions (W x H x D): | 445 x 160 x 373mm |
At the time of wood case wearing (W x H x D): | 466 x 190 x 385mm |
Weight: | 13.4kg |
Option: | Wood case A-8 (16,000yen) |
