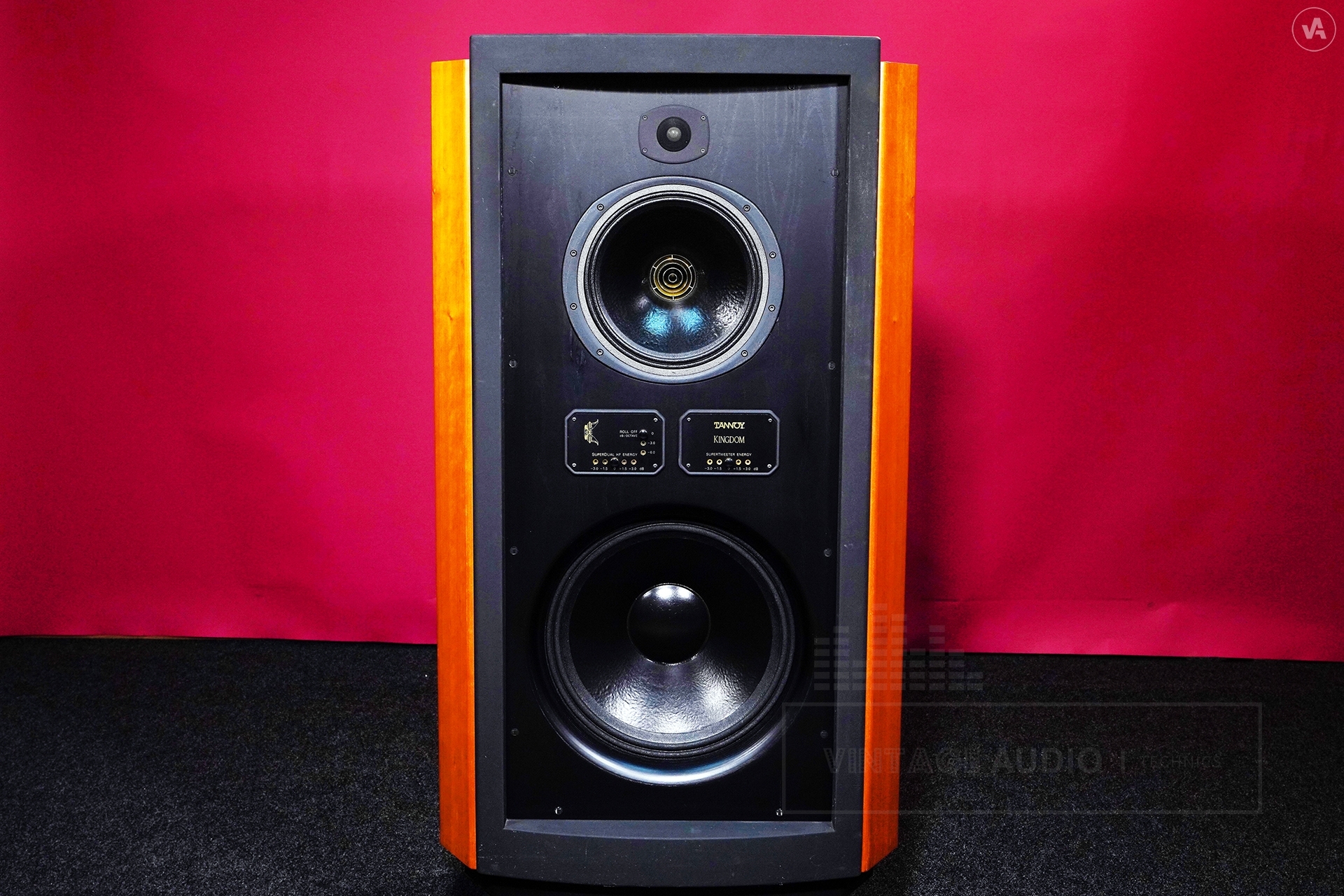

Type: | 4 way, 3 driver loudspeaker system |
Frequency Response: | 16Hz to 44kHz ±3dB |
[Sub Bass] | |
Type: | WO4503, 1 x 457mm (18”) treated paper cone |
Voice Coil: | 3” |
[Midrange/Treble] | |

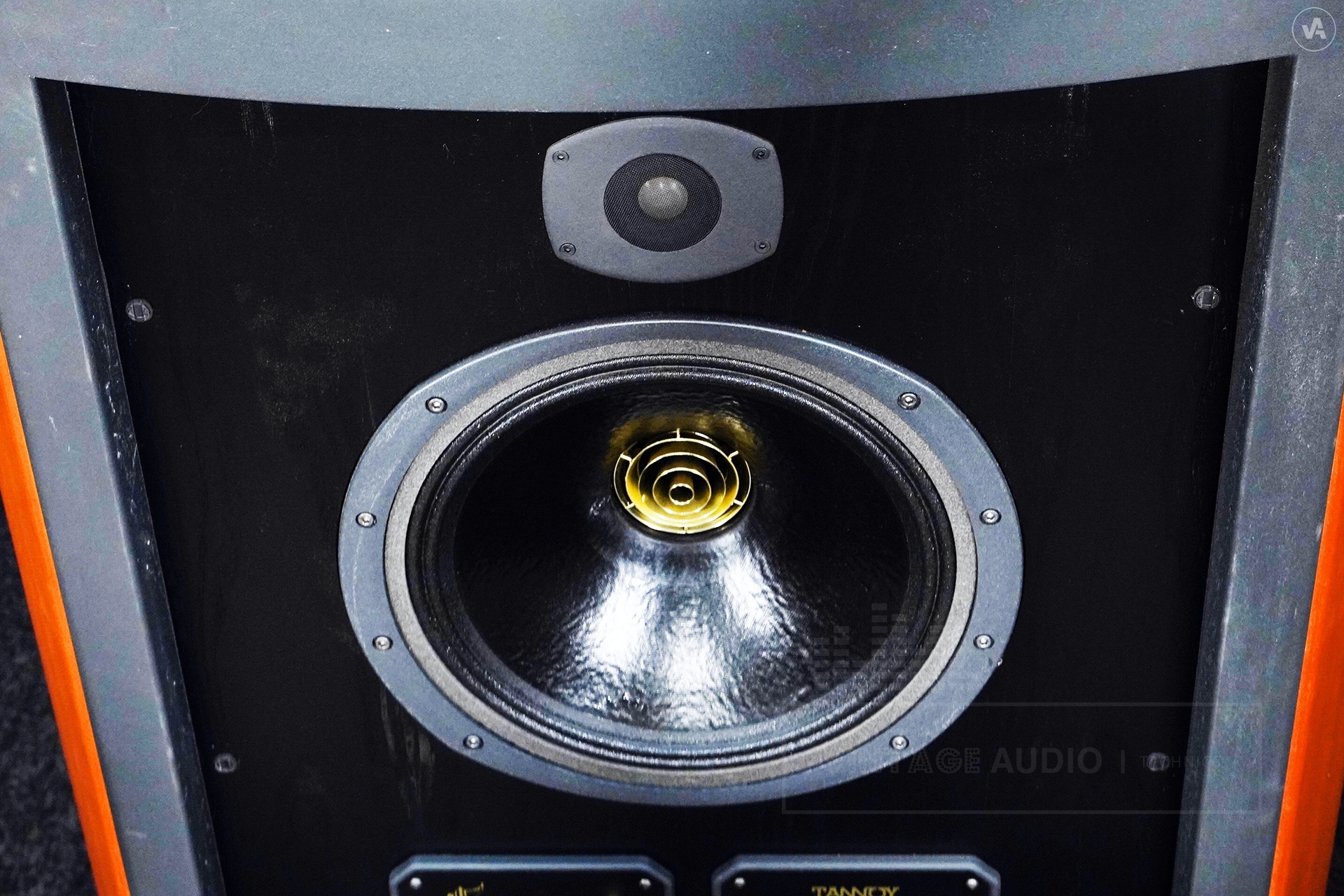

Midrange Type: | 3144, 1 x 300mm (12”) Dual Concentric™ driver |
Voice Coil: | 2” |
Tweeter Type: | 2", Aluminum Alloy Dome |
Diaphragm Thickness: | 64 micron |
[Super Tweeter] | |
Type: | TW0263, 1 x 25mm (1”) alloy dome |
Diaphragm Thickness: | 50 micron |
Magnet: | Neodymium |
Power Handling: | 300W - (RMS) 750W - (Peak) |
Recommended Amplifier: | 20 to 500W |
Crossover Frequency: | 100, 1100, 15000Hz |
Impedance: | 8Ω |
Sensitivity: | 92dB (2.83V @ 1m) |
Maximum SPL: | 117dB - (RMS, 300W, 1m) 121dB - (Peak, 750W, 1m) |
Dispersion: | 90˚ Conical |
Enclosure type (Bass): | Bass Reflex |
Enclosure Type (Midrange): | Sealed |
Enclosure volume: | 370 litre, rear ported |
Finish: | American cherry |
Dimensions (W x H x D): | 1000 x 1600 x 850mm |
Weight: | 208kg |
Year: | 1997 |
