Type: | 4 way, 3 driver loudspeaker system |
Frequency Response: | At 20Hz to 44kHz (+/- 3dB) |
Rated output power: | 250W |
Peak output power: | 625W |
Maximum SPL: | 115dB (250W RMS@ 1 mtr) 119dB (625W RMS@ 1 mtr) |
Impedance: | 8Ω |
Sensitivity: | 91dB |
Crossover type: | Passive, low loss |
[Crossover Frequencies] | |
Bass to Dual midrange: | 100Hz |
Dual midrange to Dual tweeter: | 1.2kHz |
Dual tweeter to Super Tweeter: | 15kHz |
[Driver Units] | |

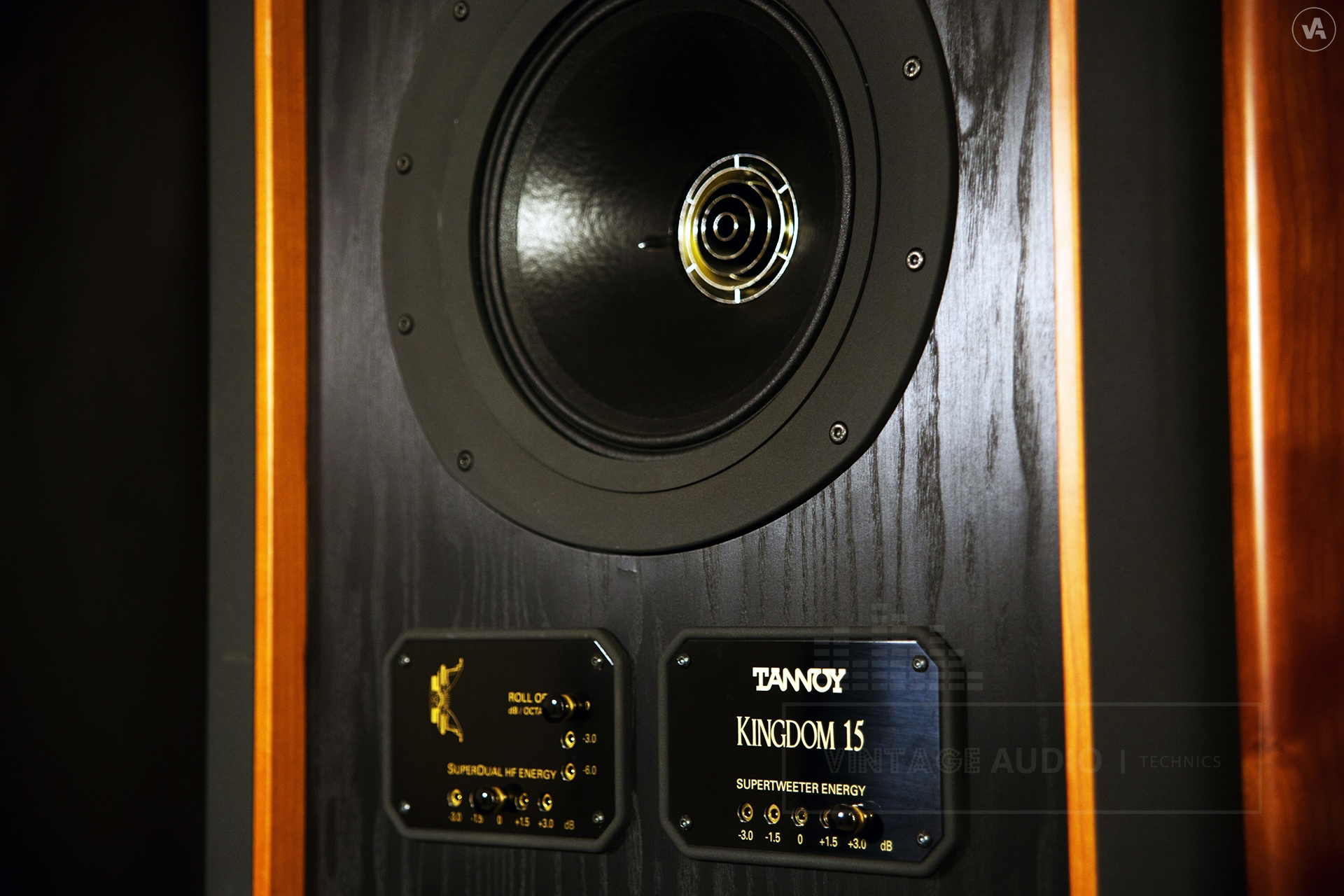

Dual Concentric driver type: | SuperDual |
Dual Concentric Midrange: | 254mm (10”) treated paper cone 76mm (3”) voice coil diameter |
Dual Concentric High Frequency: | 51mm (2”) with 64-micron aluminium alloy dome |
Super Tweeter: | 25mm (1”) 50-micron deep anodized aluminium alloy dome, neodymium magnet |
Low Frequency Driver: | 380mm (15”) treated paper cone 54mm (2.1”) voice coil diameter |
Enclosure type: | Rear ported reflex for bass driver Closed box for SuperDual driver |
Volume: | 250 litres |
Finish: | American Cherry |
Dimensions (H x W x D): | 1258 x 678 x 500mm |
Weight (1pc): | 160kg (352.8lbs) |
