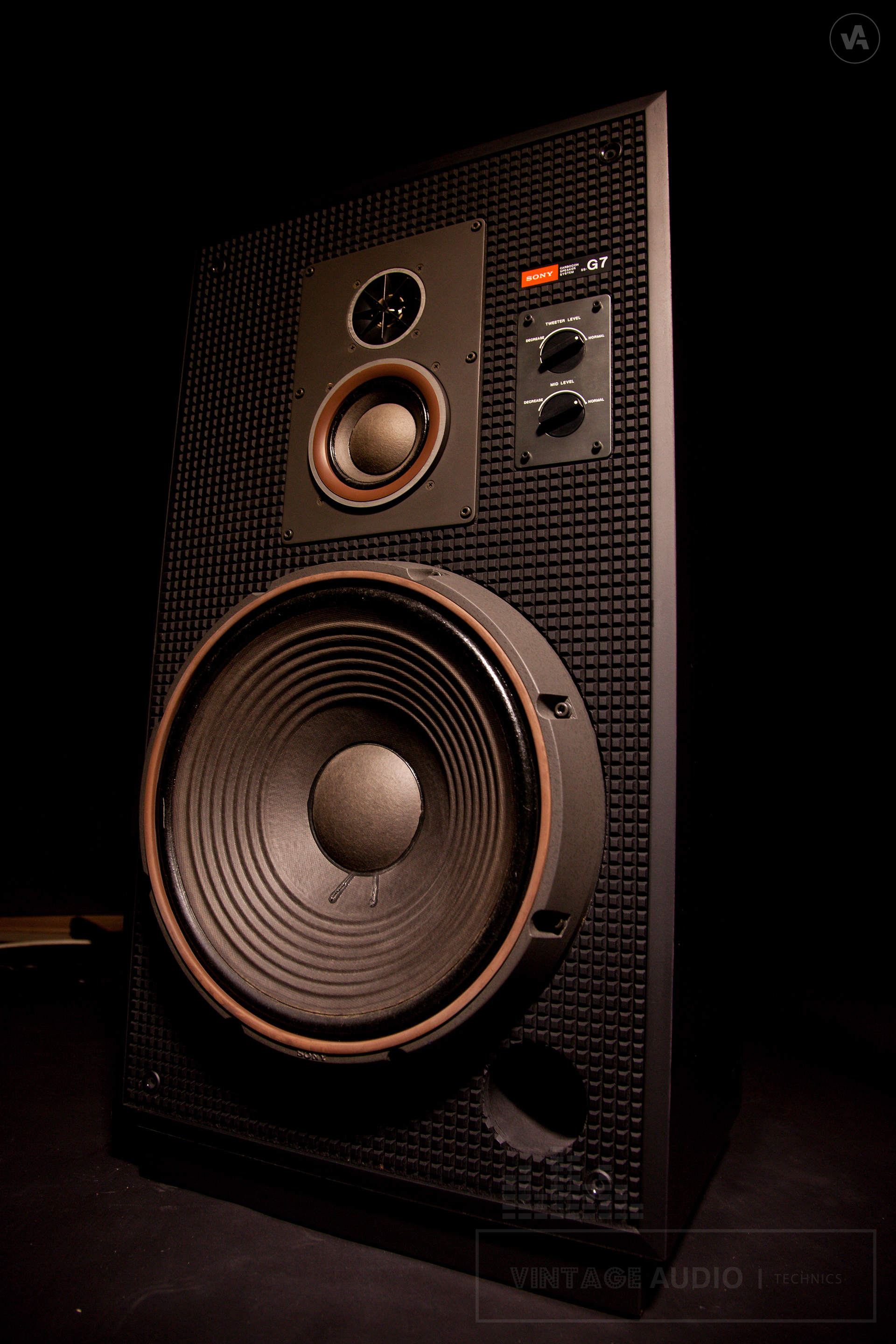

Type: | 3 way, 3 driver loudspeaker system |

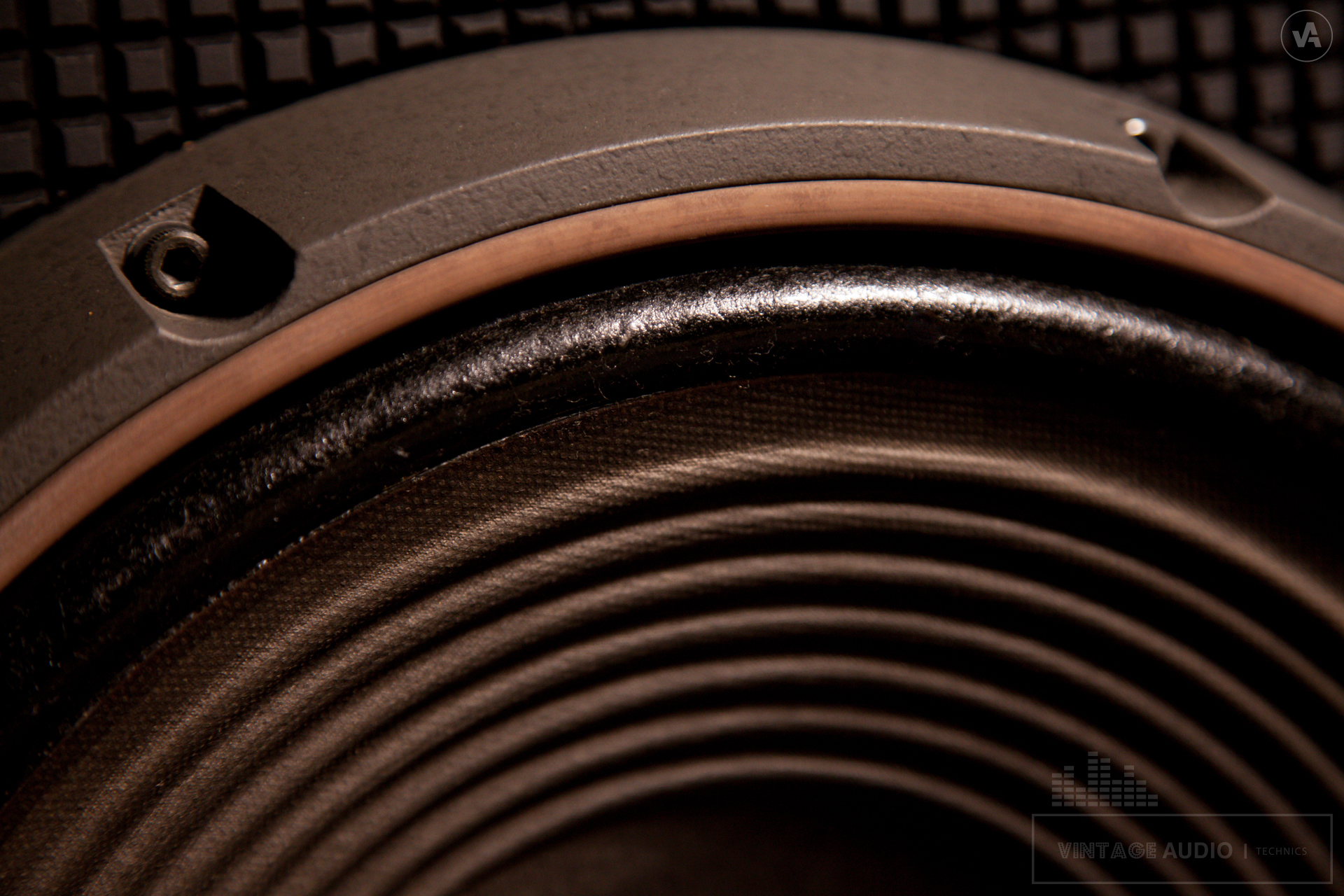

For unit low-pass: | 380mm cone type |
Voice coil: | Perforated 100mm |
Magnet: |
Perforated Alnico |
For mid range: | 100mm balance drive type |
Voice coil: | 65mm |
Magnet: | Ferrite |
For high regions: | 35mm balance drive type |
Dome: | 20ยต titanium hemispherical |
Magnet: | Alnico |
Frequency Response: | 30Hz to 20kHz |
Nominal Impedance : | 8Ohm |
Rated maximum input: | 100W |
Instantaneous maximum input: | 200W |
Crossover Frequency: | 550, 4500Hz |

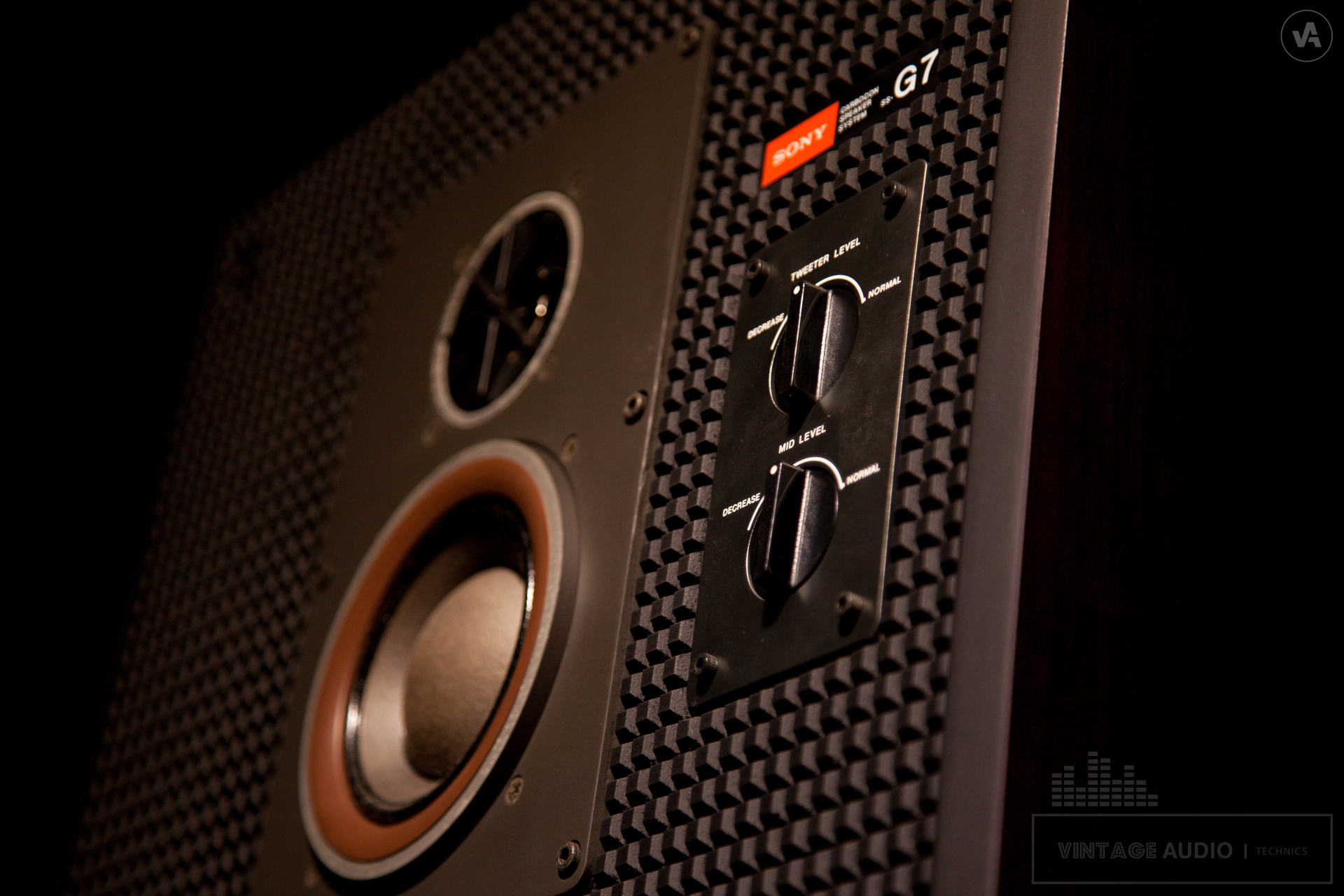

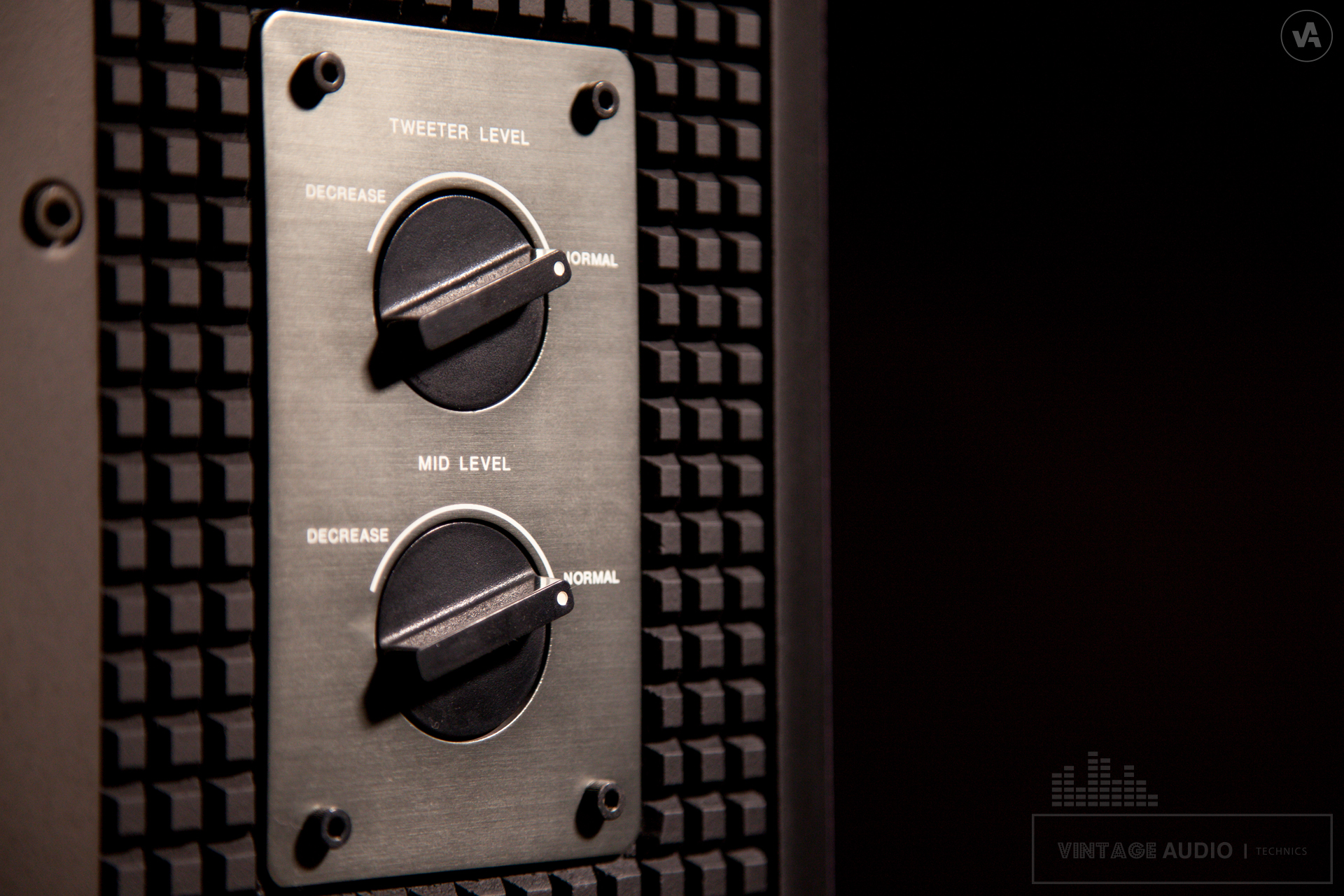

Level control: | For mid range - 0dB to -4dB continuous variable For high range - 0dB to -4dB continuous variable |
Output sound pressure level: | 94dB / W / m |
Enclosure: | 128 litre, bass reflex |
Attached: | Speaker cable |
Dimensions (W x H x D): | 510 x 940 x 445mm |
Weight: | 48kg |
Year: | 1976 |
