Technic details
Specifications
Type:
Loudspeakers
Method:
2 way · 3 speaker · bass-reflex system · floor type
Unit etc.:

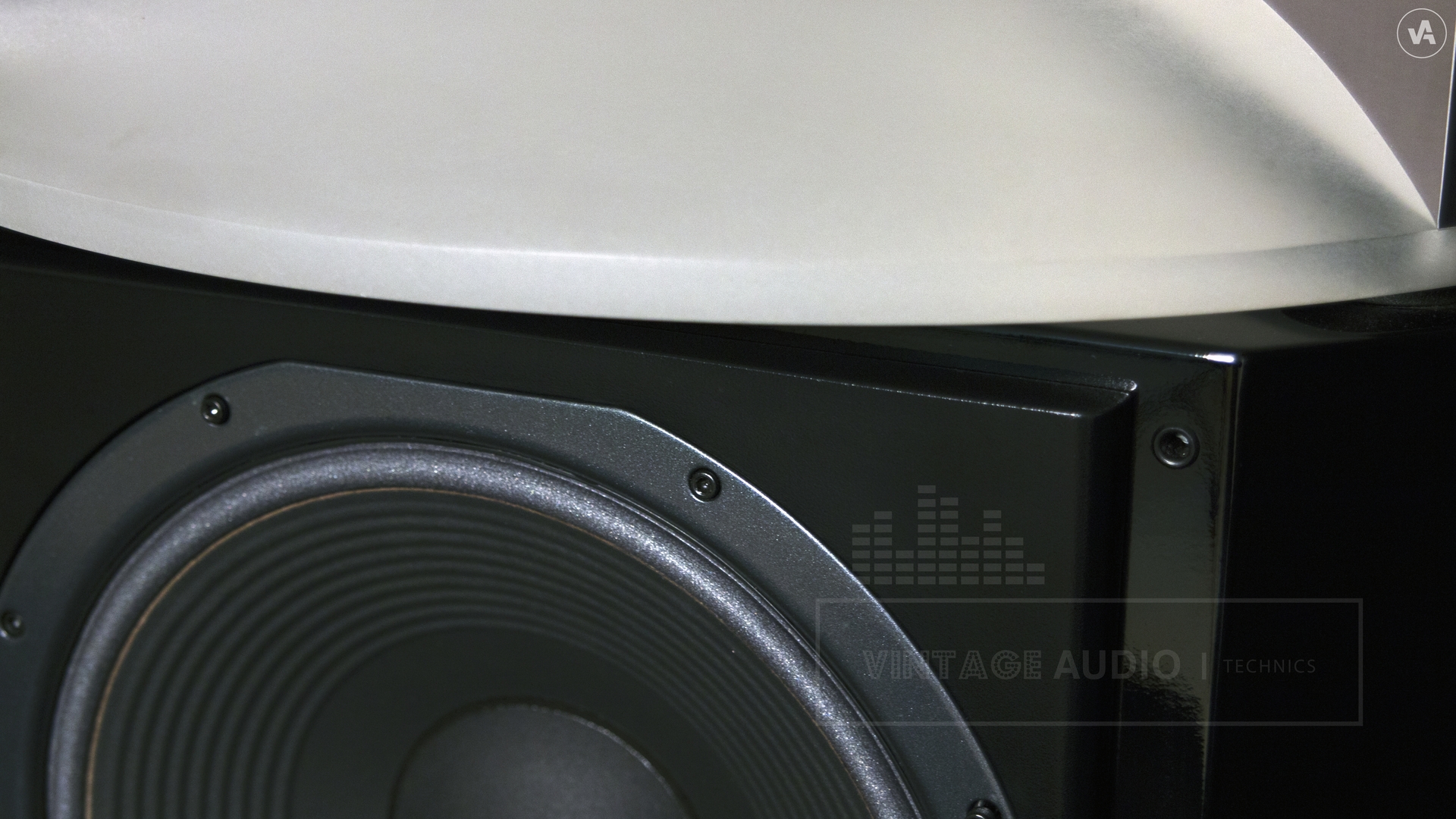

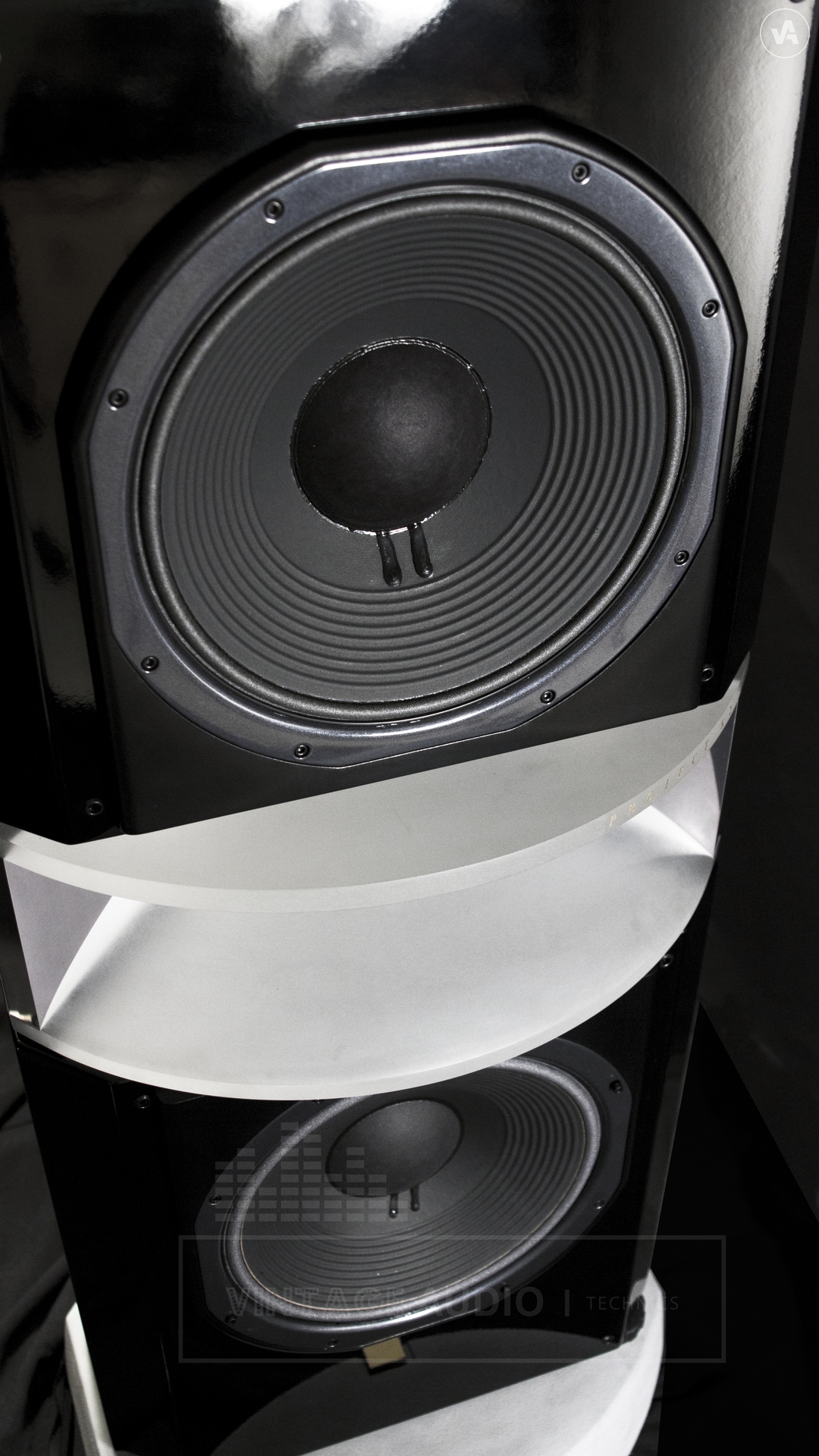

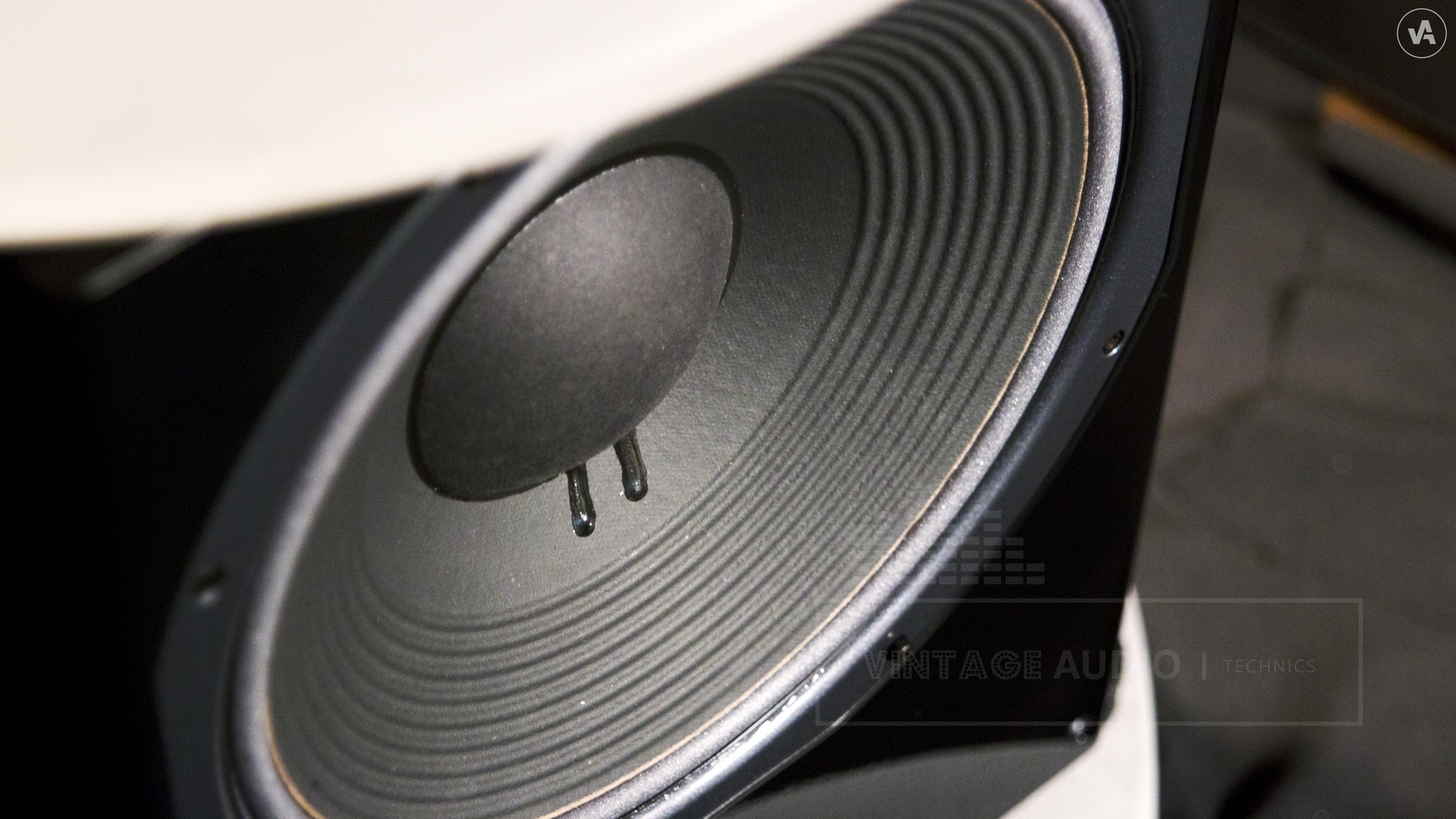

For low-pass - 36cm cone type (1400 Nd) x 2
For high regions - horn type (475 Nd)
Frequency characteristics:
33Hz to 21kHz, - 6dB
Output sound pressure level:
98dB / 2.83V / m
Nominal input impedance:
3Ω
Power Handling:
300W
Maximum allowable input:
400W (I. E. C Shaped noise)
Crossover frequency:
650Hz (-12dB / oct)
Specification of 475 Nd:
Diaphragm aperture diameter - 102mm (4 inch)
Impedance - 16Ω
Frequency characteristics - 500Hz to 21kHz
Diaphragm material - titanium
Output sound pressure level - 107dB / 2.83 V / m (with horn)
Magnet - Neodymium
Specification of N1400Nd:
Diameter - 355mm (14 inch)
Fo - 25Hz
Frequency response - 20Hz to 2kHz
Output sound pressure level - 92dB / 2.83V / m
Chassis - aluminum
Magnet - Neodymium
Basic module:
B95
Modules:
3000M
4500M
2000M
Dimensions (W x H x D):
548 x 1362 x 489mm
Weight:
149kg (1 pcs.)
Shipping weight:
199kg (1 pcs.)
Buy this model
You can make a purchase request for this model. Our funds often hold several copies of each model. We are ready to consider any request and offer you our price.
