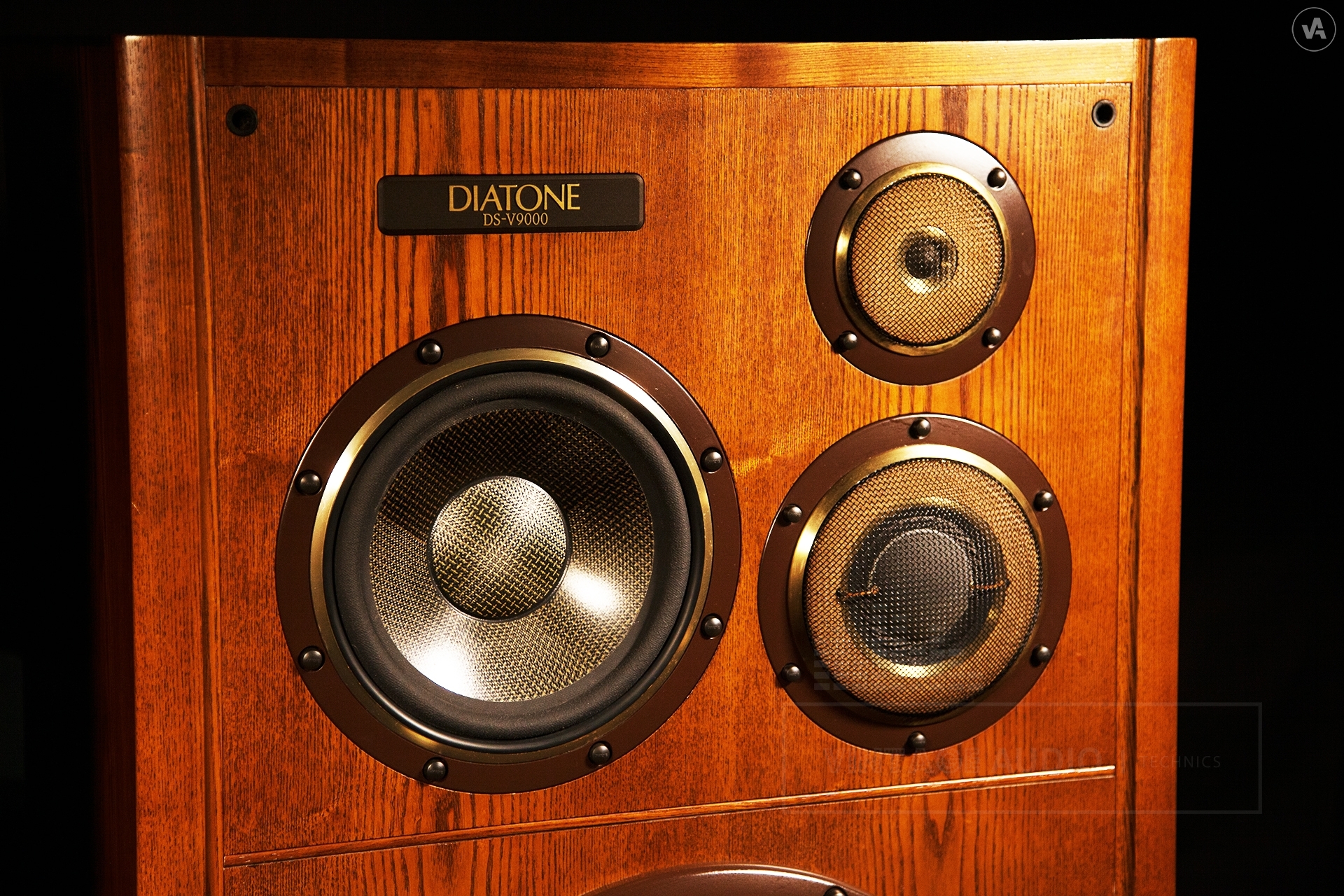

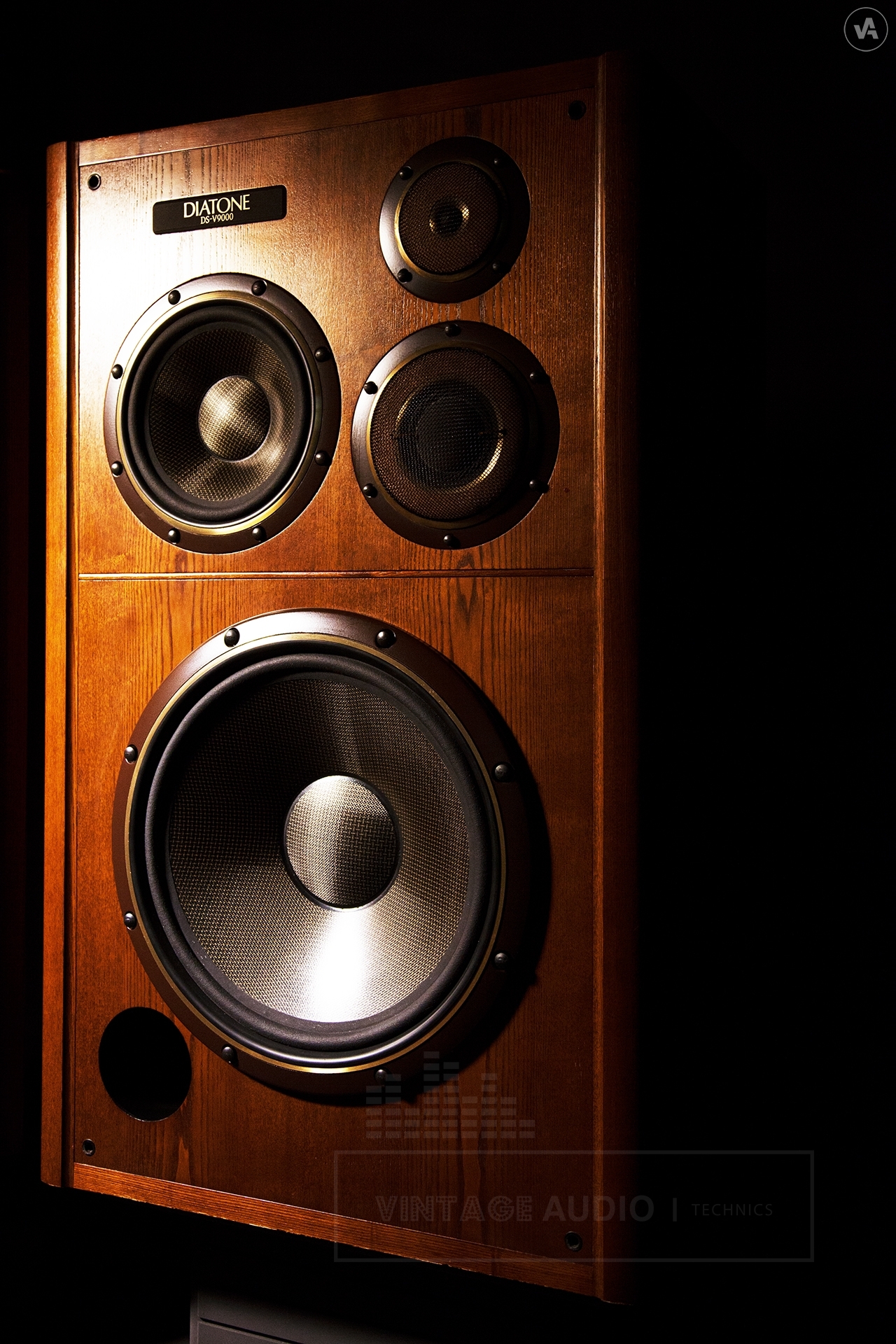

Type: | 4 ways 4 speaker • bass reflex system • floor type • magnetic shield (EIAJ) type |
[Used unit] | |

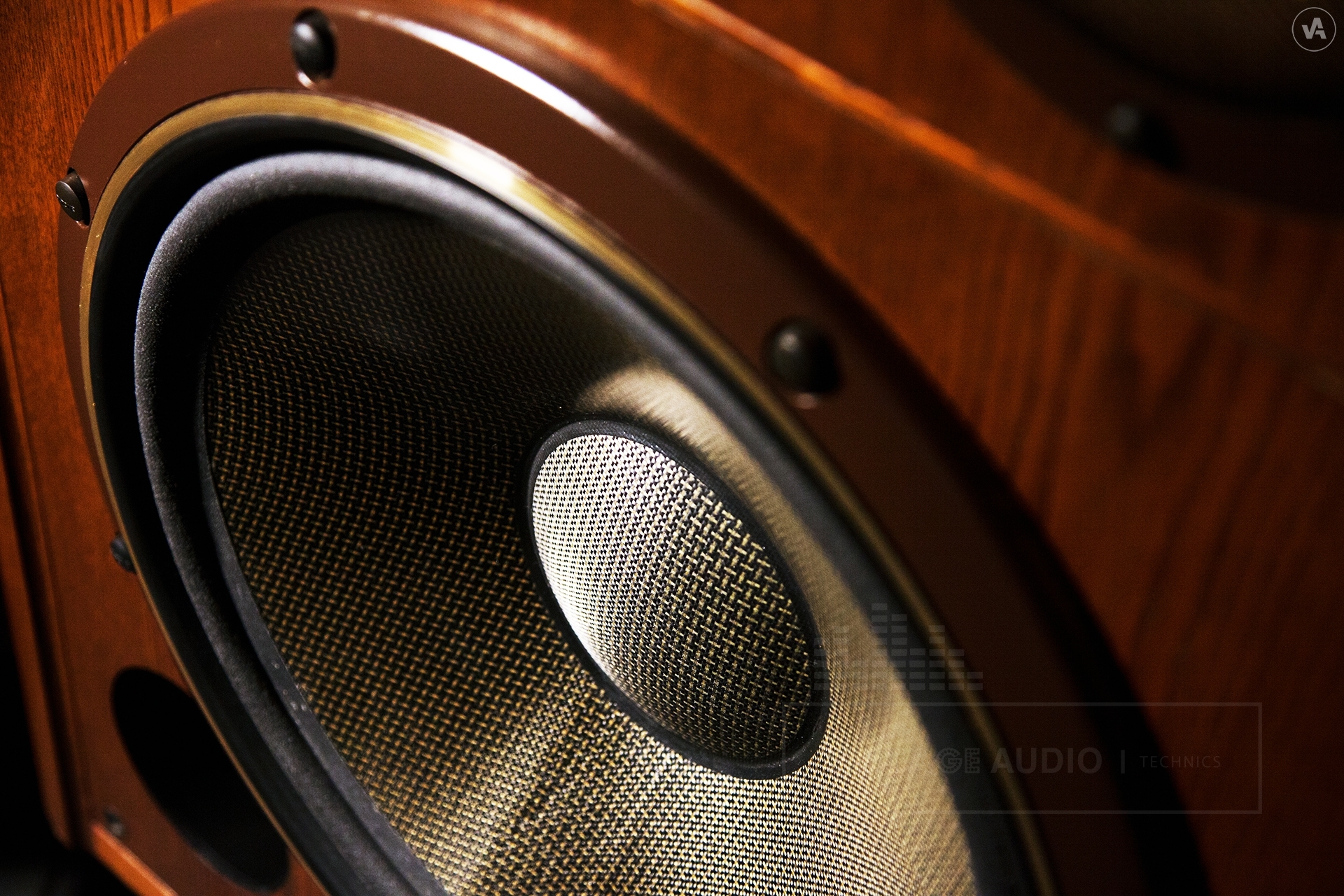

For low-pass: | 40cm cone type for |

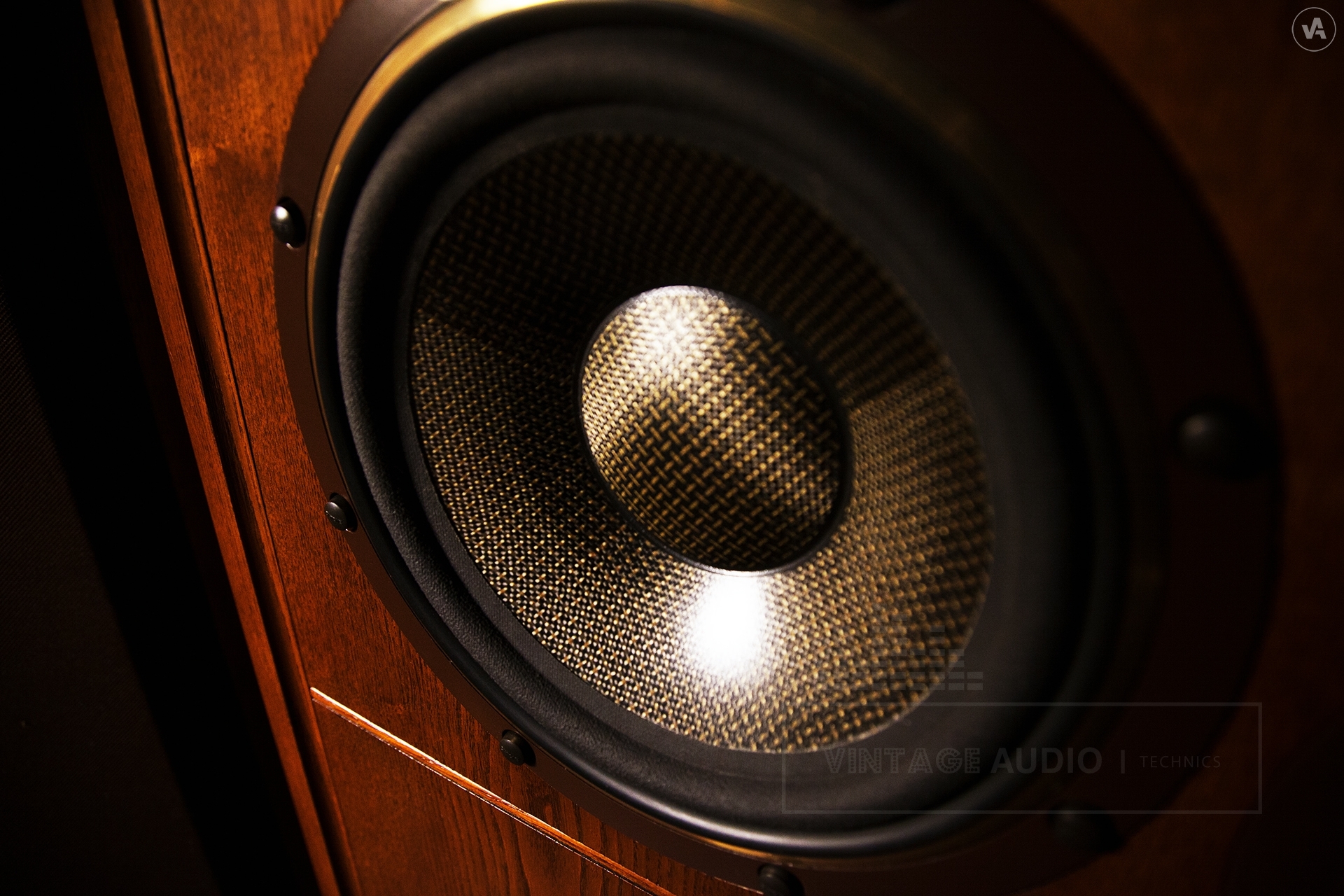

Medium low-pass: | 25cm cone type for |

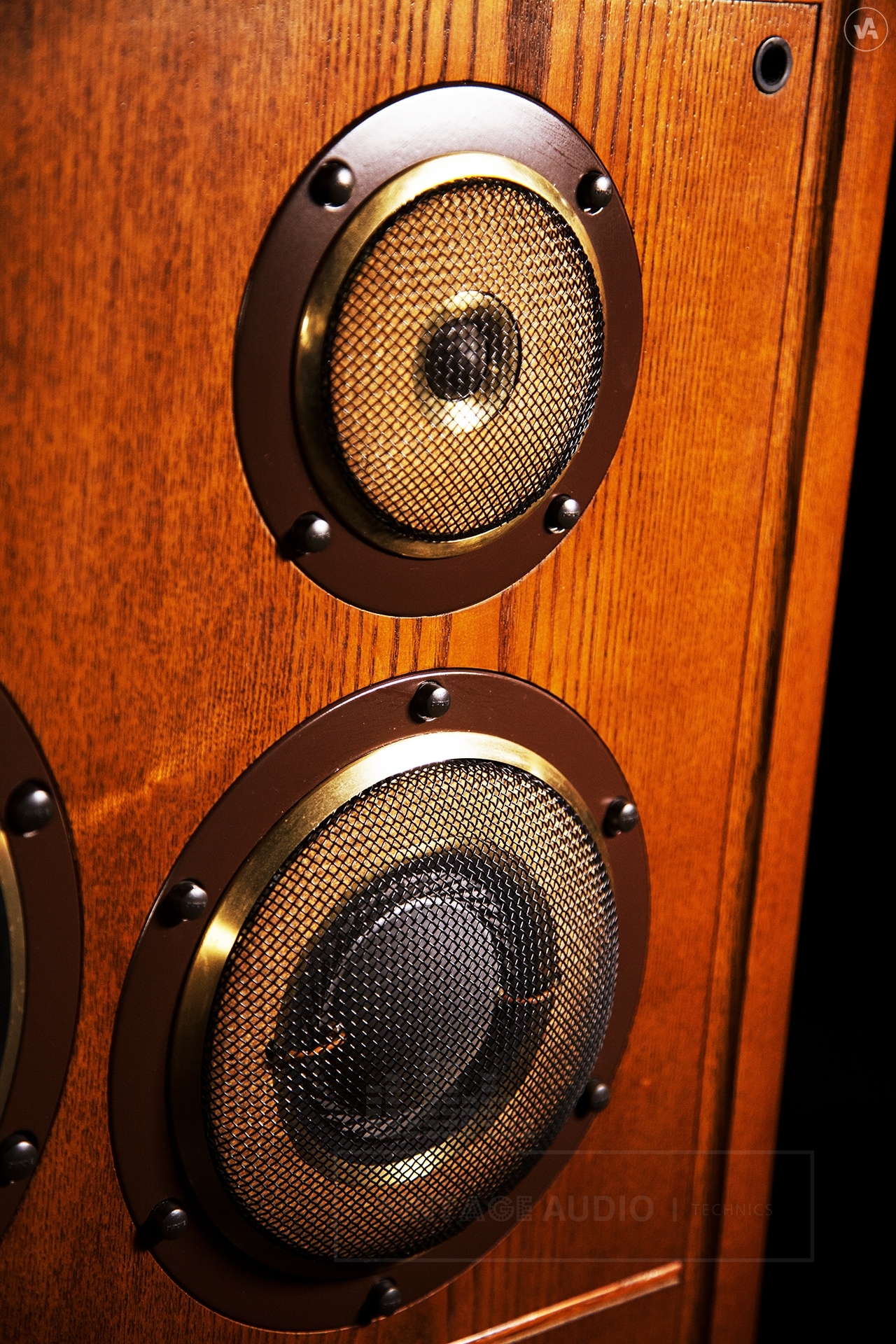

Medium and high range: | 6.5cm for dome type |
Diaphragm material: | Bor |
High region: | 2.3cm dome type |
Diaphragm material: | Bor |
Nominal impedance: | 6Ω |
Playback frequency band: | 18Hz to 80kHz |
Output sound pressure level: | 92dB / W / m |
Crossover frequency: | 300Hz 1.25kHz 4kHz |
Maximum input: | 180W (EIAJ) |
External dimensions (W x H x D): | 652 × 1,080 × 497mm |
Weight: | 125kg |
Attached Acoustic base |
