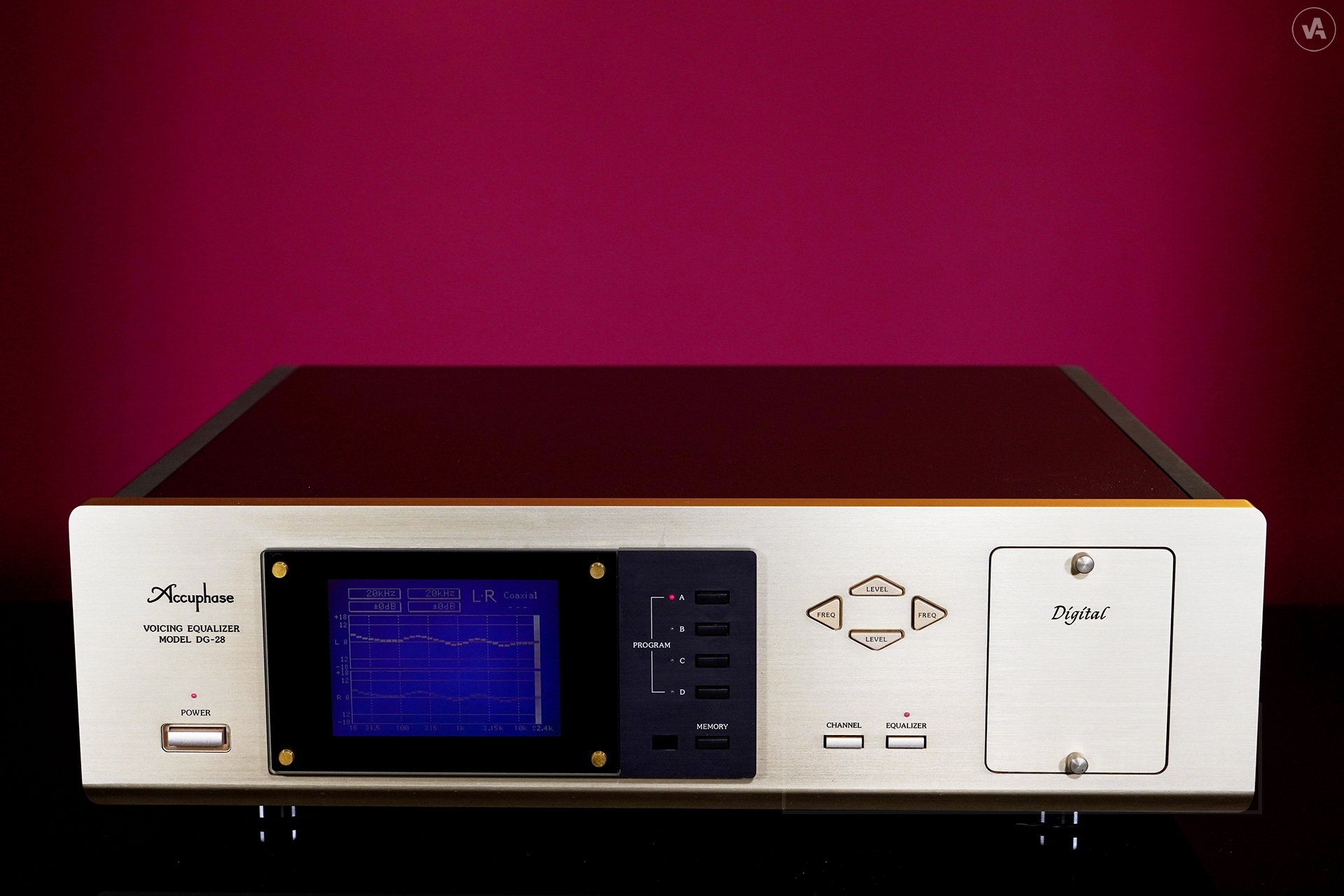

Type: | Digital Voicing Equalizer |

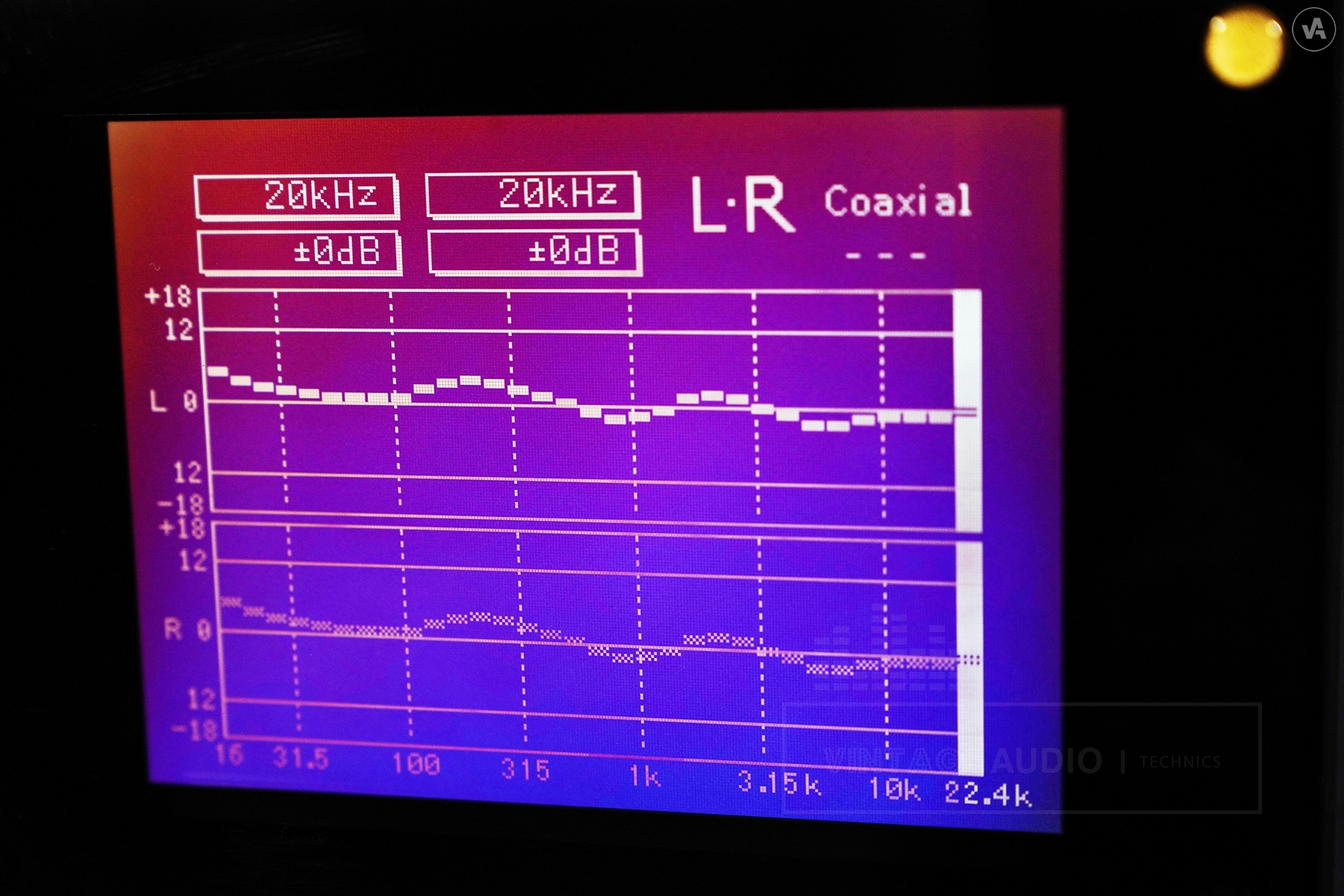

Format Digital method: | 1/6 octave 64 band type (Switchable with 1/3 octave 32 bands) |
Frequency response: | 0 to 22.4kHz ± 0dB (sampling frequency - 48kHz) |
Gain: | 0 to -18dB Variable |
[Digital inputs] | |
Format: | Digital Audio Interface EIAJ CP-1201 |
Quantization bit number: | 16 to 24 bit straight line |
Sampling frequency: | 32kHz, 44.1kHz, 48kHz (auto detection) |
Optical input level: | Light input, -27 to -15 dBm |
Coaxial input level: | 0.5 Vp-p / 75Ω |
[Digital output] | |
Format: | Digital Audio Interface EIAJ CP-1201 |
Quantization bit number: | 24 bit straight line |
Synchronize: | To the sampling frequency input signal |
Optical output level: | light output (emission wavelength 660 nm), -21 to -15 dBm |
Coaxial output level: | 0.5 Vp-p / 75Ω |
Power supply voltage: | AC 100V, 50Hz / 60Hz |
Power consumption: | 12W |
Attached: | Microphone (AM-28) Microphone code (5 m) Microphone holder 75Ω coaxial cable (2 pcs) AC power cord |
Included: | Remote Commander RC-21 |
Power Supply: | DC 3 V • Dry Battery AA / R 6 Used 2 |
Maximum external dimensions (W x H x D): | 45 mm x Height 18 x Length 136 mm |
Weight: | 85g (including batteries) |
Maximum external dimensions (W x H x D): | 475 x 150 x 393mm |
Weight: | 13kg |
Year: | 1997 |
