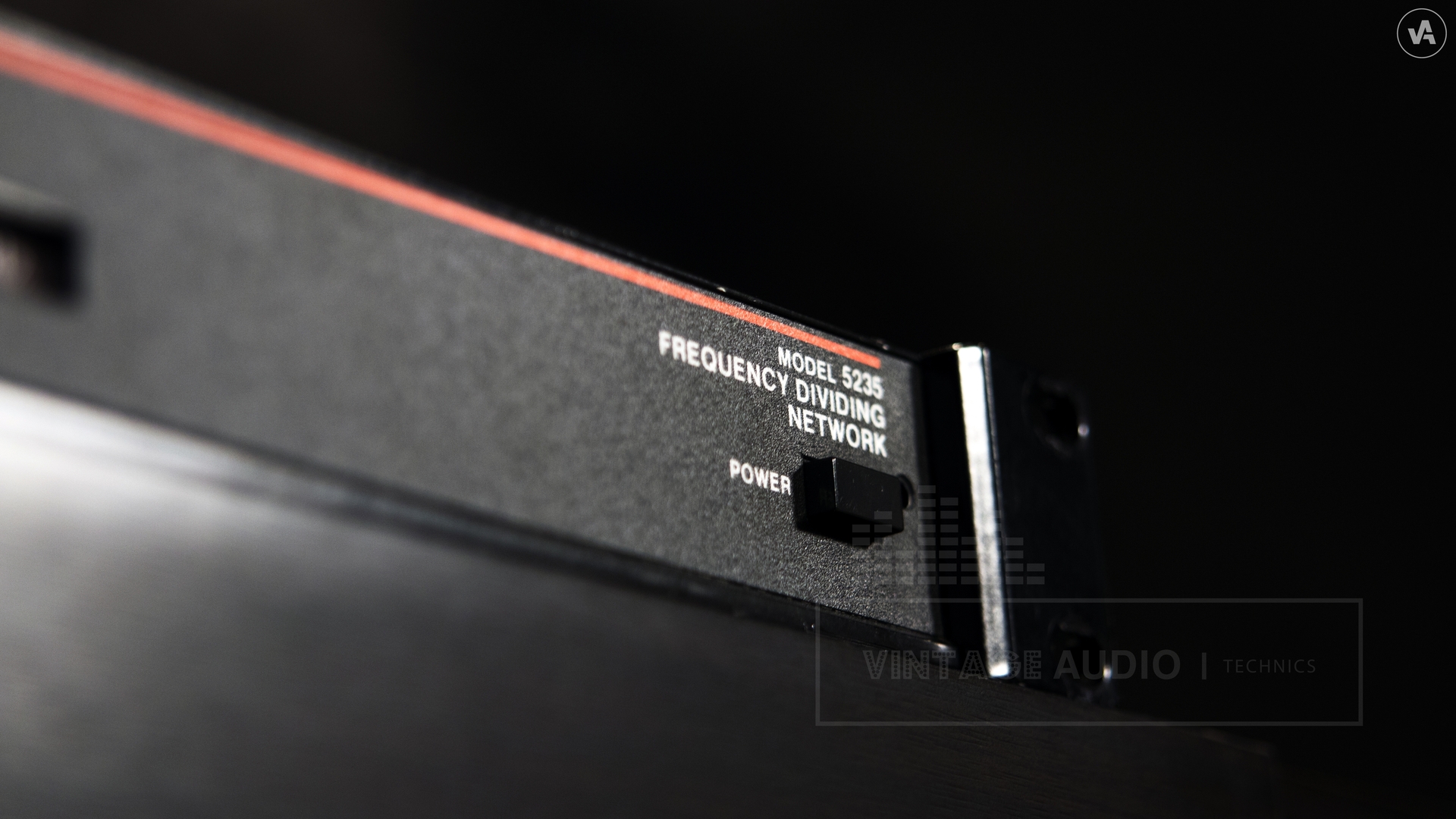

Type: | Electronic Frequency Dividing Network |
Damping characteristics: | 12dB / oct, 18dB / oct |
Total harmonic distortion rate: | 0.01% (20Hz to 20kHz, +18dB, when loading 100kΩ) |
Frequency response: | 20Hz to 20kHz, ± 0.5dB |

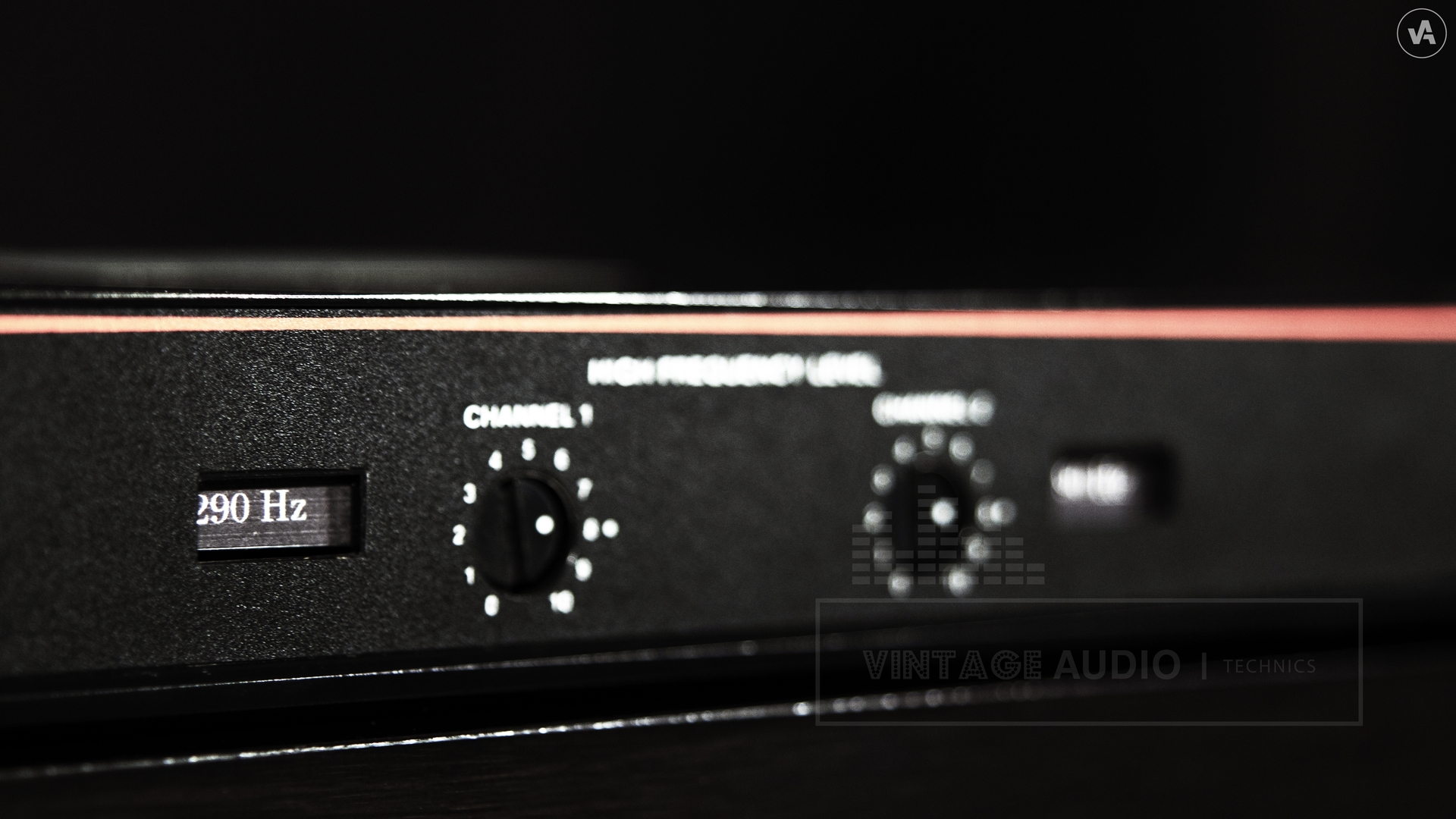

Crossover Frequency: | Selectable by plug-in module, -3 dB crossover point -t 10% |
S / N ratio: | 90dB or more |
Gain: | 0dB (low pass output) + 6dB (high pass output) |
Output level maximum: | 6.2V (+18dB) |
Input impedance: | Balanced - 40kΩ Unbalanced - 20kΩ |
Load impedance: | 600Ω or more |
Output Impedance: | 50Ω |
Channel Isolation: | 70 dB or more |
Channel separation: | 90dB or more |
Filter Frequency / Level at Filter Frequency / Filter Q: | 20Hz / -3dB / 0.707 20Hz / + 6dB / 2 30Hz / -5.5dB / 0.54 30Hz / -1.5dB / 0.84 30Hz / + 6dB / 2 40Hz / -3dB / 0.707 40Hz / + 6dB / 2 |
Connectors: | Inputs and outputs on rear panel barrier strips and XLR/QG connectors Power through 3-wire IEC style connector |
Power Consumption: | 6W |
Power supply: | AC 120V / 240V, 50Hz / 60Hz AC 100V, 50Hz / 60Hz (described in another catalog) |

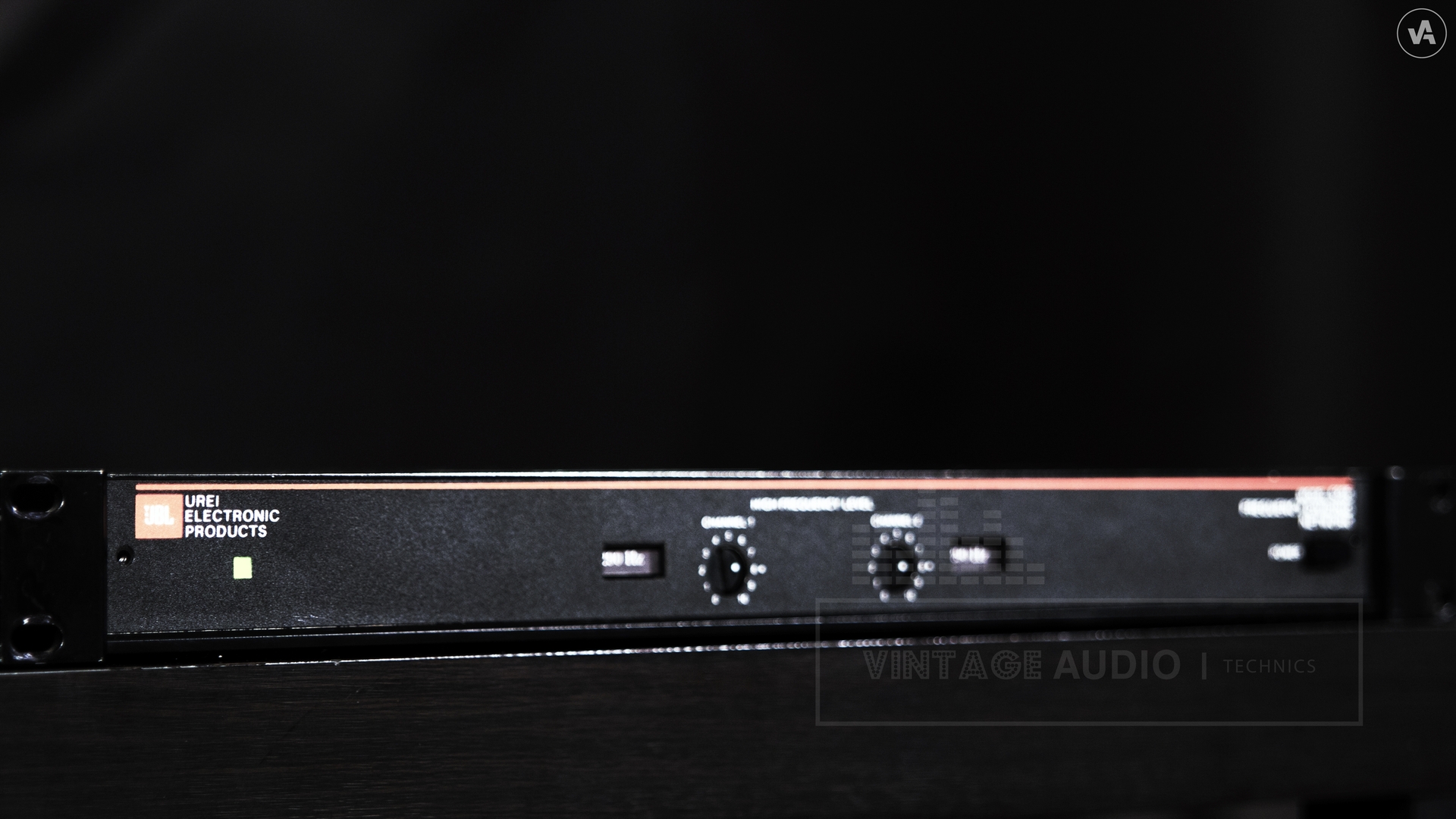

Dimensions (W x H x D): | 483 x 44 x 194mm |
Net Weight: | 1.8kg (4 lb) |
Shipping Weight: | 3kg (6.5 lb) |
