Audio Research EC-4

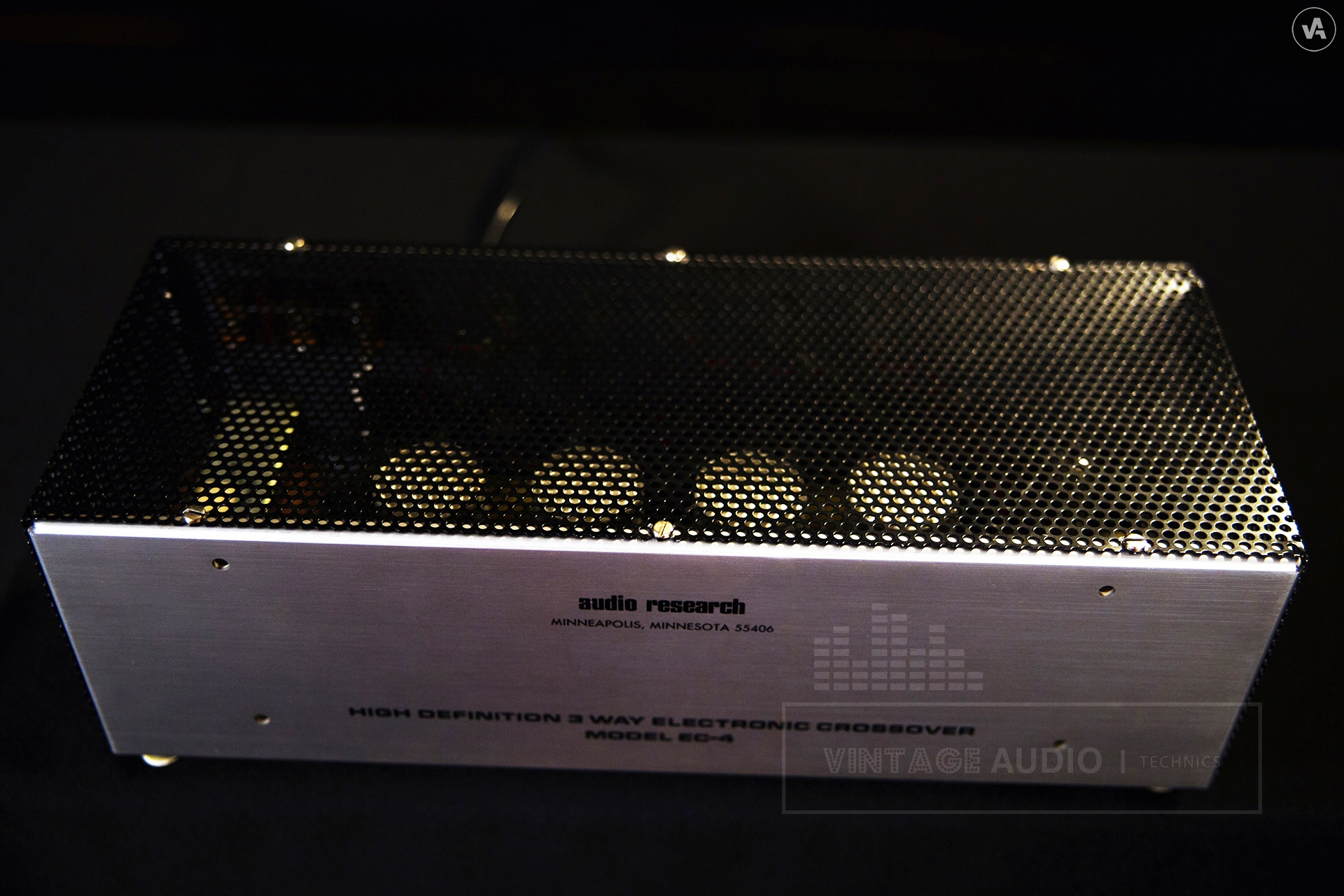

8J5A8475

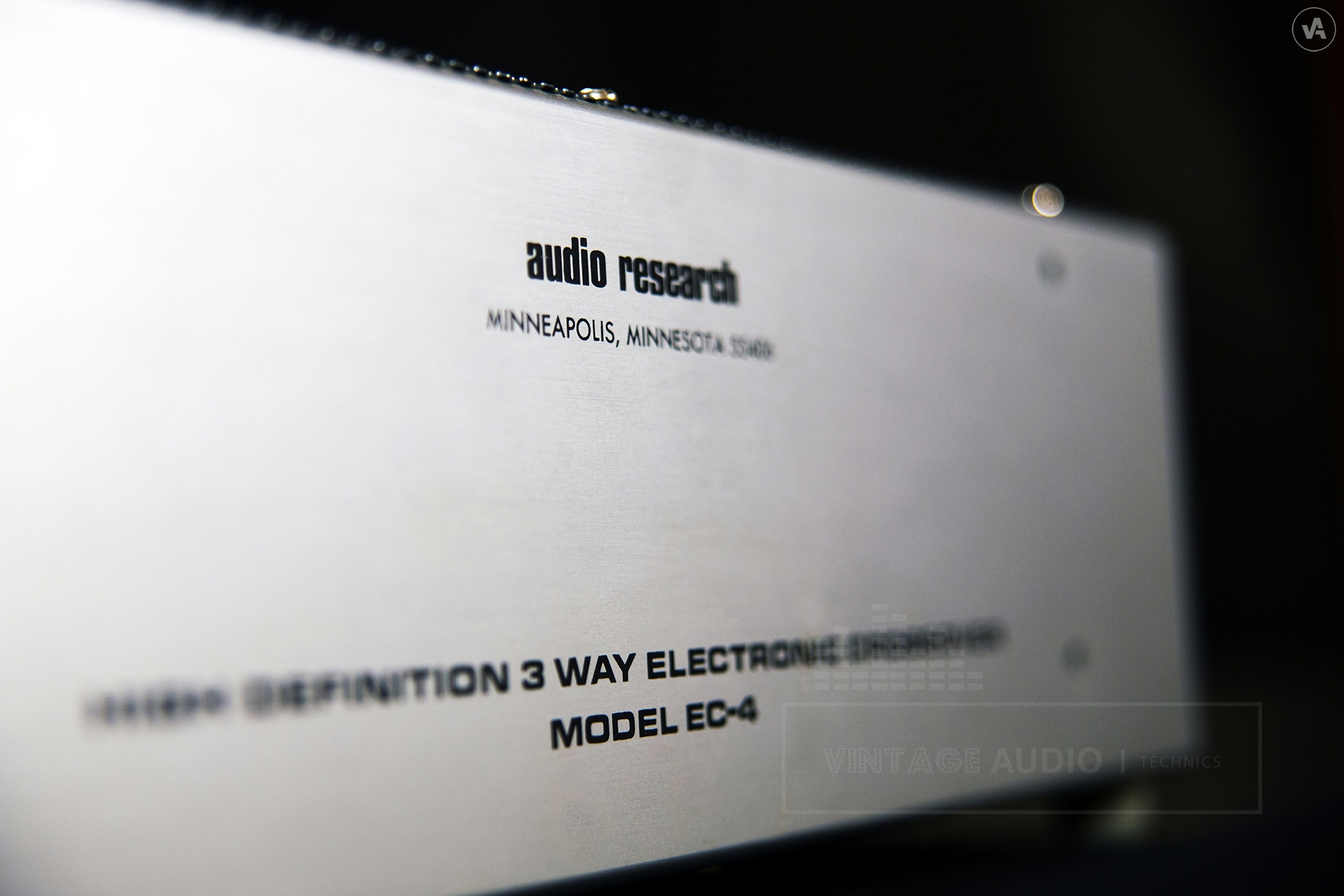

8J5A8468

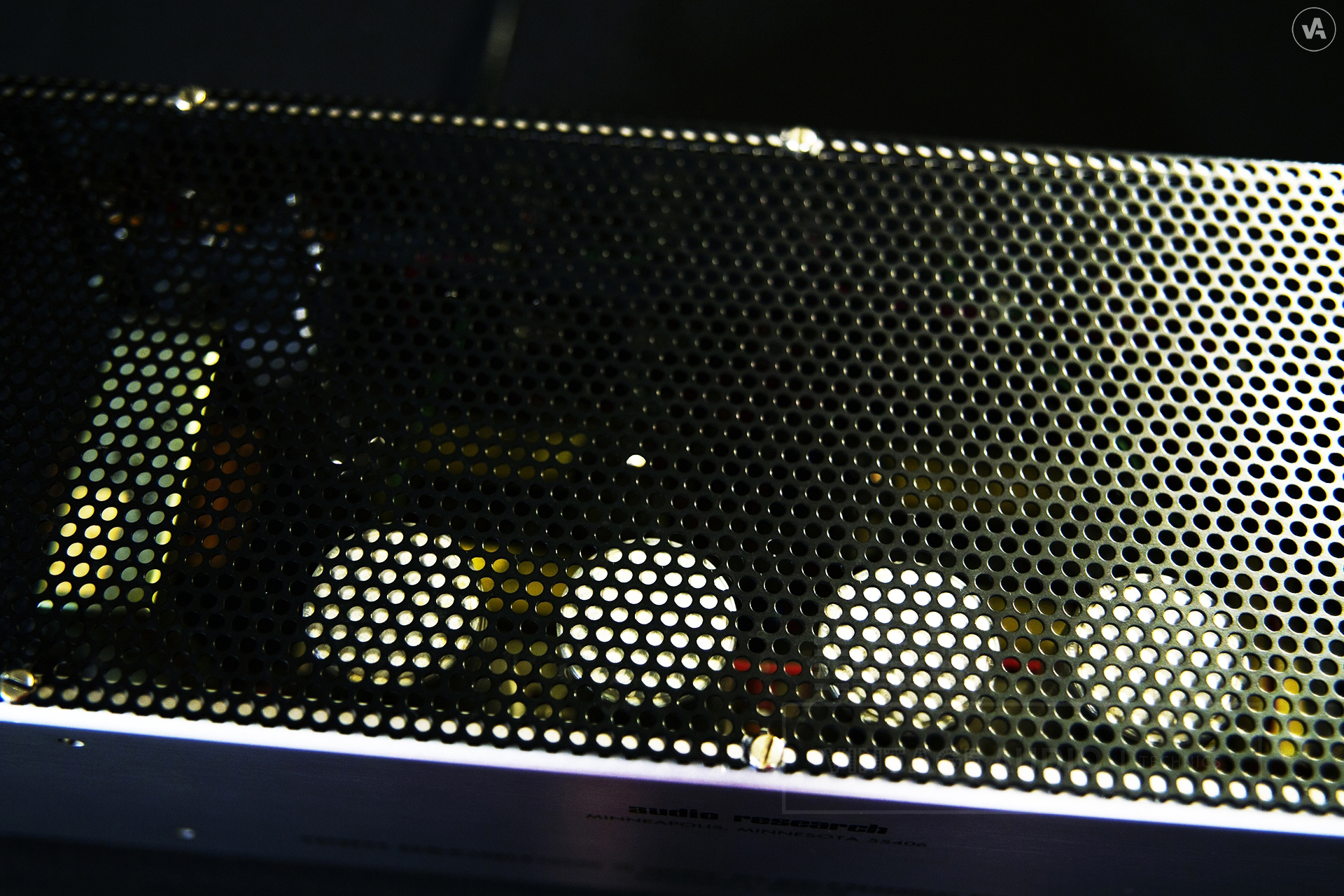

8J5A8465

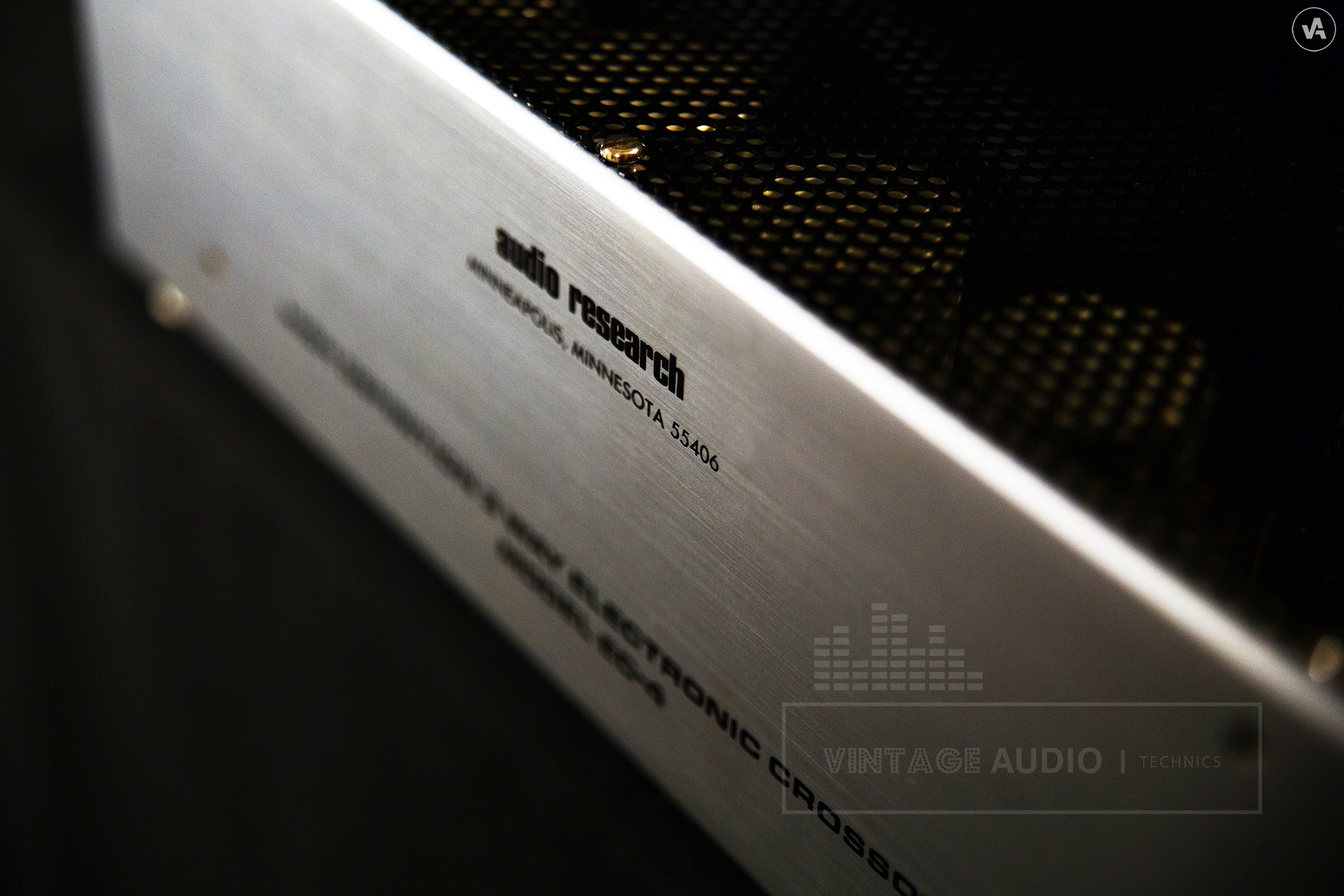

8J5A8473

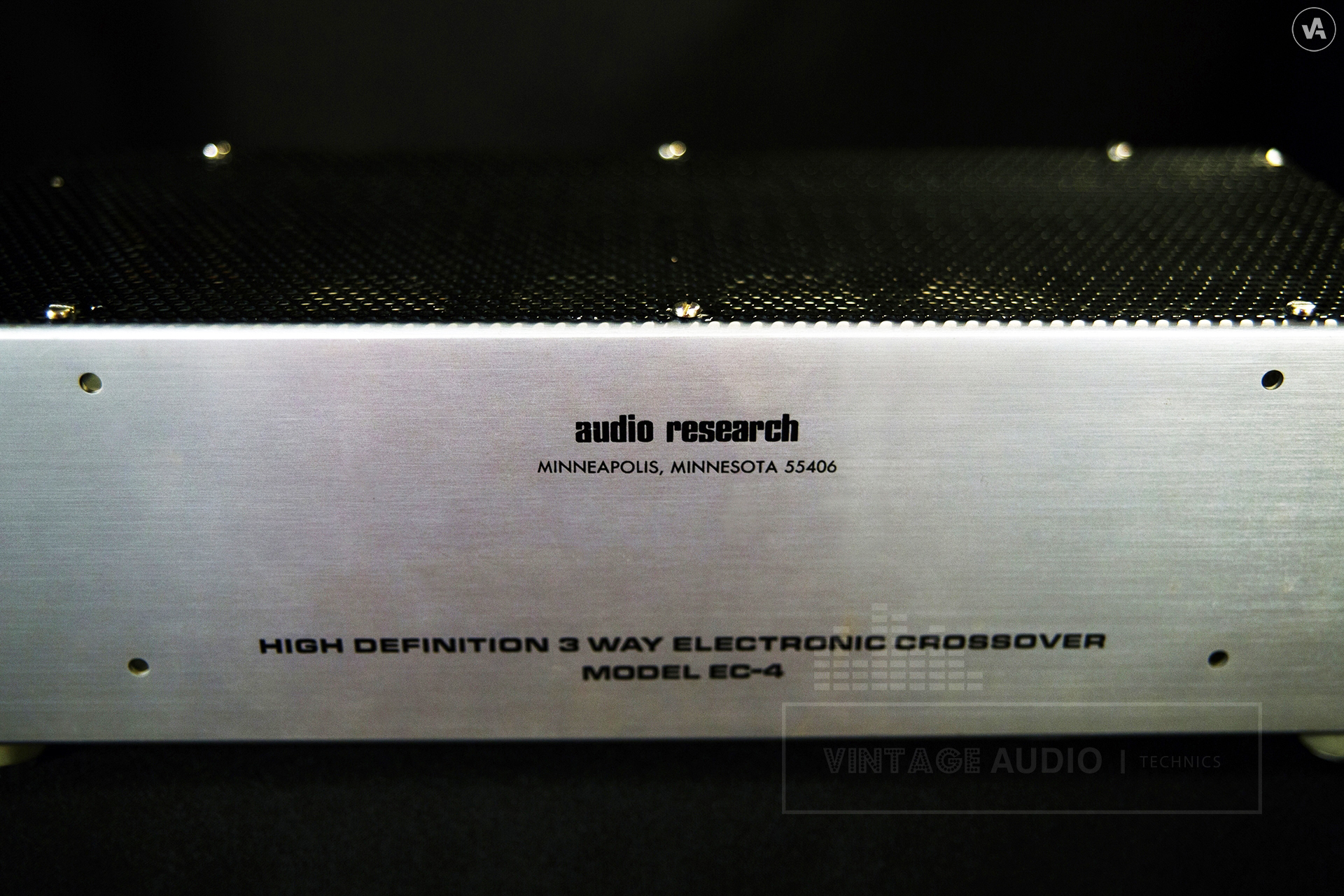

8J5A8478

Technic details

Specifications

Type:
3-way Electronic Crossover
Purpose:
Can be used for active two-channel and three-channel amplification
Standard frequencies:
100Hz and 1000Hz

[Crossover points]
Are selectable at:
50Hz
100Hz
400Hz
500Hz
800Hz
1kHz
1.5kHz
2kHz
3.5kHz
5kHz
7.5kHz
10kHz
The cutoff frequencies:
Are adjustable by changing the capacitors
Crossover slopes are adjustable:
6/12dB/octave below 200Hz
6dB/octave above 200Hz

Tube complement:
6 x ECC83 / 12AX7A
Power supply:
AC 120 / 240V, 50 / 60Hz
Year:
1972

Buy this model

You can make a purchase request for this model. Our funds often hold several copies of each model. We are ready to consider any request and offer you our price.
